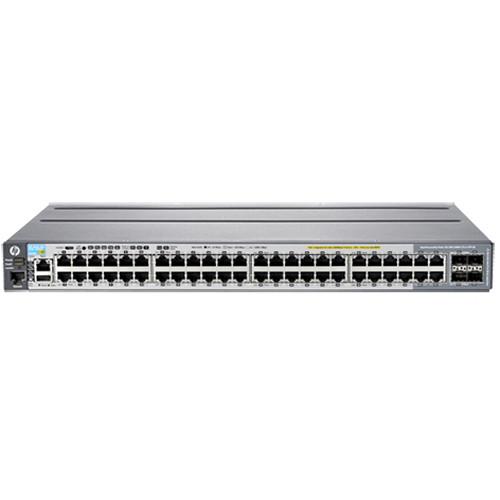

User Manual for HP 2920-48G-POE 48-Port 740W Ethernet Switch Click to enlarge the picture
Contents of the user manual for the HP 2920-48G-POE 48-Port 740W Ethernet Switch
- Product category: Network Switches, Bridges & Hubs HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Network Switches, Bridges & Hubs
|
User manual for the HP 2920-48G-POE 48-Port 740W Ethernet Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Provided by third party: Product overviewThe HP 2920 Switch Series consists of four switches: the HP 2920-24G and 2920-24G-PoE+ Switches with 24 10/100/1000 ports, and the HP 2920-48G and 2920-48G-PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or SFP connectivity.In addition, the 2920 switch series supports up to four optional 10 Gigabit Ethernet (SFP+ and/or 10GBASE-T) ports, as well as a two-port stacking module. These options provide you with flexible and easy-to-deploy uplinks and stacking.Together with static and RIP routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the 2920 switch series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at the enterprise edge, in remote branch offices, and in converged networks. UPC: 887758353578 In the Box HP 2920-48G-POE+ 48-Port 740W Ethernet Switch (US) 2920-48G-POE+ Switch Power Supply Installation Manual Power Cord Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 2920-48G-POE 48-Port 740W Ethernet Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP J9836A#ABA Specs | | | Total Number of Network Ports | 44 | | Token Ring Port | No | | LRE Port | No | | Bypass | No | | Modular | No | | Management Port | Yes | | USB | Yes | | Number of PoE+ (RJ-45) Ports | 44 | | Port/Expansion Slot Details | 3 x Expansion Slot
4 x Gigabit Ethernet Expansion Slot
48 x Gigabit Ethernet Network | | | | Media Type Supported | Twisted Pair | | Ethernet Technology | Gigabit Ethernet | | Network Technology | 10/100/1000Base-T | | | | Number of Total Expansion Slots | 7 | | Expansion Slot Type | SFP
Stacking Module | | Shared SFP Slot | Yes | | Number of SFP Slots | 4 | | | | Manageable | Yes | | Management | - IMC - Intelligent Management Center
- Command Line Interface (CLI)
- Web-based Management
- SNMP v1/2c/3
- Telnet
- RMON
- QoS
- DHCP
- VLAN
- MIB
- sFlow
- Find-Fix-Inform
- XRMON
| | | | Standard Memory | 512 MB | | Memory Technology | SDRAM | | Flash Memory | 1 GB | | | | PoE (RJ-45) Port | Yes | | Input Voltage | 110 V AC
220 V AC | | Power Source | Power Supply | | Redundant Power Supply Supported | No | | | | Compatible Rack Unit | 1U | | Form Factor | Rack-mountable | | Height | 1.7" | | Width | 17.4" | | Depth | 13.2" | | Weight (Approximate) | 12.86 lb | | | | Certifications & Standards | Safety:- CE
- EN 60825-1
- FCC Part 15
- EN 55022 Class A
- EN 55024: 1998
- C-Tick
- ICES-003, Class A
- VCCI
- Class A
- IEC 60950-1 :Second Edition
- IEC 60825-1
- EN62479:2010
- CSA C22.2 No.
- 60950-1-07 2nd Edition
- EN 60950-1:2006+A11:2009+A1:2010+A12:2011
- IEC
- 60950-1 (ed.2): am1
Emissions:- FCC part 15 Class A
- VCCI Class A
- EN 55022/CISPR 22 Class A
Immunity:- EN 55024, CISPR 24
- IEC 61000-4-2
- IEC 61000-4-3
- IEC 61000-4-4
- IEC 61000-4-5
- IEC 61000-4-6
- IEC 61000-4-8
- IEC 61000-4-11
- IEC 61000-3-2
- IEC 61000-3-3
- IEC 60825-1
IEEE Standards:- 802.1AX
- 802.1D
- 802.1p
- 802.1Q
- 802.1s
- 802.1v
- 802.1w
- 802.3ab
- 802.3ad
- 802.3af
- 802.3at
- 802.3az
- 802.3x
| | Environmental Certification | 80 Plus
RoHS | | | | Package Weight | 20.35 lb | | Box Dimensions (LxWxH) | 26.0 x 19.0 x 5.3" |
