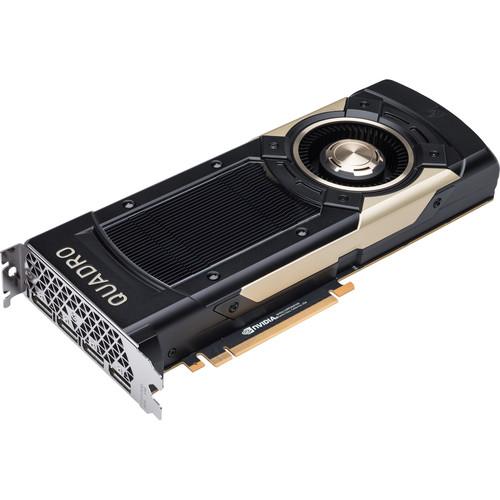

User Manual for HP 3ME26AT Quadro GV100 Graphics Card Click to enlarge the picture
Contents of the user manual for the HP 3ME26AT Quadro GV100 Graphics Card
- Product category: Graphic Display Cards HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Graphic Display Cards
|
User manual for the HP 3ME26AT Quadro GV100 Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Designed for deep learning, complex simulation, and photorealistic rendering, the HP Quadro GV100 Graphics Card can accelerate intense graphic and computational workflows. This HP version of the Quadro GPU is designed to upgrade HP workstations for more powerful graphics processing. NVIDIA's Volta architecture GPU features 5120 CUDA cores for 14.8 TFLOPS of single precision performance, 7.9 TFLOPS of double precision performance, 29.6 TFLOPS of single precision performance, and with the addition of 640 tensor cores, 118.5 TFLOPS of tensor deep-learning performance. High performance at different precision levels provides acceleration for compute acceleration using the CUDA platform and other APIs including OpenCL, OpenGL, DirectCompute, and more. For vRAM, 32GB of HBM2 memory provides a 4096-bit wide memory bus for 870 GB/s of total bandwidth. The output panel on this card features four DisplayPort terminals. Up to four monitors can be simultaneously supported by a single card, without any extra hardware, to create high-resolution video walls with your workstation or for more desktop real-estate to increase productivity. DisplayPort 1.4 support allows this card to drive UHD, DCI 4K, 5K, and 8K displays. The included DisplayPort to DVI adapters can be used for connecting to legacy hardware while other separately available adapters can be used with this card to drive other kinds of displays and projectors. For cooling, the GV100 uses a blower-style cooler. This cooler uses a radial fan to force air through the card's heatsink and out through the rear of the case. This cooling configuration can be used in crowded workstation environments with multiple GPUs or where space between computer components can be a concern, as hot air is not recirculated back into the case. - CUDA
- NVIDIA's parallel computing platform which enables an increase in computing performance by harnessing the parallel nature of GPU processing. CUDA compatible applications can assign intensive parallel computing tasks, such as real-time video rendering, to the GPU to process, freeing up the computer's CPU to run other tasks.
- GPUDirect Support
- Using GPUDirect, multiple GPUs, third party network adapters, solid-state drives (SSDs) and other devices can directly read and write CUDA host and device memory, eliminating unnecessary memory copies, dramatically lowering CPU overhead, and reducing latency, resulting in significant performance improvements in data transfer times for applications.
- NVLink and SLI Support
- NVIDIA's NVLink is a high-bandwidth, energy-efficient interconnect. On the GV100 NVLink enables communication and resource sharing between two GV100 GPUs using separately available NVLink bridges. The technology allows data sharing at rates several times faster than the traditional PCI-express 3.0 interconnect, resulting in dramatic speed-ups in application performance and creating a new breed of high-density, flexible servers for accelerated computing.
NVIDIA's SLI technology is also supported to scale graphics performance, expand display real estate, and assemble virtual systems over multiple GPUs using separately available SLI bridges. - Quadro Sync II
- By connecting up to four compatible Quadro GPUs to a separate Quadro Sync board you can perfectly synchronize the display outputs of all the connected GPUs for critical video wall and extended desktop applications utilizing multiple displays. Quadro Sync also enables NVIDIA Quadro Mosaic technology on those synchronized displays and projectors, providing an easy way to scale the resolution of any application. Quadro Sync II allows for two Quadro Sync cards to be used in the same system, enabling support for up to 32 displays with stereoscopic visuals and support for projector overlap, and WMI (Windows Instrumentation Management).
- Mosaic
- Leverage multiple displays to easily span any application across multiple displays or projectors from a single workstation, without sacrificing performance or power. Combined with NVIDIA's nView desktop management software you also get bezel correction and projector overlap for seamless multi-display exhibition.
- Other Features
-
- HDR support over DisplayPort 1.4 (SMPTE 2048/2086, BT. 2020) (4K at 60Hz 10b/12b HEVC Decode, 4K at 60Hz 10b HEVC Encode)
- HDCP 2.2 support over DisplayPort, DVI and HDMI connectors
- 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connection)
- Underscan/overscan compensation and hardware scaling
- Dolby Digital, DTS, LPCM, and Dolby DD+ audio format support at 16/20/24-bit 44.1/88.2/176/192 kHz resolutions via DisplayPort and HDMI
UPC: 192018857889 In the Box HP 3ME26AT Quadro GV100 Graphics Card 4 x DisplayPort to DVI Adapters DisplayPort to HDMI Adapter Stereo Connector Bracket Auxiliary Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 3ME26AT Quadro GV100 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP NVIDIA Quadro GV100 Specs | | | GPU Model | NVIDIA Quadro GV 100 | | Stream Processors | 5120 CUDA Cores
640 Tensor Cores | | Floating Point Performance | Double Precision Performance: 7.9 TFLOPS
Single Precision Performance: 14.8 TFLOPS
Half Precision Performance: 29.6 TFLOPS | | Interface | PCI Express 3.0 x16 | | Supported APIs | CUDA
DirectCompute
OpenCL
Shader Model: 5.1
OpenGL: 4.5
DirectX: 12
Vulkan: 1 | | | | Memory Configuration | 32 GB | | Memory Interface | HBM2 | | Memory Interface Width | 4096-Bit | | Memory Bandwidth | 870 GB/s | | | | Display Connectors | 4 x DisplayPort 1.4 | | Maximum Digital Resolution | 7680 x 4320 @ 60 Hz | | | | Max Power Consumption | 250 W | | PCI Power Connectors | 1 x 8-Pin | | | | Height | 4.4" / 111.76 mm | | Length | 10.5" / 266.70 mm | | Width | Dual-Slot | | | | Cooler Type | Blower-Style Fan |
