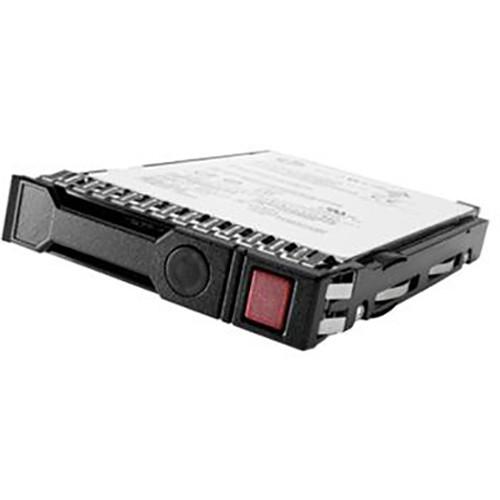

User Manual for HP 4TB SC Midline 512e 7200 rpm SAS-3 3.5" Performance Internal HDD

Click to enlarge the picture
HP 4TB SC Midline 512e 7200 rpm SAS-3 3.5" Performance Internal HDD Contents of the user manual for the HP 4TB SC Midline 512e 7200
  • Product category: NAS Expansion Drives HP
  • Brand: HP
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for HP NAS Expansion Drives

User manual for the HP 4TB SC Midline 512e 7200 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any HP product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!



Product description

The 4TB SC Midline 512e 7200 rpm SAS-3 3.5" Performance Internal HDD from HP is designed for servers and storage solutions where high capacities are required, along with moderately-priced reliability and performance for non-mission critical, low workload applications, such as disk backup, archival, and reference applications. Additionally, its Advanced Format 512e means it is intended for servers and storage solutions that are 4K aligned, and as a member of the Performance series, it will deliver improved speed. This drive has a capacity of 4TB, a rotational speed of 7200 rpm, a SAS-3 12 Gb/s interface, and a 3.5" form factor. It comes installed in a Hot Plug SmartDrive carrier, which helps to enable a more balanced system architecture for unified storage, improved performance, and greater reliability. HP SmartDrive is also able to handle larger amounts of data, reduce overall initialization times, and protect against multi-day outages and data loss.

HP SmartDrive is compatible with Gen8 and Gen9 HPE ProLiant Servers, and also maintains backward compatibility with existing standard hot plug carriers to provide support for HPE ProLiant G7 and earlier servers and storage enclosures. This SAS drive is protected by a limited 1-year warranty, regardless of the warranty period for the system in which it is installed.

General Features

  • HPE Server SAS Hard Drives deliver high reliability for mission-critical applications.
  • Robust SAS interface for increased performance.
  • HPE Smart Carrier for HPE ProLiant Servers (both Gen8 and Gen9 are supported). They maintain backward compatibility with existing standard hot-plug carriers to provide support for HPE ProLiant G7 and earlier servers and server storage enclosures.
  • They are well suited for transaction processing, database applications, analytics, high-performance computing, and business applications.
    Pre-Failure Alert
  • When used in conjunction with a SMART Array Controller and Systems Insight Manager, the SMART-capable firmware in HPE hard drives enables extensive fault prediction capabilities. If potential problems develop in one of the drives, the Smart Array Controller, Systems Insight Manager, and/or SMART hard disk drive lets you know in advance so you can have the drive replaced, before it fails, under warranty.
    Compatibility
  • To support HPE hard drives exceeding 2.2TB, HPE Smart Array Firmware version 5.0 or later is required for the following controllers:
  • HPE Smart Array P212 Controller
  • HPE Smart Array P410 Controller
  • HPE Smart Array P411 Controller
  • HPE Smart Array P711m Controller
  • HPE Smart Array P812 Controller

    To use hard drives exceeding 2.2TB, you must create a boot volume using offline ACU version 8.75 or later. HPE Smart Array controllers do not support boot volumes exceeding 2.2TB.
In the Box HP 4TB SC Midline 512e 7200 rpm SAS-3 3.5" Performance Internal HDD
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the HP 4TB SC Midline 512e 7200 rpm SAS-3 3.5" Performance Internal HDD in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    HP 793669-B21 Specs

    Capacity 4 TB (4,000,787 MB)
    Rotational Speed 7200 rpm
    Interface SAS-3
    Transfer Rate Synchronous (Maximum) 12 Gb/s
    Seek Time (typical reads, including settling) Single Track: 0.25 ms
    Average: 7.6 ms
    Full-Stroke: 15 ms
    Physical Configuration Bytes per Sector: 512
    Logical Blocks: 7,814,037,168
    Operating Temperature 50 to 95°F / 10 to 35°C
    Dimensions 0.62 x 2.98 x 4.67" / 15.75 x 75.69 x 118.62 mm
    Weight Not specified by manufacturer
