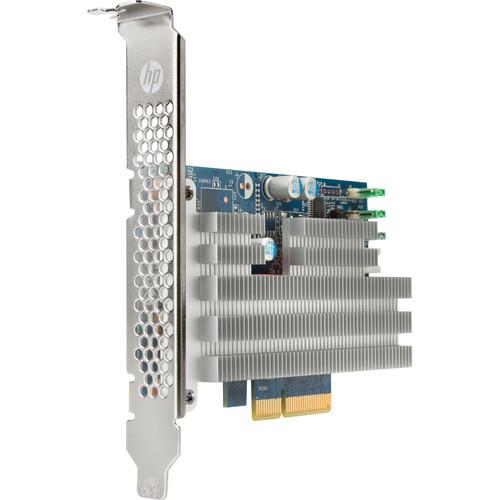

User Manual for HP 512GB Turbo Drive G2 NVMe PCIe M.2 Internal SSD Click to enlarge the picture
Contents of the user manual for the HP 512GB Turbo Drive G2 NVMe
- Product category: Internal Drives HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Internal Drives
|
User manual for the HP 512GB Turbo Drive G2 NVMe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More Add 512GB of storage to select HP systems using the 512GB Turbo Drive G2 NVMe PCIe M.2 Internal SSD from HP. Built using the Non-Volatile Memory Express (NVMe) bus, this SSD has an M.2 2280 form factor, Tri-Level Cell (TLC) flash media, connects to your system using a PCIe 3.0 x4 interface, and features no moving parts. This helps protect it from accidental bumps and drops, as well as achieve faster data transfer speeds when compared to a traditional spinning hard drive or a SATA SSD. Having no moving parts also means that this SSD will receive less wear and tear, as there are no read and write heads for the SSD media to come into contact with. In terms of speed, this SSD offers sequential read speeds of up to 2600 MB/s and sequential write speeds of up to 1200 MB/s. An MTBF rating of 1.5 million hours will help ensure a long operational life. General Features - Fast
- Tackle large files and reduce your work time with a solid-state drive powered by NVMe PCIe M.2 technology
- Optimized Storage
- Improve performance by combining this 512GB SSD with other high-capacity drives
- Improved Performance
- Access up to 4x the performance with triple layer (TLC) architecture, which stacks three cell layers on top of one another
Compatible Systems All-in-One Desktops - HP 23.8" EliteOne 1000 G1 All-in-One
- HP 23.8" EliteOne 1000 G1 Multi-Touch All-in-One
- HP 27" EliteOne 1000 G1 4K UHD All-in-One
- HP 34" EliteOne 1000 G1 Curved All-in-One
- HP 23.8" EliteOne 1000 G2 All-in-One
- HP 23.8" EliteOne 1000 G2 Multi-Touch All-in-One
- HP 27" EliteOne 1000 G2 4K UHD All-in-One
- HP 34" EliteOne 1000 G2 Curved All-in-One
HP EliteSlice Desktops HP EliteDesk Desktops - HP EliteDesk 705 G2 Microtower
- HP EliteDesk 705 G2 Small Form Factor
- HP EliteDesk 705 G3 Microtower
- HP EliteDesk 705 G3 Small Form Factor
- HP EliteDesk 705 G4 Desktop Mini (35W)
- HP EliteDesk 705 G4 Microtower
- HP EliteDesk 705 G4 Small Form Factor
- HP EliteDesk 800 G3 Desktop Mini (35W)
- HP EliteDesk 800 G3 Desktop Mini (65W)
- HP EliteDesk 800 G3 Small Form Factor
- HP EliteDesk 800 G3 Tower
- HP EliteDesk 800 G4 Desktop Mini (35W)
- HP EliteDesk 800 G3 Tower
- HP EliteDesk 800 G4 Small Form Factor
- HP EliteDesk 800 G4 Tower
- HP 23.8" EliteOne 800 G4 All-in-One (Healthcare Edition)
- HP 23.8" EliteOne 800 G4 All-in-One
- HP 23.8" EliteOne 800 G4 Multi-Touch All-in-One
HP ProDesk Desktops - HP ProDesk 400 G3 Desktop Mini
- HP ProDesk 600 G3 Desktop Mini
- HP ProDesk 600 G3 Microtower
- HP ProDesk 600 G3 Small Form Factor
- HP ProDesk 400 G4 Desktop Mini
- HP ProDesk 400 G5 Microtower
- HP ProDesk 400 G5 Small Form Factor
- HP ProDesk 600 G4 Desktop Mini
- HP ProDesk 600 G4 Microtower
- HP ProDesk 600 G4 Small Form Factor
- HP 20" ProOne 400 G3 All-in-One
- HP 20" ProOne 400 G3 Multi-Touch All-in-One
- HP 21.5" ProOne 600 G4 All-in-One
- HP 21.5" ProOne 600 G3 All-in-One
- HP 21.5" ProOne 600 G4 Multi-Touch All-in-One
UPC: 190780846087 Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 512GB Turbo Drive G2 NVMe PCIe M.2 Internal SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP X8U75AA Specs | | | Interface | PCIe 3.0 x4 | | Sequential Read Speed | 2600 MB/s | | Sequential Write Speed | 1200 MB/s | | | | Drive Type | SSD | | Form Factor | M.2 2280 | | | | Flash Memory Type | Tri-Level Cell (TLC) | | | | Mean Time Between Failures (MTBF) | 1.5 Million Hours | | | | Power Draw | 6.1 W (Active)
80.00 mW (Idle) | | | | Operating Shock | 1500 G / 0.5 ms | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Operating Humidity | 5 to 95% | | | | Dimensions (W x H x D) | 0.9 x 0.1 x 3.1" / 22.0 x 3.7 x 80.0 mm | | Weight | 0.3 oz / 8 g |
