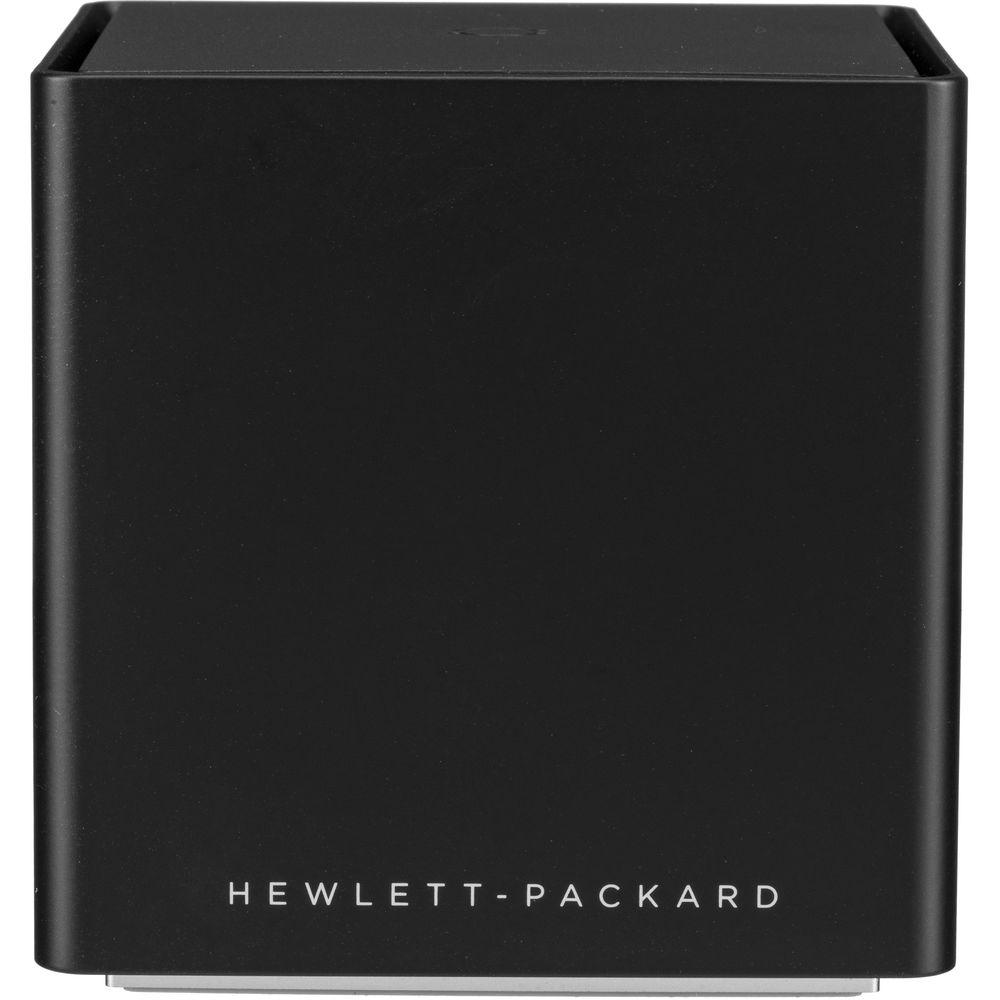

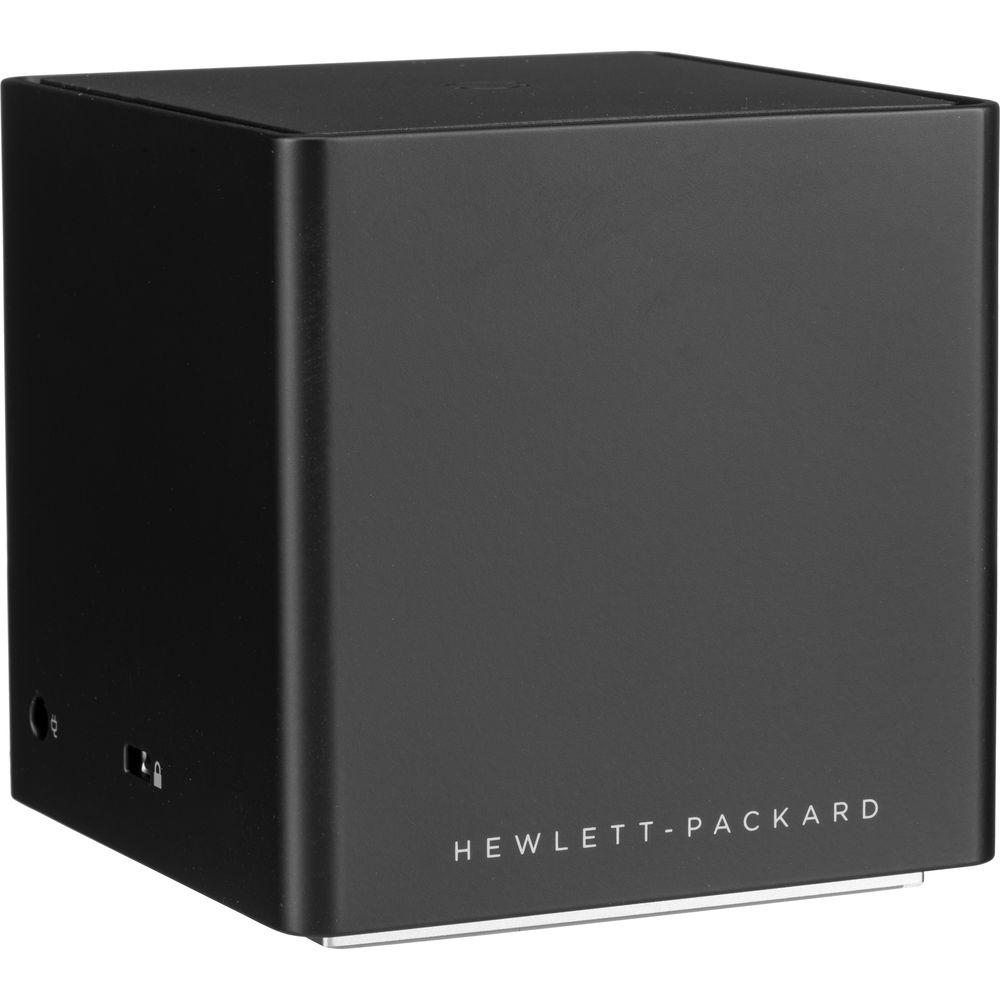

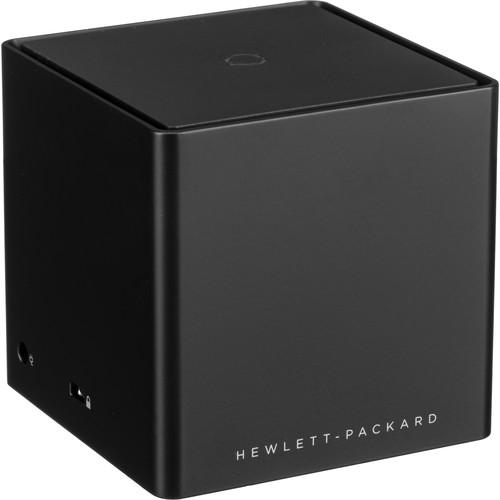

User Manual for HP Advanced Wireless Docking Station Click to enlarge the picture
Contents of the user manual for the HP Advanced Wireless Docking Station
- Product category: Docking Stations & Port Replicators HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Docking Stations & Port Replicators
 |
User manual for the HP Advanced Wireless Docking Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Expand the workspace of your HP Elite x2 using the Advanced Wireless Docking Station from HP, which enables seamless connectivity using WiGig technology. This docking station allows users to connect their tablet to dual displays, a wired network, and everyday devices using DisplayPort 1.2, VGA, Gigabit Ethernet, USB 3.1 Gen 1 Type-A, and 3.5mm audio jacks for headphones and a mic. After a one-time onscreen set up, your connected devices are ready to go as soon as your tablet is in range. Included is an AC power adapter and protection is provided by a limited 1-year warranty.
Please be aware that HP's Advanced Wireless Docking Station is only compatible with the HP Elite x2 1011 G1 with an optional installed Intel Tri Band Wireless AC with WiGig Combo card or the HP Elite x2 1012 G1 with an optional installed Intel 18260 WLAN card. Tablet must be positioned within 4' of the wireless dock and there can be no obstructions within the dock's line of sight. General Features - Clutter-Free Professional Desktop
- Enable flexible positioning and help keep your workspace tidy with the cubic wireless design.
- Desktop Productivity
- After a one-time onscreen set up through your HP Elite x2 1011 G1 or HP Elite x2 1012 G1 (Intel 18260 WLAN, sold separately, required), your connected devices are ready to go as soon as your tablet is in range.
- Complete Connectivity

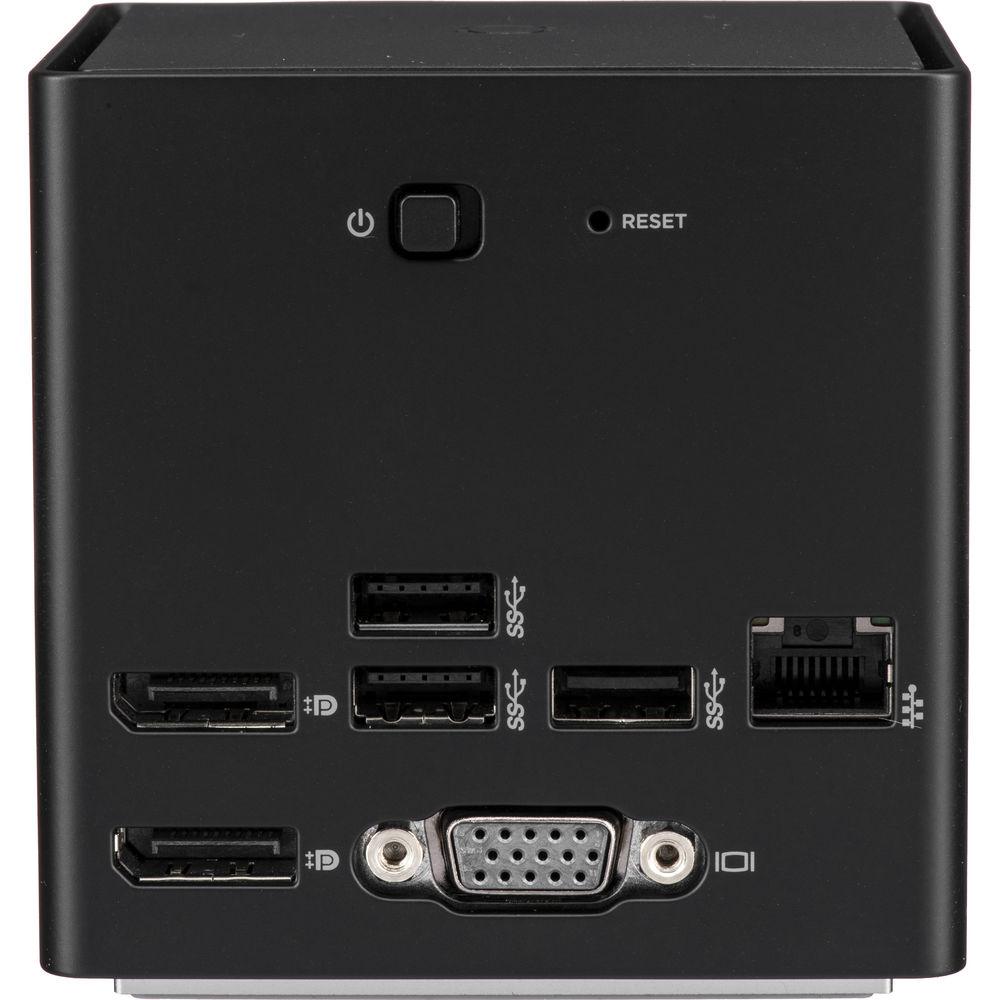

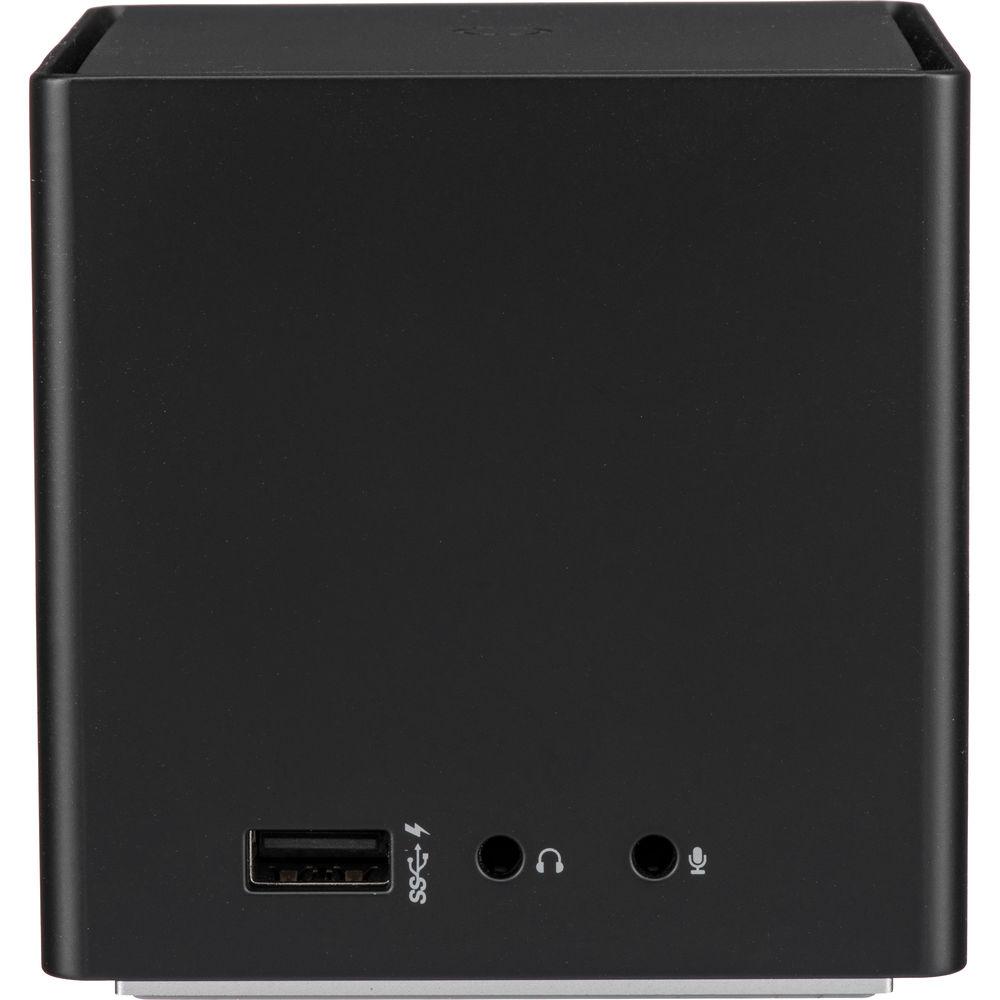

- Create a comprehensive, professional desktop solution and connect your tablet to dual displays, a wired network, and your everyday devices with DisplayPort 1.2, VGA, Gigabit Ethernet, USB 3.1 Gen 1 Type-A, and 3.5mm audio ports.
- Enterprise-Class Security

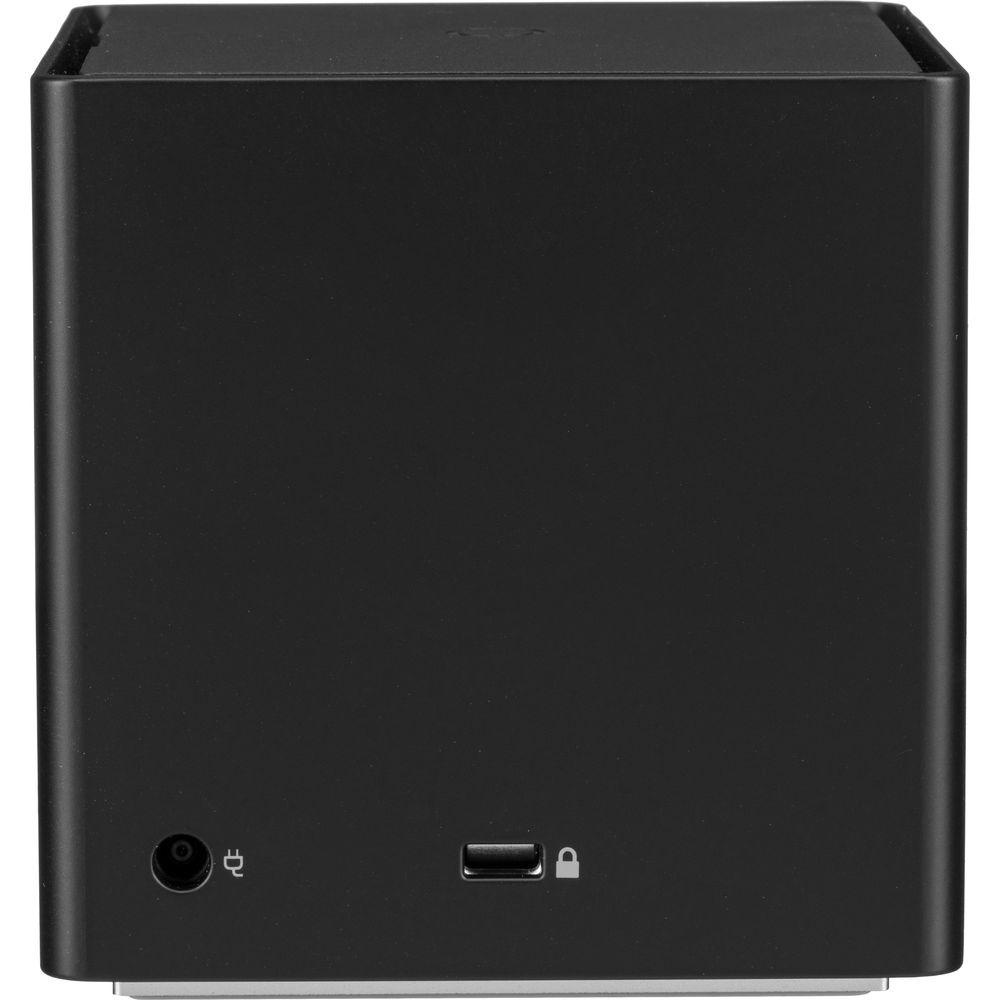

- Help keep your content safe during device pairing and data transfer with WiGig technology. Secure your dock to a table or other device with the integrated lock slot and a cable lock (sold separately).
- Region Compatibility
- The Advanced Wireless Docking Station is designed to work with HP systems in Africa.
- System Requirements
-
- HP Elite x2 1011 G1
- HP Elite x2 1012 G1
- Intel 18260 WLAN
UPC: 889296601692 In the Box HP Advanced Wireless Docking Station (Africa) AC Power Adapter Free 24/7 Phone & Online Support Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Advanced Wireless Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP F7M97AA#ABA Specs | | | USB | 4 x USB 3.1 Gen 1 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 2 x DisplayPort 1.2
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Microphone
1 x 1/8" / 3.5 mm Headphone | | Memory Card Slots | None | | | | System Connection | 4 x USB 3.1 Gen 1 Type-A Female | | | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | | UASP Support | No | | | | Power Source | AC Adapter | | Maximum Power Consumption | 45 W | | | | Operating Temperature | 32 to 95°F / 0 to 35°C (Recommended) | | Operating Humidity | 10 to 90% (Recommended) | | Operating Altitude | -50 to 10,000' / -15.24 to 3048 m | | Storage Temperature | 4 to 140°F / -15 to 60°C | | Storage Humidity | 5 to 95% | | Storage Altitude | -50 to 40,000' / -15.24 to 12,192 m | | | | Lock Slot | Yes | | Dimensions | 3.43 x 3.35 x 3.35" / 8.7 x 8.5 x 8.5 cm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 2.205 lb | | Box Dimensions (LxWxH) | 8.0 x 6.3 x 5.3" |
