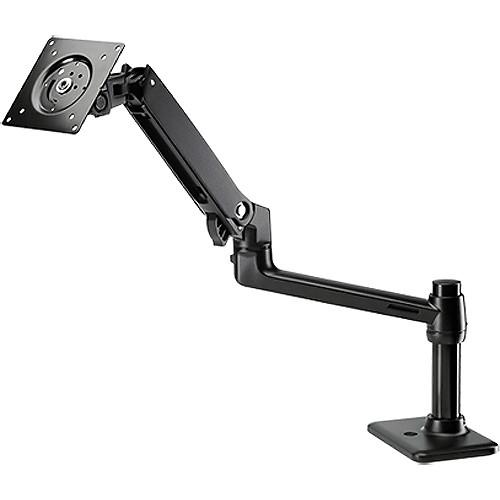

Product description The BT861AT Single Monitor Arm for 24" Diagonal Displays from HP is a mounting arm, which attaches to the edge of your desk. It includes convenient cable management to route cables under the arm and out of the way, and to help reduce cable clutter on your workspace. The arm can be placed wherever it is most convenient for you on a desk, and then can be secured with the adjustable clamp. - Space saving design frees up desk space
- Supports up to one 24" diagonal display
- Flexible arm adjusts to your size, posture, and work preference
- Locate the arm wherever it is most convenient for you on a desk, and then secure it with the adjustable clamp
UPC: 886111002047 In the Box HP BT861AT Single Monitor Arm for 24" Diagonal Displays Desk Clamp and Grommet Mount Accessory Kits Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP BT861AT Single Monitor Arm for 24" Diagonal Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP BT861AT Specs | Tilt Range | Total Range: 75°
Rear: +70°
Front: -5° | | Vesa Configuration | MIS-D mounting standards: VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm and 75 x 75 mm) | | Desk Mounting Configuration | Desk Clamp attaches to surface edge 0.4 to 2.4" (10 to 60 mm) thick
Grommet Mount attaches through surface holes 0.31 to 2" (8 to 50 mm) wide and up to 3" (76 mm) thick | | Height Adjustment Range | 13" (330 mm) | | Portrait/Landscape Adjustment | 360° P/L | | Panning Range | Pole 360°
Extension 360°
Monitor 180° | | Arm Extended Dimensions | Extends/retracts LCD up to 25.6" (650.0 mm) | | Environmental | Storage Temperature: -4 to +140°F (-20 to +60°C)
Operating Temperature: 32 to 104°F (0 to 40°C) | | Compatibility | Compatible with the following All-In-One Business PCs*:
HP ProDesk 800 G1 All-In-One
HP ProOne 600 G1 All-In-One
HP Compaq 8300 Pro All-In-One
HP Compaq 6300 Pro All-In-One
Compatible with the following Monitors:
ProDisplay Monitors
HP Compaq LE1711 17" LCD Monitor
HP Compaq LE1901wl 19" LED Backlit LCD Monitor
HP Compaq LE1911 17" LCD Monitor
HP Compaq LE2202x
HP ProDisplay P221 21.5" LED Backlit Monitor
EliteDisplay Monitors
HP Compaq LA2205wg 22" Widescreen LCD Monitor
HP Compaq LA1751g 17" LCD Monitor
HP Compaq LA2006x
HP Compaq LA2206x
HP Compaq LA2306x
HP Compaq LA2405x
HP EliteDisplay E231 23" LED Backlit Monitor
Performance Monitors
HP ZR2240w 21.5" LED Backlit IPS Monitor
HP ZR2440w 24" LED Backlit IPS Monitor
HP Z22i 21.5" IPS Display
HP ZR2330w 23" IPS LED Backlit Monitor
HP Z23i 23" IPS Display
Specialty Monitors
HP Compaq L2311c
HP L2401x 24" LED Backlit Monitor
HP Compaq LA2206xc 21.5" Webcam LCD Monitor
HP Compaq L2311c A Note*Touch models not supported | | Compliance | RoHS | | | | Package Weight | 9.05 lb | | Box Dimensions (LxWxH) | 18.189 x 10.551 x 6.693" |
