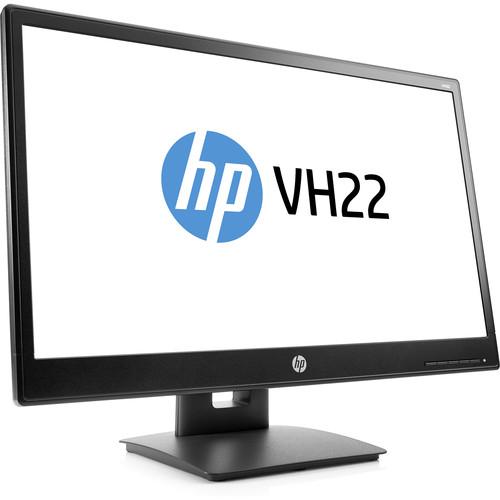

User Manual for HP Business Class VH22 21.5" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the HP Business Class VH22 21.5" 16:9
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
|
User manual for the HP Business Class VH22 21.5" 16:9 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The Business Class VH22 21.5" 16:9 LCD Monitor from HP is TAA-compliant and has a 1920 x 1080 Full HD resolution, and four-way adjustable comfort. Adjust the height, tilt, and swivel for the way you work best, and if you want to work vertically, you can even pivot the display head to 90 degrees. Get more connectivity with a VGA connector for legacy compatibility, DVI, and DisplayPort for newer technology. Attach your HP Desktop Mini, HP Chromebox or select HP Thin Client directly behind the display for an integrated, workspace. -
- Adjust height, tilt, and swivel or pivot the display head 90 degrees
- Get the essential ports you need and want with a VGA connector for legacy compatibility, and DVI and DisplayPort for your newer technology
- 21.5” Diagonal panel with 1920 x 1080 Full HD resolution
- Attach your HP Desktop Mini, HP Chromebox or select HP Thin Client directly behind the display for an integrated workspace
- Reduce power consumption and help lower your costs with an energy-smart, EPEAT Gold registered design
- Arsenic-free display glass, mercury-free display backlighting, low halogen
- Anti-glare, language selection, LED backlights, pivot rotation, on-screen controls, and plug-and-play, and user programmable
In the Box HP Business Class VH22 21.5" 16:9 LCD Monitor AC Power Cord VGA Cable DVI cable HP Display Assistant Software Limited 4-Year Warranty User Manual PDF 860.3kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Business Class VH22 21.5" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP VH22 Specs | | | Size | 21.5" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Response Time | 5 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.248 x 0.248 mm | | | | Connectivity | 1 x DVI-D
1 x DisplayPort Input
1 x VGA | | HDCP Support | Yes | | | | Power Consumption | 28.5 W (Maximum)
0.5 W (Standby)
22.5 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Certifications | TCO Certified, as per Manufacturer | | | | Height Adjustment | 3.9" / 10 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 360° | | Tilt Adjustment | -5 to 25° | | Dimensions (W x H x D) | 20.0 x 17.6 x 7.6" / 50.7 x 44.6 x 19.2 mm (With Stand)
20.0 x 17.6 x 1.9" / 50.7 x 44.6 x 4.8 mm (Without Stand) | | Weight | 9.9 lb / 4.5 kg (With Stand) |
