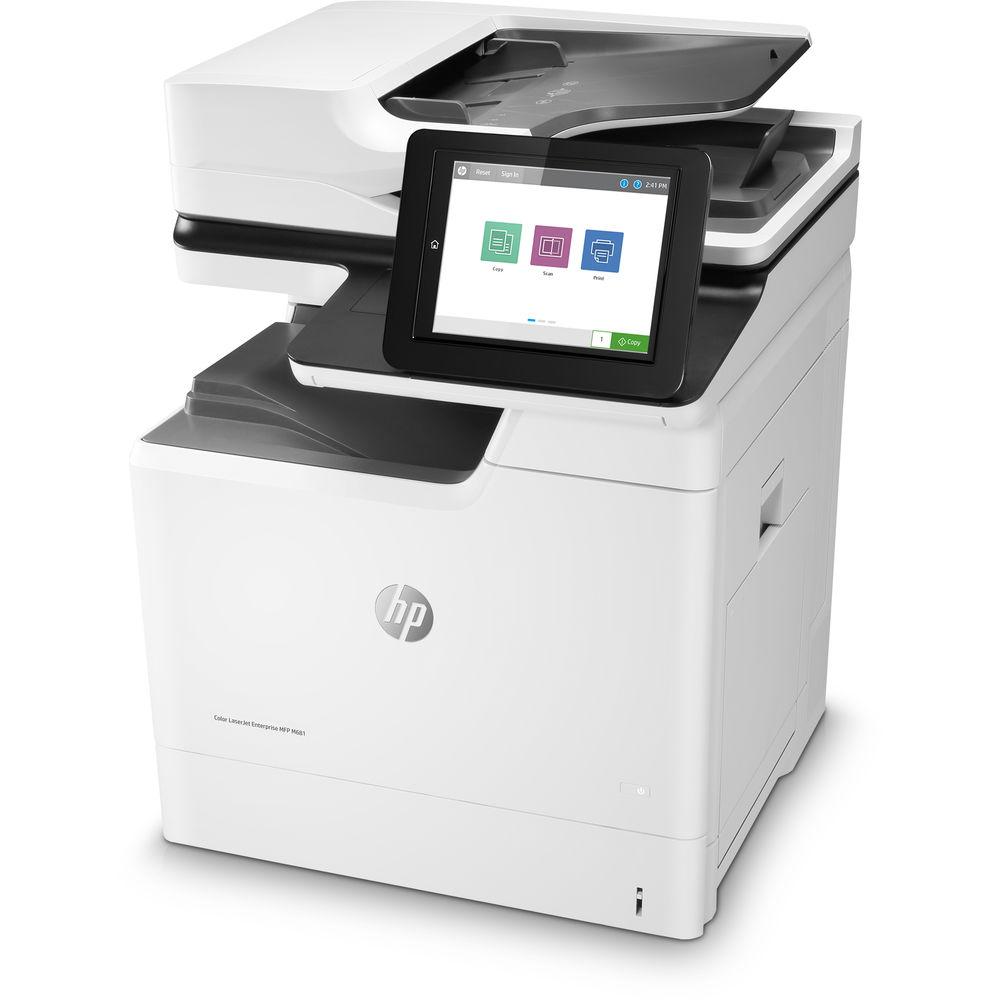

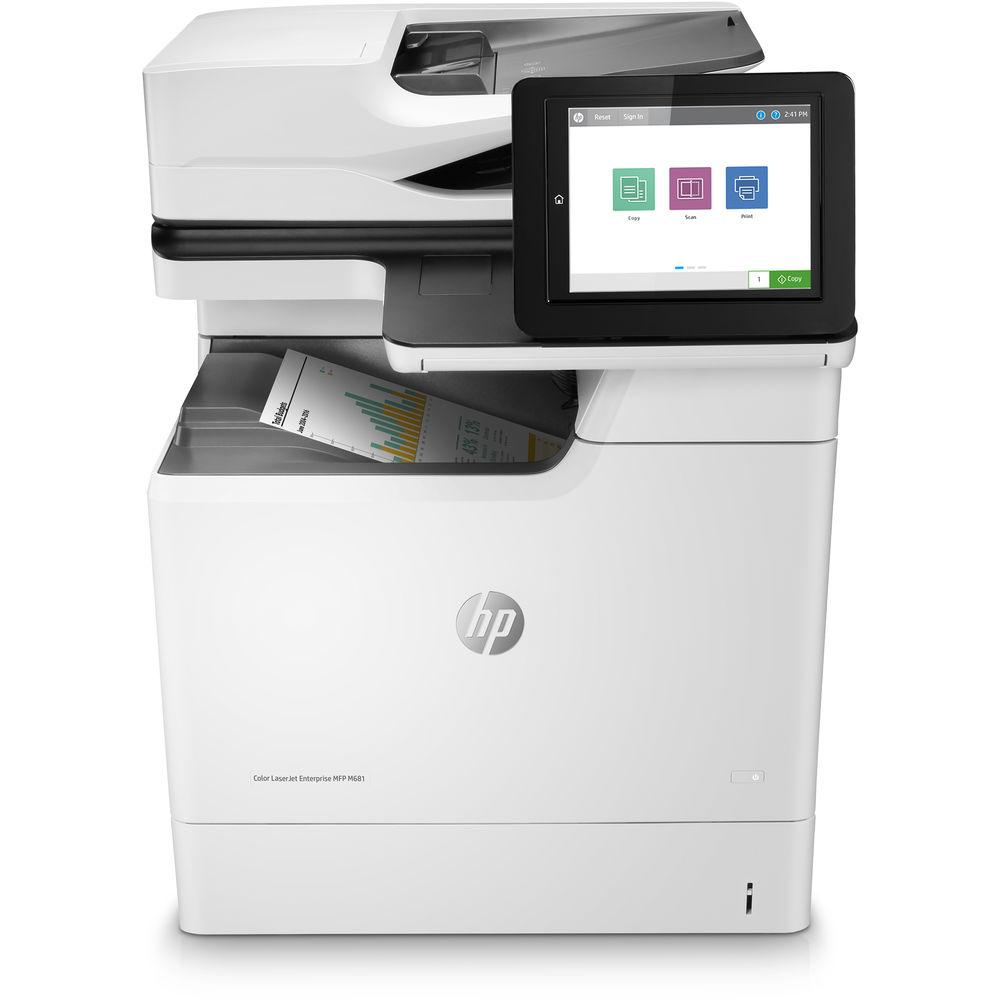

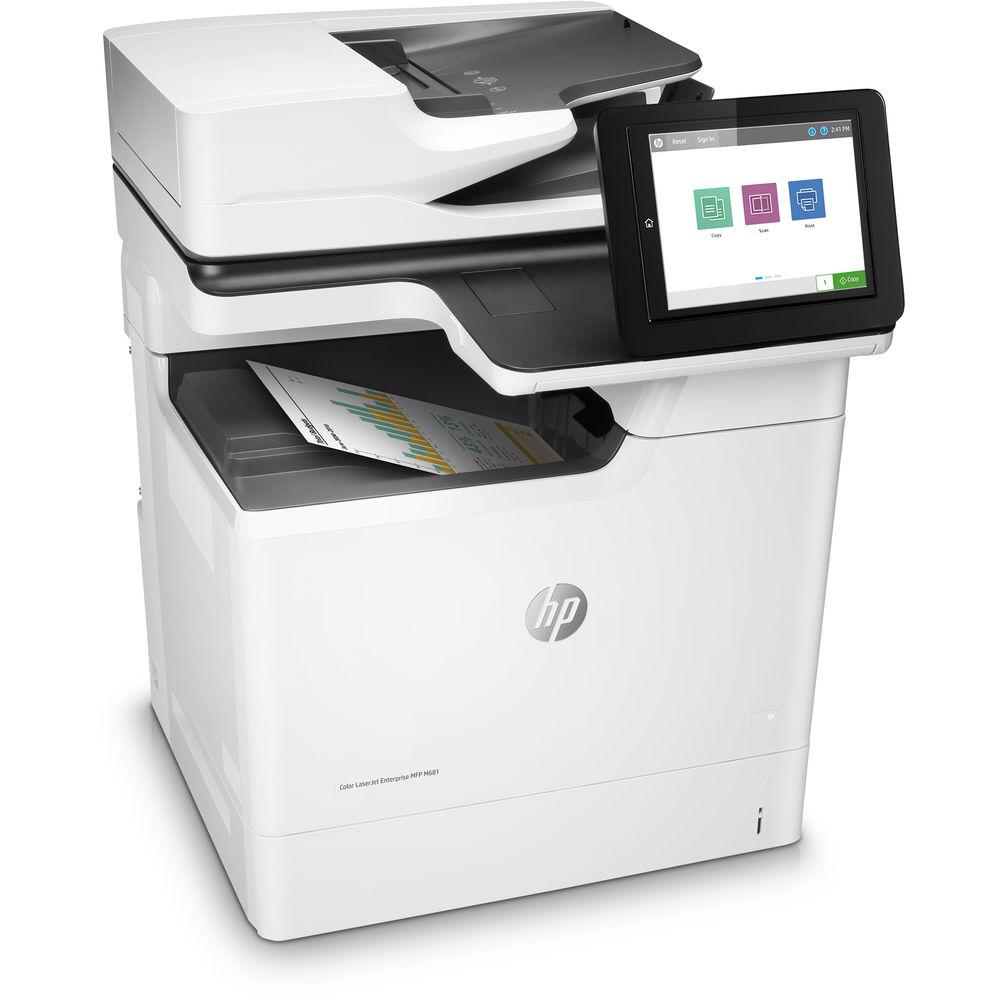

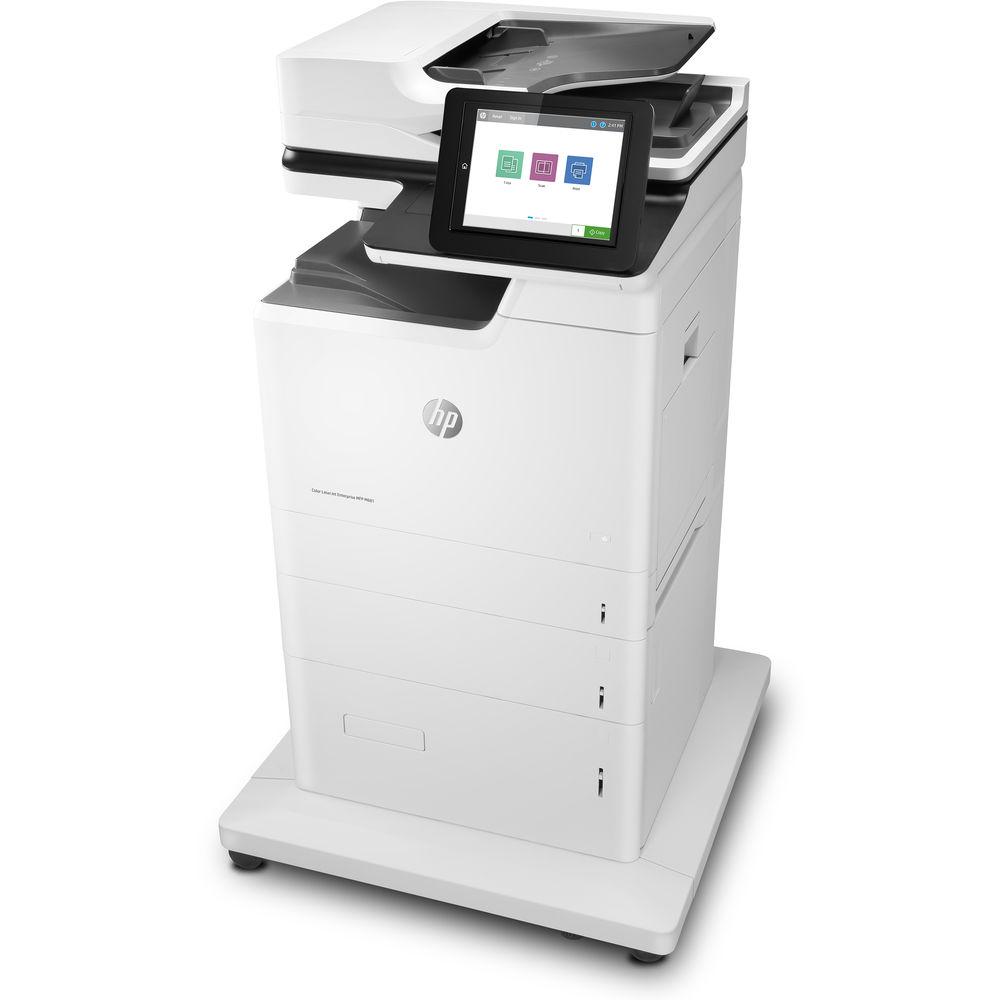

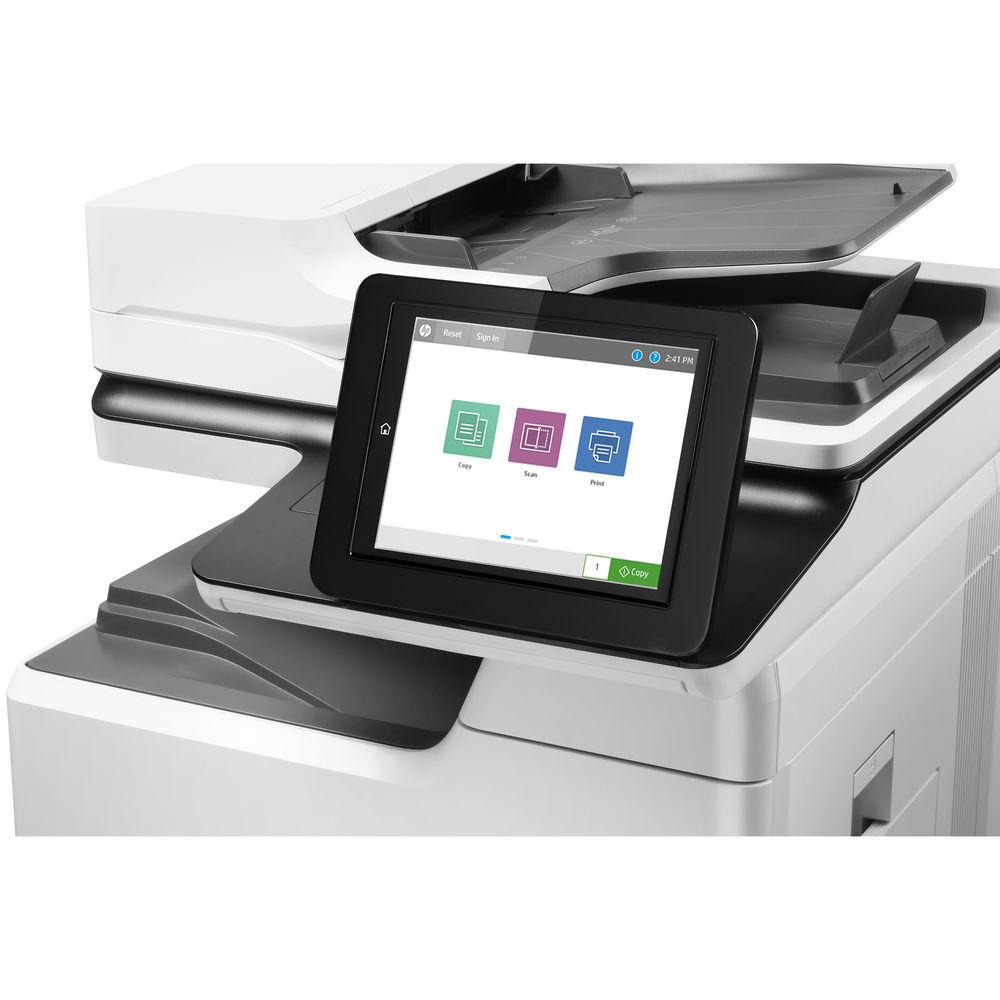

User Manual for HP Color LaserJet Enterprise M681dh All-In-One Laser Printer Click to enlarge the picture
Contents of the user manual for the HP Color LaserJet Enterprise M681dh All-In-One
- Product category: Laser Printers HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Laser Printers
 |
User manual for the HP Color LaserJet Enterprise M681dh All-In-One contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Designed for demanding workplaces, the Color LaserJet Enterprise M681dh All-In-One Laser Printer from HP takes things up a notch with exceptional security, outstanding print features, and multi-functional capabilities including scanning and copying that will help make this machine useful for your essential office needs. This model can produce detailed black and color documents at up to 1200 x 1200 dpi and can even reach speeds of up to 50 ppm for maximum productivity. It also works with a variety of media up to 8.5 x 14" and can perform automatic duplexing for 2-sided printing.
For scanning, the M681dh uses a CCD sensor with either the 8.75 x 14.38" flatbed or a 150-sheet ADF capable of handling media up to 8.5 x 34" in size. Scans also benefit from an optical resolution of 600 dpi. For general media handling users have access to a 100-sheet multipurpose tray and a 550-sheet input tray. For operation, there is a large 8" CGD touchscreen for intuitive control and easy data entry. An easy-access USB port is available as well for direct printing and both USB 2.0 and Ethernet can be used for setup. - Print
-
- Print resolutions are available at up to 1200 x 1200 dpi in color and black.
- Users can print at speeds up to 50 ppm.
- First print out time of 6.4 seconds.
- Automatic duplexing for 2-sided prints.
- Mobile printing capabilities include Apple AirPrint, Google Cloud Print 2.0, HP ePrint, and Mopria.
- Standard print language of HP PCL 6, HP PCL 5c, HP PostScript Level 3 emulation, native PDF v1.7, and URF.
- A 100-sheet multipurpose tray and a 550-sheet input tray are present for versatile media handling.
- Supported media types include plain paper, photo paper, thick paper, recycled paper, and more.
- Monthly duty cycle of 100,000 pages with a recommended monthly volume of 2000-14,000 pages.
- Scan
-
- Uses a Charge Coupled Device (CCD) with an optical resolution of 1200 dpi.
- Both an 8.75 x 14.38" flatbed and 150-sheet automatic document feeder are available for scanning.
- The ADF can handle documents from 2.7 x 5.8" up to 8.5 x 34" in size.
- The scanner has a hardware resolution of 600 x 600 dpi and can scan at speed up to 90 ppm or duplex at up to 180 ipm.
- Scanning benefits from a color depth of 24-bit and a grayscale depth of 8-bit or 256 levels.
- Scanning can be performed at speeds up to 90 ppm, or 180 ipm with duplexing.
- Native scan file formats include PF, JPG, TIF, and MTIF.
- Digital sending features include scan to email, save to network folder, save to USB drive, send to Sharepoint, send to FTP, send to LAN fax, send to Internet fax, local address book, SMTP over SSL, blank page removal, edge erase, auto color sense, auto crop to content, and compact PDF.
- Advanced scanner features include optimize text/picture, image adjustments, job build, output quality setting, selectable scan resolution from 75-600 dpi, auto detect color, edge erase, job notification, blank page suppression, and HP Quick Sets.
- Copy
-
- Copy resolutions of up to 600 dpi are available in both black and color.
- Copies can be made at speeds of up to 47 cpm in black and color.
- First copy out time of just 6.7 seconds in black and 7.2 seconds in color.
- Reduction/enlargement from 25-400%.
- Up to 9999 copies can be made at a time.
- Copy settings include two-sided copying, scalability, image adjustments (darkness, contrast, background cleanup, sharpness), N-up, N or Z-ordering, content orientation, collation, booklet, job build, edge-to-edge, job storage, ID Copy, Book Copy, and A-to-B Copy (different media sizes).
- General
-

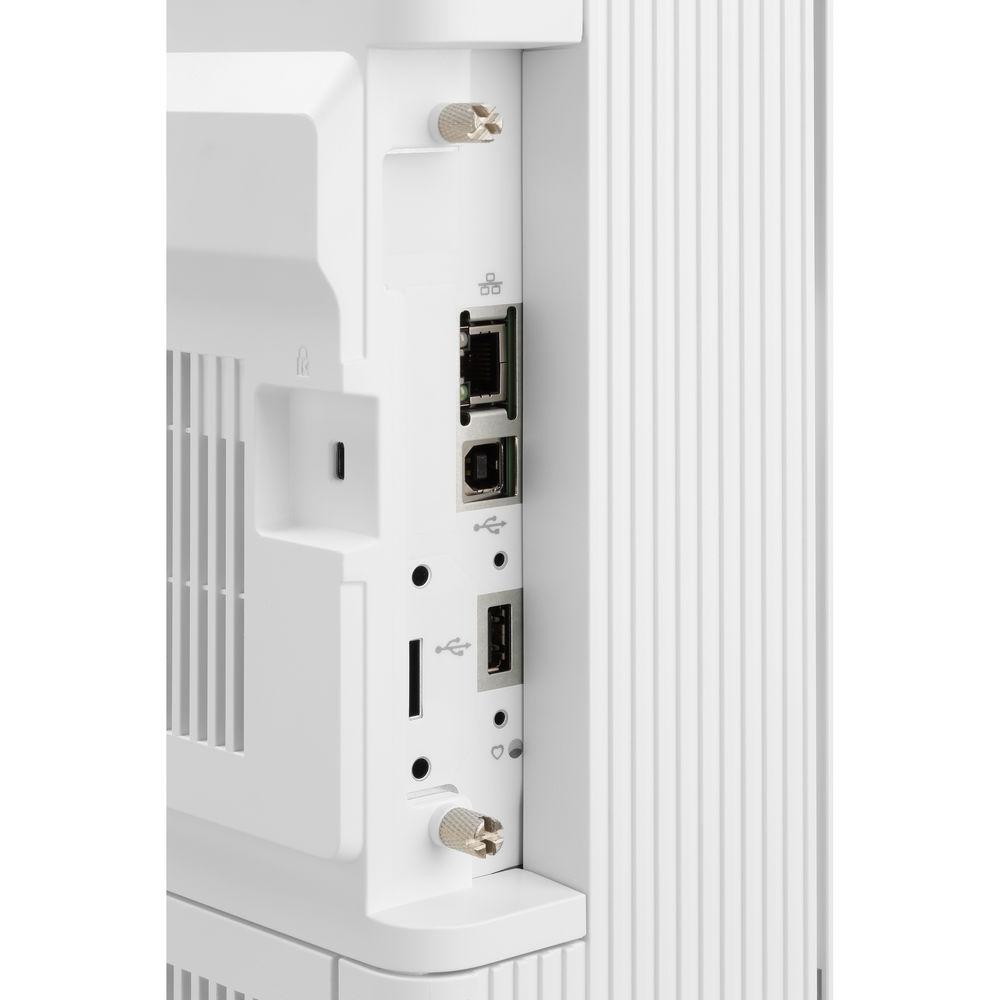

- USB 2.0 and Ethernet connectivity are available.

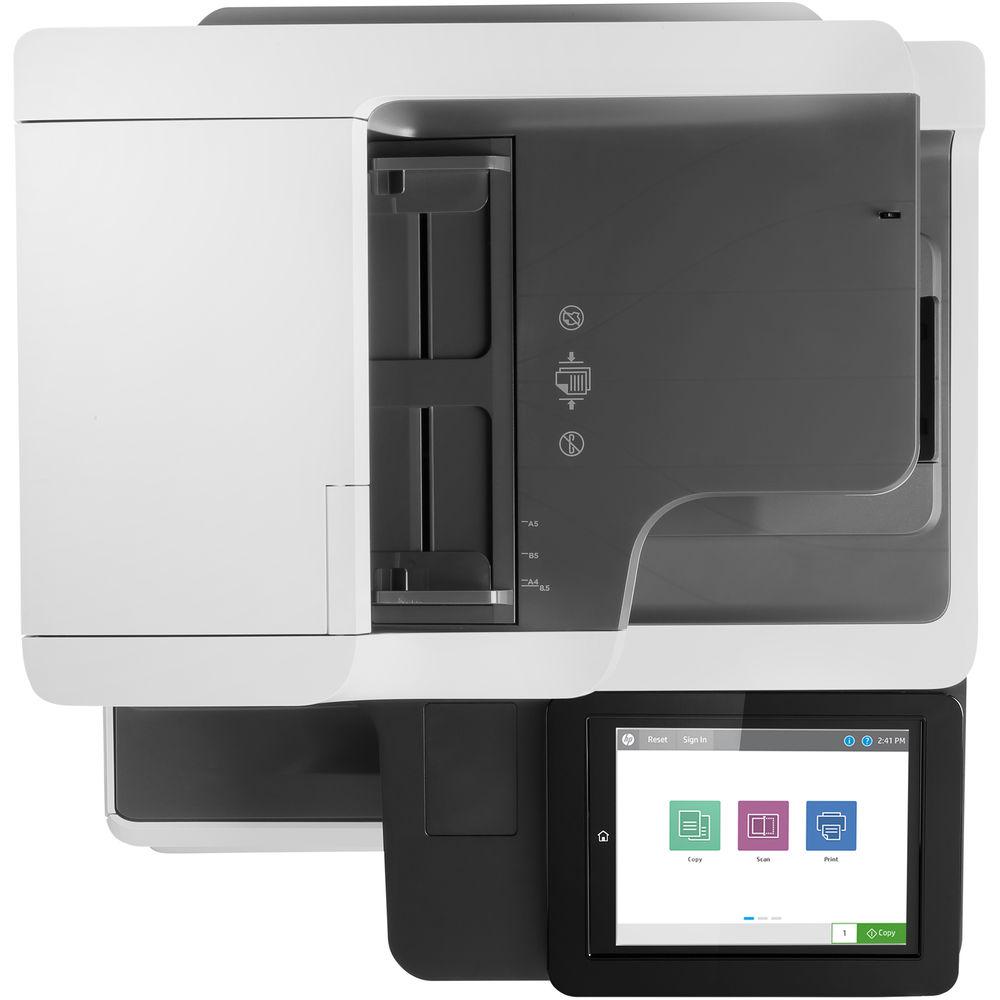

- A large, tilting 8" CGD touchscreen is available for intuitive control over settings.

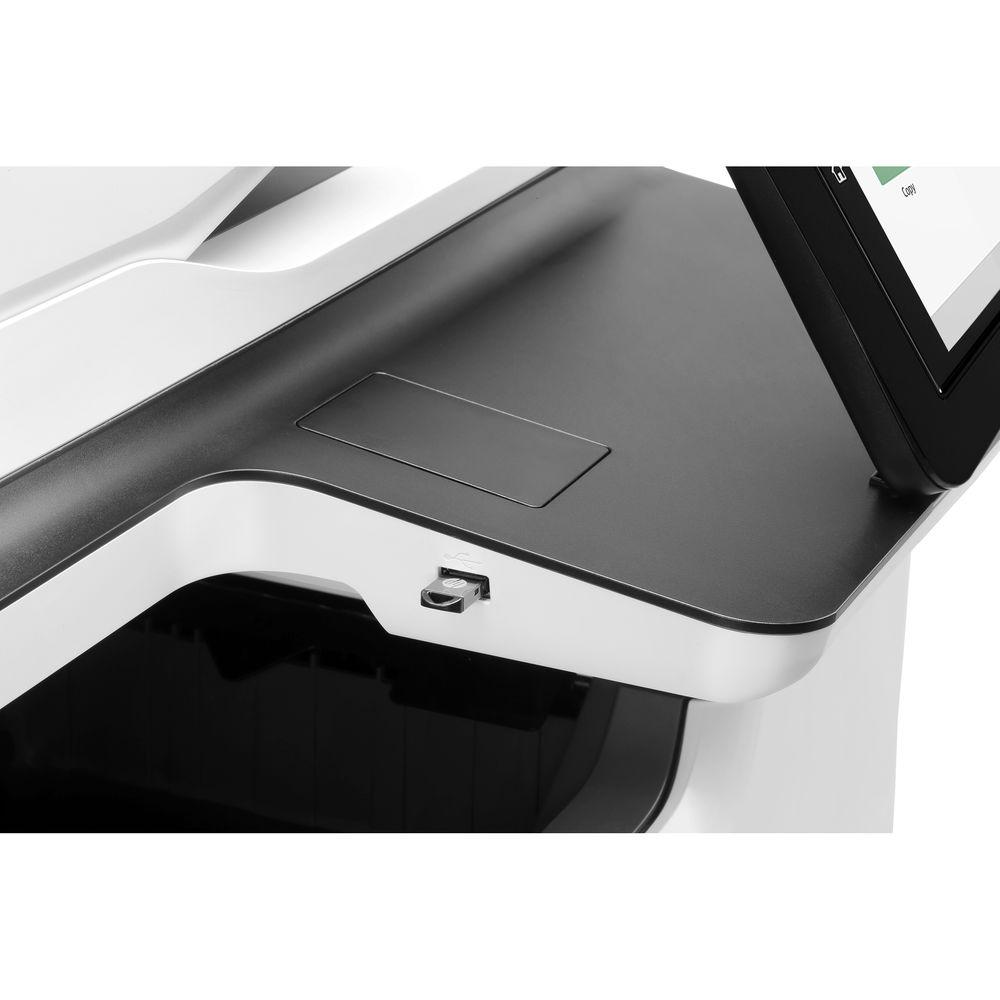

- An easy-access USB port is available for printing from and scanning to a portable storage device.
- HP Sure Start automatically checks the printer's operating code and repairs itself to help prevent hacks.
- Run-time intrusion detection monitors to detect and stop attacks and will then automatically reboot the unit.
- HP Web Jetadmin provides centralized control over your print network.
- ColorSphere3 toner and an automatic media sensor ensure optimized quality.
- A Hardware Integration Port is available for expanding functionality of the printer.
- Standard memory includes 1.5GB for the printer and 512MB for the scanner with an optional maximum of 2.5GB.
- A 320GB HP High-Performance Secure Hard Disk with AES 256 hardware encryption or better is available to safeguard your data.
- A multitude of security management tools are available to help protect your network and data.
- Wake-up time of just 8.9 seconds.
- Built-in fonts and typefaces include 105 TrueType fonts, 92 scalable PostScript fonts, one Unicode font, two Windows Vista 8 fonts, and more.
- ENERGY STAR, Blue Angel, CECP, and EPEAT Silver qualified.

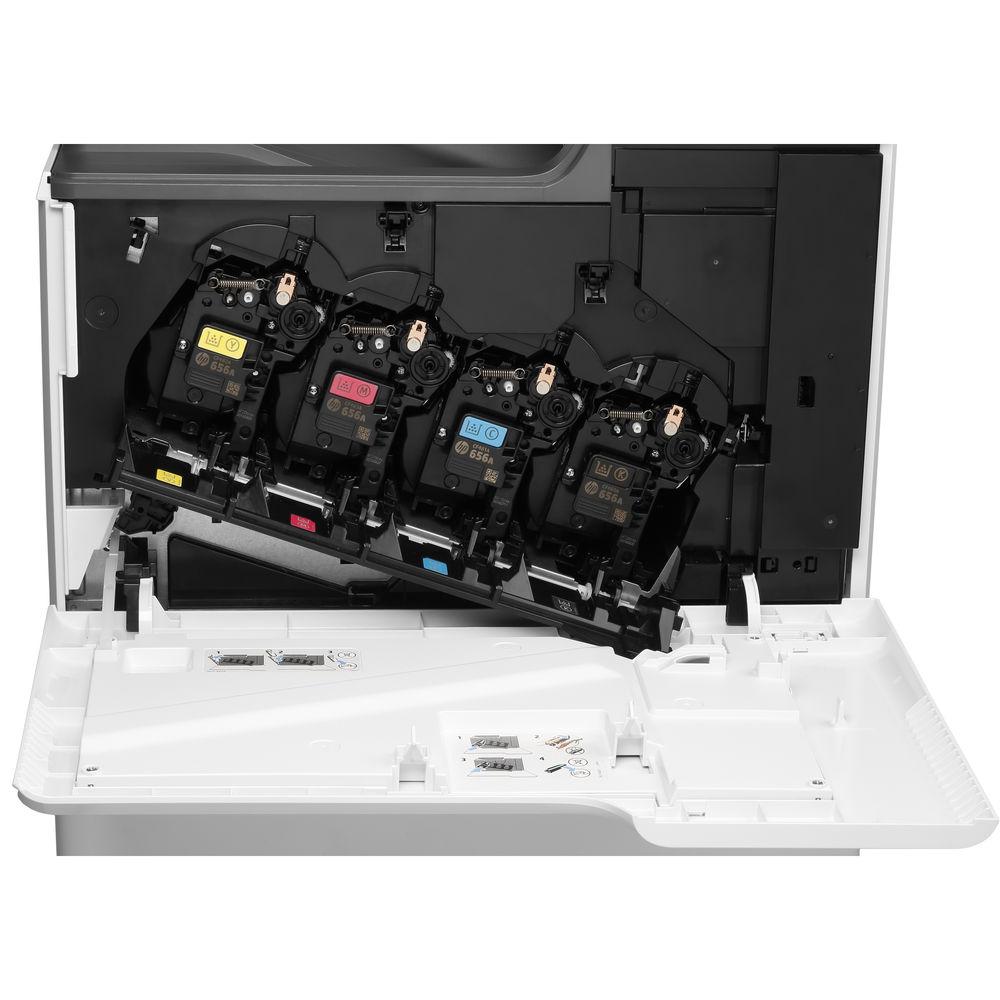

UPC: 889894829788 In the Box HP Color LaserJet Enterprise M681dh All-In-One Laser Printer - 655A LaserJet Enterprise Black Toner Cartridge
- 655A LaserJet Enterprise Cyan Toner Cartridge
- 655A LaserJet Enterprise Magenta Toner Cartridge
- 655A LaserJet Enterprise Yellow Toner Cartridge
- Power Cord
- Documentation and Software CD-ROM
- Limited 1-Year Warranty
More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Color LaserJet Enterprise M681dh All-In-One Laser Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP M681dh Specs | Functions | Print
Scan
Copy | | | | Printing Technology | Laser | | Print Resolution | 1200 x 1200 dpi | | Print Speed | 50 ppm | | First Print Out Speed | 6.5 seconds | | Duplex Printing | Yes | | Ink Type | Toner | | Ink Palette | Black
Cyan
Magenta
Yellow | | Ink Cartridge Configuration | 4 individual cartridges | | Printer Duty Cycle | Monthly: 100,000 pages
Recommended Monthly Volume: 2000-14,000 pages | | Printer Language | HP PCL 6
HP PCL 5c
HP PostScript Level 3 emulation
Native PDF v1.7
URF | | | | Scanner Type | Flatbed
ADF | | Image Sensor | Charge Coupled Device (CCD) | | Optical Resolution | 600 dpi | | Hardware Resolution | 600 x 600 dpi | | Scan Speed | 90 ppm / 180 ipm | | Scan Area | Flatbed: 8.75 x 14.38" / 22.2 x 36.5 cm
ADF: 2.7 x 5.8" to 8.5 x 34" / 6.9 x 14.7 cm to 21.6 x 86.4 cm | | Duplex Scanning | Yes | | Color Depth | 24-bit | | Grayscale Tones | 256 | | Scan File Format | PDF
JPEG
TIFF
MTIFF
XPS | | | | Copy Resolution | 600 x 600 dpi | | Copy Speed | 47 cpm | | First Copy Time | Black: 6.7 seconds
Color: 7.2 seconds | | Reduction/Enlargement | 25-400% | | Number of Copies | Up to 9999 | | Duplex Copying | Yes | | | | Paper Handling | Multipurpose Tray 1
Input Tray 2
Automatic Document Feeder
Output Tray | | Media Sizes | Multipurpose Tray 1: 3 x 5" to 8.5 x 14" / 7.6 x 12.7 cm to 21.6 x 35.6 cm
Input Tray 2: 4 x 5.8" to 8.5 x 14" / 10.2 x 14.7 cm to 21.6 x 35.6 cm
ADF: 2.7 x 5.8" to 8.5 x 34" / 6.9 x 14.7 cm to 21.6 x 86.4 cm | | Media Weight | Multipurpose Tray 1: 16-58 lb / 60-220 gsm
Input Tray 2: 16-90 lb / 60-163 gsm
ADF: Not specified by manufacturer | | Paper Capacity | Multipurpose Tray 1: 100 sheets
Input Tray 2: 550 sheets
ADF: 150 sheets
Output Tray: 500 sheets | | | | Interface | USB 2.0
Ethernet | | Direct Printing | USB port
HP ePrint
Apple AirPrint
Mopria
Google Cloud Print 2.0 | | Processor | 1.2 GHz | | Memory | Printer: 1.5 GB
Scanner: 512 MB
Maximum: 2.5 GB | | Hard Disk | 320 GB | | Compatible Operating Systems | Windows
macOS/OS X
Linux
Android | | | | Front Panel Controls | 8" / 20.3 cm CGD touchscreen
Button | | Power Requirements | 100-127 VAC, 50-60 Hz, 12 A | | Power Consumption | Maximum: 900 W
Ready: 47 W
Sleep: 0.9 W
Auto Off/Manual On: 0.9 W
Manual Off: 0.1 W
TES: 2.72 kWh/week | | Acoustics | Power Emissions: 6.6 B(A)
Pressure Emissions: 52 dB(A) | | Operating Conditions | Temperature: 59 to 86°F / 15 to 30°C
Humidity: 10 to 80%
Recommended Temperature: 63.5 to 77°F / 17.5 to 25°C
Recommended Humidity: 30 to 70% | | Storage Conditions | Temperature: -4 to 104°F / -20 to 40°C
Humidity: 10 to 90% | | Dimensions (WxDxH) | 20.1 x 21.9 x 25.9" / 51 x 55.5 x 65.8 cm
Maximum: 37.9 x 30.3 x 35.8" / 96.3 x 77 x 91 cm | | Weight | 93.2 lb / 42.3 kg | | | | Package Weight | 95.0 lb | | Box Dimensions (LxWxH) | 32.2 x 27.5 x 27.0" |
