HP Color LaserJet Pro M180nw All-In-One

Search your instruction manual in PDF to download

User Manual for HP Color LaserJet Pro M180nw All-In-One Laser Printer

Click to enlarge the picture
HP Color LaserJet Pro M180nw All-In-One Laser Printer Contents of the user manual for the HP Color LaserJet Pro M180nw All-In-One
  • Product category: Laser Printers HP
  • Brand: HP
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for HP Laser Printers

HP Color LaserJet Pro M180nw All-In-One Laser Printer HP Color LaserJet Pro M180nw All-In-One Laser Printer HP Color LaserJet Pro M180nw All-In-One Laser Printer HP Color LaserJet Pro M180nw All-In-One Laser Printer HP Color LaserJet Pro M180nw All-In-One Laser Printer HP Color LaserJet Pro M180nw All-In-One Laser Printer HP Color LaserJet Pro M180nw All-In-One Laser Printer HP Color LaserJet Pro M180nw All-In-One Laser Printer HP Color LaserJet Pro M180nw All-In-One Laser Printer
User manual for the HP Color LaserJet Pro M180nw All-In-One contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any HP product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!



Product description

A multi-functional unit for demanding workplaces, the Color LaserJet Pro M180nw All-In-One Laser Printer from HP offers printing, scanning, and copying functions to fulfill your imaging needs. This model can produce 600 x 600 dpi prints in black or color at speeds as fast as 17 ppm, supporting media up to 8.5 x 14" legal down to 3 x 5" paper. In the scanning department, the flatbed area offers a maximum resolution of 1200 dpi and works at speeds of up to 8 ppm for color and 15 ppm for black-and-white images.The M180nw can connect to your computer via USB 2.0 and Ethernet for standard printing, or use its built-in Wi-Fi functionality for wireless direct printing. It also allows you to easily send jobs from your mobile phone via Mopria, Apple AirPrint, and HP ePrint, among other apps. A 2-line LCD display is used to show all relevant information, and is complemented by a keypad and function buttons for easy control. For handling media, the unit counts with a 150-sheet input tray and 100-sheet output bin, and allows you to manually retrieve pages for duplex printing while copying dual-sided documents. Made to be durable, the M180nw features a maximum monthly duty cycle of 30,000 pages, with a recommended volume from 150 to 1500 pages.
    • All-in-one unit for printing, copying, and scanning documents
    • High-quality printing at 600 x 600 dpi, with speeds of up to 17 ppm in black or color depending on your settings
    • Flatbed scanner offers a maximum resolution of 1200 dpi, features speeds of 8 ppm for color and 15 ppm for black-and-white scans
    • Copy function with speeds of up to 17 ppm, can be configured for dual-sided copying by allowing you to manually retrieve and reload pages during the print job
    • Wi-Fi connectivity for direct wireless printing, with supports for mobile device solutions such as Mopria, Apple AirPrint, and HP ePrint
    • Input tray holds up to 150 sheets of standard paper, compatible with custom media sizes from 3 x 5" up to 8.5 x 14"
    • Output bin with a capacity of 100 sheets

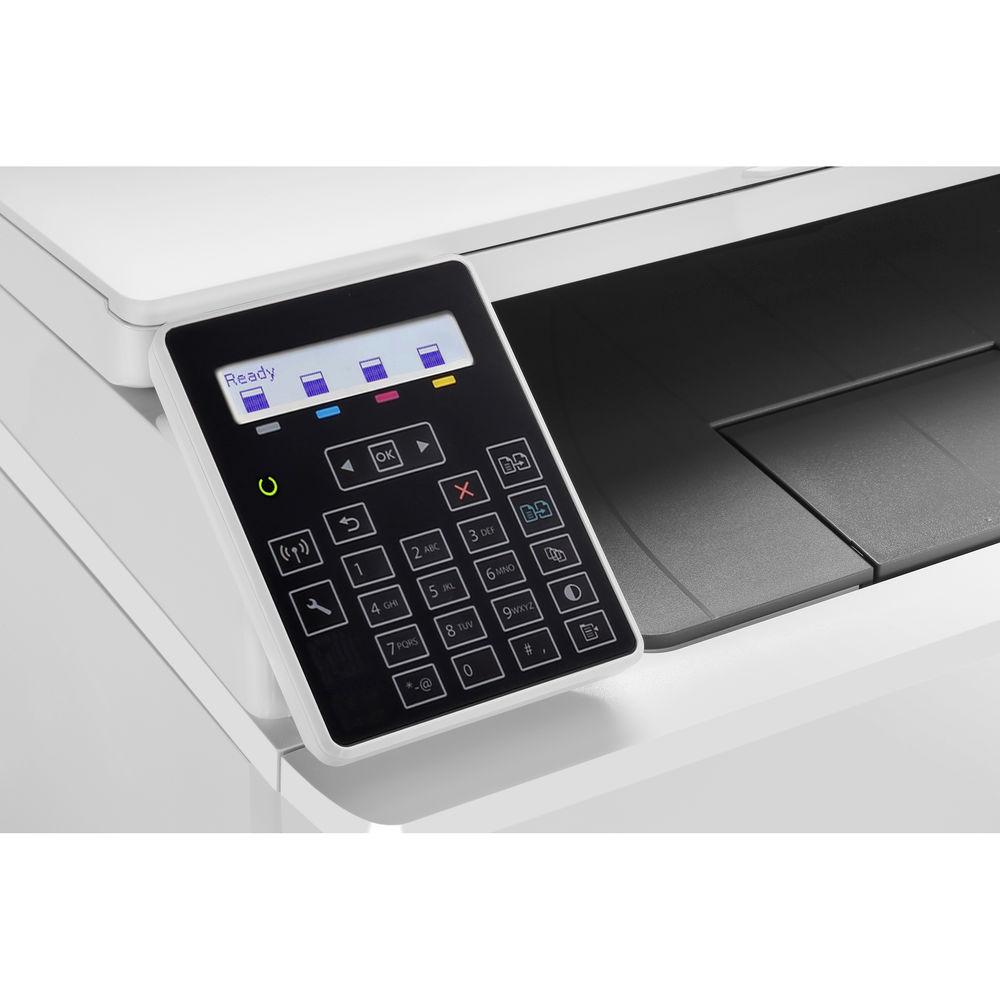

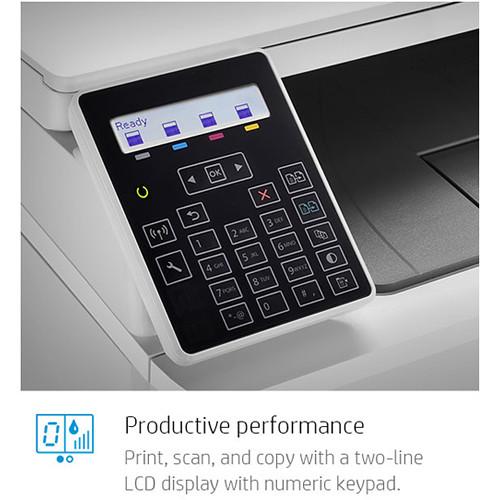

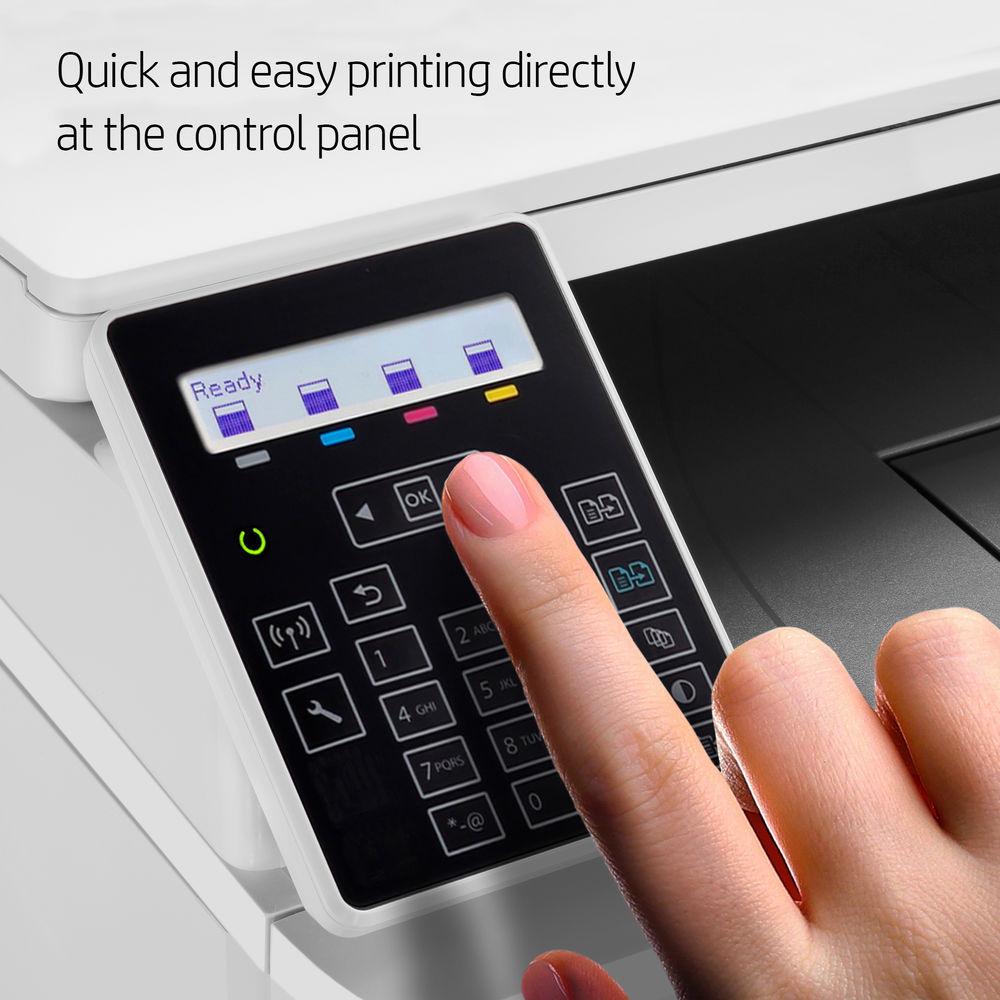

    • 2-line LCD display with keypad and control buttons for easy onboard operation
    • Maximum monthly duty cycle of 30,000 pages, with a recommended volume from 150 to 1500 pages

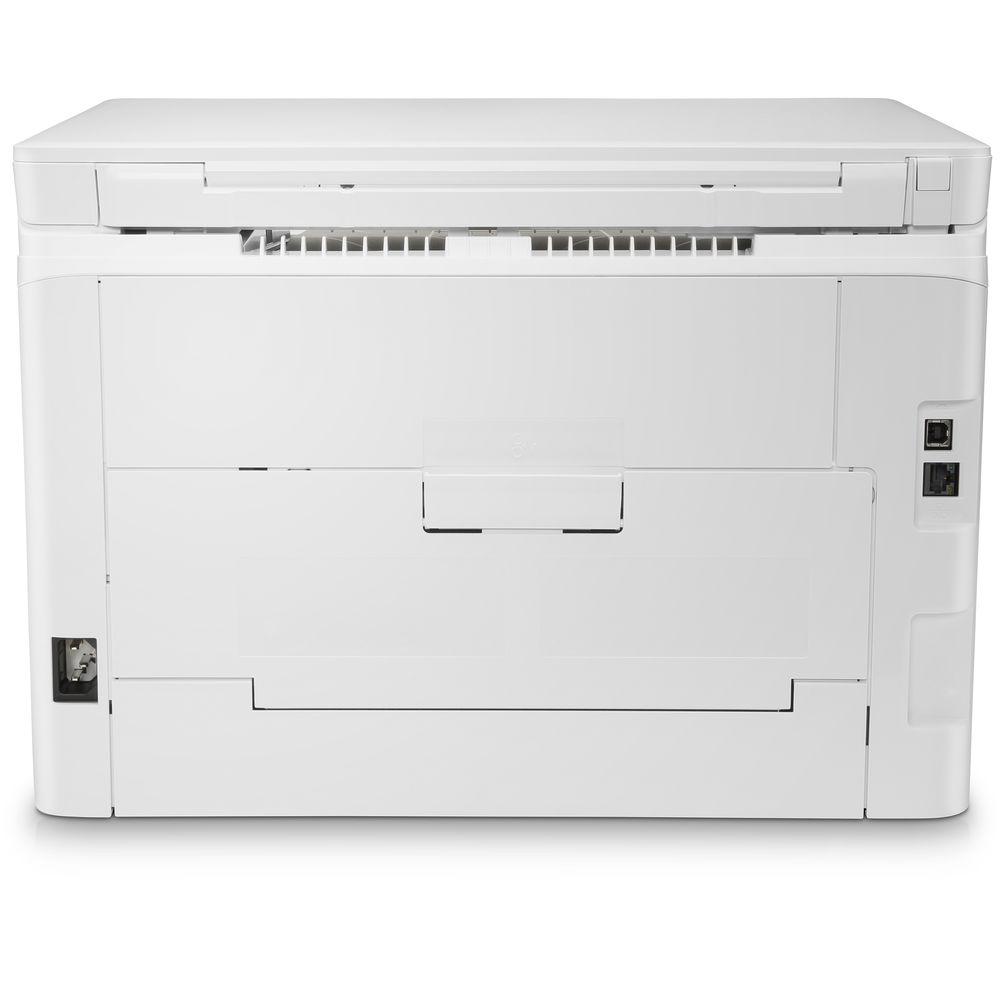

    • USB 2.0 and Ethernet slots for wired connection to a computer
UPC: 190781508397 In the Box HP Color LaserJet Pro M180nw All-In-One Laser Printer
  • Starter Cyan LaserJet Toner Cartridge (~700 Pages)
  • Starter Magenta LaserJet Toner Cartridge (~700 Pages)
  • Starter Yellow LaserJet Toner Cartridge (~700 Pages)
  • Starter Black LaserJet Toner Cartridge (~800 Pages)
  • Power Cord
  • CD-ROM with Documentation and Software
  • Limited 1-Year Warranty
  • More from Manufacturer wqxxderfyadeuuvurvzwzd Table of Contents




    Upload User Manual

    Have you got an user manual for the HP Color LaserJet Pro M180nw All-In-One Laser Printer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    HP LaserJet Pro MFP M180nw Specs

    Functions Print, Scan, Copy
    Printing Technology Laser
    Print Resolution 600 x 600 dpi
    Print Speed 17 ppm (Color)
    17 ppm (Black)
    First Print Out Time 13.4 Seconds (Color)
    11.6 Seconds (Black)
    Duplex Printing No
    Color Type Color
    Configuration 4 x Toners
    Monthly Duty Cycle 30,000 Pages
    1500 Pages (Recommended)
    Printer Language HP PCL 6, HP Postscript Level 3 (Emulation), Native PDF, PCLm, URF
    Type Flatbed
    Image Sensor 1 x Contact Image Sensor (CIS)
    Optical Resolution Flatbed: 1200 dpi
    Color Depth 24-Bit (External)
    Grayscale 256 Levels
    Duplex Scanning No
    Maximum Scan Area Flatbed: 8.50 x 11.69" / 21.6 x 29.7 cm
    Copy Resolution 600 x 600 dpi (Color)
    Copy Speed 16 cpm (Color)
    16 cpm (Black)
    Reduction/Enlargement 25 to 400%
    Duplex Copying No
    Number of Copies Up to 99 Copies
    Paper Handling Input Tray 1, Output Tray
    Media Sizes Input Tray 1: 3 x 5 to 8.5 x 14" / 7.62 x 12.70 to 21.59 x 35.56 cm
    Media Weight Input Tray 1: 60 to 163 gsm / 16 to 43 lb
    Paper Capacity Input Tray 1: 150 Sheets
    Output Tray: 100 Sheets
    Special Media Support Envelopes
    Interface RJ45, USB Type-B
    Direct Printing Apple AirPrint, HP ePrint, Mopria, Wi-Fi Direct
    Operating System Support Windows, macOS/OS X
    AC Input Power 110 to 240 VAC, 50 / 60 Hz
    Power Consumption 337 W (Maximum)
    8 W (Ready)
    1 W (Sleep)
    0.1 W (Off)
    Operating Temperature 59 to 86°F / 15 to 30°C
    Operating Humidity 30 to 70%
    Dimensions (W x H x D) 16.5 x 11.5 x 15.0" / 41.9 x 29.2 x 38.1 cm
    16.5 x 11.6 x 17.1" / 41.9 x 29.5 x 43.4 cm (Maximum)
    Weight 34.6 lb / 15.7 kg
    Package Weight 40.6 lb
    Box Dimensions (LxWxH) 19.9 x 18.1 x 14.8"

    Rating

    84% users recommend this product to others. And what about you?
    Rating: 4.2 of 5

    This product has already been rated by 46 owners. Add your rating and experience with the product.
