User Manual for HP Color LaserJet Pro M452dw Printer with Extra 410X Toner Set Kit Click to enlarge the picture
Contents of the user manual for the HP Color LaserJet Pro M452dw Printer
- Product category: Laser Printers HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Laser Printers
|
User manual for the HP Color LaserJet Pro M452dw Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

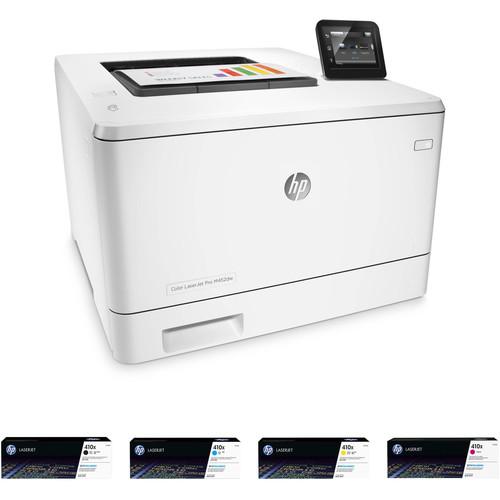

Product description This HP Color LaserJet Pro M452dw Printer with Extra 410X Toner Set Kit put together by pairs the M452dw laser printer with a complete set of four 410X high yield toner cartridges. These are in addition to the starter cartridges already packaged with the printer, and more than double your initial page yield so you can focus more on your projects and less on your ink levels. The black toner lasts for approximately 6500 pages, while the color (CMY) cartridges yield around 5000 pages. - HP Color LaserJet Pro M452dw Laser Printer Finish your print jobs quickly with the Color LaserJet Pro M452dw Laser Printer from HP with a print speed of up to 28 ppm. This unit offers a print resolution of 600 x 600 dpi, which can be enhanced to 38400 x 600 dpi, for finely detailed documents. Also, furthering the speed of the unit is a first print out time of 8.9 seconds for black and 9.5 seconds for color. The M452dw also has automatic duplexing for convenience and a monthly duty cycle of 50,000 pages for durability. Additionally, it has both a 50-sheet multipurpose and 250-sheet input tray for handling a variety of document types from 3 x 5" to 8.5 x 14".
Operation is simplified with the implementation of a 3.0" color touchscreen on the front panel. This intuitively controlled system clearly shows users print status, settings, and more. Also, there is an easy access USB port for printing from a portable drive. And, the M452dw is equipped with USB 2.0, Ethernet, and Wi-Fi with NFC for a multitude of connection options. - First page out time of 8.9 seconds for black and 9.5 seconds for color
- Protect information with HP JetAdvantage Private Print and additional security features
- Intuitive control using the 3.0" color touchscreen
- Print documents directly from a USB drive
- Print directly from a smartphone or tablet
- Print-and-touch with NFC-enabled devices
- Share the printer over a network with either Ethernet or Wi-Fi connectivity
UPC: 888793383230 - HP 410X Black High Yield LaserJet Toner Cartridge Keep on printing with your LaserJet M452 or M477 series unit with this 410X Black High Yield LaserJet Toner Cartridge from HP. This cartridge offers a yield of approximately 6,500 pages.
- Compatible Printers
- Color LaserJet Pro M452dn
Color LaserJet Pro M452nw
Color LaserJet Pro M477fdn
Color LaserJet Pro M477fnw
Color LaserJet Pro M477fdw UPC: 888793807545 - HP 410X Cyan High Yield LaserJet Toner Cartridge Keep on printing with your LaserJet M452 or M477 series unit with this 410X Cyan High Yield LaserJet Toner Cartridge from HP. This cartridge offers a yield of approximately 5,000 pages.
- Compatible Printers
- Color LaserJet Pro M452dn
Color LaserJet Pro M452nw
Color LaserJet Pro M477fdn
Color LaserJet Pro M477fnw
Color LaserJet Pro M477fdw UPC: 888793807552 - HP 410X Yellow High Yield LaserJet Toner Cartridge Keep on printing with your LaserJet M452 or M477 series unit with this 410X Yellow High Yield LaserJet Toner Cartridge from HP. This cartridge offers a yield of approximately 5,000 pages.
- Compatible Printers
- Color LaserJet Pro M452dn
Color LaserJet Pro M452nw
Color LaserJet Pro M477fdn
Color LaserJet Pro M477fnw
Color LaserJet Pro M477fdw UPC: 888793807569 - HP 410X Magenta High Yield LaserJet Toner Cartridge Keep on printing with your LaserJet M452 or M477 series unit with this 410X Magenta High Yield LaserJet Toner Cartridge from HP. This cartridge offers a yield of approximately 5,000 pages.
- Compatible Printers
- Color LaserJet Pro M452dn
Color LaserJet Pro M452nw
Color LaserJet Pro M477fdn
Color LaserJet Pro M477fnw
Color LaserJet Pro M477fdw UPC: 888793807576 In the Box - Color LaserJet Pro M452dw Laser Printer yfwbuqtvxczxuwstrxzaq
- Starter Black LaserJet Toner Cartridge (~1,200 Pages)
- Starter Cyan LaserJet Toner Cartridge (~1,200 Pages)
- Starter Magenta LaserJet Toner Cartridge (~1,200 Pages)
- Starter Yellow LaserJet Toner Cartridge (~1,200 Pages)
- USB Cable
- Power Cord
- Software & Documentation CD-ROM
- Limited 1-Year Warranty
- 410X Black High Yield LaserJet Toner Cartridge yfwbuqtvxczxuwstrxzaq
- 410X Cyan High Yield LaserJet Toner Cartridge
- 410X Yellow High Yield LaserJet Toner Cartridge
- 410X Magenta High Yield LaserJet Toner Cartridge
Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Color LaserJet Pro M452dw Printer with Extra 410X Toner Set Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HP Color LaserJet Pro M452dw Laser Printer
| | | Printing Technology | Laser; HP ImageRET 3600, Pantone calibrated | | Maximum Resolution | 600 x 600 dpi (38400 x 600 enhanced dpi) | | Print Speed | 28 ppm | | First Print Out Speed | Ready, Black: 8.9 sec
Ready, Color: 9.5 sec
Sleep, Black: 11.3 sec
Sleep, Color: 11.4 sec | | Print Color | Color | | Duplex Printing | Automatic | | Printer Duty Cycle | Monthly: 50,000 pages
Recommended Monthly Volume: 750-4,000 pages | | Print Features | N-up printing, collation, HP ePrint, Apple AirPrint, Mopria certified, Google Cloud Print, NFC touch-to-print, wireless direct printing, HP Auto-On/Auto-Off Technology, Print from Cloud using business apps on the control panel, HP JetAdvantage Private Print, Job Storage with PIN printing, Print from USB | | | | Paper Handling | Multipurpose tray
Input tray
Output bin | | Paper Types | Paper (bond, brochure, colored, glossy, letterhead, photo, plain, preprinted, prepunched, recycled, rough), postcards, labels, envelopes | | Paper Sizes | Multipurpose Tray: 3 x 5" to 8.5 x 14" / 7.6 x 12.7 cm to 21.6 x 35.6 cm
Input Tray: 3.9 x 5.8" to 8.5 x 14" / 10.0 x 14.7 cm to 21.6 x 35.6 cm | | Media Weight | Multipurpose Tray: 16-52 lb
Input Tray: 16-47 lb | | Paper Capacity | Multipurpose Tray: 50 sheets
Input Tray: 250 sheets
Output Bin: 150 sheets | | | | Interface | USB 2.0
Ethernet
Wi-Fi with NFC | | USB Direct Printing | Yes, 1 x USB host port | | Wireless Printing Features | HP ePrint, Apple AirPrint, Google Cloud Print, Mopria-certified, wireless direct printing, NFC touch-to-print, mobile apps | | OS Compatibility | Windows XP SP3 (32/64-bit), Vista (32/64-bit), 7 (32/64-bit), 8/8.1 (32/64-bit), 10 (32/64-bit)
Mac OS X 10.7-10.10
iOS, Android, Windows 8/8.1/10 RT
SUSE Linux (12.2, 12.3, 13.1), Fedora (17, 18, 19, 20), Linux Mint (13, 14, 15, 16, 17), Boss (3.0, 5.0), Ubuntu (10.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10), Debian (6.0.x, 7.x)
UNIX | | Processor | 1.2 GHz | | Memory | 256 MB NAND flash, 256 MB DRAM | | Fonts | 84 scalable TrueType fonts | | Printer Language | HP PCL 6, HP PCL 5c, HP postscript level 3 emulation, PDF, URF, PCLm, Native Office, PWG Raster | | | | Control Panel | 3.0" / 7.6 cm color touchscreen
3 buttons (home, help, back) | | Power Requirements | 110-127 VAC (±10%), 60 Hz (±3 Hz) | | Power Consumption | Active Printing: 570 W
Ready: 17.6 W
Sleep: 2.4 W
Auto-On/Off: 0.6 W
Off: 0.05 W | | Typical Power Consumption | 1.515 kWh/week | | Certifications | ENERGY STAR certified
Blue Angel
EPEAT Silver | | Acoustic Noise | Power Emissions: 6.3 B(A) (Active); 4.8 B(A) (Ready)
Pressure Emissions: 49 dB(A) (Active); 34 dB(A) (Ready) | | Operating Conditions | Temperature: 59 to 86°F / 15 to 30°C
Humidity: 10 to 80%, relative non-condensing
Recommended Temperature: 59 to 80.6°F / 15 to 27°C
Recommended Humidity: 20 to 70%, relative non-condensing | | Storage Conditions | Temperature: -4 to 104°F / -20 to 40°C
Humidity: 10 to 95%, relative non-condensing | | Dimensions | 16.2 x 18.5 x 11.6" / 41.1 x 47.0 x 29.5 cm
Maximum: 16.2 x 25.6 x 13.4" /41.1 x 65.0 x 34.0 cm | | Weight | 41.7 lb / 18.9 kg | | | | Box Dimensions (LxWxH) | 23.0 x 19.5 x 15.3" | - HP 410X Black High Yield LaserJet Toner Cartridge
| Printer Type | Laser Printers | | Container Type | Laser Toner Cartridge | | Color | Black | | Black Page Yield | 6500 Pages | | | | Box Dimensions (LxWxH) | 14.3 x 4.8 x 4.8" | - HP 410X Cyan High Yield LaserJet Toner Cartridge
| Printer Type | Laser Printers | | Container Type | Laser Toner Cartridge | | Color | Cyan | | Color Page Yield | 5000 Pages | | | | Box Dimensions (LxWxH) | 14.3 x 4.9 x 4.2" | - HP 410X Yellow High Yield LaserJet Toner Cartridge
| Printer Type | Laser Printers | | Container Type | Laser Toner Cartridge | | Color | Yellow | | Color Page Yield | 5000 Pages | | | | Box Dimensions (LxWxH) | 14.3 x 4.8 x 4.5" | - HP 410X Magenta High Yield LaserJet Toner Cartridge
| Printer Type | Laser Printers | | Container Type | Laser Toner Cartridge | | Color | Magenta | | Color Page Yield | 5000 Pages | | | | Box Dimensions (LxWxH) | 14.2 x 4.8 x 4.4" |
