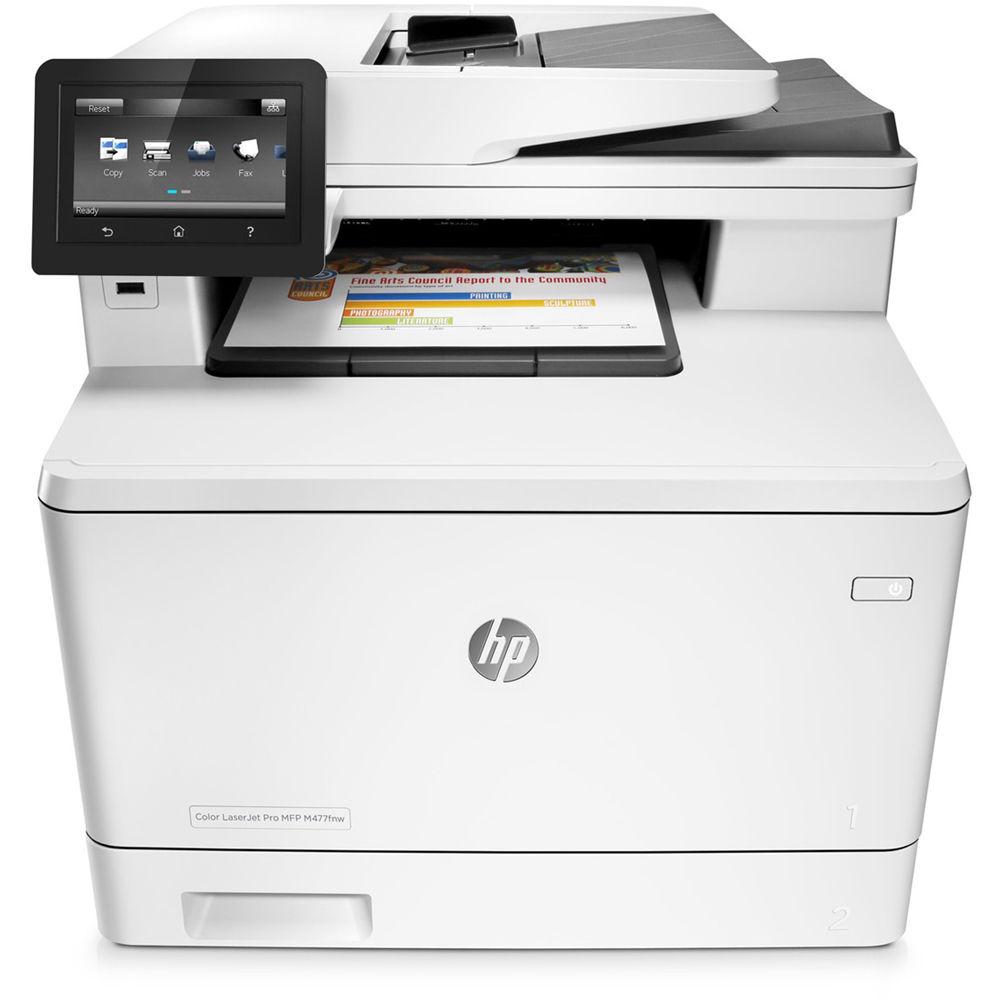

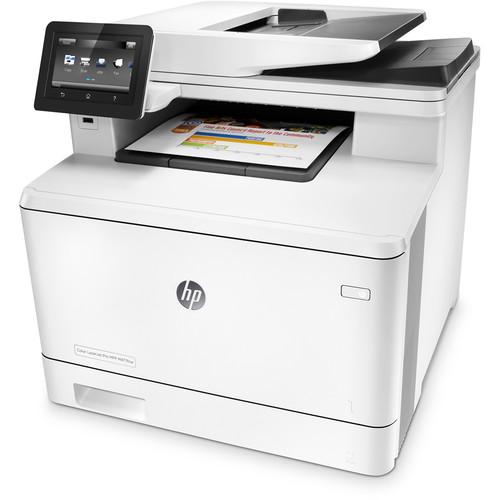

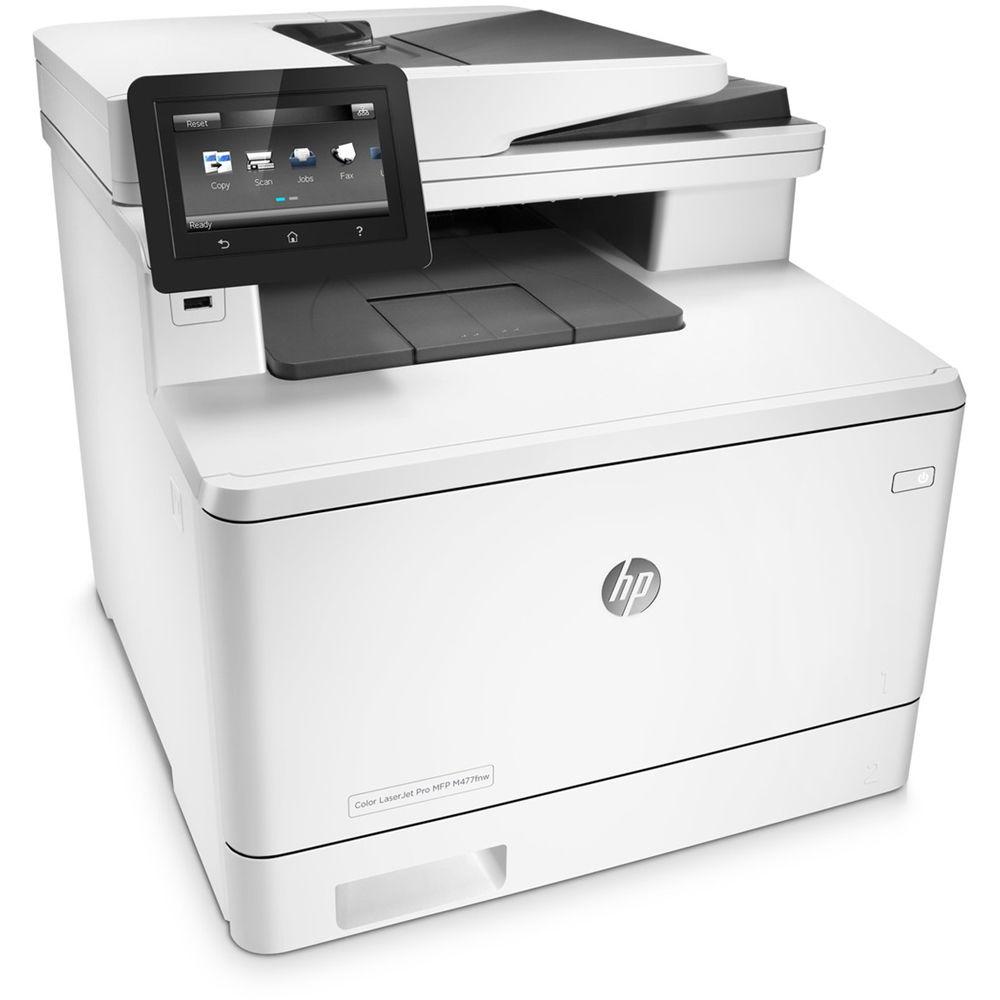

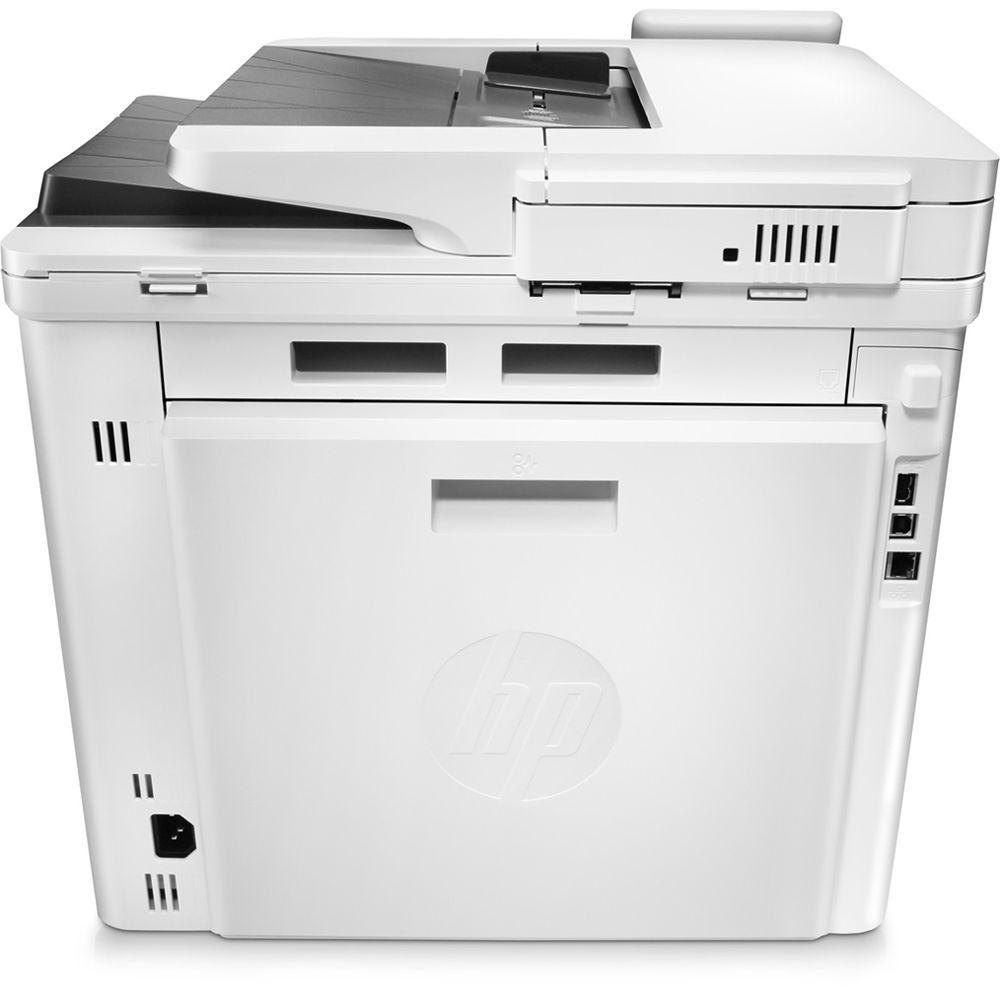

User Manual for HP Color LaserJet Pro M477fnw All-in-One Laser Printer Click to enlarge the picture
Contents of the user manual for the HP Color LaserJet Pro M477fnw All-in-One
- Product category: Laser Printers HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Laser Printers
 |
User manual for the HP Color LaserJet Pro M477fnw All-in-One contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Take care of your work faster and more efficiently with the printing, scanning, copying, and faxing capabilities of the Color LaserJet Pro M477fnw All-in-One Laser Printer from HP. This unit offers a print resolution of 600 x 600 dpi, which can be enhanced to 38400 x 600 dpi, for finely detailed documents. The M477fdw also has a speedy print speed of 28 ppm. Along with this, it has monthly duty cycle of 50,000 pages for durability.
Scanning, copying, and faxing benefit from the inclusion of an 8.5 x 11.7" flatbed and a 50-sheet automatic document feeder. This unit works with an optical scan resolution of 1200 x 1200 dpi for sharp imagery. In addition to the ADF, the M477fnw has a 50-sheet multipurpose tray and standard 250-sheet input tray for handling documents up to 8.5 x 14" in size.
Operation is simplified with the implementation of a 4.3" color touchscreen on the front panel. This intuitively controlled system clearly shows users print status, settings, and more. Also, there is an easy access USB port for printing from and scanning to a portable drive. Additionally, the M477fnw is equipped with USB 2.0, Ethernet, and Wi-Fi for a multitude of connection options. - Scan files directly to email, USB, network folder, and the cloud
- First page out time of 8.9 seconds for black and 9.8 seconds for color
- Control access to print jobs with security features like LDAP authentication
- Intuitive control using the 4.3" color touchscreen
- Print documents directly from a USB drive
- Manage devices and settings using HP Web JetAdmin
- Print directly from a smartphone or tablet
- Share the printer over a network with either Ethernet or Wi-Fi connectivity
UPC: 888793383360 In the Box HP Color LaserJet Pro M477fnw All-in-One Laser Printer Starter Black LaserJet Toner Cartridge (~2,300 Pages) Starter Cyan LaserJet Toner Cartridge (~1,200 Pages) Starter Magenta LaserJet Toner Cartridge (~1,200 Pages) Starter Yellow LaserJet Toner Cartridge (~1,200 Pages) USB Cable Power Cord Software & Documentation CD-ROM Limited 1-Year Warranty Brochure PDF 505.6kbvffzcfcd More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Color LaserJet Pro M477fnw All-in-One Laser Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP M477FNW Specs | Functions | Print, scan, copy, fax | | | | Printing Technology | Laser; HP ImageRET 3600, Pantone calibrated | | Maximum Resolution | 600 x 600 dpi (38400 x 600 enhanced dpi) | | Print Speed | 28 ppm | | First Print Out Speed | Black: 8.9 sec
Color: 9.8 sec | | Print Color | Color | | Duplex Printing | No | | Printer Duty Cycle | Monthly: 50,000 pages
Recommended Monthly Volume: 750-4,000 pages | | Print Features | N-up printing, collation, HP ePrint, Apple AirPrint, Mopria certified, Google Cloud Print, Wireless Direct Printing, HP Auto-On/Auto-Off Technology, Print from Cloud using business apps on the control panel, HP JetAdvantage Private Print, Job Storage with PIN printing, Print from USB | | | | Type | Flatbed, ADF | | Scan Sensor | Contact Image Sensor (CIS) | | Optical Resolution | 1200 x 1200 dpi | | Hardware Resolution | 1200 x 1200 dpi | | Scan Size | ADF: 4 x 6" to 8.5 x 14.0" / 10.2 x 15.2 cm to 21.6 x 35.6 cm
Flatbed: Up to 8.5 x 11.7" / 21.6 x 29.7 cm | | Duplex Scanning | No | | Scan Speed | Black: 26 ppm / 47 ipm (duplex)
Color: 21 ppm / 30 ipm (duplex) | | Scan File Format | PDF, JPG | | Bit Depth | 30-bit | | Grayscale Tones | 256 levels | | Scanner Features | Scan-to-E-mail; Scan-to-cloud; Scan-to-USB; Scan-to-network folder; LDAP e-mail lookup; Single-pass 2-sided scanning ADF | | | | Copy Resolution | 600 x 600 dpi | | Copy Speed | 28 cpm | | Number of Copies | Up to 99 copies | | Reduction/Enlargement | 25-400% | | Copy Features | Number of copies; Reduce/Enlarge; Lighter/Darker; Optimize; Paper; Multi-page copy; Collation; Tray Select; Two-Sided; Draft Mode; Image Adjustment; Set as New Defaults; Restore Defaults | | | | Modem Speed | 33.6 kbps | | Transmission Speed | 3 sec per page | | Fax Resolution | Black (Best): 300 x 300 dpi
Black (Standard): 203 x 96 dpi | | Fax Memory | 400 pages | | Speed Dial Locations | 120 numbers | | Fax Features | Auto fax reduction supported, auto-redialing, fax delayed sending, distinctive ring detection supported, fax telephone mode, junk barrier, PC interface support | | | | Paper Handling | Multipurpose tray
Input tray
Automatic document feeder
Output bin | | Paper Types | Paper (bond, brochure, colored, glossy, letterhead, photo, plain, preprinted, prepunched, recycled, rough), postcards, labels, envelopes | | Paper Sizes | Multipurpose Tray: 3 x 5" to 8.5 x 14" / 7.6 x 12.7 cm to 21.6 x 35.6 cm
Input Tray: 3.9 x 5.8" to 8.5 x 14" / 10.0 x 14.7 cm to 21.6 x 35.6 cm | | Media Weight | Multipurpose Tray: 16-52 lb
Input Tray: 16-47 lb
ADF: 16-43 lb | | Paper Capacity | Multipurpose Tray: 50 sheets
Input Tray: 250 sheets
ADF: 50 sheets
Output Bin: 150 sheets | | | | Interface | USB 2.0
Ethernet
Wi-Fi | | USB Direct Printing | Yes, 1 x USB host port | | Wireless Printing Features | HP ePrint, Apple AirPrint, Google Cloud Print, Mopria-certified, wireless direct printing, NFC touch-to-print, mobile apps | | OS Compatibility | Windows XP SP3 (32/64-bit), Vista (32/64-bit), 7 (32/64-bit), 8/8.1 (32/64-bit), 10 (32/64-bit)
Mac OS X 10.7-10.10
iOS, Android, Windows 8/8.1/10 RT
SUSE Linux (12.2, 12.3, 13.1), Fedora (17, 18, 19, 20), Linux Mint (13, 14, 15, 16, 17), Boss (3.0, 5.0), Ubuntu (10.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10), Debian (6.0.x, 7.x)
UNIX | | Processor | 1.2 GHz | | Memory | 256 MB NAND flash, 256 MB DRAM | | Fonts | 84 scalable TrueType fonts | | | | Control Panel | 4.3" / 10.9 cm color touchscreen | | Power Requirements | 110-127 VAC (±10%), 60 Hz (±3 Hz) | | Power Consumption | Active Printing: 570 W
Ready: 18.6 W
Sleep: 2.5 W
Auto-On/Off: 0.6 W
Off: 0.05 W | | Certifications | ENERGY STAR certified
Blue Angel
EPEAT Silver | | Acoustic Noise | Power Emissions: 6.3 B(A)
Pressure Emissions: 49 dB(A) | | Operating Conditions | Temperature: 59 to 86°F / 15 to 30°C
Humidity: 10 to 80%, relative non-condensing
Recommended Temperature: 59 to 80.6°F / 15 to 27°C
Recommended Humidity: 20 to 70%, relative non-condensing | | Storage Conditions | Temperature: -4 to 104°F / -20 to 40°C
Humidity: 10 to 95%, relative non-condensing | | Dimensions | 16.4 x 18.1 x 15.7" / 41.7 x 46.0 x 39.9 cm
Maximum: 16.8 x 25.2 x 16.3" / 42.7 x 64.0 x 41.4 cm | | Weight | 48.1 lb / 21.8 kg | | | | Package Weight | 58.2 lb | | Box Dimensions (LxWxH) | 23.0 x 19.0 x 19.0" |
