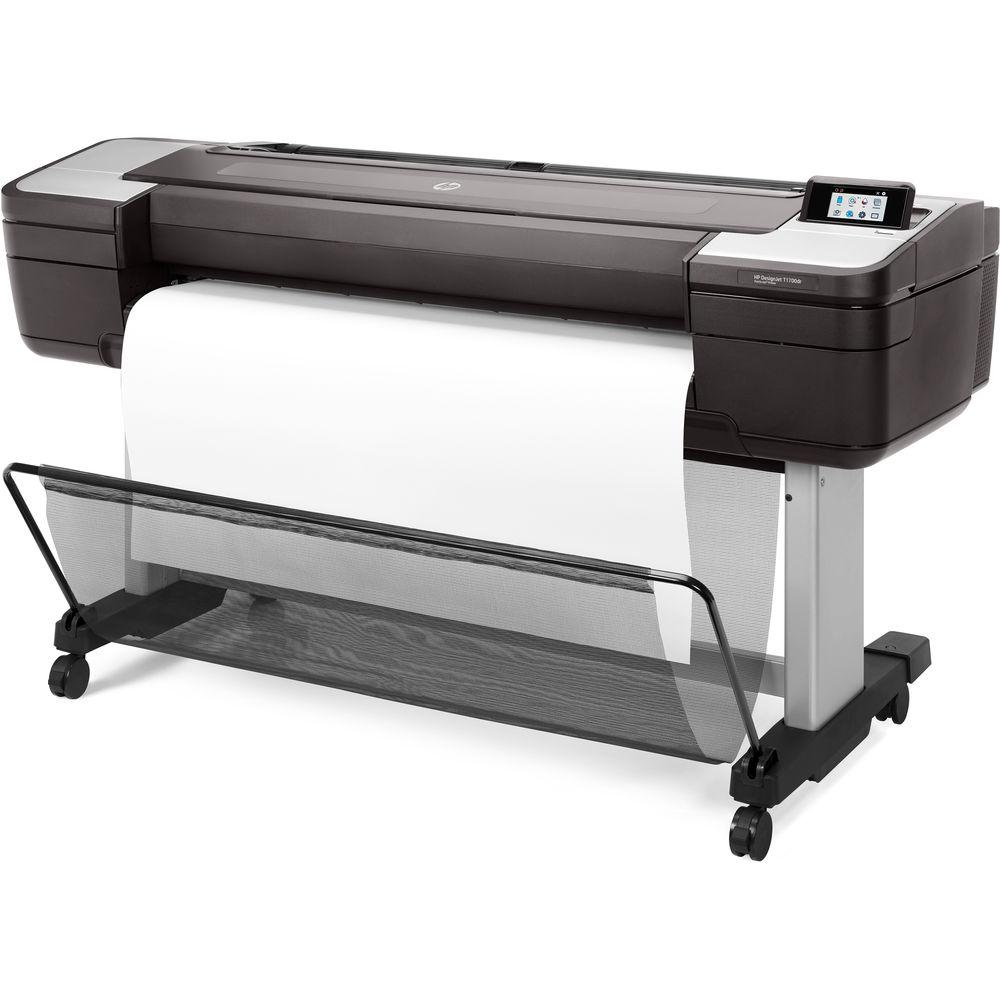

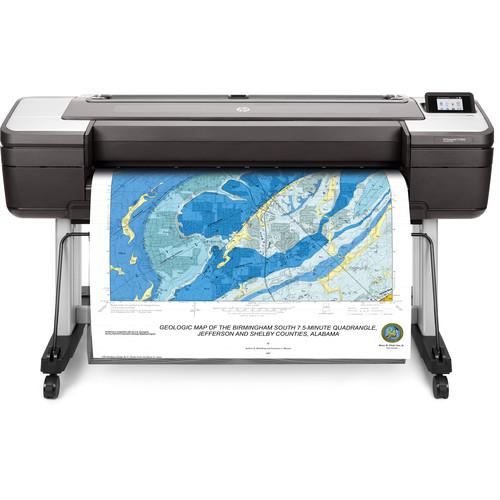

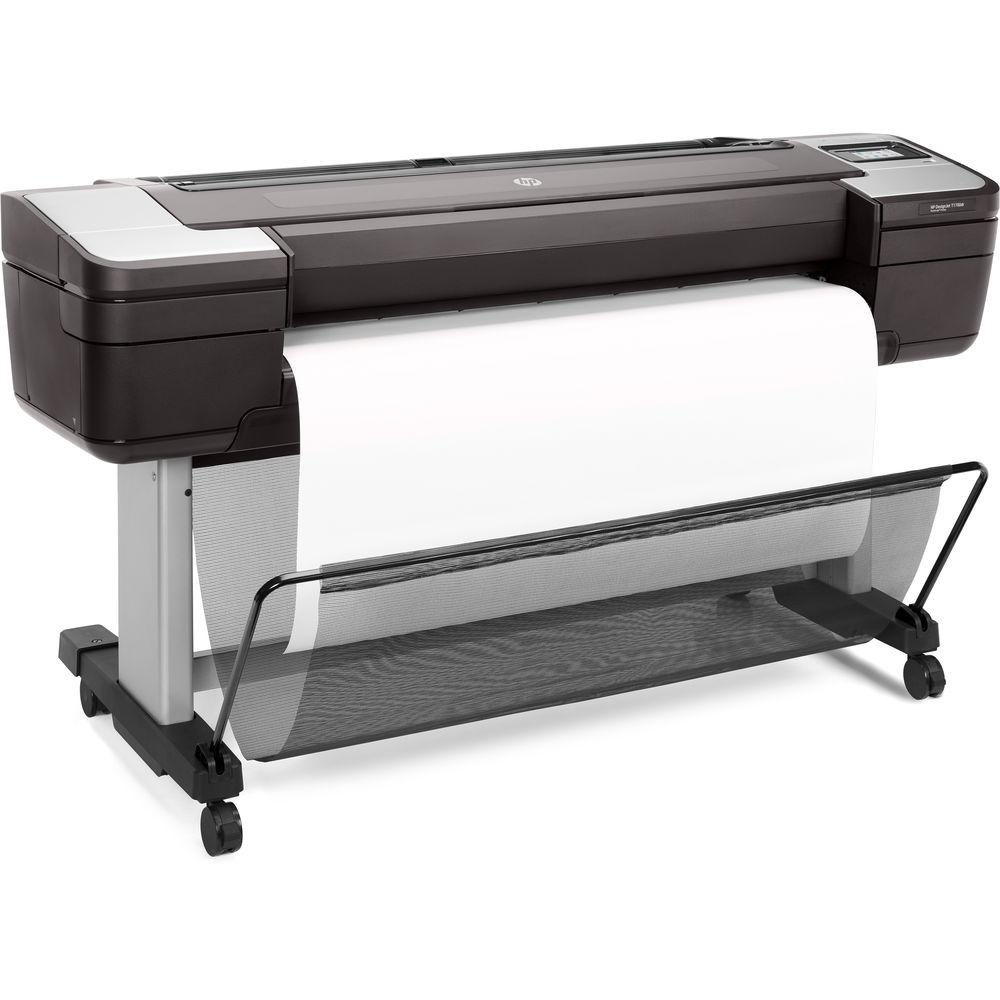

User Manual for HP DesignJet T1700dr 44" PostScript Printer Click to enlarge the picture
Contents of the user manual for the HP DesignJet T1700dr 44" PostScript Printer
- Product category: Large Format Printers HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Large Format Printers
 |
User manual for the HP DesignJet T1700dr 44" PostScript Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Easily create large format prints with the DesignJet T1700dr 44" Printer from HP. Optimized HP Thermal Inkjet technology provides a 2400 x 1200 optimized dpi resolution that conveys a nice level of detail in color or black and white. This model accepts rolls up to 11 x 44" and sheets up to 44 x 66" and has an automatic cutter. The printer is also speedy, capable of printing an A1/D sized sheet of paper in just 26 seconds.
Various settings and modes can be selected via the 4.3" touchscreen on the front of the printer. Connectivity options include Ethernet and USB 2.0, and the printer is also able to print via Apple AirPrint and the HP Print Service app. - Print
-
- HP Thermal Inkjet technology offers an optimized resolution of 2400 x 1200 dpi for sharp, detailed documents and graphics.
- The quick printing speed of 26 seconds per A1/D-sized page means you can work quickly.
- Combination of dye- and pigment-based inks create vibrant images.
- Line accuracy of ±0.1% ensures prints are accurate.
- Media Handling
-
- Works with roll and sheet media up to 44" wide and 31.5 mils thick.
- Printer contains sheet and roll feed trays as well as an automatic cutter.
- General
-
- 4.3" color LCD touchscreen enables intuitive control over printer settings and operation.
- Supports mobile printing technologies like Apple AirPrint and HP Mobile Printing.
- HP Click and HP DesignJet Utility software included for easy operation from a Mac or Windows computer
- Print Languages: Adobe PostScript 3, Adobe PDF 1.7 ext 3, HP-GL/2, TIFF, JPEG, URF, CALS G4
UPC: 191628122189 In the Box HP DesignJet T1700dr 44" PostScript Printer 3 x 731 Printhead Introductory Cyan Ink Cartridge Introductory Magenta Ink Cartridge Introductory Yellow Ink Cartridge Introductory Gray Ink Cartridge Introductory Matte Black Ink Cartridge Introductory Photo Black Ink Cartridge Printer Stand 44" Spindle for Select DesignJet Printers Power Cord Label Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP DesignJet T1700dr 44" PostScript Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Designjet T1700dr Specs | | | Printing Technology | HP Thermal Inkjet | | Maximum Resolution | 2400 x 1200 dpi | | Print Speed | 116 prints per hour | | Ink Type | Dye-based: C, G, M, pK, YPigment-based: mK | | Ink Cartridge Configuration | 6 individual cartridges | | Minimum Ink Droplet Size | 6 pL (M, Y, mK, R, pK, C) | | Printhead | 3 (mK-Y, C-M, G-pK) | | Line Accuracy | ±0.1% | | Minimum Line Width | 0.8 mil / 0.02 mm (PDF addressable @ 1200 dpi) | | | | Paper Handling | Sheet Feed
Roll Feed
Automatic Cutter | | Maximum Paper Width | 44" / 111.8 cm | | Paper Sizes | Roll: 11-44" / 27.9-111.8 cm wide
Sheets: 8.3 x 11" to 44 x 66" / 21 x 27.9 cm to 111.8 x 167.6 cm
Standard Sizes: A, B, C, D, E (A4, A3, A2, A1, A0) | | Media Thickness | Up to 31.5 mil / 0.8 mm | | Margins | Roll Paper
Top: 0.1" / 3 mm
Bottom: 0.1" / 3 mm
Left/Right: 0.1" / 3 mm
Cut Sheet
Top: 0.1" / 3 mm
Bottom: 0.67" / 17 mm
Left/Right: 0.1" / 3 mm | | | | Interfaces | USB Type-A
Ethernet (10/100/1000Base-T) | | Direct Printing | USB | | OS Compatibility | Windows
Mac OS X
Linux | | Memory | 128 GB (virtual) | | Hard Disk Capacity | 500 GB | | Print Languages | Adobe PostScript 3, Adobe PDF 1.7 ext 3, HP-GL/2, TIFF, JPEG, URF, CALS G4 | | | | Control Panel | 4.3" Color Touchscreen | | Power Requirements | 100-240 VAC (±10%), 50/60 Hz (±3 Hz), 2 A max | | Power Consumption | Printing: < 100 W
Ready: < 24 W
Sleep: 0.3 W
Off: 0.1 W | | Certifications | Safety: USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS)
Electromagnetic: Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS)
Environmental: ENERGY STAR; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT Silver | | Acoustic Noise | Sound Pressure
Printing: 45 dB(A)
Ready: 32 dB(A)
Sleep: 15 dB(A)
Sound Power
Printing: 6.1 B(A)
Ready: 5 B(A)
Sleep: 3.1 B(A) | | Operating Conditions | Temperature: 41 to 104°F / 5 to 40°C
Humidity: 20 to 80% | | Storage Conditions | Temperature: -13 to 131°F / -25 to 55°C | | Dimensions | 70.9 x 27.4 x 39.3" / 180 x 69.5 x 99.8 cm | | Weight | 159 lb / 72 kg | | | | Package Weight | 274.5 lb | | Box Dimensions (LxWxH) | 75.25 x 29.75 x 23.25" |
