User Manual for HP DesignJet T830 24" Multifunction Printer Click to enlarge the picture
Contents of the user manual for the HP DesignJet T830 24" Multifunction Printer
- Product category: Large Format Printers HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Large Format Printers
 |
User manual for the HP DesignJet T830 24" Multifunction Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

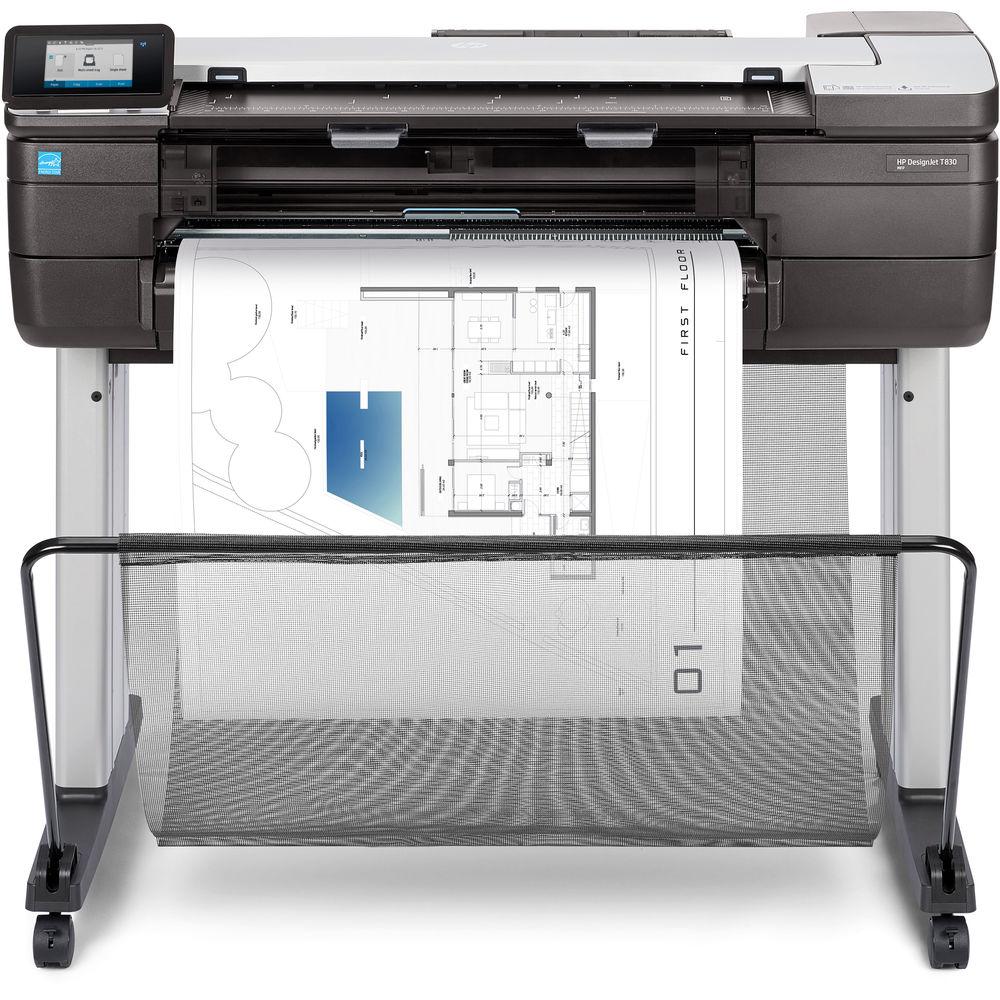

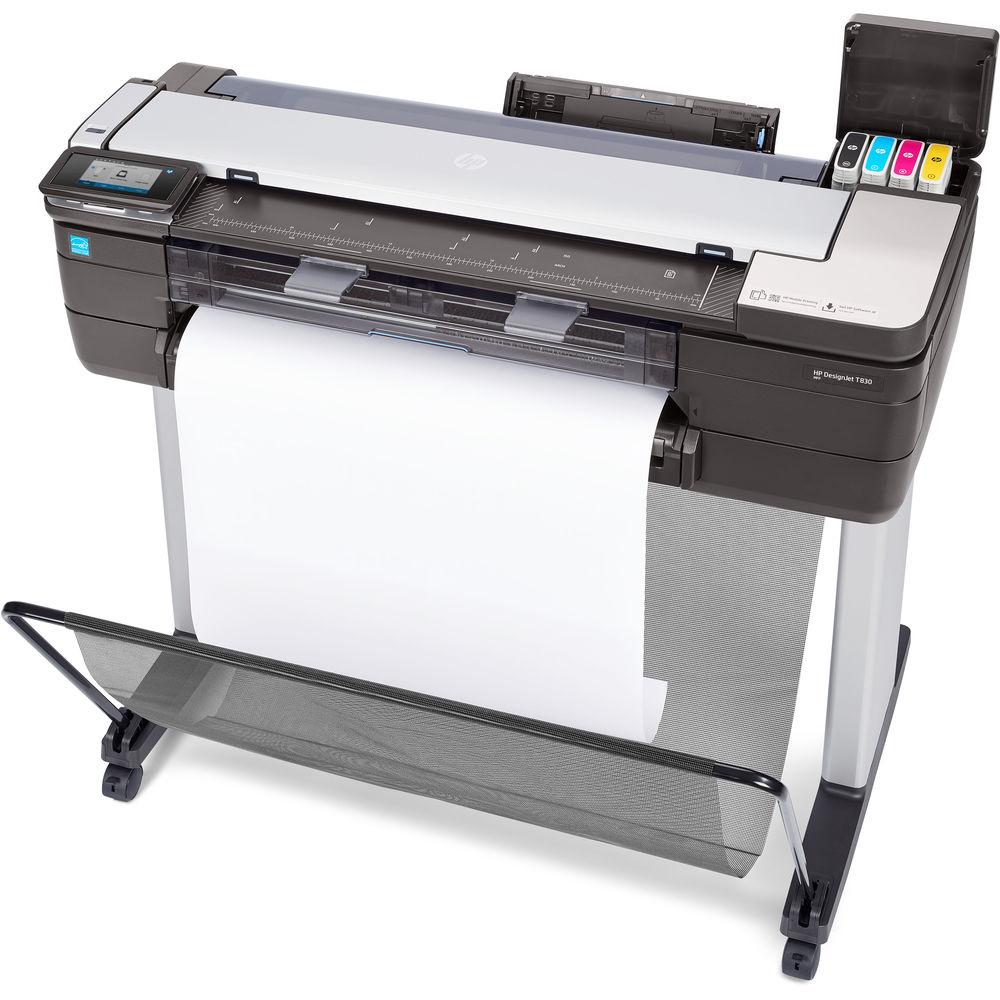

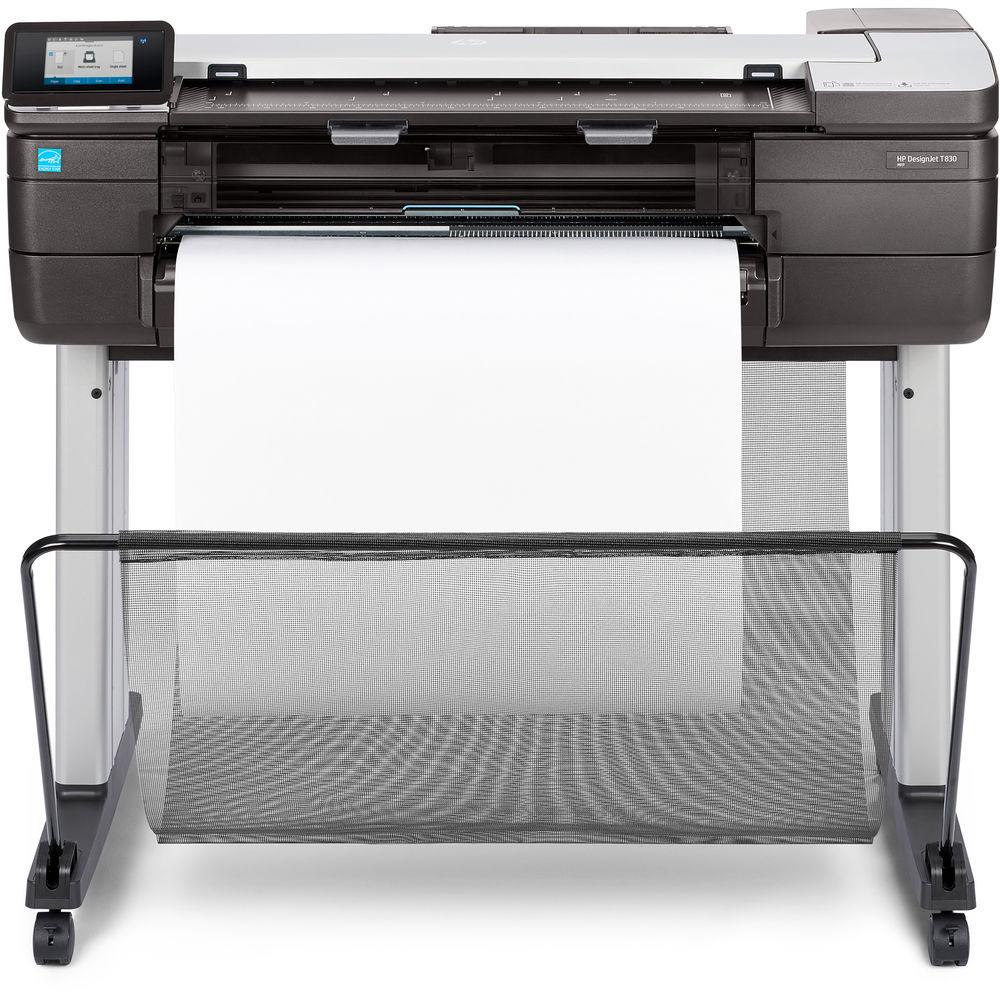

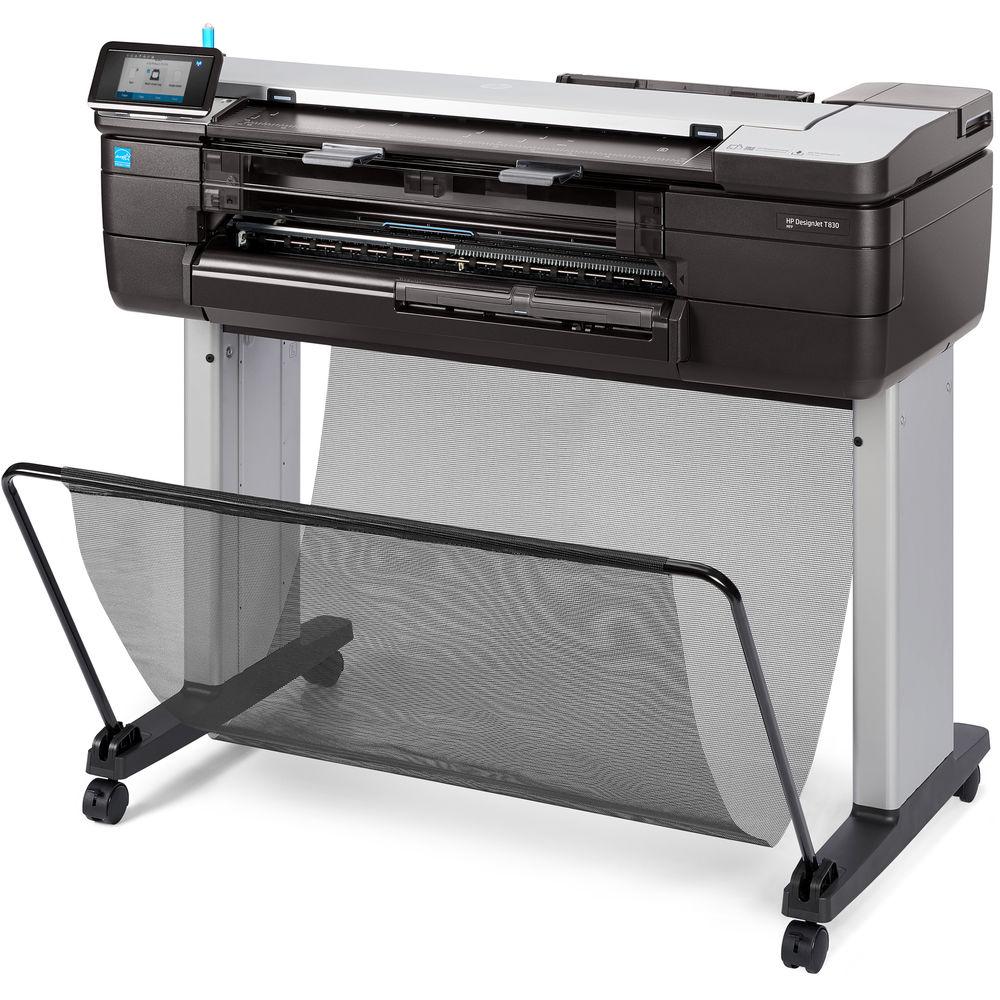

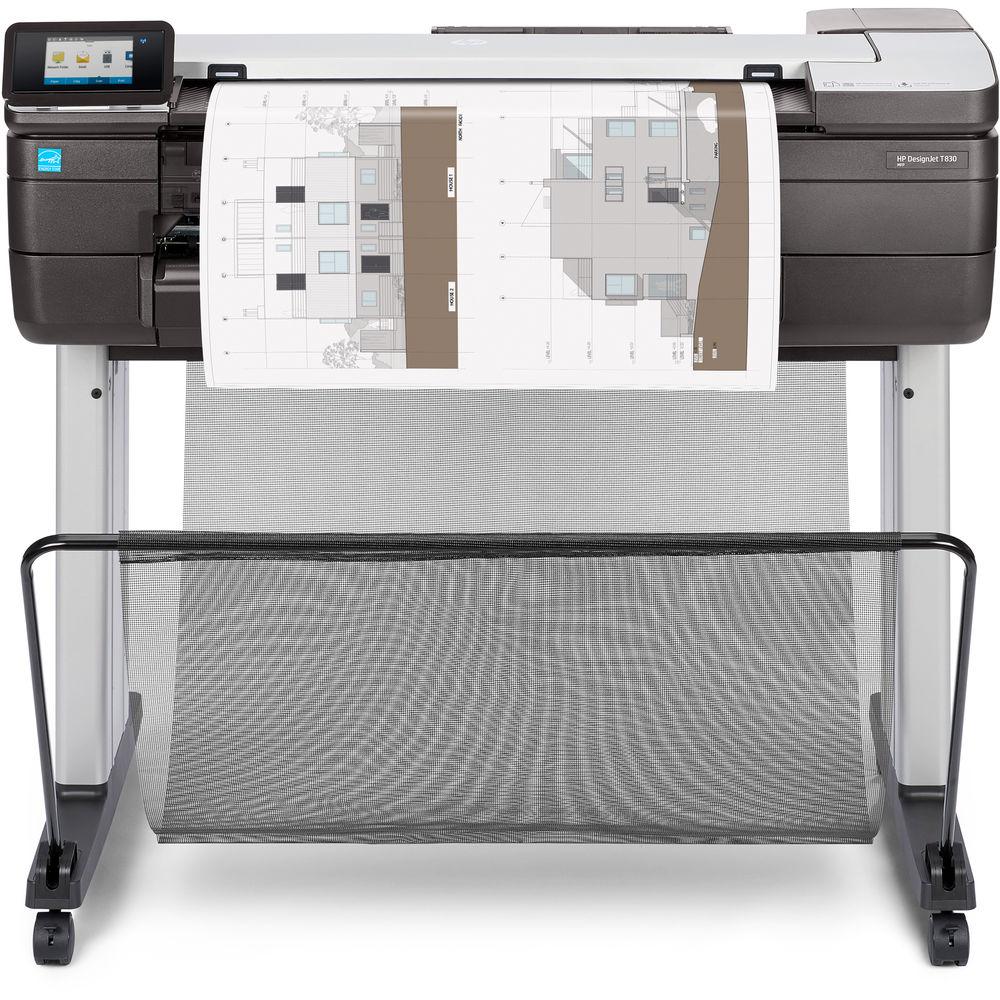

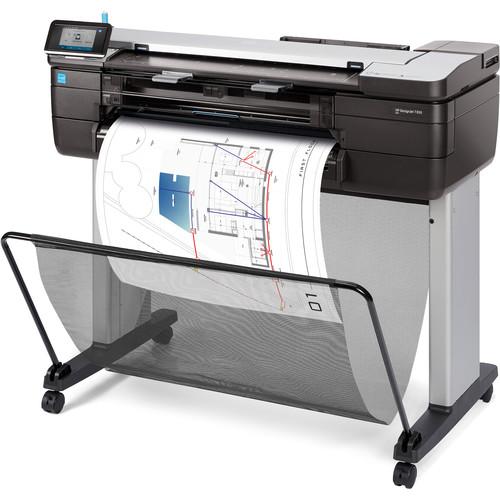

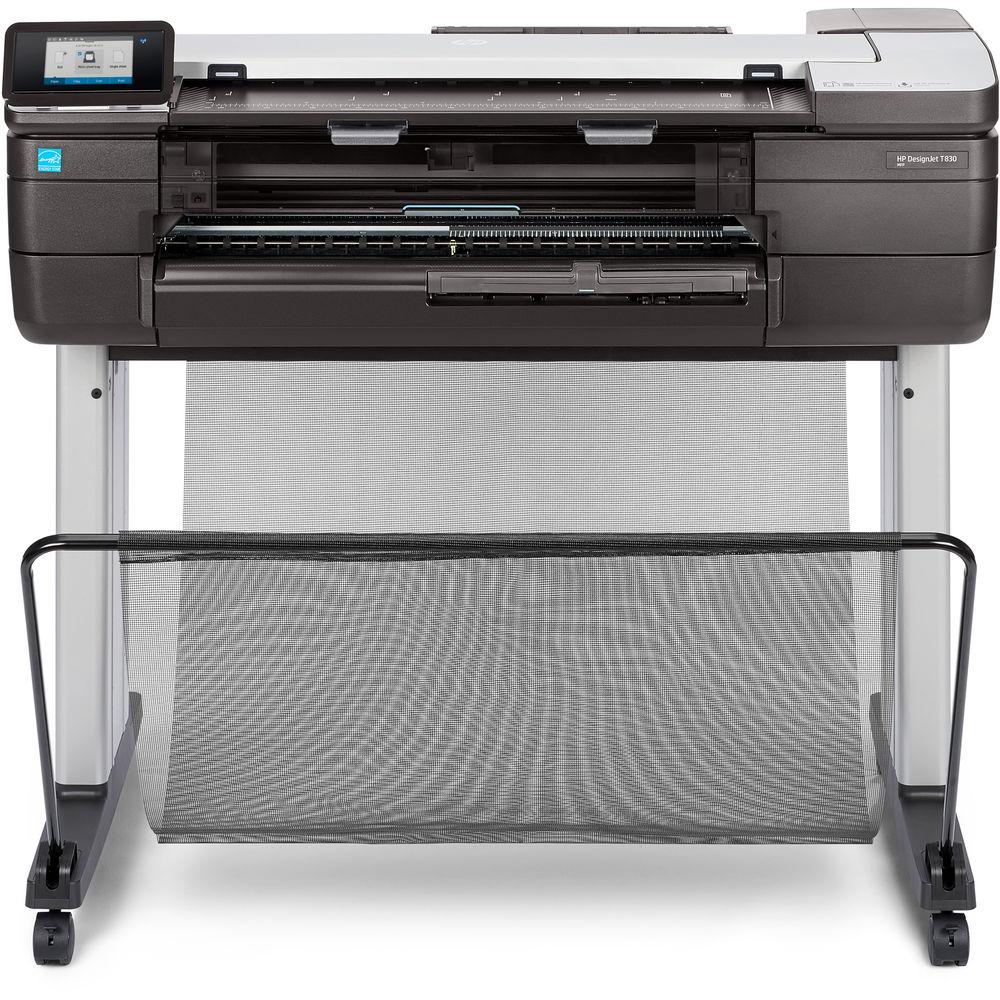

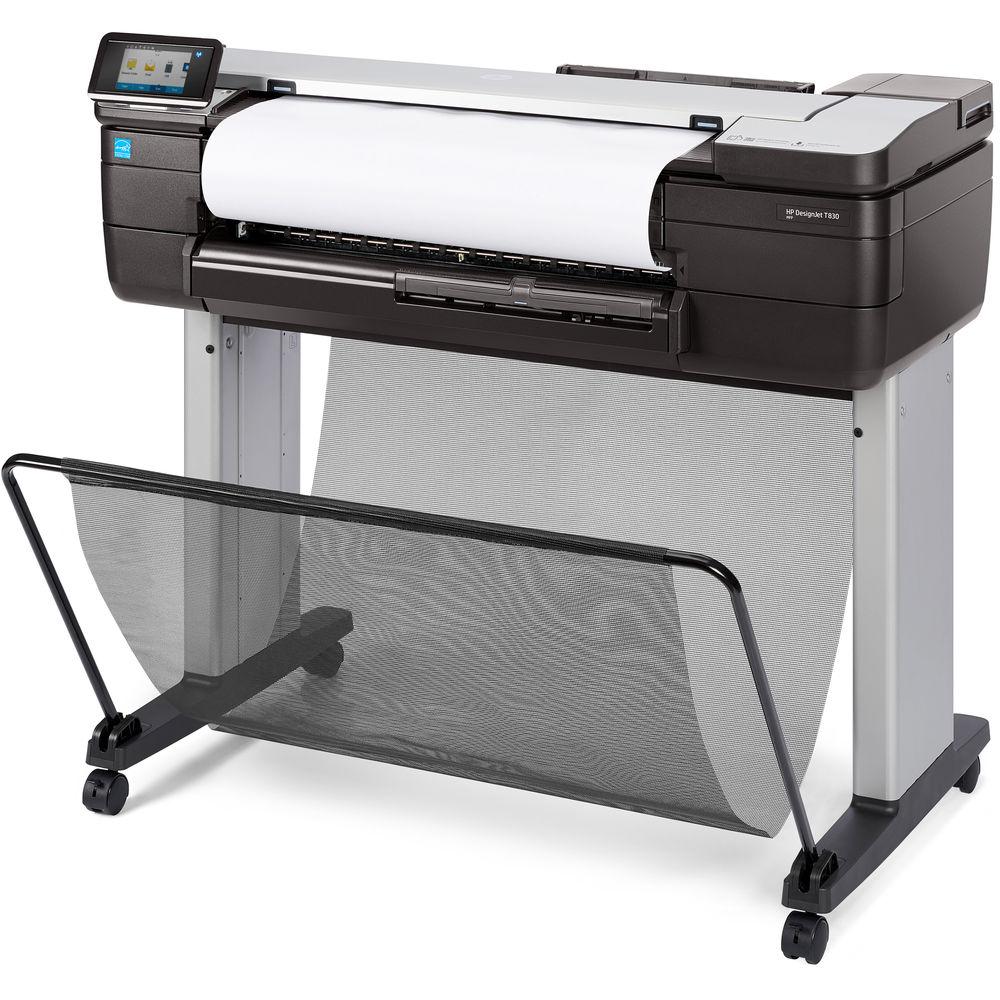

Product description With powerful, speedy printing capabilities, the DesignJet T830 24" Multifunction Printer from HP outputs high quality graphics that are ideal for an office setting. Utilizing four DesignJet Ink Cartridges - three dye-based color cartridges and one pigment-based black cartridge - the printer can create prints at up to a resolution of 2400 x 1200 dpi. The printer can also copy and scan documents at a resolution up to 600 dpi. This model can work with both roll and sheet media up to 24" in width, using a sheet feed, roll feed, input tray, and media bin. The printer can produce an A1/D-sized print in approximately 26 seconds.
Controlling printer settings is possible via the large color touchscreen on the front of the device. Additionally, built-in Wi-Fi enables quick, wireless printing from a paired mobile device. The unit is also equipped with USB and Ethernet connectivity for standard wired setups. - Print
-
- Print A1/D-sized pages in as little as 26 seconds.
- Print resolutions as dense as 2400 x 1200 dpi.
- Line width is at a minimum of 0.02mm with an accuracy of +/- 0.1%.
- Copy
-
- The printer can make up to 99 copies under a variety of conditions, including reduction or enlargement from 50 to 400%.
- Scan up to 600 dpi.
- Copier settings include: content type, lighter/darker, background noise removal, background color removal, blue print invent, translucent media, color, scan full width (24"), auto de-skew, resize, copy margins, quality.
- Scan
-
- Scan speed up to 1.5" per second in color or 4.5" per second in black and white.
- Maximum scan size is 24 x 109" on paper 0.8mm thick.
- Scan at resolutions up to 600 dpi.
- Media Handling
-
- Works with roll and sheet media up to 24" in width.
- Paper handling options: sheet feed, roll feed, input tray, media bin.
- Automatic cutter available for creating clean cuts at the end of your documents when working with roll media.
- Maximum paper thickness of 11.8 mil.
- General
-
- Full-color touchscreen panel makes it easy to check settings and send print jobs.
- Ethernet slot for wired connection and built-in Wi-Fi for cordless operation increases the versatility of this printer.
- Supports mobile printing technologies including Apple AirPrint, HP Mobile Printing, and HP ePrint.
- HP Click and HP DesignJet Utility software included for easy operation from a Mac or Windows computer.
UPC: 191628047048 In the Box HP DesignJet T830 24" Multifunction Printer HP 729 DesignJet Printhead Printer Stand DesignJet 24" Spindle for T120, T520, and T830 Printers Power Cord 4 x Ink Cartridges Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP DesignJet T830 24" Multifunction Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP DesignJet T830 Specs | | | Printing Technology | HP Thermal Inkjet | | Maximum Resolution | 2400 x 1200 dpi | | Print Speed | A1 or D: 26 seconds/page | | Line Accuracy | ±0.1% | | Ink Type | Dye-based color
Pigment-based black | | Ink Cartridge Configuration | 4 x Inkjet cartridges | | Compatible Ink Cartridges | HP 728 Matte Black ink cartridge (69, 300 mL)
HP 728 Cyan ink cartridge (40, 130, 300 mL)
HP 728 Magenta ink cartridge (40, 130, 300 mL)
HP 728 Yellow ink cartridge (40, 130, 300 mL) | | Printer Duty Cycle | Not specified by manufacturer | | Paper Handling | Sheet feed, roll feed, input tray, media bin, automatic cutter | | Paper Sizes | Rolls: 11 to 24" / 27.9 to 61 cm
Sheets: 8.3 x 11" to 24 x 74.7" / 21 x 28 to 61 x 189.7 cm
Standard Sheets: A4, A3, A2, A1 (A, B, C, D) | | Media Thickness | Up to 11.8 mil / 0.3 mm | | Margins | Roll: 0.2 x 0.2 x 0.2 x 0.2" / 5 x 5 x 5 x 5 mm
Sheet: 0.2 x 0.2 x 0.2 x 0.2" / 5 x 5 x 5 x 5 mm | | Scan Resolution | 600 dpi | | Copy Resolution | 600 dpi | | | | Interfaces | USB 2.0
Ethernet (100Base-T)
Wi-Fi | | Mobile Printing Features | Apple AirPrint, HP Print service plugin
Direct print for mobile apps for iOS, Android and Chrome OS
Email printing with HP ePrint and HP Smart app for iOS and Android | | Direct Print Capable | Yes | | OS Compatibility | Windows
Mac OS X
Android
iOS | | Printer Language | TIFF, JPEG, CALS G4, HP PCL 3 GUI, HP-GL/2, HP-RTL, URF | | Drivers | Raster driver for macOS and Windows | | | | Control Panel | Touchscreen Panel | | Memory | 1 GB | | Power Requirements | 100-240 VAC at 50/60 Hz, 1.2 A | | Power Consumption | Printing: 36 W or less
Sleep: 3.5 W or less
Standby: 0.2 W or less | | Safety Certfication | CSA, Class B, FCC | | Environmental Certification | ENERGY STAR, EPEAT Silver, CE | | Acoustic Noise | Sound Pressure, Active: 48 dBA
Sound Pressure, Sleep: 16 dBA
Sound Power, Active: 6.5 BA
Sound Power, Standby: 3.4 BA | | Operating Conditions | Temperature: 41 to 104°F / 5 to 40°C
Relative Humidity: 20 to 80% | | Storage Conditions | Temperature: -13 to 131°F / -25 to 55°C
Relative Humidity: 0 to 95% | | Dimensions (W x D x H) | 43.2 x 24.8 x 45.5" / 109.8 x 62.9 x 115.5 cm | | Weight | 112.4 lb / 51 kg | | | | Package Weight | 158.0 lb | | Box Dimensions (LxWxH) | 50.0 x 22.5 x 20.0" |
