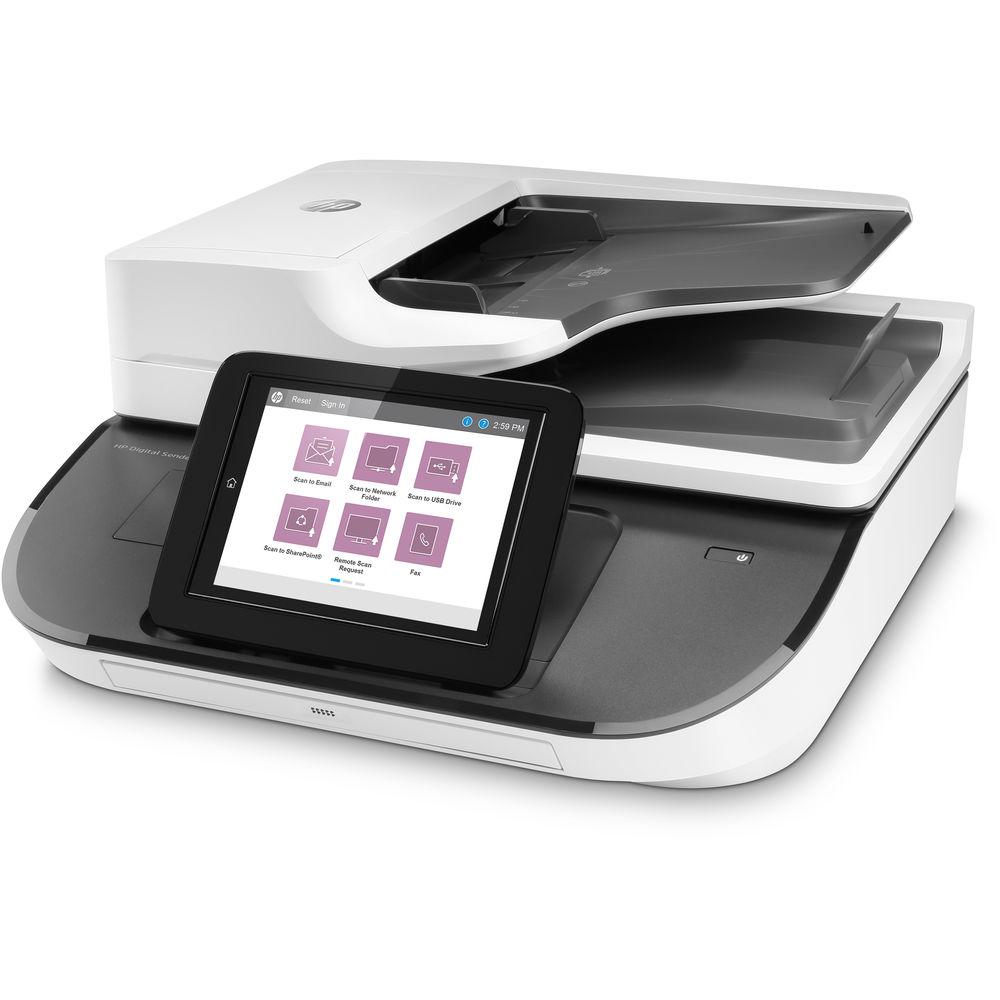

User Manual for HP Digital Sender Flow 8500 fn2 Document Capture Workstation Click to enlarge the picture
Contents of the user manual for the HP Digital Sender Flow 8500 fn2
- Product category: Flatbed & Document Scanners HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Flatbed & Document Scanners
 |
User manual for the HP Digital Sender Flow 8500 fn2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

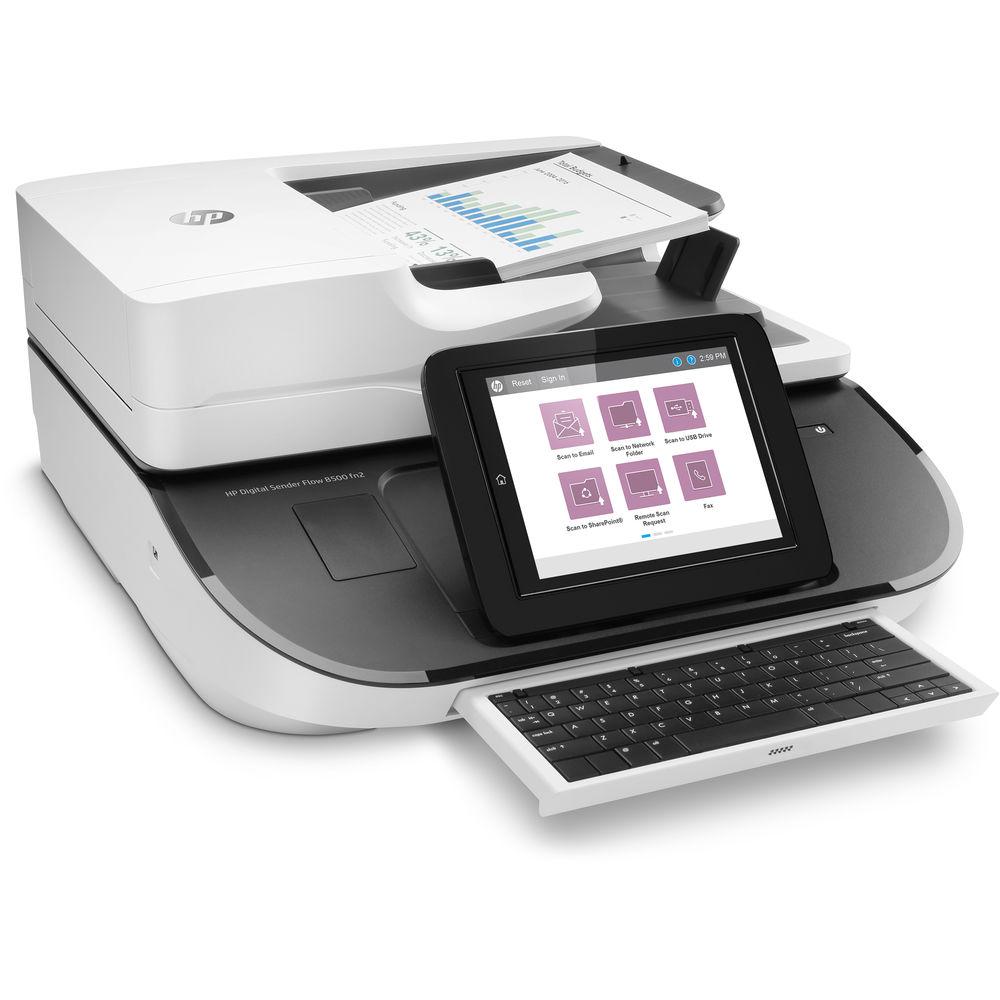

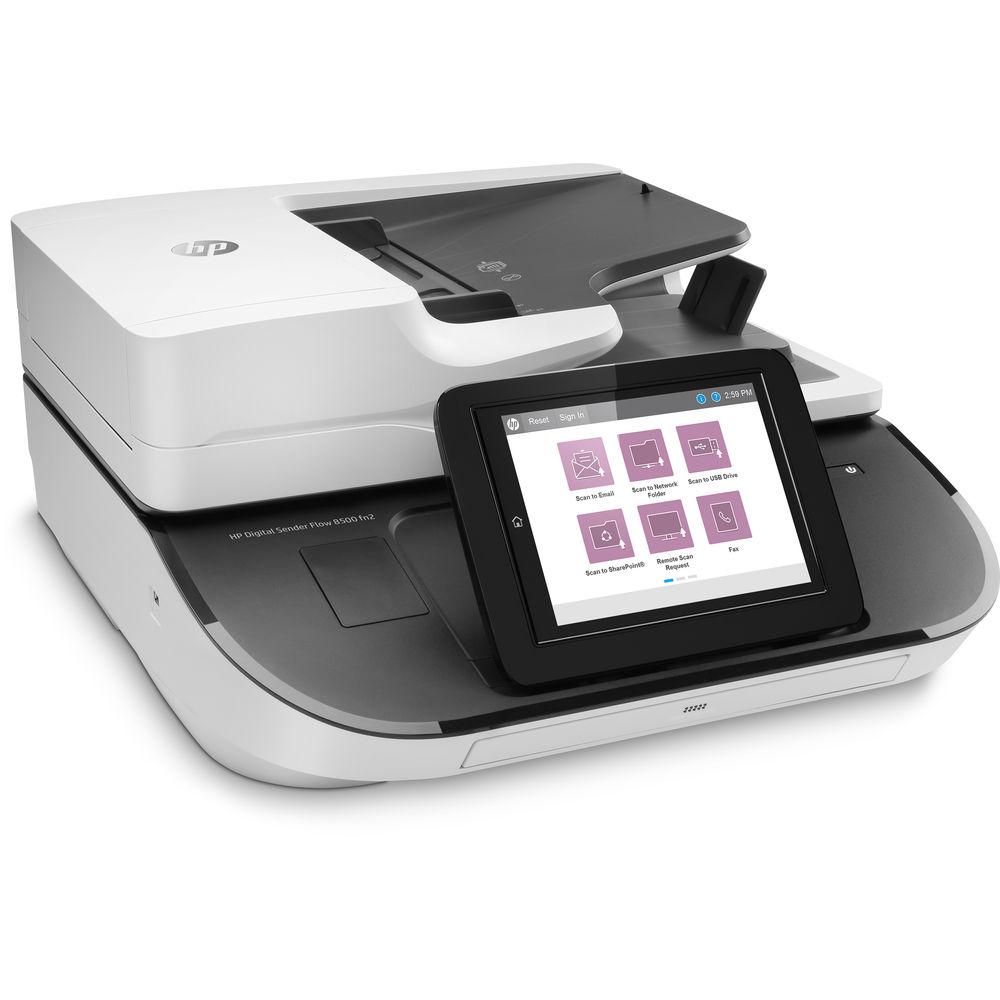

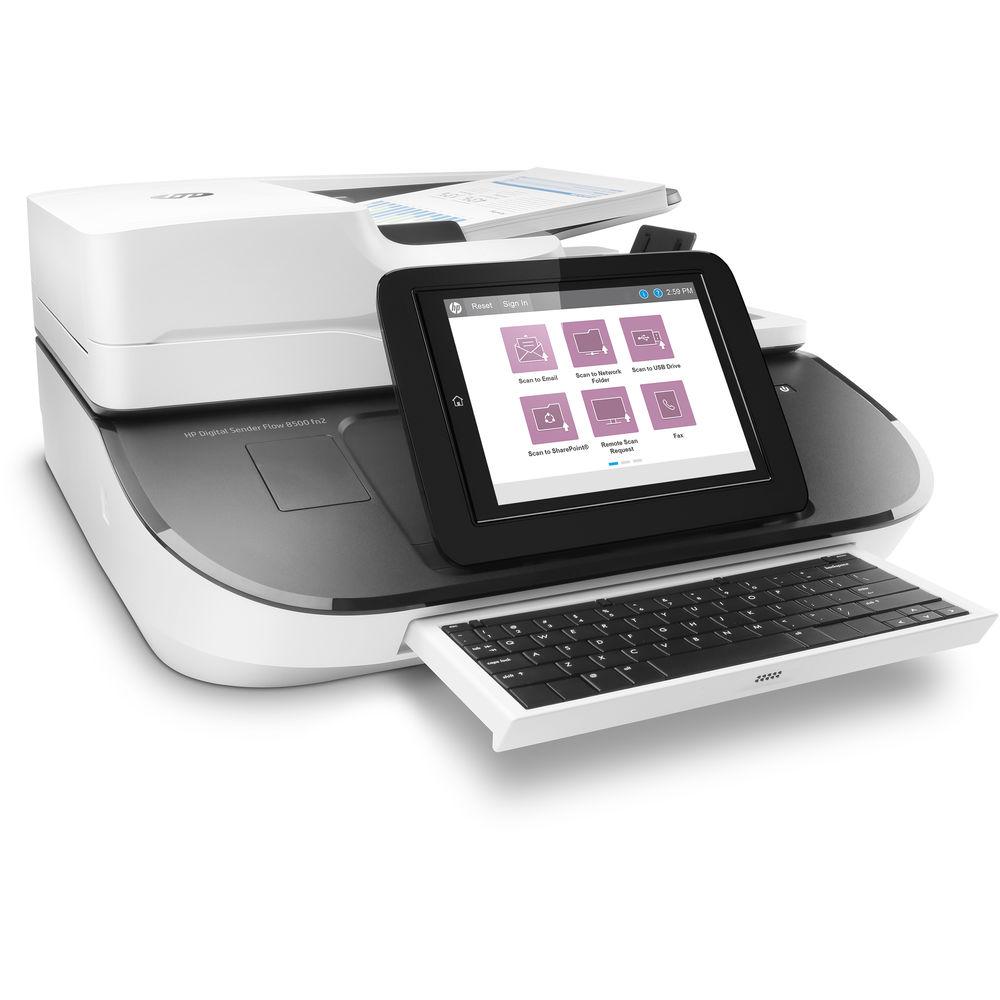

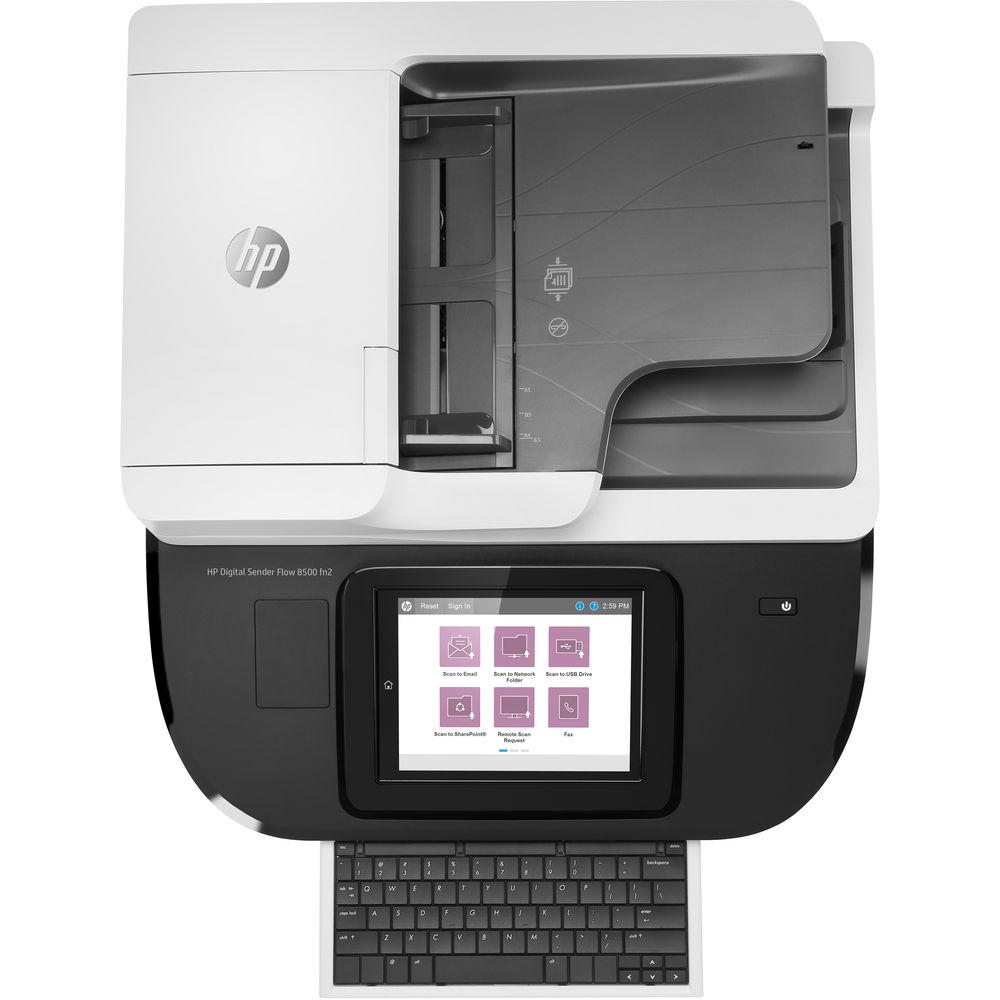

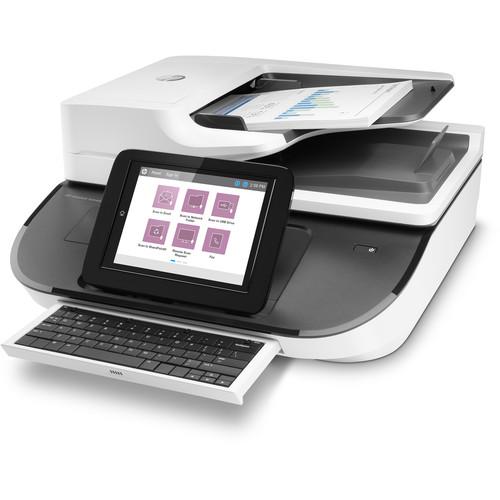

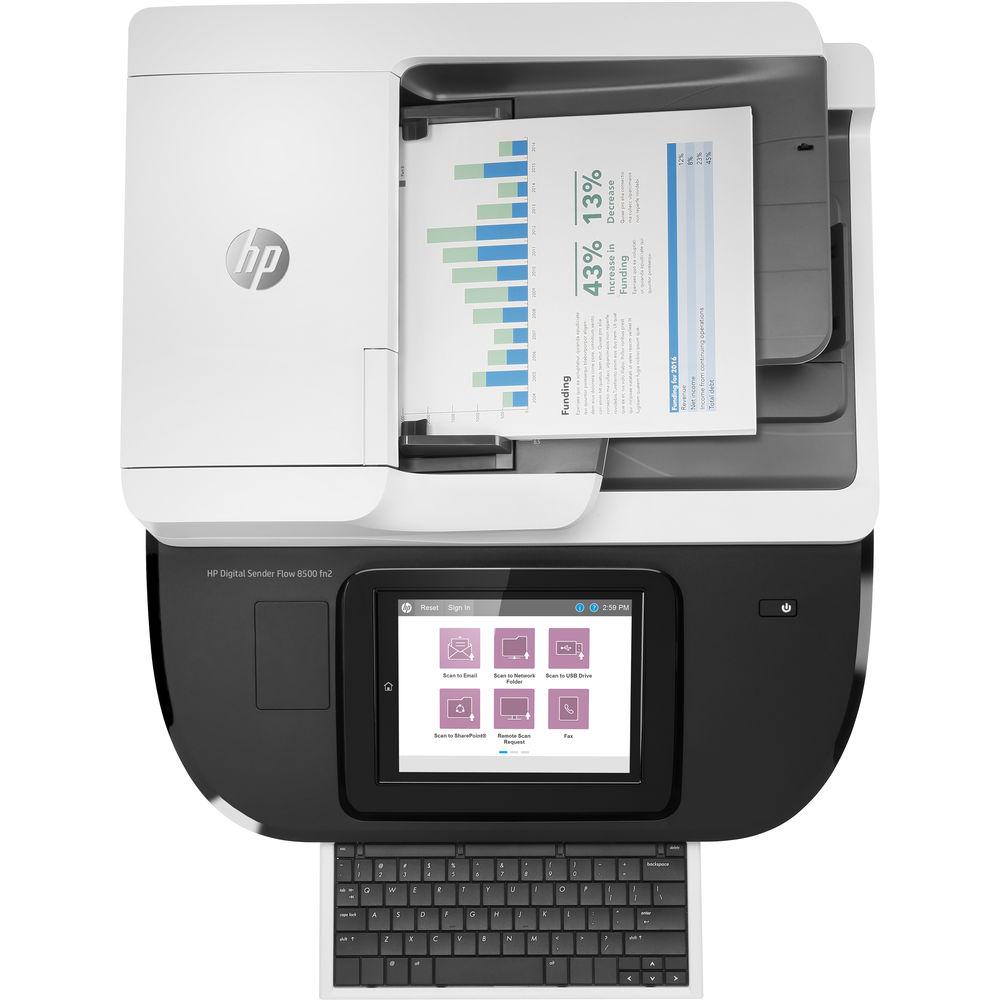

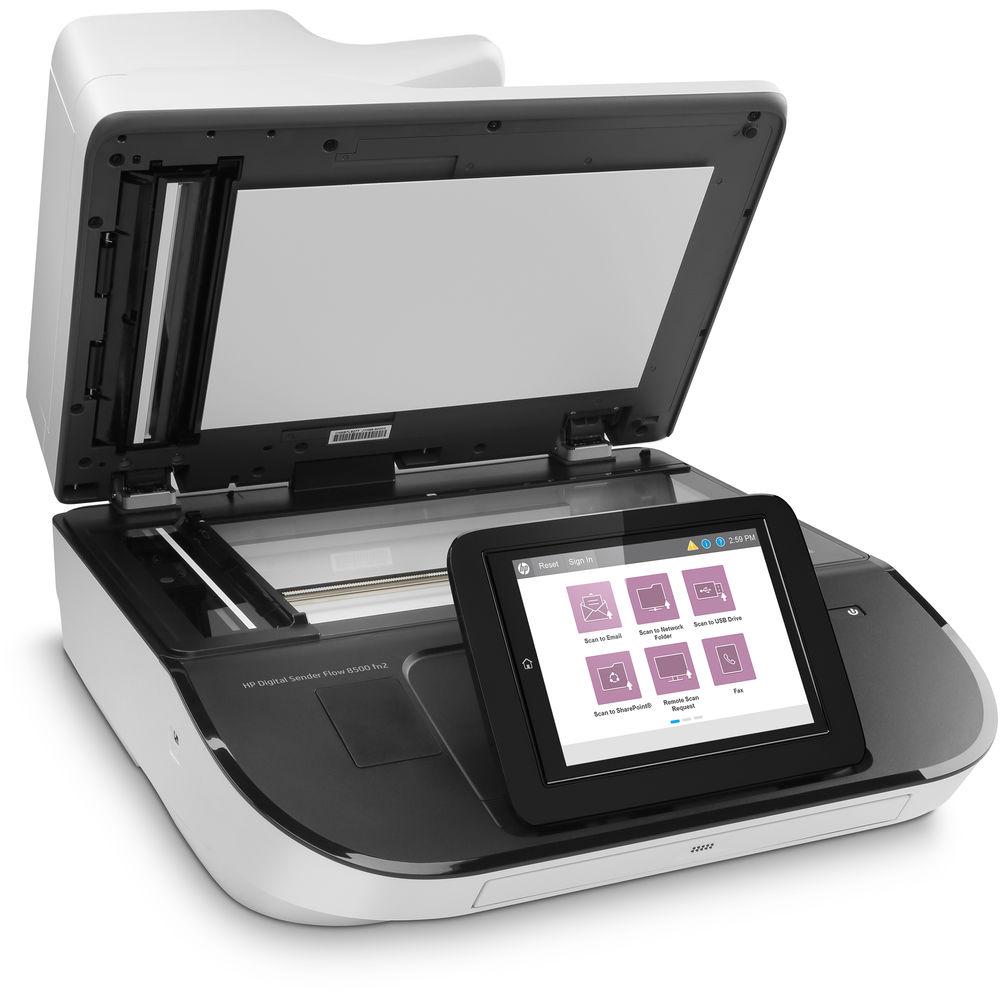

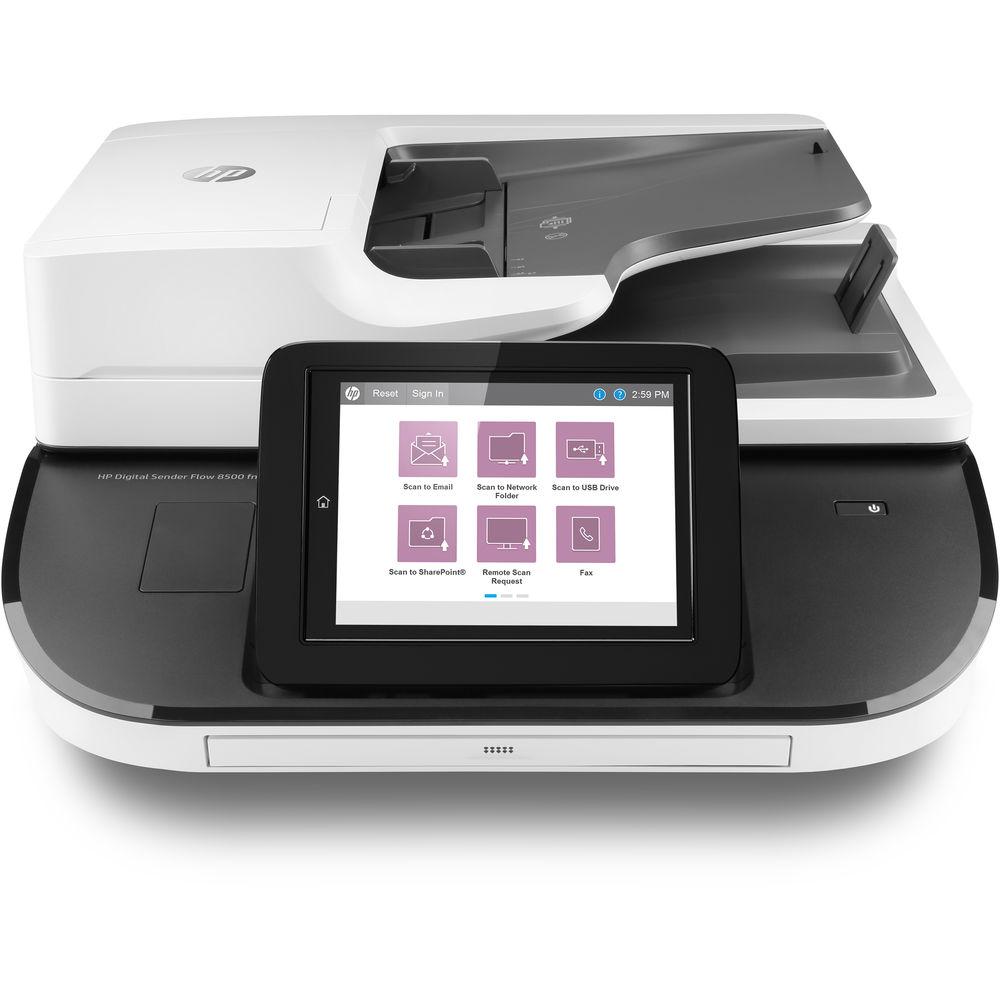

Product description Speed up your workflow with the 100 ppm Digital Sender Flow 8500 fn2 Document Capture Workstation from HP, which is equipped with both a 150-sheet ADF and an 8.5 x 14" flatbed to help digitize your physical documents. An optical resolution of 600 dpi combines with a color depth of 24-bit to create highly detailed and vivid images. Also, the ADF has access to a long document mode for scanning large 8.5 x 34" pages and it has duplexing for two-sided scanning at up to 200 ipm.

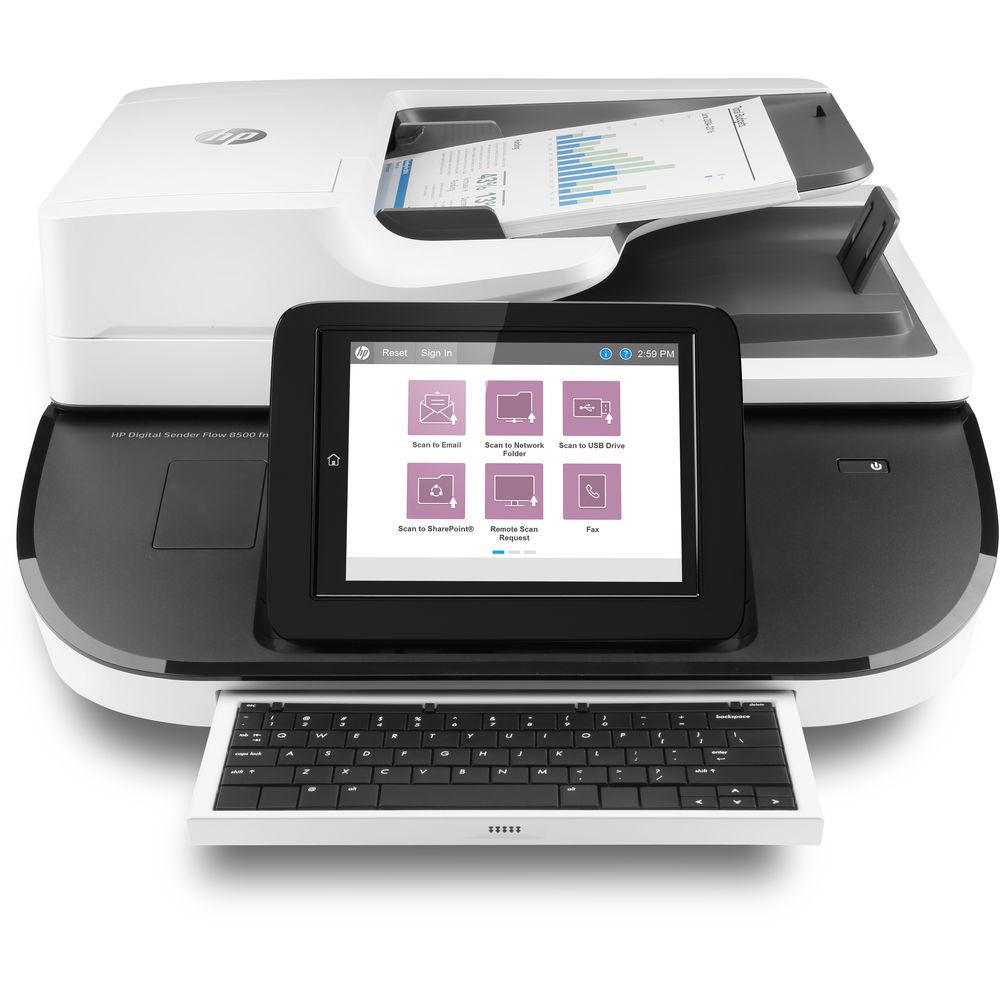

Your jobs are easily managed using the large 8" touchscreen LCD and pull-out keyboard available on the front control panel. Also, it has an easy-access USB port for plugging in portable flash drives. Along with this, features such as ultrasonic multi-feed detection and embedded OCR are available to help ensure quality scans. Additionally, it has both USB 2.0 and Ethernet connectivity options. - High volume daily duty cycle of 5000 pages
- Scan to folders, FTP sites, email, USB drives, SharePoint, and more
- Hardware Integration Pocket for adding optional accessories
- HP High-Performance Secure Hard Disk keeps data safe during scanning and sending
- Built-in OCR capabilities
- HP EveryPage technology ensures accurate feeding and offers added features such as automatic blank page removal
- Centrally manage device with rest of imaging and printing department
UPC: 190781643708 In the Box HP Digital Sender Flow 8500 fn2 Document Capture Workstation USB Cable Power Supply and Cord Documentation CD Software CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Digital Sender Flow 8500 fn2 Document Capture Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP 8500 fn2 Specs | Maximum dpi Resolution | 600 dpi | | Duplex Speed | 200 ipm (Color, Grayscale) | | Simplex Speed | 100 ppm (Color)
100 ppm (Grayscale) | | Maximum Document Width | 8.5" / 21.6 cm | | Maximum Document Length | 34" / 86.4 cm | | Color Depth | 24-Bit (External) | | Grayscale Bit-Depth | 8-Bit (Internal) | | Duplex Scanning | Yes | | Single Pass Duplex | Yes | | Multi-Feed Detection | Yes | | Document Feeding | ADF, Flatbed | | Connectivity | USB 2.0, Ethernet | | File Formats | HTML, JPEG, Multi-Page TIFF, PDF, RTF, TIFF, TXT, Unicode TXT | | Media Types | Business Card, Credit Card, Embossed Card, Envelopes, Inkjet Paper, Insurance Card, Labels, Photo, Plastic ID Card | | Paper Weight | 12 to 53 lb | | Operating System Compatibility | macOS/OS X, Windows, Linux | | Light Source | LED | | Image Sensor | 1 x Charge-Coupled Device (CCD)
1 x Contact Image Sensor (CIS) | | Control Panel | LCD Touchscreen, 4 Buttons | | Drivers | TWAIN, WIA, ISIS | | Processor Speed | 1.2 GHz | | Memory | 3584 MB | | Duty Cycle | 10000 Scans | | Maximum Sheet Capacity | 150 | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR, EPEAT Silver | | Operating Humidity | 15 to 80% | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Storage Humidity | 15 to 90% | | Storage Temperature | -40 to 149°F / -40 to 65°C | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | 20.2 x 27.4 x 10.4" / 51.3 x 69.6 x 26.4 cm | | Weight | 38.5 lb / 17.46 kg | | | | Package Weight | 44.5 lb | | Box Dimensions (LxWxH) | 29.0 x 23.5 x 15.5" |
