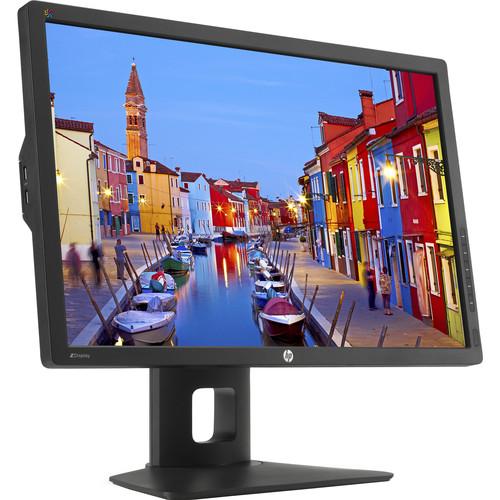

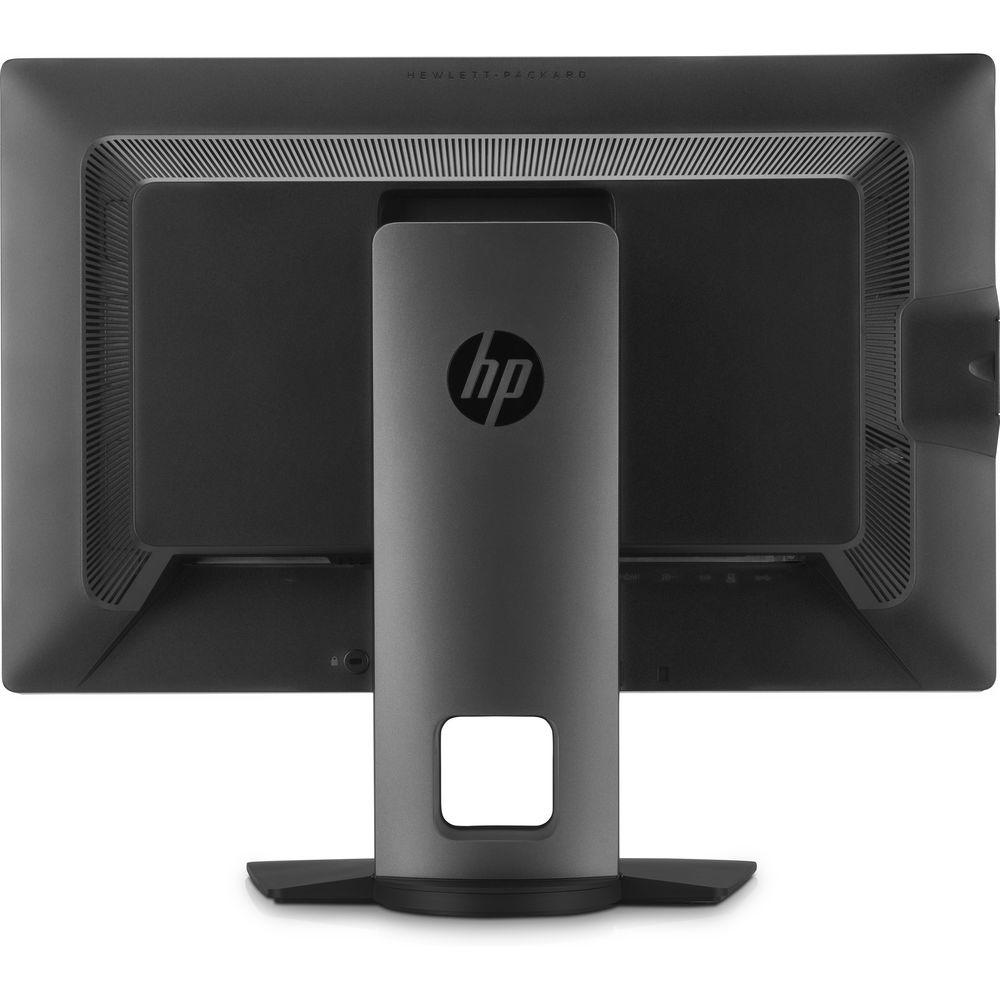

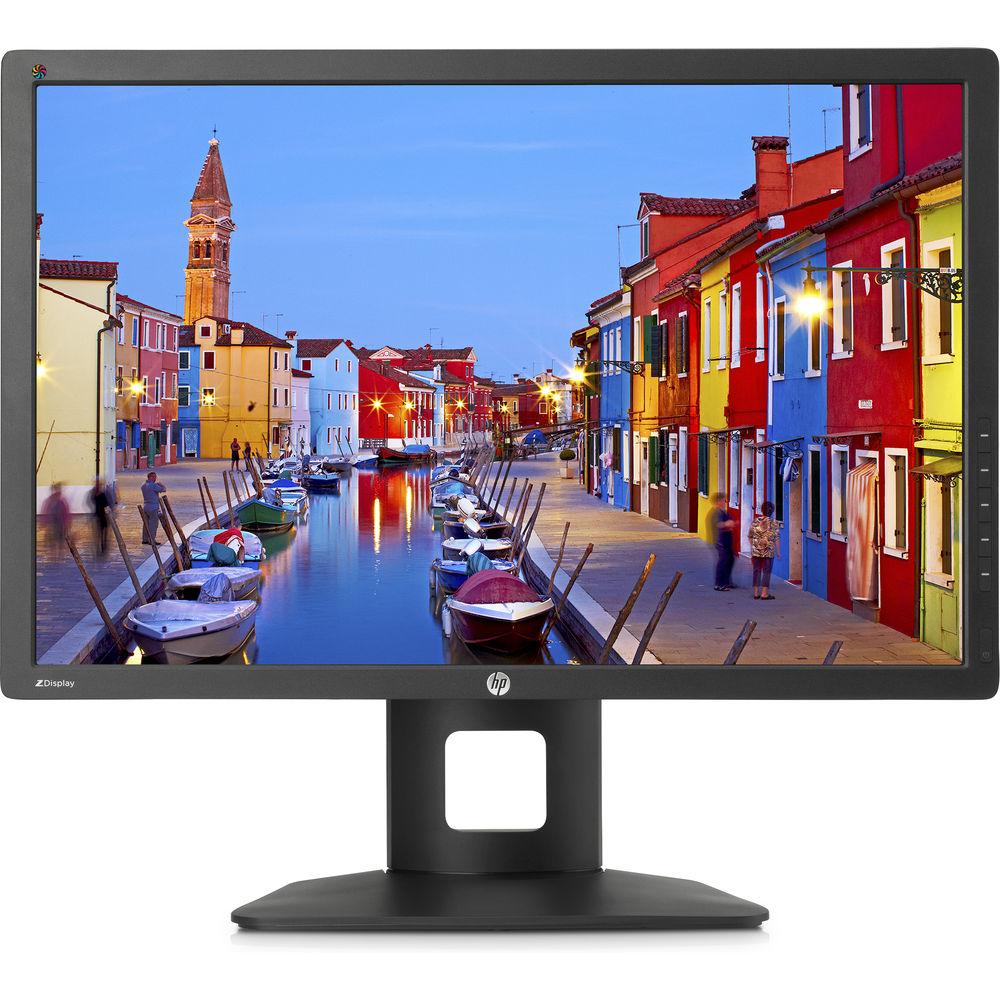

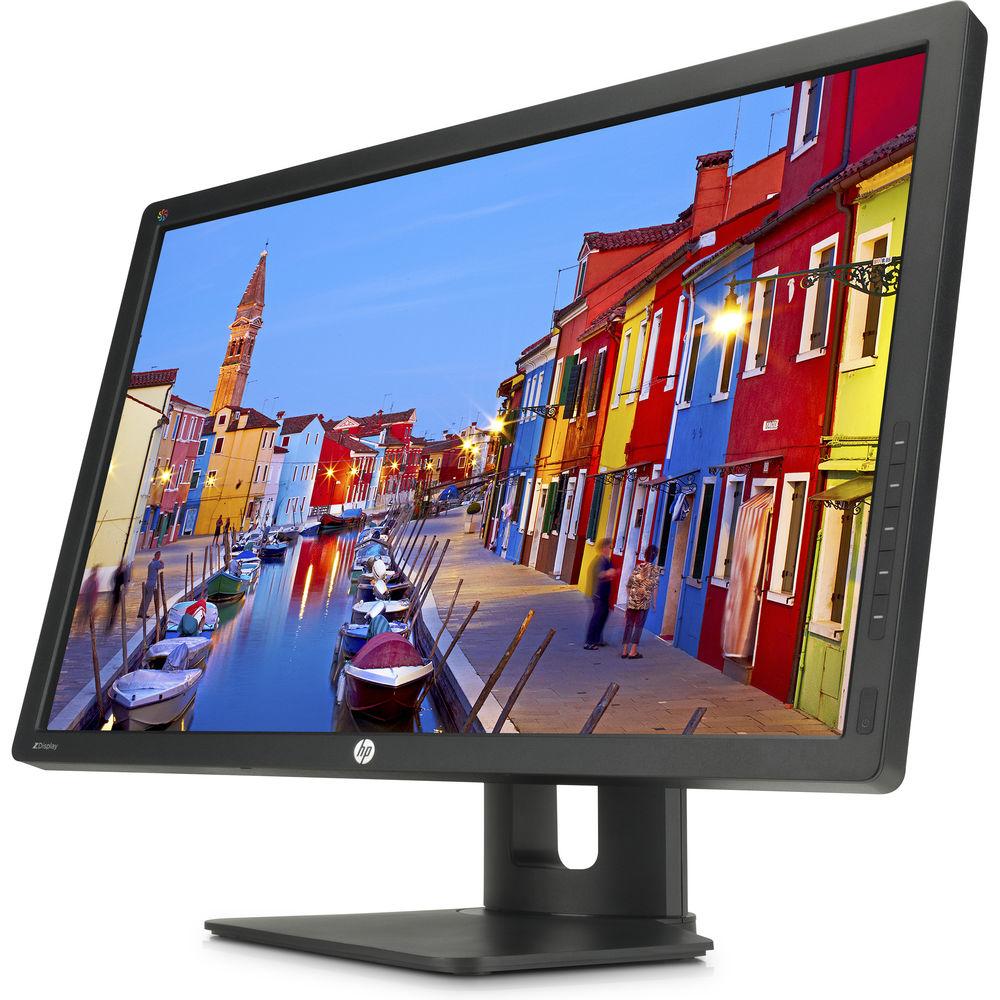

User Manual for HP DreamColor Z24x G2 24" 16:10 IPS Monitor Click to enlarge the picture
Contents of the user manual for the HP DreamColor Z24x G2 24" 16:10
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP DreamColor Z24x G2 24" 16:10 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With 100% coverage of the sRGB and BT.709 color spaces, and 99% coverage of the Adobe RGB color space, the DreamColor Z24x G2 24" 16:10 IPS Monitor from HP offers clear, consistent color accuracy. In addition to enhanced color accuracy, this DreamColor panel features a 1920 x 1200 display resolution, a 1000:1 contrast ratio, a 300 cd/m² brightness rating, and a 6 ms response time, all on a 16:10 display.
Setup and configuration of this monitor is simple as it comes equipped with HDMI, DisplayPort, and DVI-D inputs. In addition to video inputs, this DreamColor monitor also comes equipped with a dedicated USB hub to connect compatible peripherals directly to the monitor. Once configured, viewers can adjust the height of the Z24x G2 as well as tilt, pivot, and swivel it into place to take full advantage of the 178° horizontal and vertical viewing angles offered by the IPS (In-Plane Switching) panel. - HP DreamColor Technology
- Get a wide array of digital cinema-class color gamuts, including 100% coverage of the sRGB and BT.709 color spaces and 99% coverage of the Adobe RGB color space. Additionally, this monitor offers great on-and off-axis views from the wide-angle HP DreamColor panel.
- Accurate Color Calibration
- Experience color accuracy between each of your HP DreamColor displays. Calibrate any of the four color space presets-sRGB, Adobe RGB, BT.709, and User-or create your own custom color space with HP DreamColor Calibration Software.
- Smooth Color Transitions
- Achieve minimal banding across your project's color gradients with a 10-bit depth that produces 1,024 gray levels per channel and up to a billion colors.
- Additional Features
- Anti-glare
BrightView Panel
In-Plane Switching
Language selection
LED backlights
On-screen controls
Pivot rotation
Plug-and-Play
User programmable
Anti-static UPC: 190781465041 In the Box HP DreamColor Z24x G2 24" 16:10 IPS Monitor AC Power Cord DVI-D Cable DisplayPort 1.2 Cable USB Cable Limited 3-Year Warranty Quick Specs PDF 286.9kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP DreamColor Z24x G2 24" 16:10 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP DreamColor Z24x G2 Specs | | | Size | 24" | | Screen Area | 20.47 x 12.81" / 51.99 x 32.54 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Pixels Per Inch (ppi) | 94 ppi | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 20 to 80 kHz | | Vertical Frequency | 24 to 60 Hz | | Pixel Clock Frequency | 170 MHz | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | None | | Color Gamut | 100% sRGB
100% Rec. 709
99% Adobe RGB
97% DCI-P3 | | Response Time | 6 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.270 x 0.270 mm | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x HDMI 1.4
1 x DisplayPort 1.2 Input
1 x DisplayPort 1.2 Output
1 x DVI-D
1 x 3.5 mm Output
1 x USB Type-B (USB 3.1 Gen 1) Output
4 x USB Type-A (USB 3.1 Gen 1) Input | | HDCP Support | Yes | | Built-In Speakers | None | | | | Power Consumption | 18.57 W (Eco)
13.5 W (Typical)
54.18 W (Maximum)
0.5 W (Eco) | | AC Input Power | 90 to 265 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 5 to 95% | | Operating Altitude | 0 to 16,404' / 0.00 to 4999 m | | Storage Altitude | 0 to 40,000' / 0.00 to 12,192 m | | Certifications | ENERGY STAR, EPEAT GOLD, Microsoft WHQL, RoHS, TCO Certified, WEEE, as per Manufacturer | | | | Height Adjustment | 4.72" / 120 mm | | Rotation Adjustment | 90° | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 22.0 x 20.7 x 9.4" / 55.9 x 52.6 x 23.9 cm (With Stand)
22.0 x 14.4 x 2.6" / 55.9 x 36.6 x 6.6 cm (Without Stand) | | Weight | 15.4 lb / 6.99 kg (With Stand)
10.4 lb / 4.72 kg (Without Stand) | | | | Package Weight | 20.06 lb | | Box Dimensions (LxWxH) | 25.7 x 17.7 x 12.0" |
