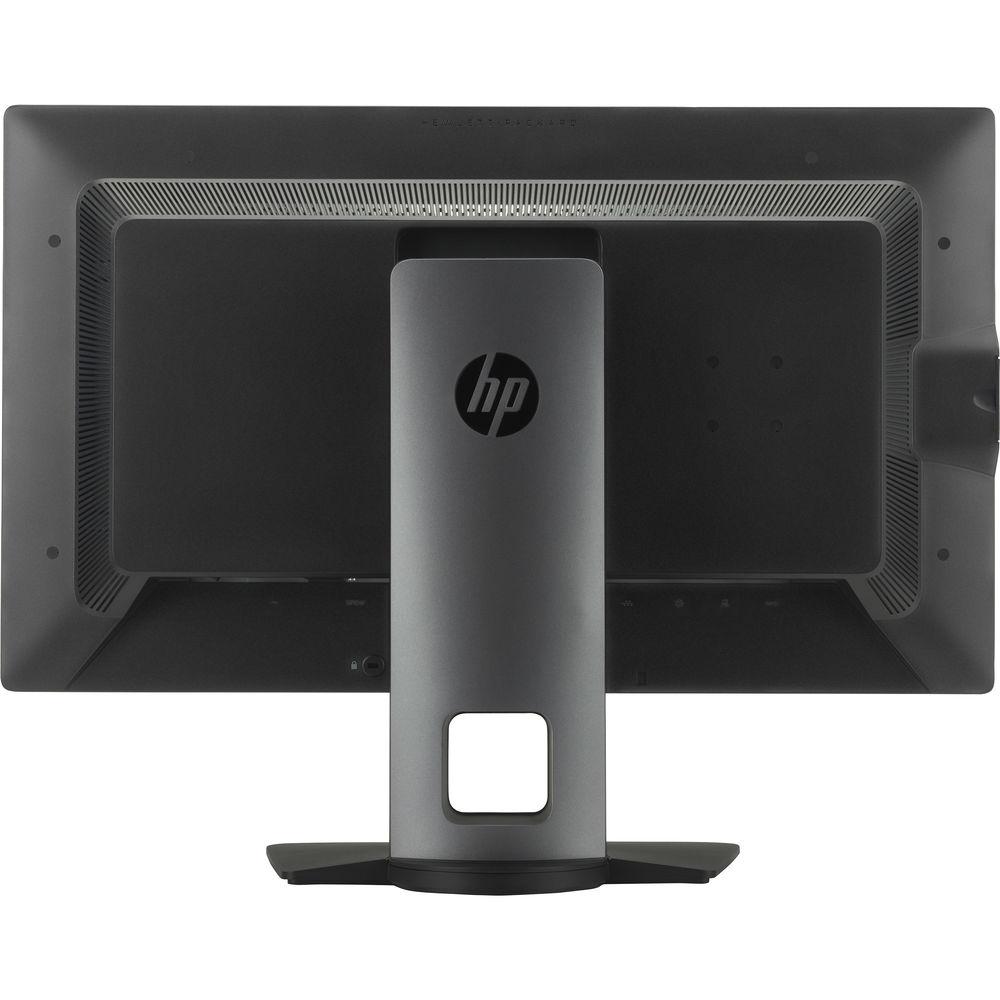

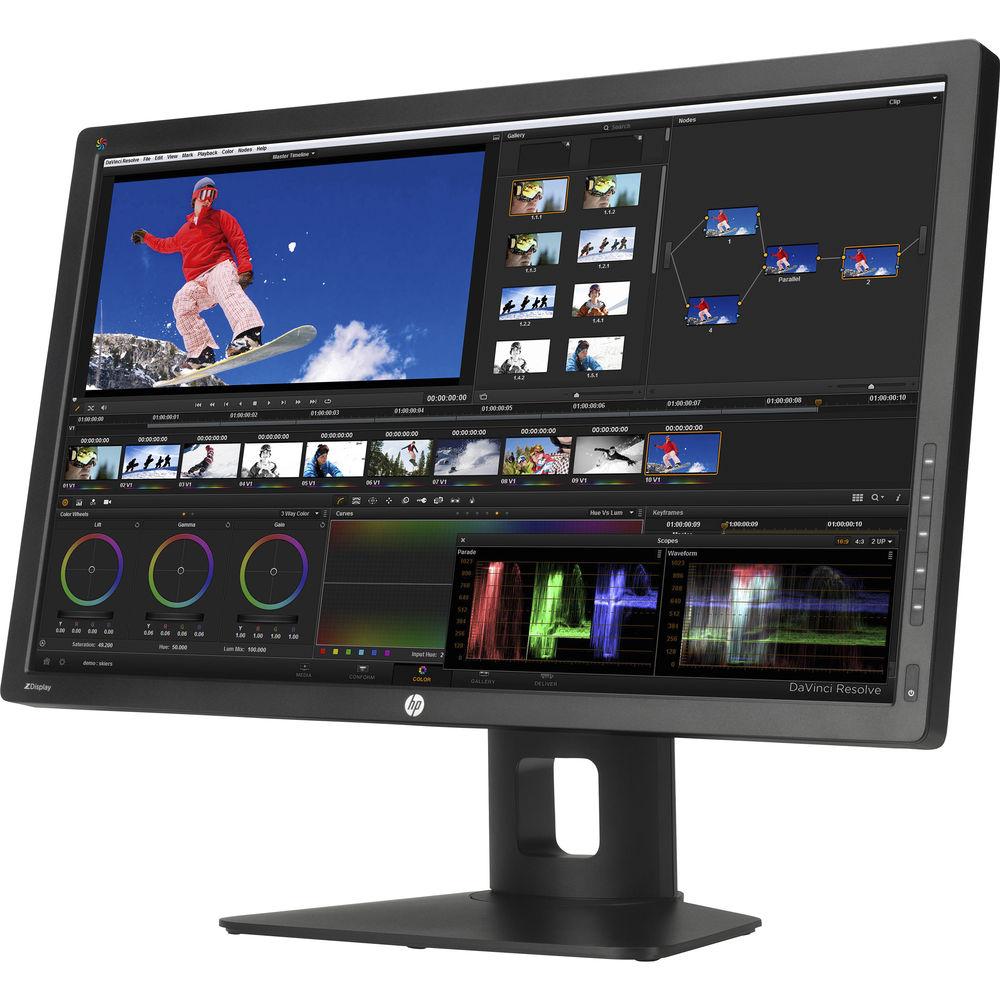

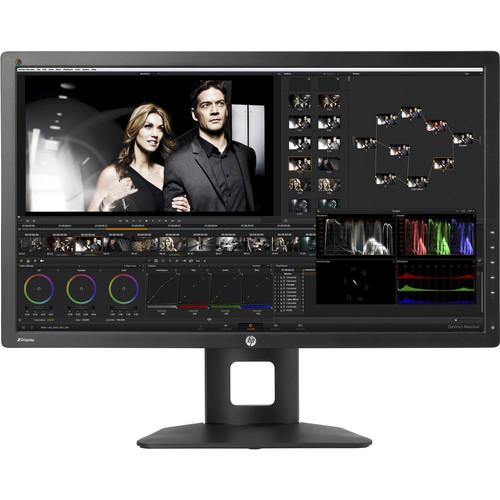

User Manual for HP Dreamcolor Z27X 27" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the HP Dreamcolor Z27X 27" 16:9 IPS
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP Dreamcolor Z27X 27" 16:9 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The black Dreamcolor Z27X 27" 16:9 IPS Monitor from HP is a 10-bit color accurate display complete with support for up to 1.07 billion colors. The DreamColor Display offers an 800:1 contrast ratio, a brightness rating of 250 cd/m², and a 2560 x 1440 resolution. You can connect your display to a workstation and a range of digital video devices with one HDMI and two DisplayPort inputs, as well as a four-port USB hub.
The monitor features four programmable hotkeys and HP Night Vision UI’s auto-fade button backlights that eliminate distractions and accelerate productivity in low-light environments. You can also utilize the HP DreamColor Calibration Solution (sold separately) to create your own custom color spaces. Once configured, the DreamColor display can be swiveled, tilted, and raised and lowered for added viewing comfort. You can even pivot the display into portrait mode for an entirely different view. - 2560 x 1440 resolution and crisp, clear presentation from 800:1 contrast ratio and 250 cd/m2 brightness
- 1.07 billion colors with 1024 tones per channel
- Get push-button color accuracy out of the box with seven color space presets or use the integrated calibration engine to create your own
- Advanced Off-Axis Black technology, second-generation IPS (In-Plane Switching), and digital cinema-class color gamuts
- Fast and flexible display calibration and management through two HP DreamColor USB ports
- Manage and control the display with the integrated Ethernet interface and web server
- Eliminate distractions and accelerate productivity in low-light environments with the HP Night Vision UI's auto-fade button backlights and four programmable hotkeys
- Connect your display to a workstation and a range of digital video devices with one HDMI and two DisplayPort inputs and a four-port USB hub
UPC: 887758227558 In the Box HP Dreamcolor Z27X 27" 16:9 IPS Monitor AC Power Cable DisplayPort Cable USB Cable HDMI Cable Mini DisplayPort Cable Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Dreamcolor Z27X 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

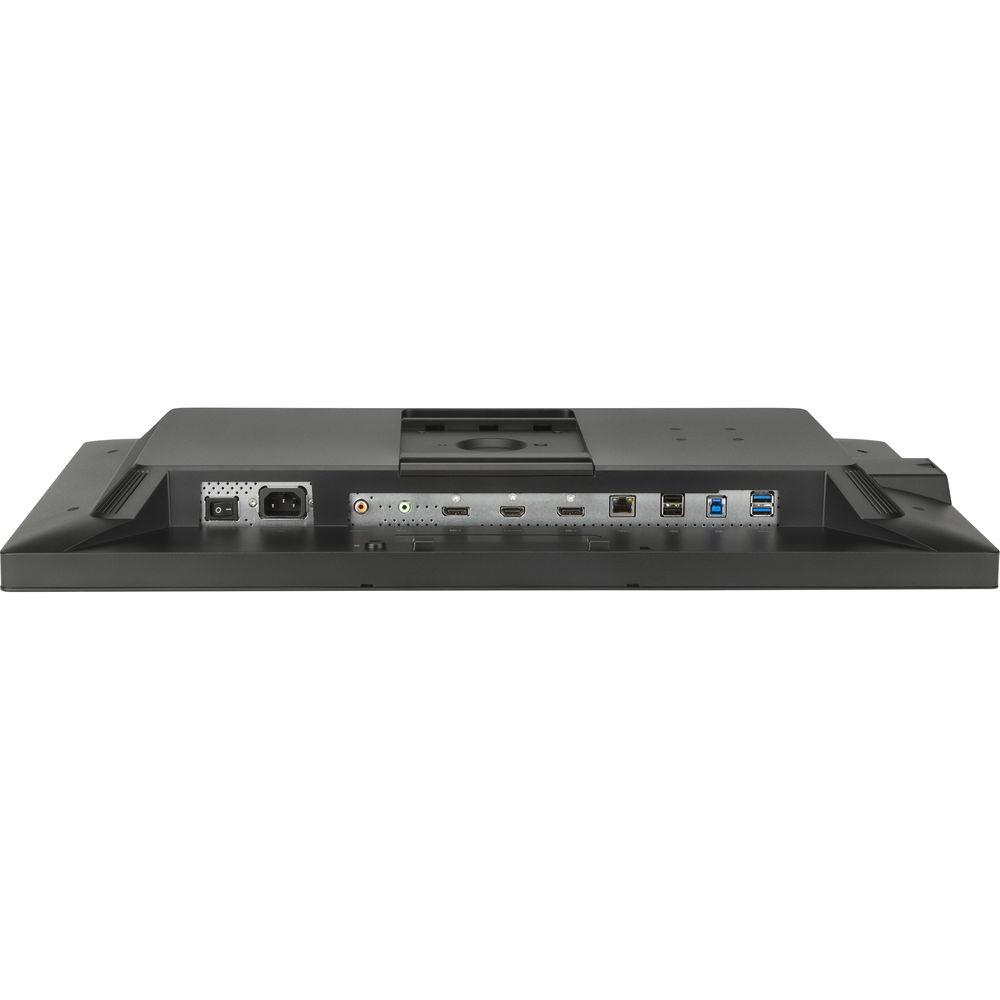

Technical parametersHP D7R00A4#ABA Specs | Display Type | IPS | | Display Size | 27" (68.6 cm) | | Native Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Brightness | 48 to 250 cd/m2 calibrated | | Contrast Ratio | 800:1 | | Response Time (GtG) | 7 ms | | Viewing Angle | 178°/178° | | Supported Resolutions | 4096 x 2160, 3840 x 2160, 2560 x 1600, 2560 x 1440, 2048 x 1080, 1920 x 1200, 1920 x 1080, 1600 x 1200, 1366 x 768, 1280 x 1024, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 720 x 480, 640 x 480 | | User Controls | Back, Up (adjusts the settings up), Down (adjusts the settings down), Select, Menu, Power | | Ports and Connectors | 1 x HDMI 1.4 (with HDCP support)
2 x DisplayPort 1.2 (with HDCP support)
4 x USB 3.0 ports
2 x USB 2.0 DreamColor ports
1 x analog/digital audio output | | Stand Adjustments | Tilt: -5 to 20°
Swivel: ±45°
Pivot: 90° | | Input Power | Input Voltage: 100 to 240 VAC | | Power Consumption | Energy Efficiency Class: C
On-Mode Power Consumption: 59 W
Annual Energy Consumption: 86 kWh
Power Consumption (Standby): 0.47 W
Power Consumption (Off-Mode): 0.43 W
Power Consumption Description: < 110 W (maximum), 65 W (typical), ≤ 1.2 W (standby) | | Certification and Compliance | CEL Grade 2; Microsoft WHQL Certification (Windows 8, 7); CE; CB; KC; KCC; NOM; PSB; ICE; TUV-S; CCC; CEL; SEPA; EPA; ISC; VCCI; FCC; BSMI | | Environmental | Arsenic-free display glass, mercury-free display backlights, low halogen | | Dimensions | With Stand: 25.2 x 16.55 x 9.54" (64.1 x 42.04 x 24.24 cm)
Without Stand: 25.2 x 14.93 x 2.58" (64.1 x 37.92 x 6.55 cm) | | Weight | 19.4 lb (8.8 kg) |
