User Manual for HP E190i 18.9" EliteDisplay Widescreen LED Backlit IPS Monitor Click to enlarge the picture
Contents of the user manual for the HP E190i 18.9" EliteDisplay Widescreen LED
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP E190i 18.9" EliteDisplay Widescreen LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

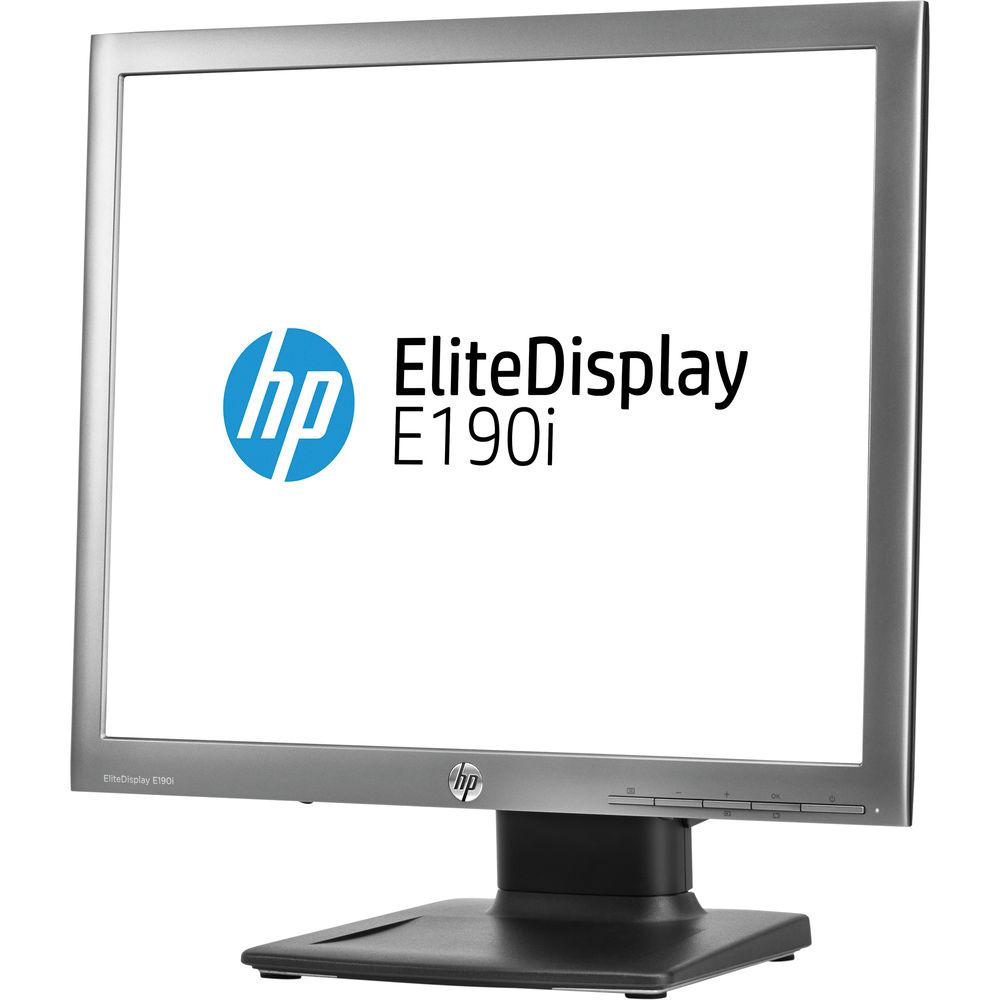

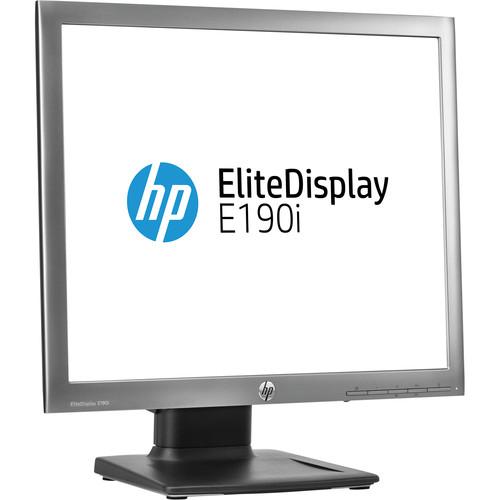

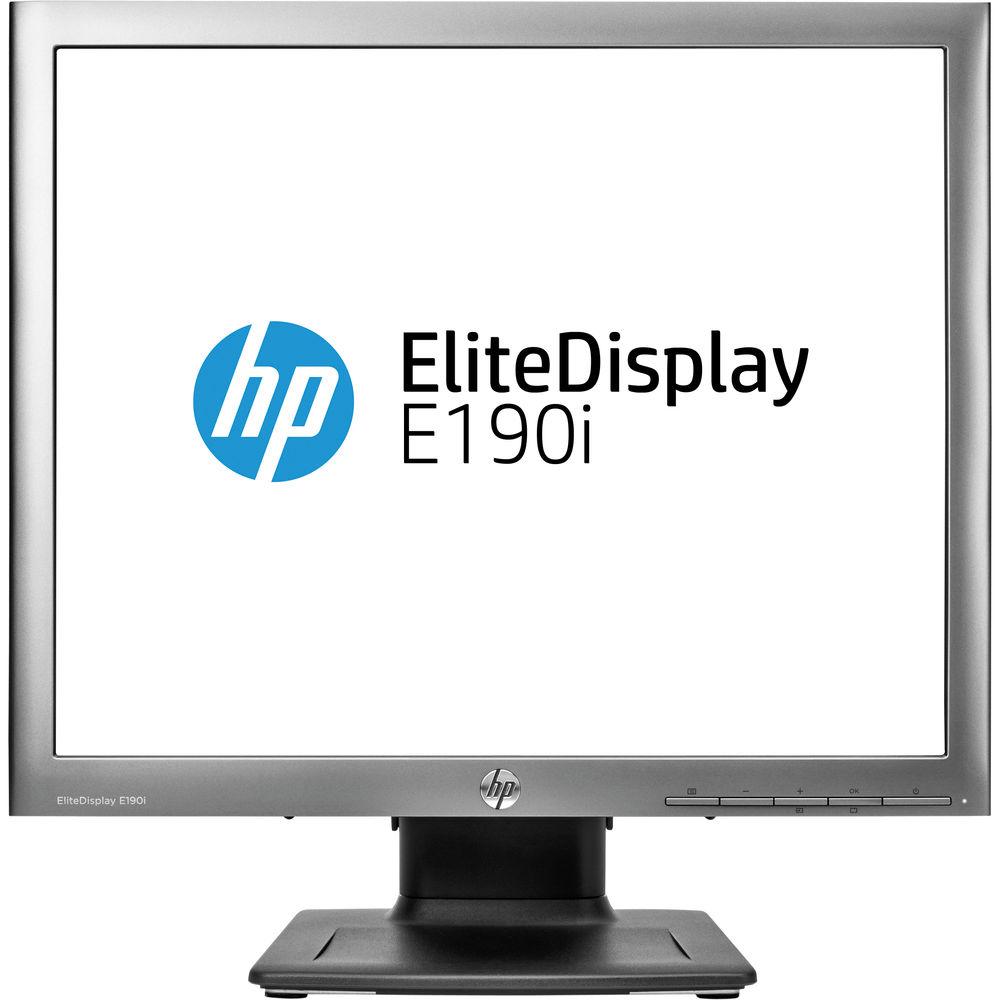

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More fxvsrybzufzeysbetfddcava The E190i 18.9" EliteDisplay Widescreen LED Backlit IPS Monitor from HP features an 18.9-inch IPS display supporting 178° horizontal and vertical viewing angles along with an 8 ms response time, a 250 cd/m² brightness rating, a 1,000:1 contrast ratio, and a 5:4 aspect ratio. Setup and configuration is easy as it comes equipped with one D-Sub, one DVI-D, and one DisplayPort connectors. Height, pivot, swivel, and tilt settings of the monitor can also be adjusted for improved viewing comfort. - Enhanced Viewing Angles
- Take advantage of 178-degree viewing angles and enhanced color integrity from In-Plane Switching (IPS) technology. Accurately view sharp images and consistent color from almost any angle-with less distortion than conventional TN (Twisted Nematic) panels.
- 5:4 Aspect Ratio
- Keep the 5:4 aspect ratio that your business-specific enterprise and public sector applications are designed to work with. Enjoy space for all your tasks on the 18.9-inch diagonal screen.
- Comfortable Viewing
- Adjust the viewing position with customizable tilt, height adjustment, swivel, and pivot settings for improved viewing comfort.
- Performance and Connectivity
- Get crisp, clear content and video from the high 3M:1 dynamic contrast ratio and fast response time. Easily connect media and devices to the monitor with convenient VGA, DVI, and DisplayPort inputs and the integrated USB hub.
- Productivity and Management Software
- Personalize your workspace with resizable screen partitions, and work in documents, spreadsheets, and e-mail in separate regions of the screen--at the same time--with HP Display Assistant software. View open applications on all of your connected displays with the expanded toolbar. Deter theft with a user-designated PIN that deactivates the monitor if it's disconnected from a PC without approval.
UPC: 887758636435 In the Box HP E190i 18.9" EliteDisplay Widescreen LED Backlit IPS Monitor VGA Cable DisplayPort Cable USB Cable AC Power Cable Limited 3-Year Warranty Users Manual PDF 1.3mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP E190i 18.9" EliteDisplay Widescreen LED Backlit IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP E190I Specs | | | Size | 18.9" | | Screen Area | 14.8 x 11.8" / 37.5 x 30 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1280 x 1024 | | Aspect Ratio | 5:4 | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 3,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 53 to 82 kHz | | Vertical Frequency | 50 to 76 Hz | | Pixel Clock Frequency | 135 MHz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 8 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2928 x 0.2928 mm | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 2 x USB Type-A 2.0
1 x DVI-D
1 x DisplayPort Input
1 x VGA | | Supported Languages | Portuguese
Dutch
English
Spanish
Simplified Chinese
German
Japanese
Traditional Chinese
French | | | | Power Consumption | 28 W (Maximum)
0.5 W (Standby)
25 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 15 to 80% | | Storage Humidity | 10 to 90% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 39,370' / 0 to 12,000 m | | Certifications | ENERGY STAR, EPEAT GOLD, TCO Certified, as per Manufacturer | | | | Height Adjustment | 4.7" / 11.9 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 360° (-180 to 180°) | | Tilt Adjustment | -5 to 25° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 16.4 x 14.4 x 7.5" / 41.7 x 36.6 x 19.1 mm (With Stand)
16.4 x 13.6 x 1.8" / 41.7 x 34.5 x 4.7 mm (Without Stand) | | Weight | 10.8 lb / 4.9 kg (With Stand)
6.6 lb / 3 kg (Without Stand) | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 19.0 x 16.75 x 7.2" |
