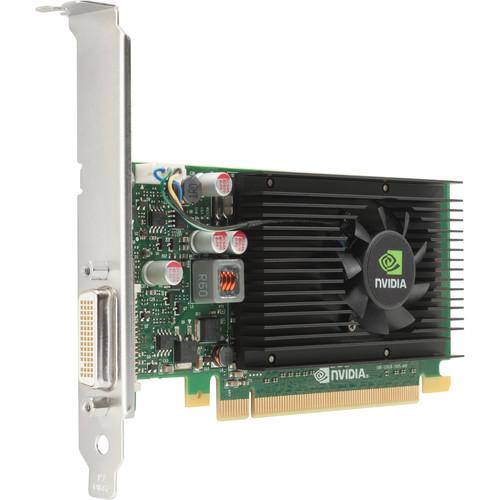

User Manual for HP E1U66AT Nvidia NVS 315 Graphics Card for Z Series Workstations Click to enlarge the picture
Contents of the user manual for the HP E1U66AT Nvidia NVS 315 Graphics
- Product category: Graphic Display Cards HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Graphic Display Cards
|
User manual for the HP E1U66AT Nvidia NVS 315 Graphics contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description The Nvidia NVS 315 Graphics Card for Z Series Workstations is an enterprise graphics card from HP that targets HP's Z series workstation computers. The card features a low-profile form factor for deployment in thin client devices or other space-limited systems, and supports the installation of multiple cards in one machine.
In keeping with its size-conscious design, the card features a single DMS-59 connector. Through this port it supports DisplayPort up to DP 1.2 (including audio), DVI-D single link, and VGA, and can drive up to two displays at once. A DMS-59 to dual VGA adapter is included and adapters for DisplayPort and DVI are available.
The NVS 315 core features 48 CUDA Cores (stream processors) which not only act as shaders for rending display graphics, they also act as general purpose processors assisting applications that support parallel processing. To move data to and from the core as efficiently as possible, the card features a 1GB frame buffer based on DDR3 type RAM over a 64-bit memory interface. Altogether, this card features a memory bandwidth of up to 14 GB/s. - Compatible HP Workstations
- Compatible Z series workstations this card may be installed in include: Z820, Z620, Z420, and Z220 (CMT and SFF)
- Flexible Connectivity
- The NVS 315 features a DMS-59 output that can be connected a variety of display types. In addition to the supplied dual VGA adapter, the card supports DisplayPort 1.2 (with audio) and DVI-D single link when using optional adapters. HDCP is supported for digital displays, and up to two displays may be used concurrently
- Popular API Support
- Support for Shader Model 5.0, OpenGL 4.1, DirectX 11, CUDA, DirectCompute, OpenACC, and other APIs allows applications that support parallel processing to shift all or part of their workload to the GPU for better performance and a more efficient workflow
- Nvidia Mosiac and nView
- Nvidia software solution that assists managing multi-display setups when combining more than one GPU in one machine. Independent or unified desktop configurations are supported
UPC: 887758487693 In the Box HP E1U66AT Nvidia NVS 315 Graphics Card for Z Series Workstations DMS-59 to Dual VGA Cable Low-Profile Bracket Limited 1-Year Warranty -- Or the Remainder of the Warranty of the HP Product in Which it is Installed (Whichever Period is Longer But Not Exceeding 3 Years) Quick Specs PDF 130.5kbatzdtyyvuvsceecyffwxufwxtczfvfevw Table of Contents
|
Upload User Manual
Have you got an user manual for the HP E1U66AT Nvidia NVS 315 Graphics Card for Z Series Workstations in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP NVS 315 Specs | GPU | Nvidia NVS 315 | | Stream Processors (CUDA Cores) | 48 | | Memory | 1 GB | | Memory Type | DDR3 | | Memory Interface | 64-bit | | Memory Bandwidth | 14 GB/s | | Output | 1 x DMS-59
Supported Signals: DisplayPort 1.2 (with audio), DVI-D single link, VGA
HDCP Support: Yes | | Host Interface | PCI-E 2.0 x16 | | Thermal Solution | Active fansink | | System Requirements | 1 x Free full-size or low-profile PCI-E slot | | Power Consumption | Idle: 7 W
Maximum: 19.3 W | | Form Factor | Single slot, low-profile installation supported | | Dimensions | 2.7 x 6" / 6.9 x 15.2 cm | | Weight | 5 oz / 142 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 9.9 x 8.2 x 2.5" |
