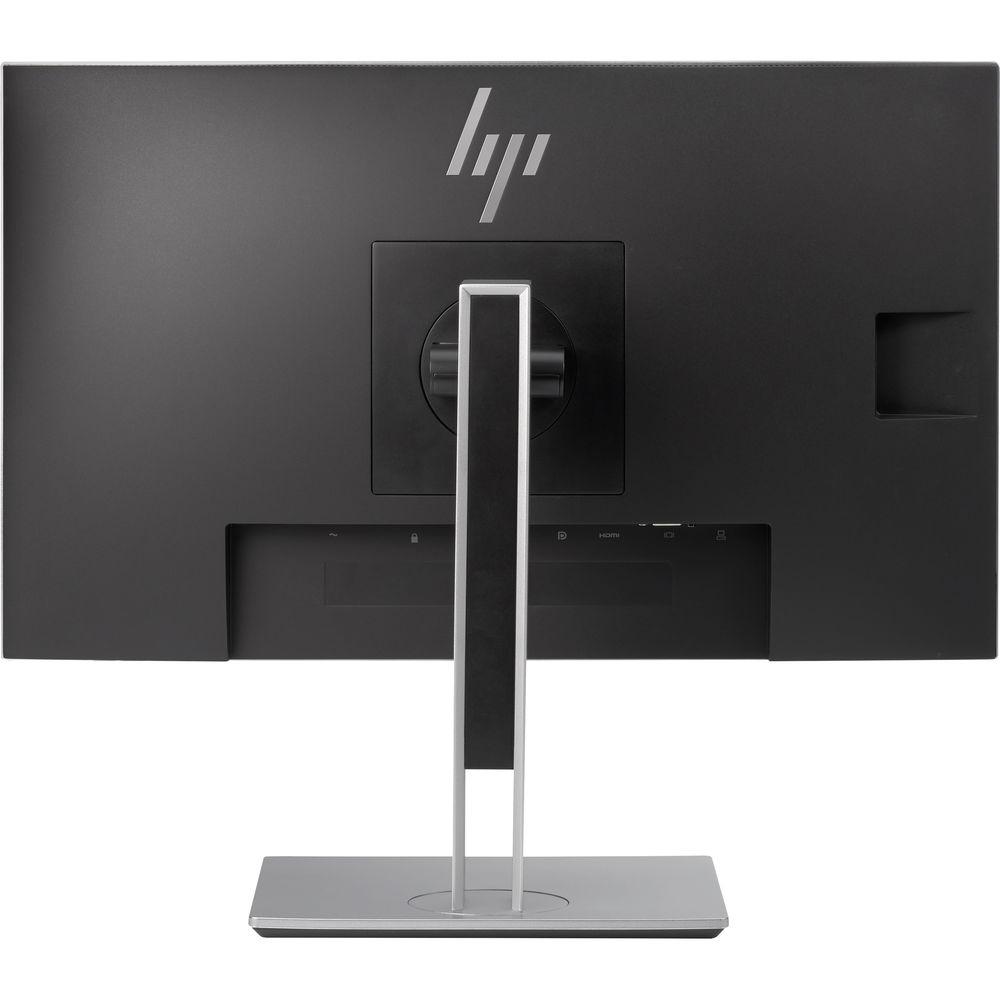

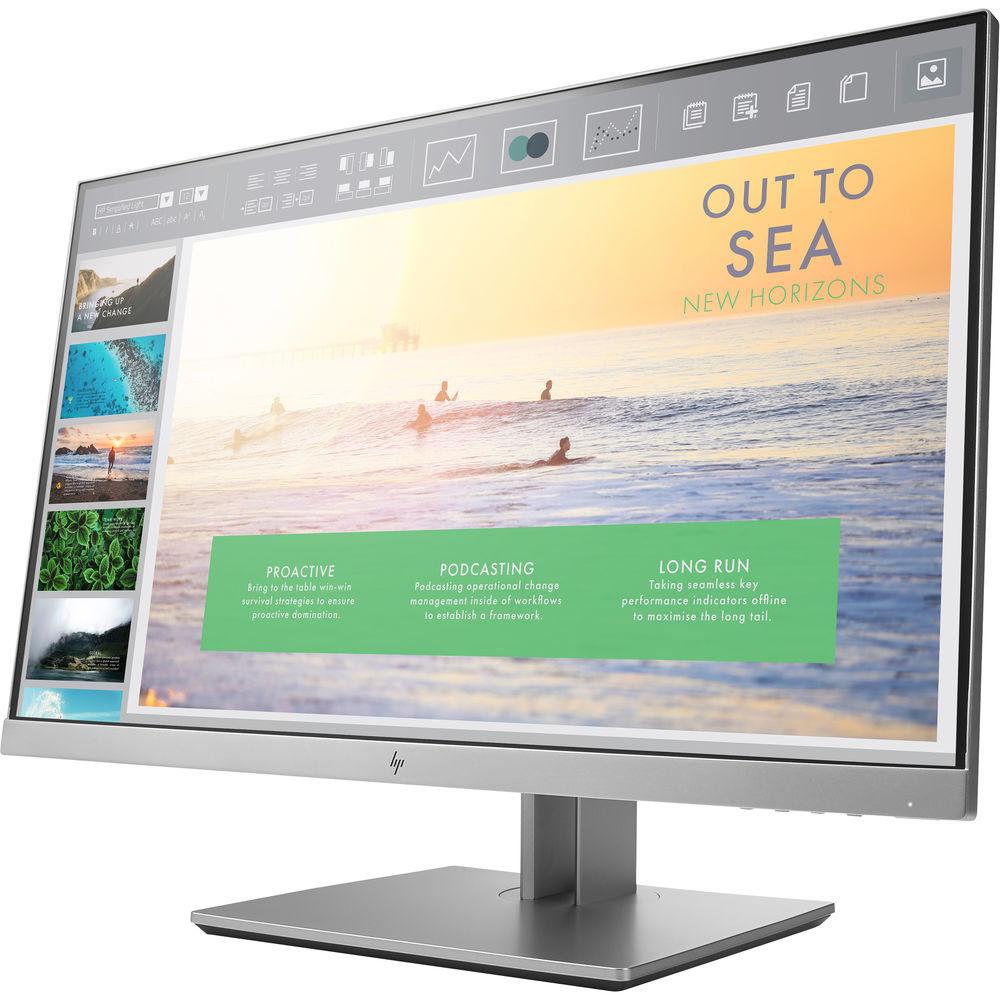

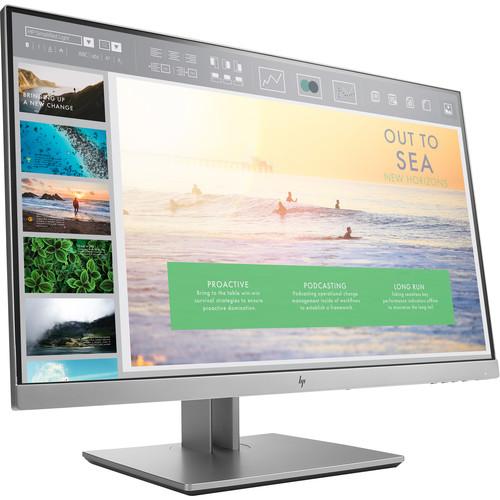

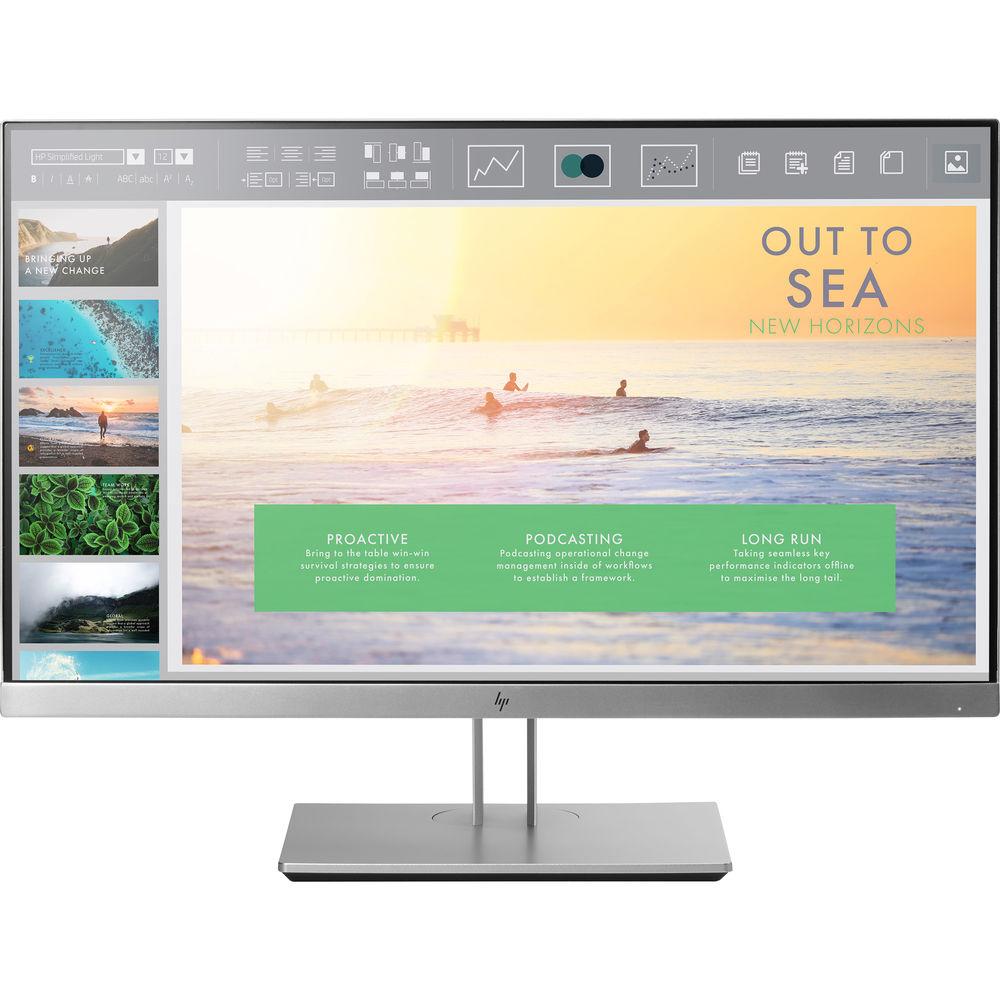

User Manual for HP E233 EliteDisplay 23" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the HP E233 EliteDisplay 23" 16:9 IPS
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP E233 EliteDisplay 23" 16:9 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More afadeyev With wide 178° horizontal and vertical viewing angles, you can see the entire picture from nearly any angle on the E233 EliteDisplay 23" 16:9 IPS Monitor from HP. Accompanying the wide viewing angles, you will find a Full HD 1920 x 1080 resolution display and 16:9 aspect ratio, which delivers crisp and clear HD content without any upscaling or resizing. Furthermore, with a 1000:1 static contrast ratio and a 250 cd/m² brightness rating, you'll be able to enjoy darker blacks and brighter bright colors for an immersive viewing experience. Connect this display to your system via HDMI, DisplayPort, or VGA and then adjust the screen to your viewing preference - 1920 x 1080 Full HD resolution

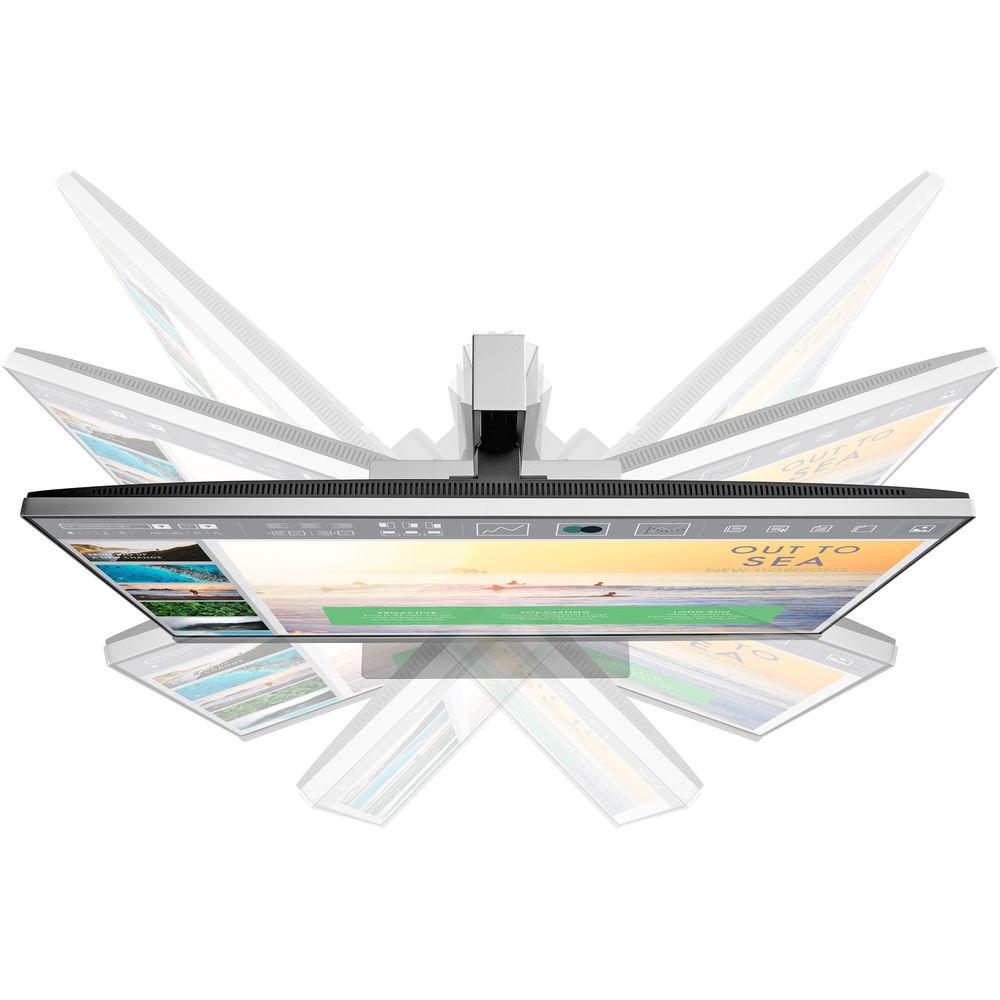

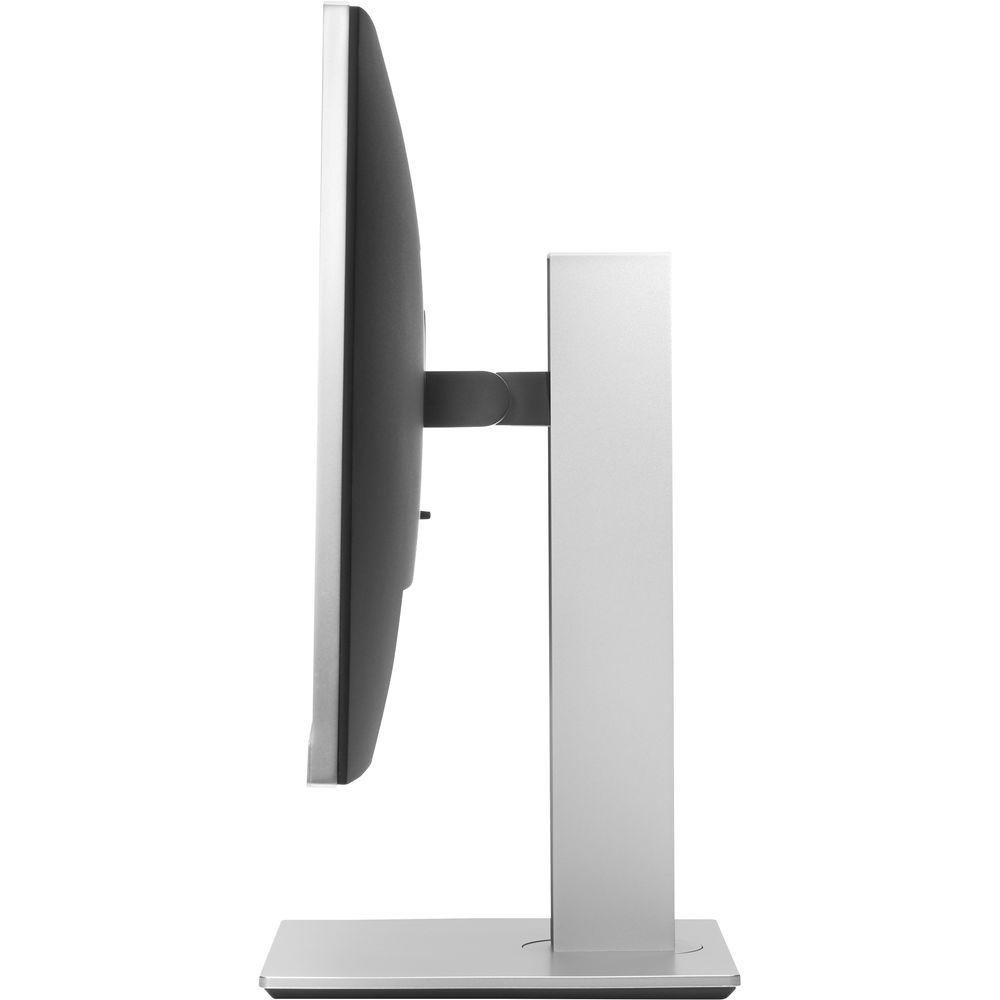

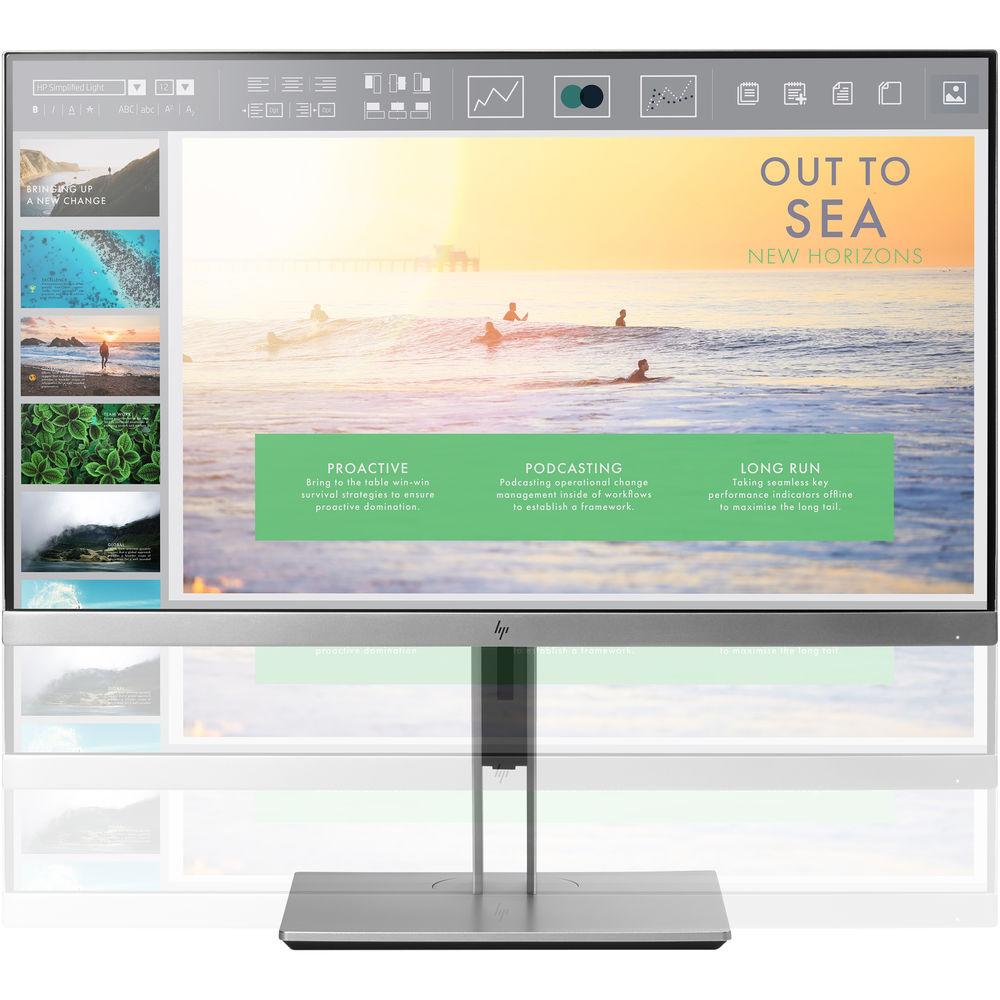

- Productive position with adjustable tilt, height, swivel, and up to 5.9" height adjustment settings

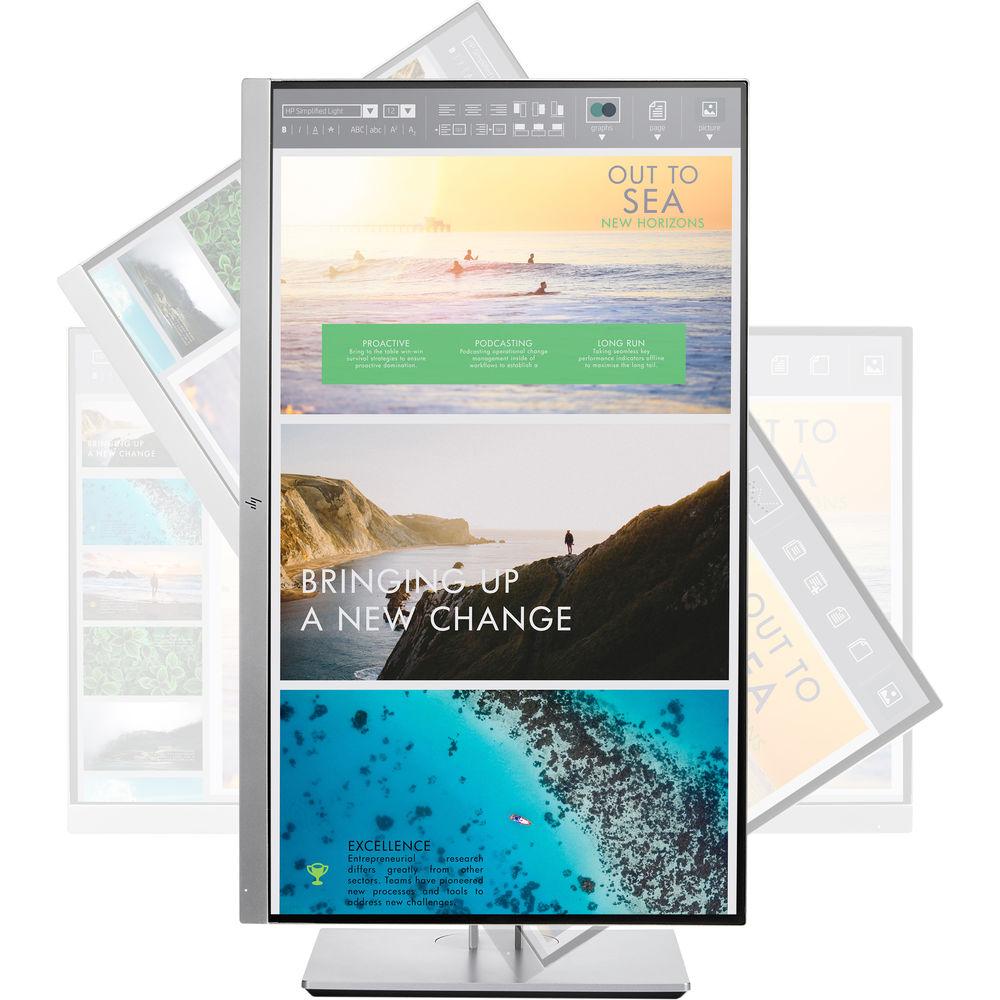

- Use pivot rotation to customize portrait or landscape views when using multiple displays
- VGA, HDMI, DisplayPort, and USB 3.0 ports
- ENERGY STAR certified, EPEAT Gold registered display that meets TCO certified edge with 85% post-consumer recycled plastics
- Design the screen for how you work with HP Display Assistant software, which enables screen partitioning and helps deter theft by dimming a display that's disconnected without approval
- Additional Features
-
- Anti-glare
- Language selection
- LED backlights
- On-screen controls
- Plug-and-play
- User programmable
- Anti-static
UPC: 190781261582 In the Box HP E233 EliteDisplay 23" 16:9 IPS Monitor - AC Power Cord
- VGA Cable
- DisplayPort 1.2 Cable
- USB Cable (Type-A Male to Type-B Male)
- Driver CD
- Limited 3-Year Warranty
User Manual PDF 1.2mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP E233 EliteDisplay 23" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP EliteDisplay E233 Specs | | | Size | 23" | | Screen Area | 20.04 x 11.28" / 50.91 x 28.64 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 86 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | HDR Compatibility | None | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x VGA
1 x HDMI 1.4
1 x DisplayPort 1.2
2 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-B (USB 3.1 Gen 1) | | HDCP Support | Yes | | Built-In Speakers | None | | | | Power Consumption | 36 W (Maximum)
19 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, EPEAT GOLD, as per Manufacturer | | | | Height Adjustment | 5.9" / 14.99 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 23° | | Mounting-Hole Pattern | None | | Dimensions (W x H x D) | 20.5 x 8.6 x 18.0" / 52.1 x 21.8 x 45.7 cm (With Stand)
20.5 x 12.3 x 1.8" / 52.1 x 31.2 x 4.6 cm (Without Stand) | | Weight | 12.8 lb / 5.81 kg (With Stand)
7.25 lb / 3.29 kg (Without Stand) | | | | Package Weight | 16.85 lb | | Box Dimensions (LxWxH) | 23.8 x 15.3 x 10.4" |
