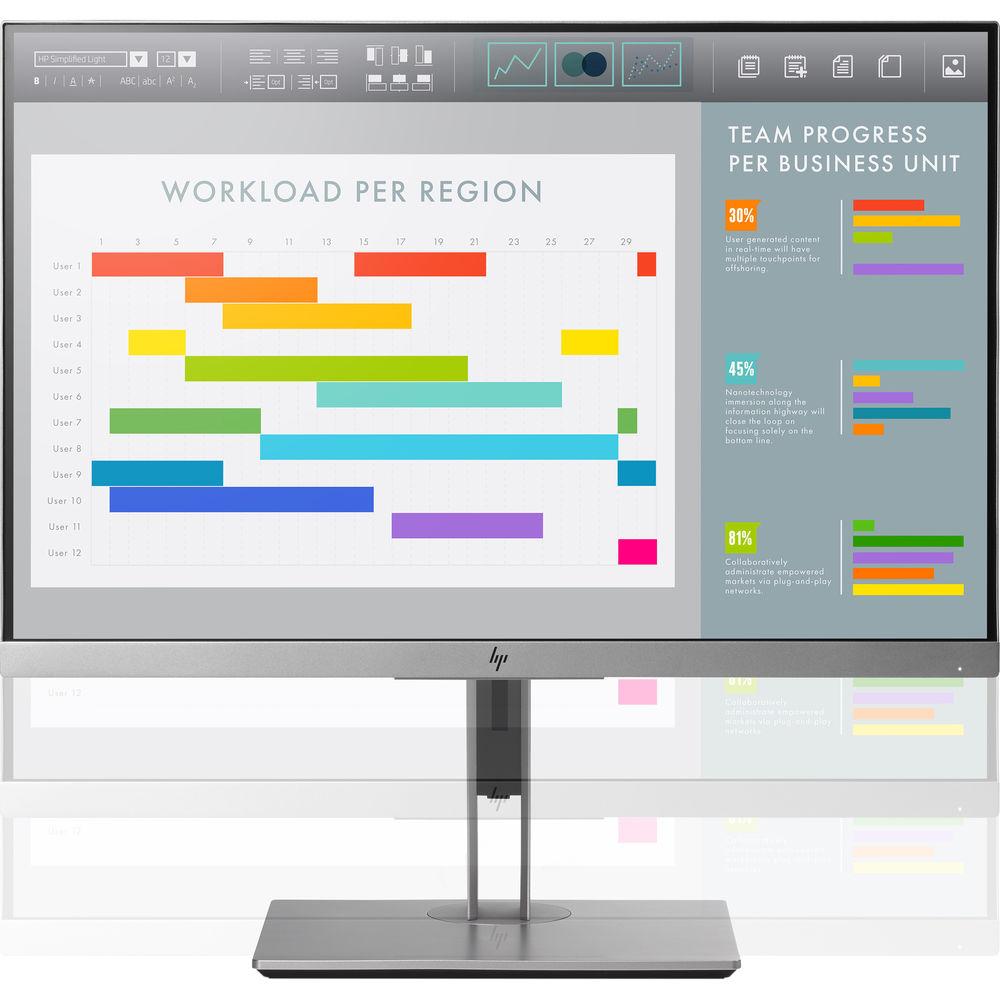

User Manual for HP E243i 24" 16:10 EliteDisplay IPS Monitor Click to enlarge the picture
Contents of the user manual for the HP E243i 24" 16:10 EliteDisplay IPS
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP E243i 24" 16:10 EliteDisplay IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

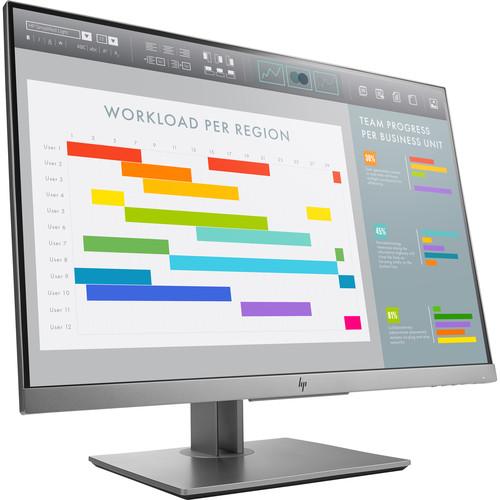

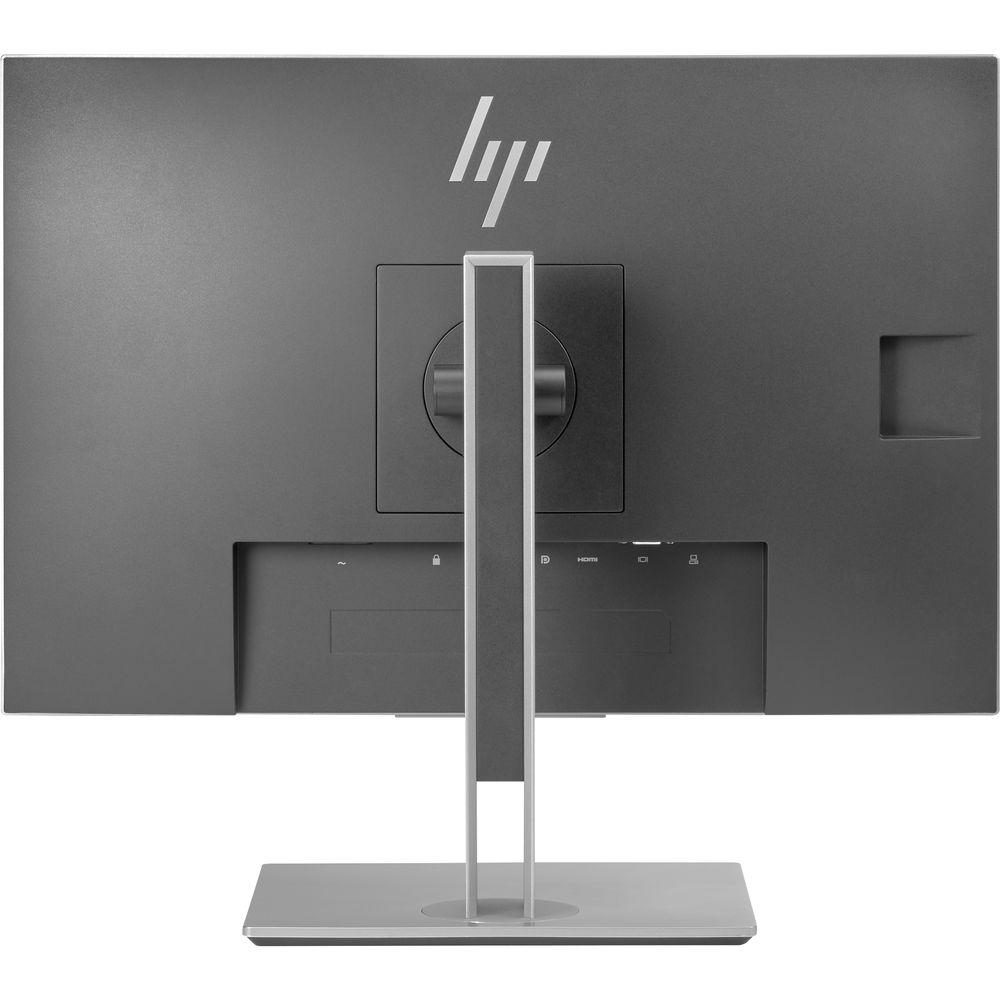

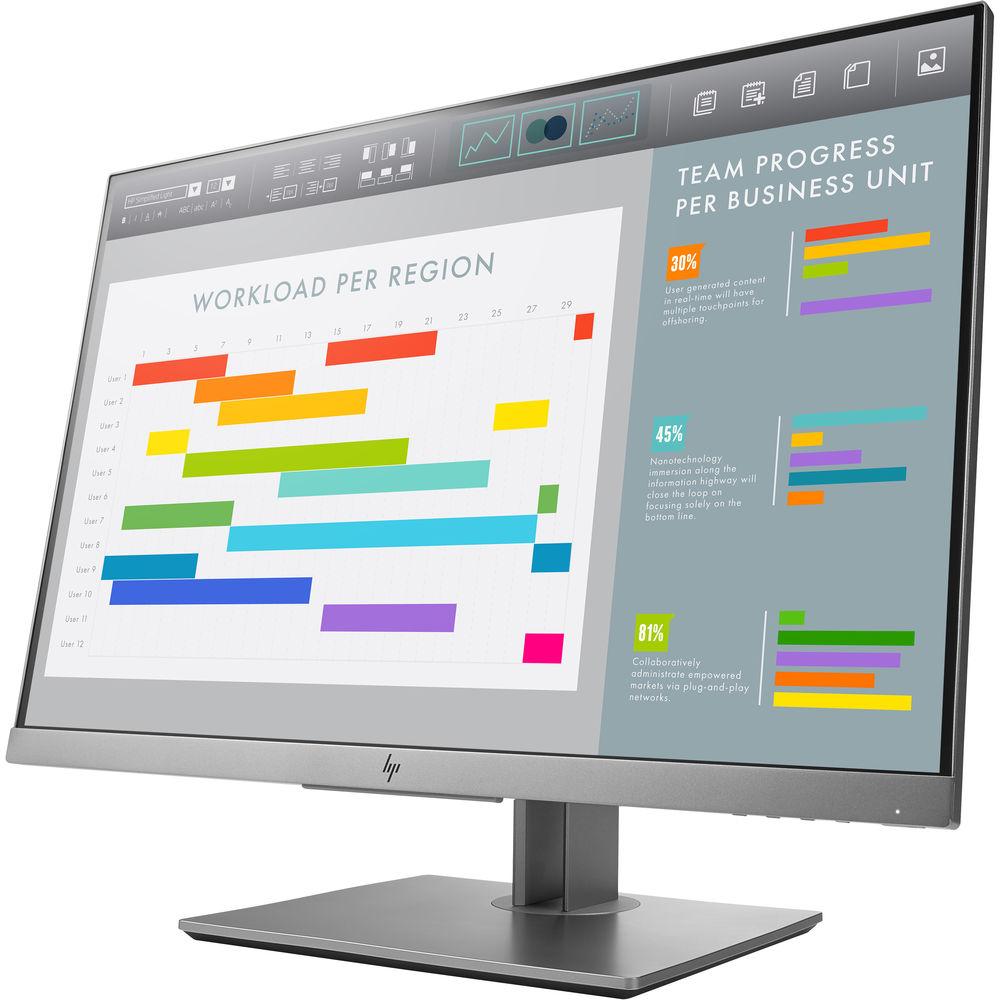

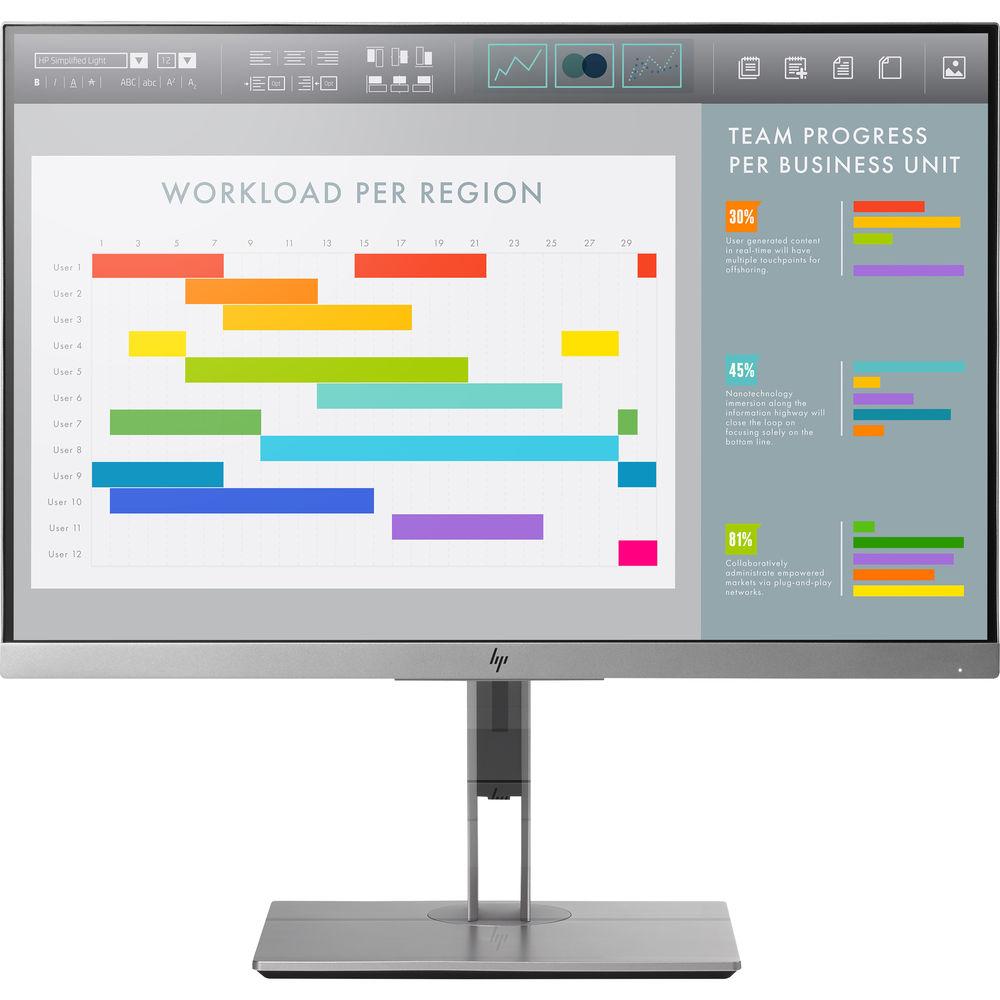

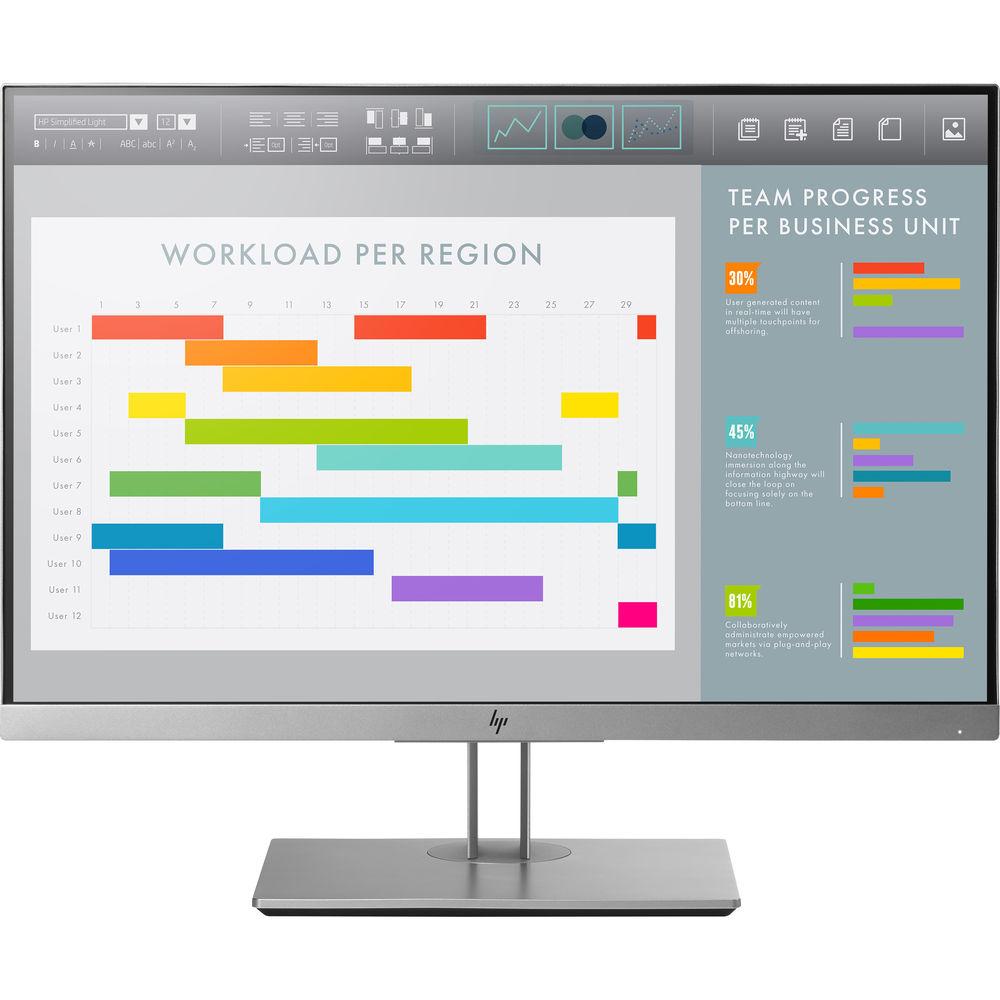

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a 3-sided micro-edge bezel, the E243i 24" 16:10 EliteDisplay IPS Monitor from HP is ideal for multi-monitor configurations. This aesthetically pleasing monitor features a 1920 x 1200 resolution with a 16:10 aspect ratio, a 1000:1 contrast ratio, a 5 ms response time, and 178° horizontal and vertical viewing angles. Setup is simple as this monitor comes equipped with HDMI, VGA, and DisplayPort inputs as well as dual USB 3.0 ports to connect USB compatible peripherals directly to the monitor. Once configured, the display can be tilted, swiveled, pivoted, and the height can be adjusted to for maximum viewing comfort. -
- Expand your productivity with uninterrupted views of one screen or many with a 3-sided micro-edge bezel that supports virtually seamless arrays. Get crisp visuals from any angle on the 1920 x 1200 WUXGA resolution, 24" diagonal IPS screen

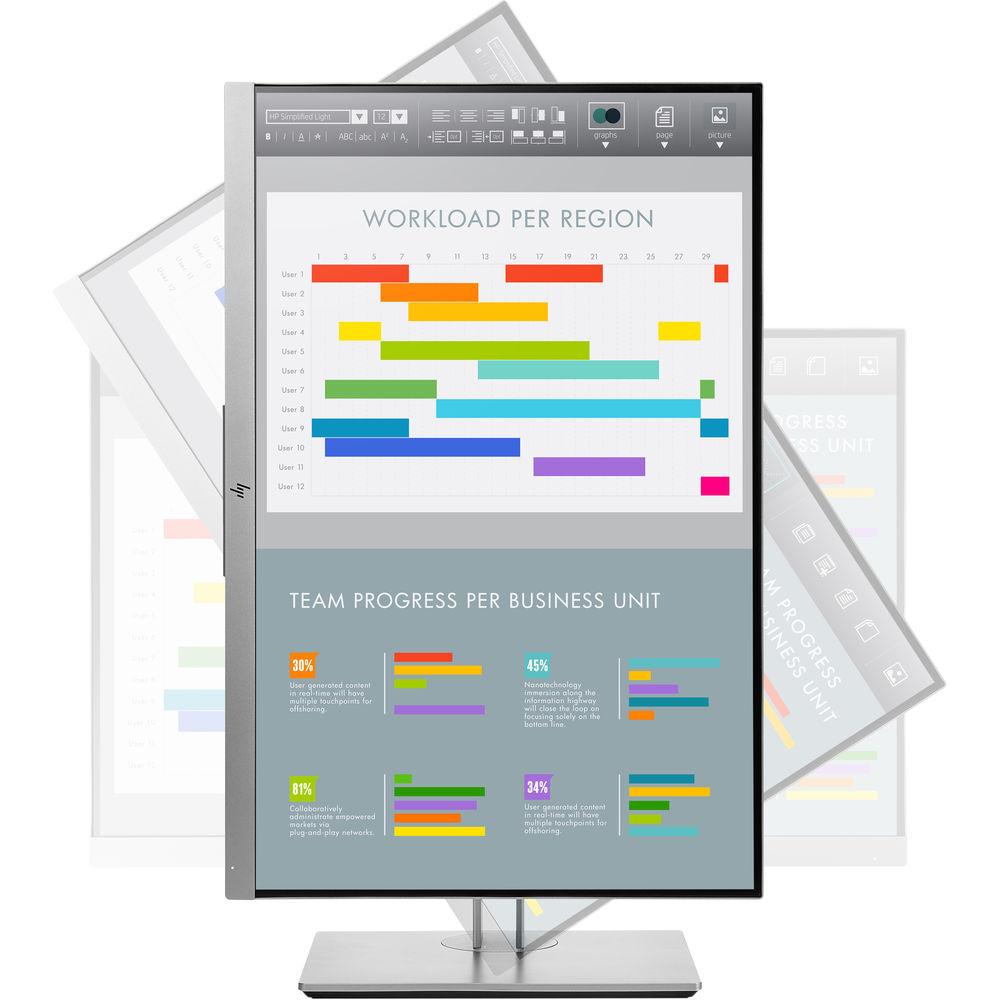

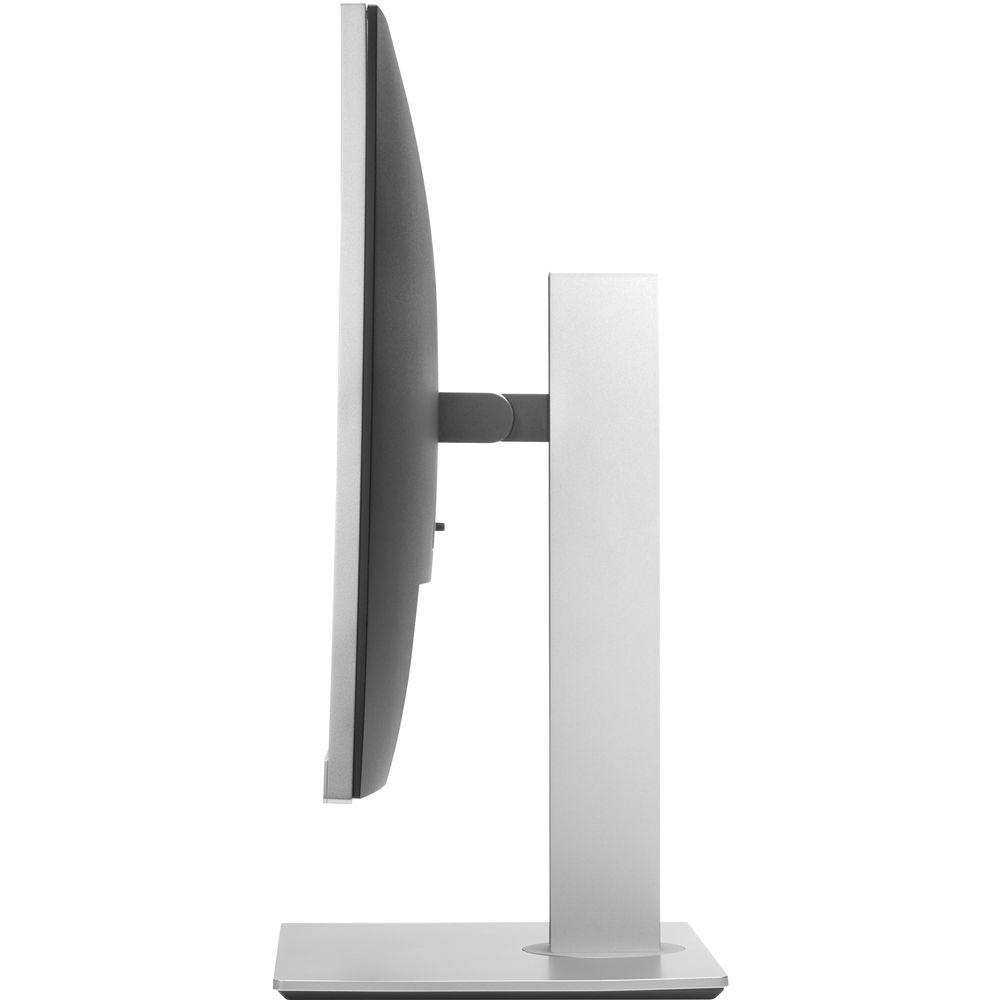

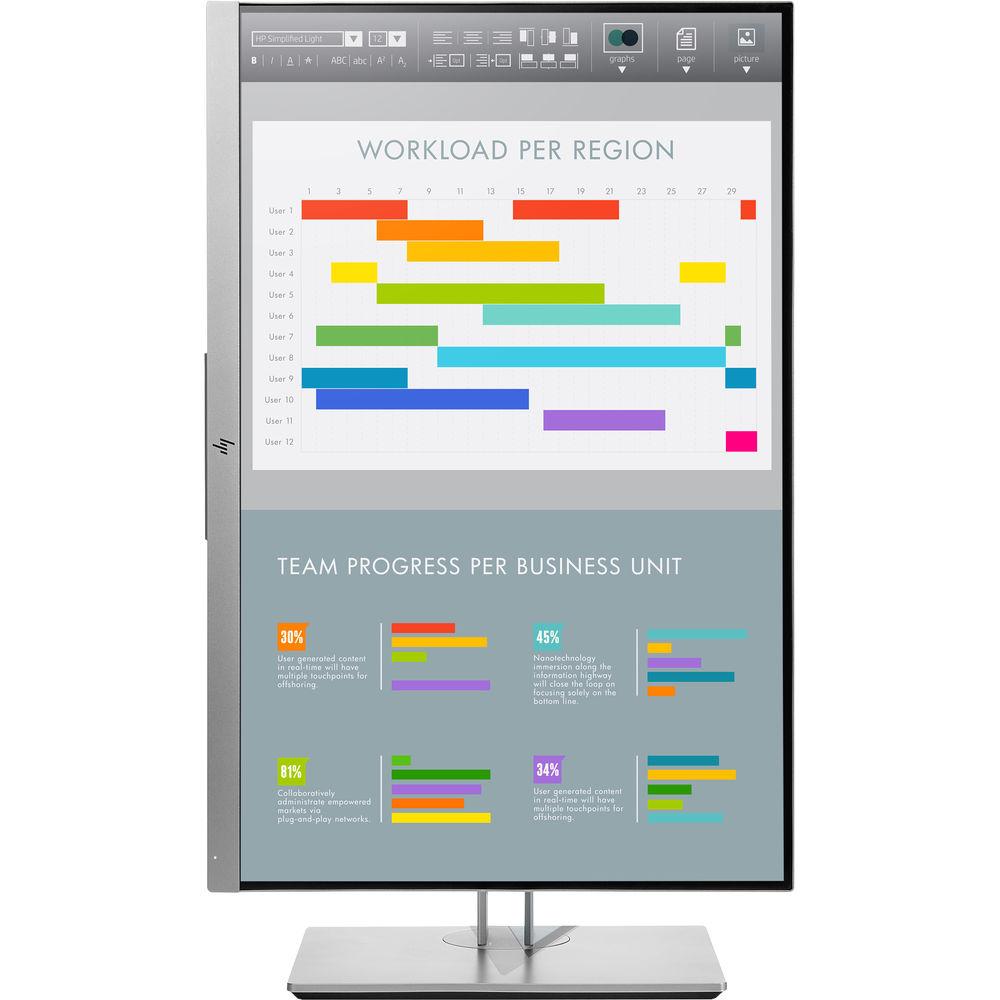

- Find a comfortable, productive, position with adjustable tilt, height, swivel, and up to 5.91" height adjustment settings. Use pivot rotation to customize portrait or landscape views when using multiple displays.
- Work with your most frequently-used devices with VGA, HDMI, and DisplayPort. Connect your USB accessories right at the display with two USB 3.0 ports
- Create an efficient, compact solution when you mount your compatible HP Desktop Mini Windows computer, Thin Client or Chromebox directly on the column stand using the optional HP B300 Windows Computer Mounting Bracket
- Reduce power consumption and help lower costs with a low halogen, ENERGY STAR certified, EPEAT Gold registered display that meets TCO Certified Edge with 85% Post-Consumer Recycled plastics
- Design the screen for how you work with HP Display Assistant software, which enables screen partitioning and helps deter theft by dimming a display that's disconnected without approval
- Build a complete solution with optional HP accessories like an HP Single Arm to take the display off the desk, an HP USB Graphics Adapter for multi-display setups or an HP S100 Speaker Bar for space-saving audio
UPC: 190781271376 In the Box HP E243i 24" 16:10 EliteDisplay IPS Monitor AC Power Cord VGA Cable USB Cable DisplayPort Cable Limited 5-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP E243i 24" 16:10 EliteDisplay IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the HP E243i 24" 16:10 EliteDisplay IPS Monitor can be downloaded in PDF format at the link stated below.
Technical parametersHP EliteDisplay E243i Specs | | | Size | 24" | | Screen Area | 20.41 x 12.76" / 51.84 x 32.4 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Pixels Per Inch (ppi) | 94 ppi | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 50,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | HDR Compatibility | None | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x VGA
1 x HDMI 1.4
1 x DisplayPort 1.2
1 x USB (USB 3.1 Gen 1) Input
2 x USB (USB 3.1 Gen 1) Output | | HDCP Support | Yes | | Built-In Speakers | None | | | | Power Consumption | 35 W (Typical)
0.5 W (Standby)
45 W (Maximum) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | BSMI, CE, ENERGY STAR, EPEAT GOLD, FCC, RCM, TCO Certified, TUV, VCCI, WEEE, as per Manufacturer | | | | Height Adjustment | 5.91" / 150 mm | | Rotation Adjustment | 90° | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 20° | | Dimensions (W x H x D) | 20.9 x 14.2 x 8.4" / 53.2 x 36.2 x 21.4 cm (With Stand)
20.9 x 13.8 x 1.8" / 53.2 x 35.1 x 4.6 cm (Without Stand) | | Weight | 14.02 lb / 6.36 kg (With Stand) | | | | Package Weight | 19.6 lb | | Box Dimensions (LxWxH) | 31.0 x 13.5 x 8.5" |
