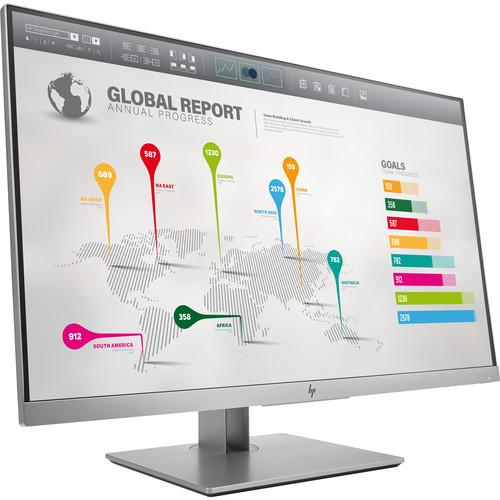

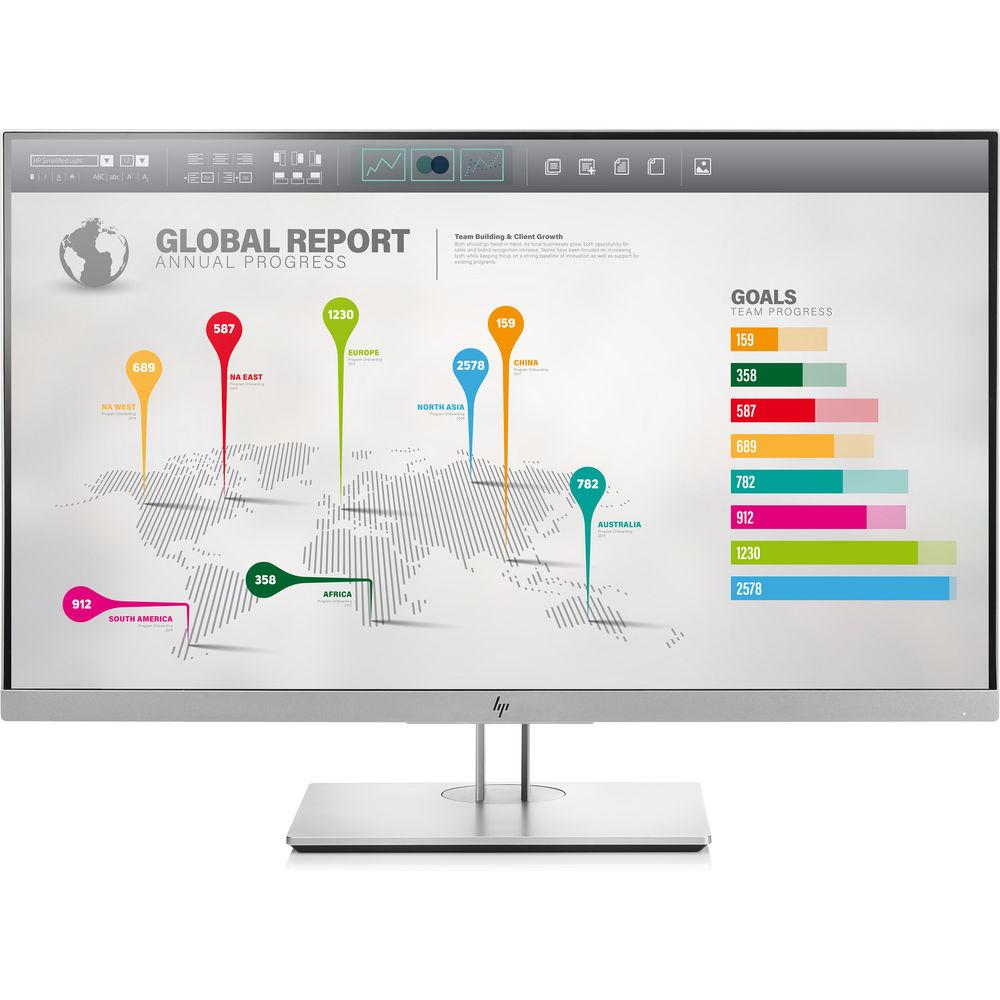

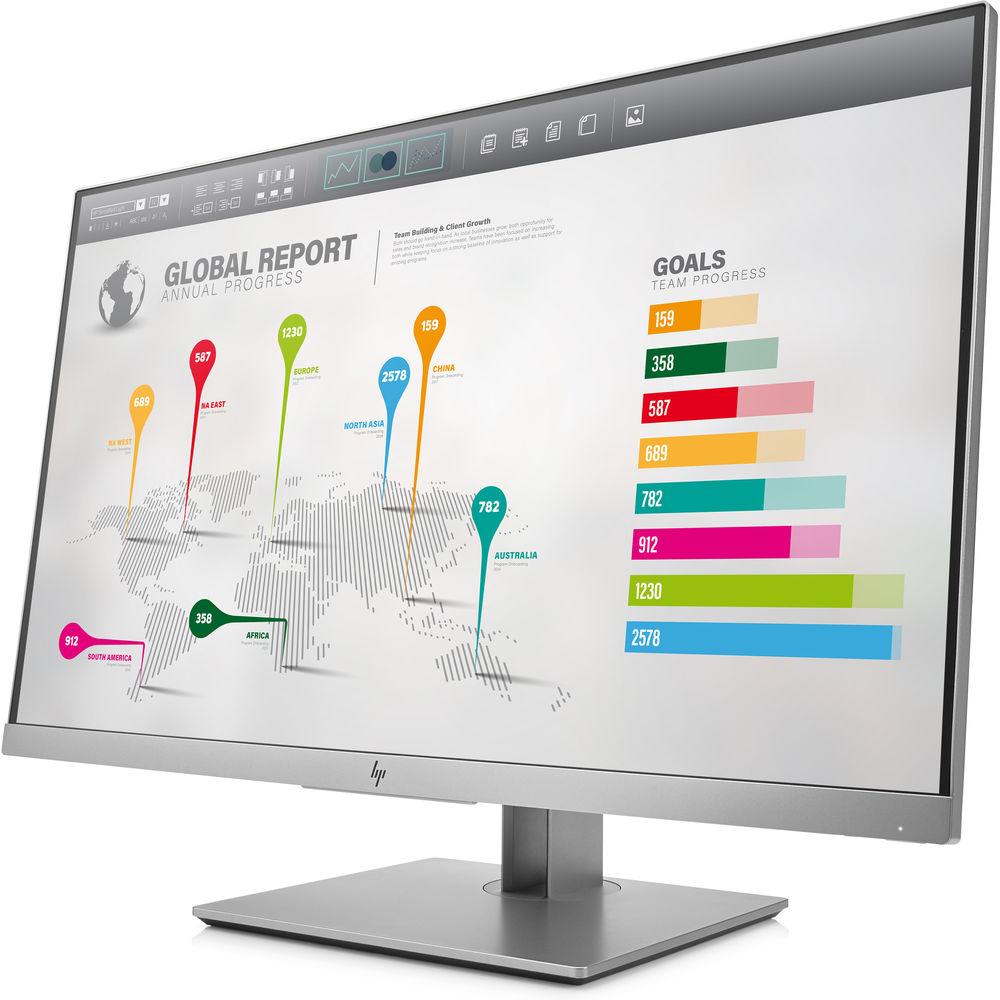

User Manual for HP E273q 27" 16:9 EliteDisplay IPS Monitor Click to enlarge the picture
Contents of the user manual for the HP E273q 27" 16:9 EliteDisplay IPS
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP E273q 27" 16:9 EliteDisplay IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a 3-sided micro-edge bezel, the E273q 27" 16:9 EliteDisplay IPS Monitor from HP is ideal for multi-monitor configurations. This aesthetically pleasing monitor features a 16:9 aspect ratio along with a QHD 2560 x 1440 resolution, a 1000:1 contrast ratio, a 5 ms response time, and 178° horizontal and vertical viewing angles. Setup is simple as this monitor comes equipped with HDMI, VGA, and DisplayPort inputs; along with dual USB 3.0 ports and a single USB Type-C port to connect USB compatible peripherals directly to the monitor. Once configured, the display can be tilted, swiveled, pivoted, and the height can be adjusted to for maximum viewing comfort. -
- Bring more of your data to the screen at the same time on a 27" diagonal screen with Quad HD 2560 x 1440 resolution, which supports efficient column and row management in your office software and smoother curves in your images
- Take visual disruptions out of the picture with the display's 3-sided micro-edge bezel, which essentially removes them from your line of sight so you can multi-task to your heart's content across virtually seamless multi-display arrays

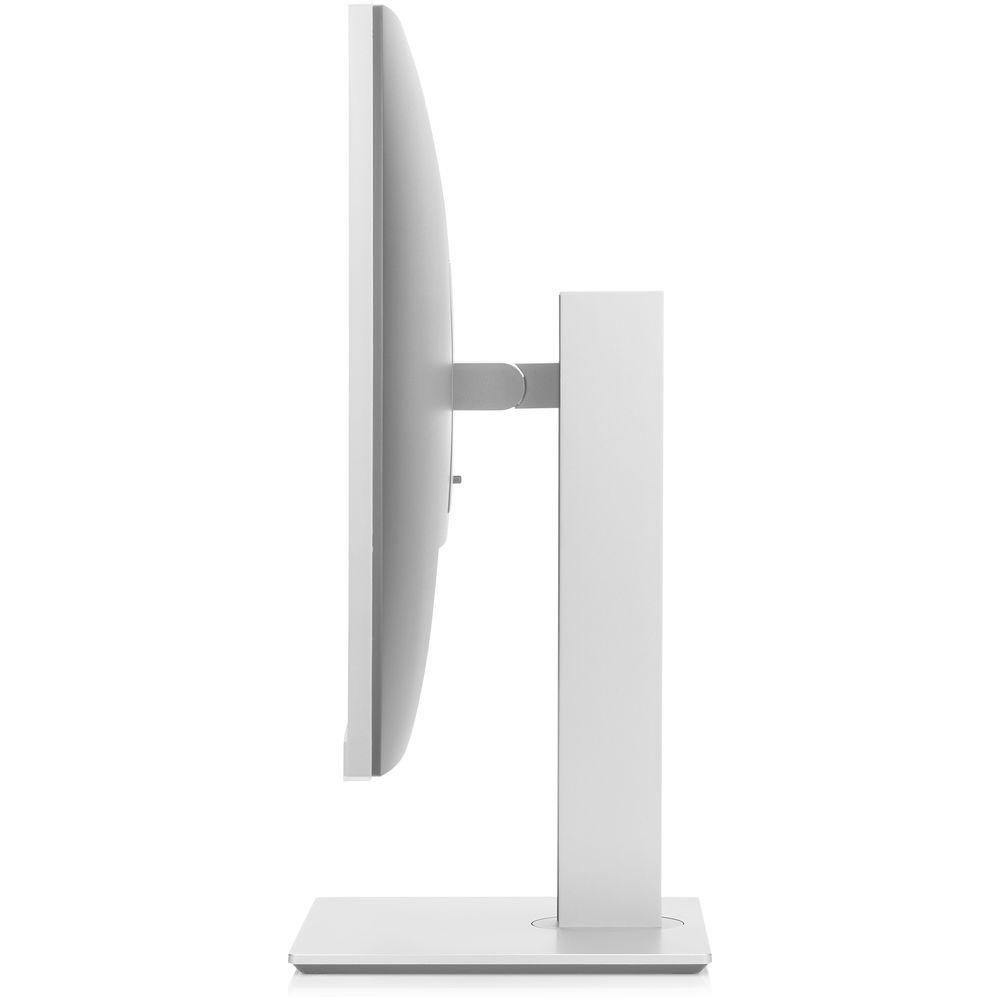

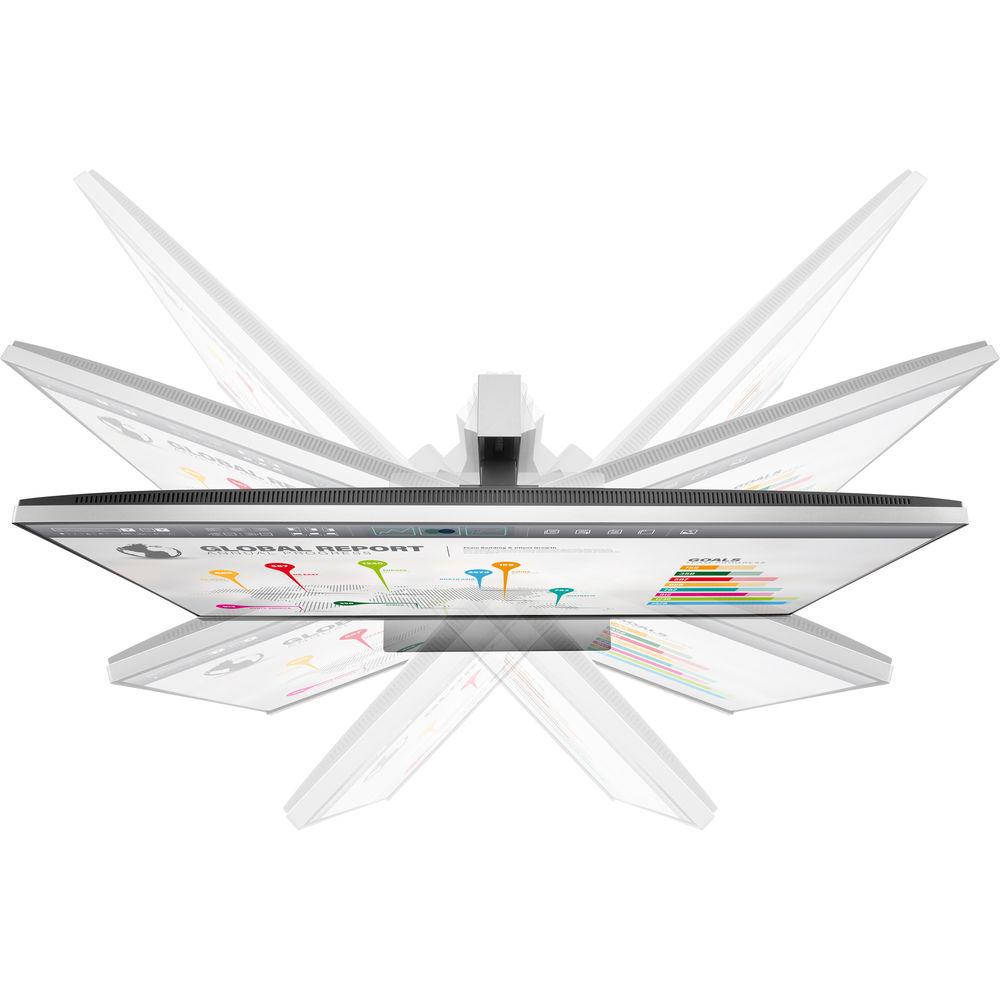

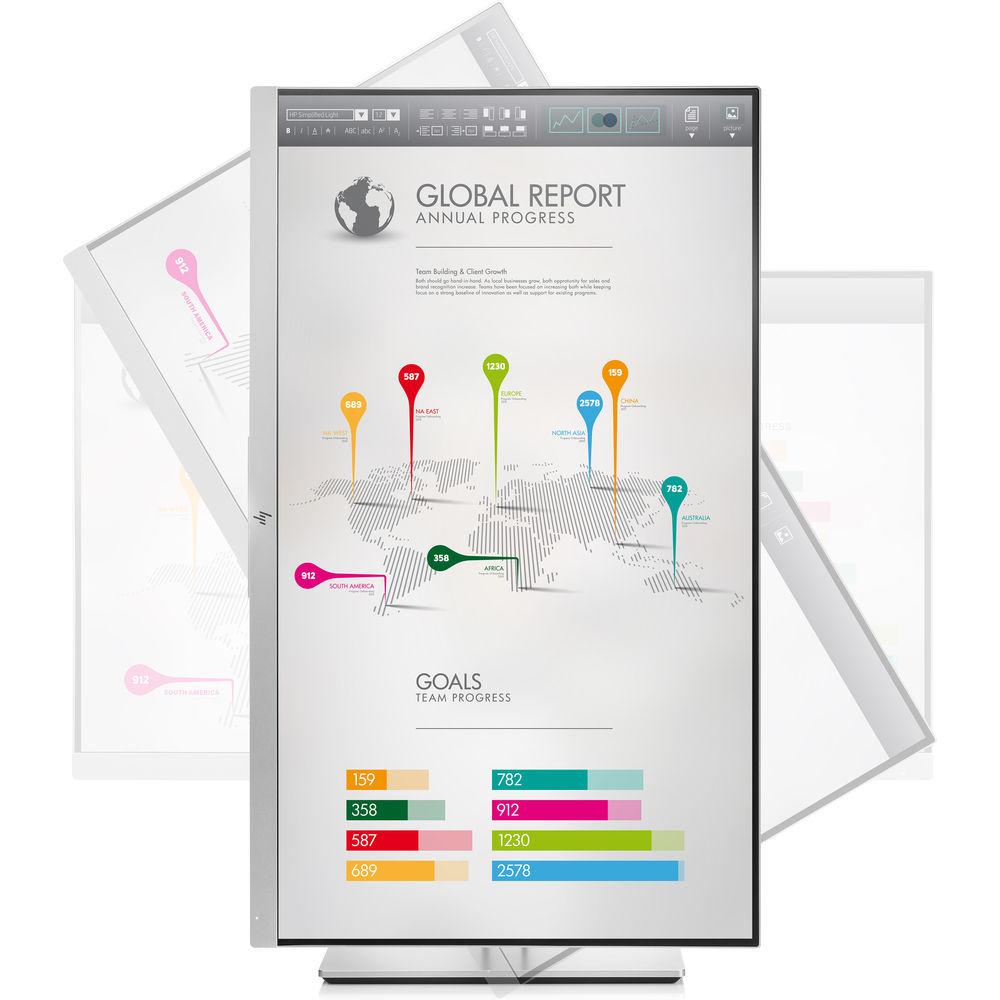

- Find your most comfortable, productive position with adjustable tilt, height, swivel, and up to 5.9" height adjustment settings. Use pivot rotation to customize portrait or landscape views when using multiple displays

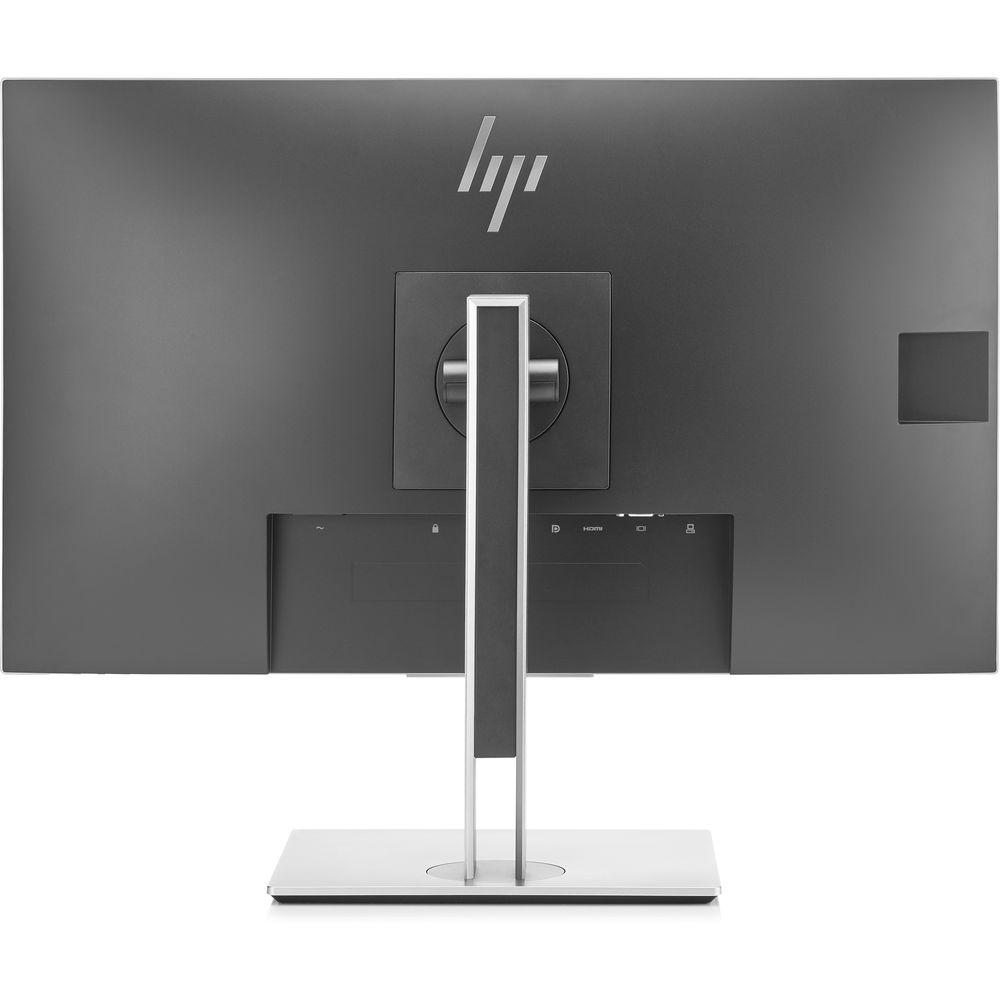

- Keep your workspace clean with video and data connections over a single cable with USB Type-C. Be ready for multiple generations of products with DisplayPort, HDMI, VGA, and a 2-port USB hub
- Mount your compatible HP Desktop Mini Windows PC or select Thin Client or Chromebox directly on the column stand using the optional HP B300 Windows PC Mounting Bracket
- Reduce power consumption and help lower costs with a low halogen, ENERGY STAR certified, EPEAT Gold registered display that meets TCO Certified Edge with 85% Post-Consumer Recycled plastics
- Design the screen for how you work with HP Display Assistant software, which enables screen partitioning and helps deter theft by dimming a display that's disconnected without approval
- Build a complete solution with optional HP accessories designed and tested to work with your display
UPC: 190781289166 In the Box HP E273q 27" 16:9 EliteDisplay IPS Monitor AC Power Cord DisplayPort Cable HDMI Cable USB Type-C to USB Type-A Cable Limited 5-Year Warranty Quick Specs PDF 362.2kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP E273q 27" 16:9 EliteDisplay IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP EliteDisplay E273q Specs | | | Size | 27" | | Screen Area | 23.46 x 13.19" / 59.6 x 33.5 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 109 ppi | | Finish | Matte | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 50,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | HDR Compatibility | None | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x VGA
1 x HDMI
1 x DisplayPort 1.2
1 x USB Type-C (USB 3.1 Gen 1)
2 x USB (USB 3.1 Gen 1) | | HDCP Support | Yes | | Built-In Speakers | None | | | | Power Consumption | 45 W (Typical)
0.5 W (Standby)
75 W (Maximum) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | BSMI, CE, FCC, RCM, TUV, VCCI, WEEE, as per Manufacturer | | | | Height Adjustment | 5.91" / 150 mm | | Rotation Adjustment | 90° | | Swivel Adjustment | 45° | | Tilt Adjustment | -5 to 22° | | Dimensions (W x H x D) | 24.1 x 20.6 x 8.4" / 61.2 x 52.3 x 21.4 cm (With Stand)
24.1 x 14.3 x 1.9" / 61.2 x 36.4 x 4.9 cm (Without Stand) | | Weight | 16.31 lb / 7.4 kg (With Stand) | | | | Package Weight | 22.45 lb | | Box Dimensions (LxWxH) | 5.0 x 5.0 x 5.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
