User Manual for HP EliteDisplay E202 20" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the HP EliteDisplay E202 20" 16:9 IPS
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP EliteDisplay E202 20" 16:9 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

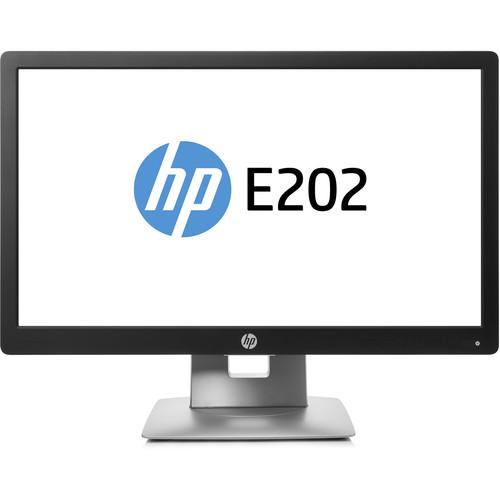

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More evtcuyxdtyddrvrvsbfyuydwf The black and silver EliteDisplay E202 20” 16:9 IPS Monitor from HP is an HD+ IPS (In-Plane Switching) display that is certified for Windows 10 and includes ergonomic adjustability and crisp, clear color presentation. It offers a native resolution of 1600 x 900, 250 cd/m² brightness rating, a contrast ratio of 1,000:1, and an aspect ratio of 16:9. This energy-efficient monitor is ENERGY STAR qualified and EPEAT Gold registered. It also meets the TCO Certified Edge requirements and includes mercury-free display backlights, arsenic-free display glass, and low halogen components. - Share your projects in 178° views from almost anywhere in the room, thanks to the wide-angle IPS technology
- 20" diagonal screen with 1600 x 900 HD+ color quality

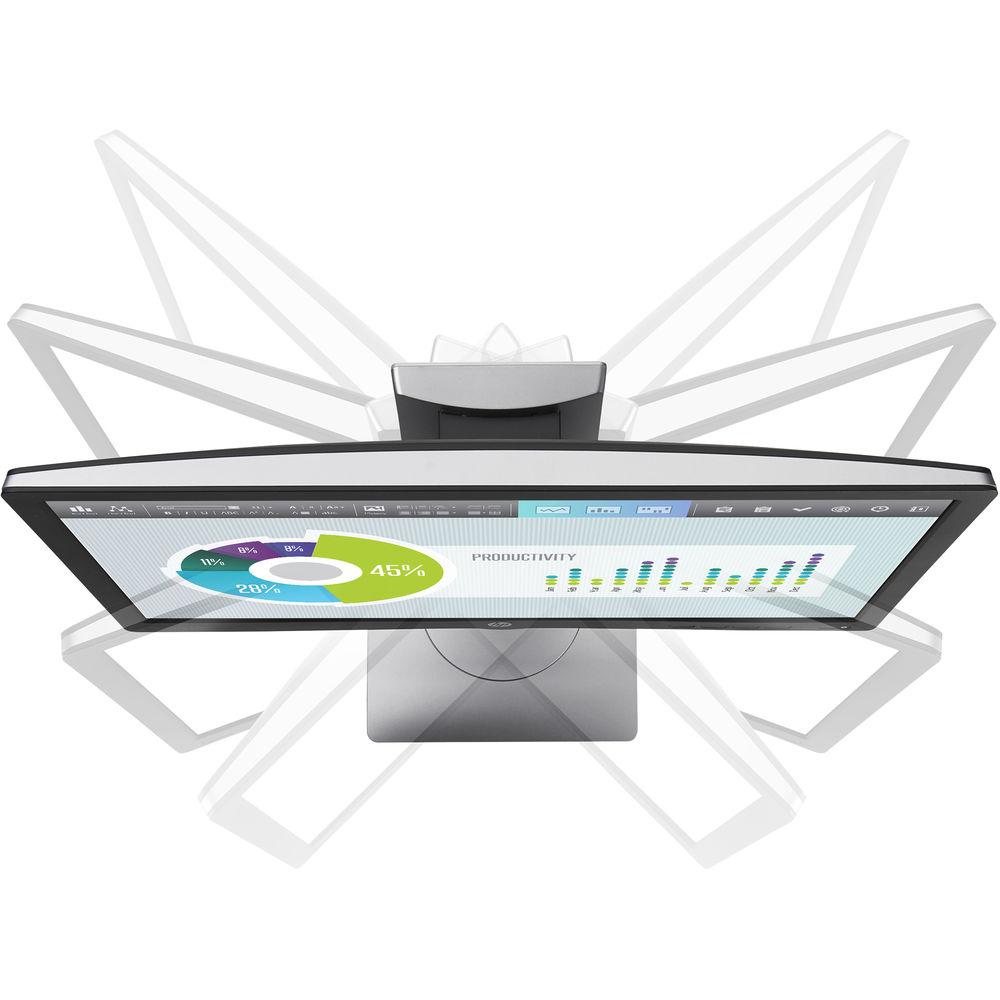

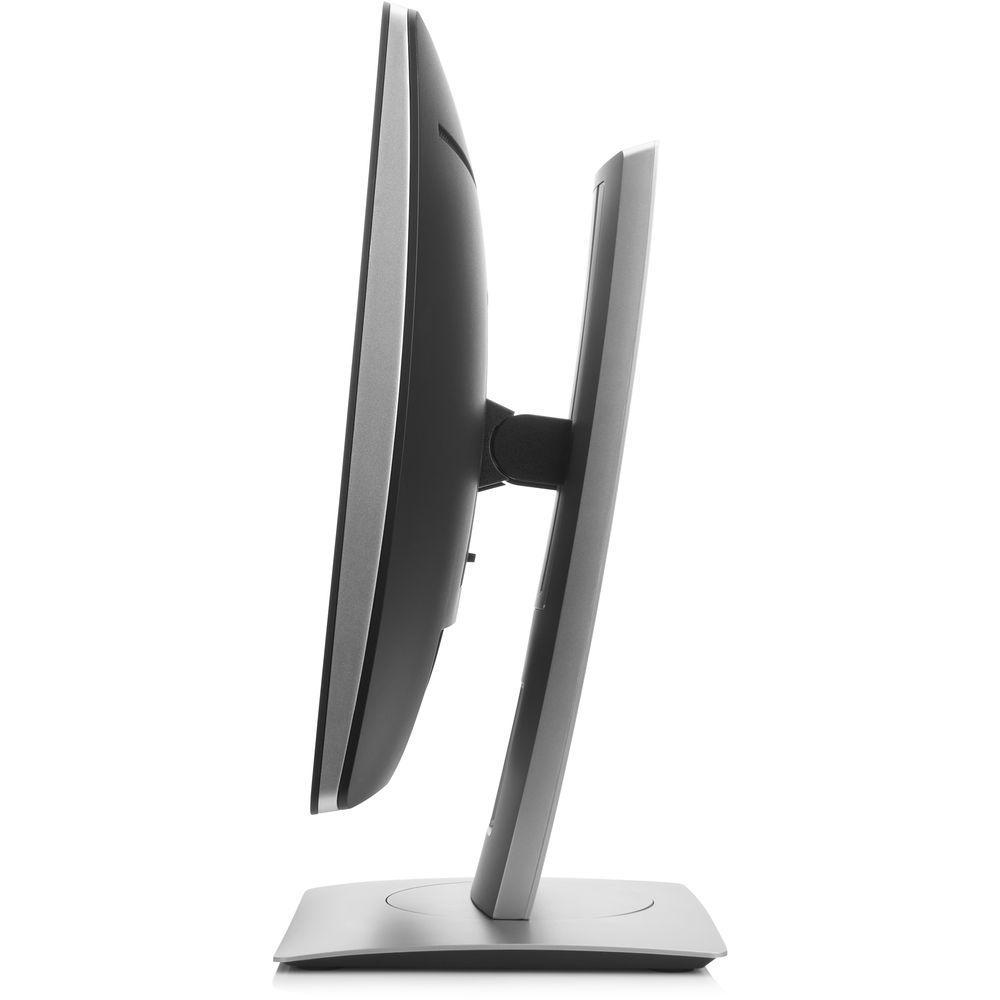

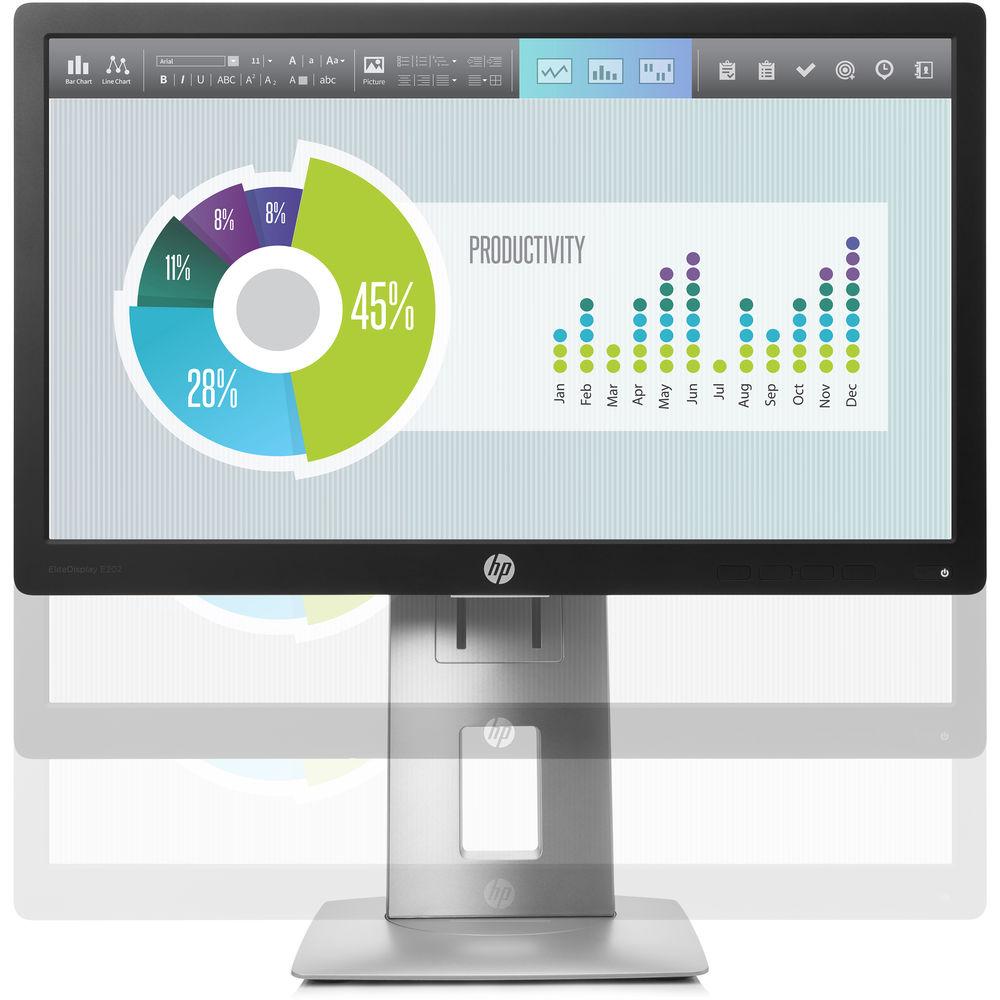

- Be comfortable with the adjustable tilt and swivel settings, and a 5.9" height adjustment range
- Use pivot rotation to customize portrait or landscape views

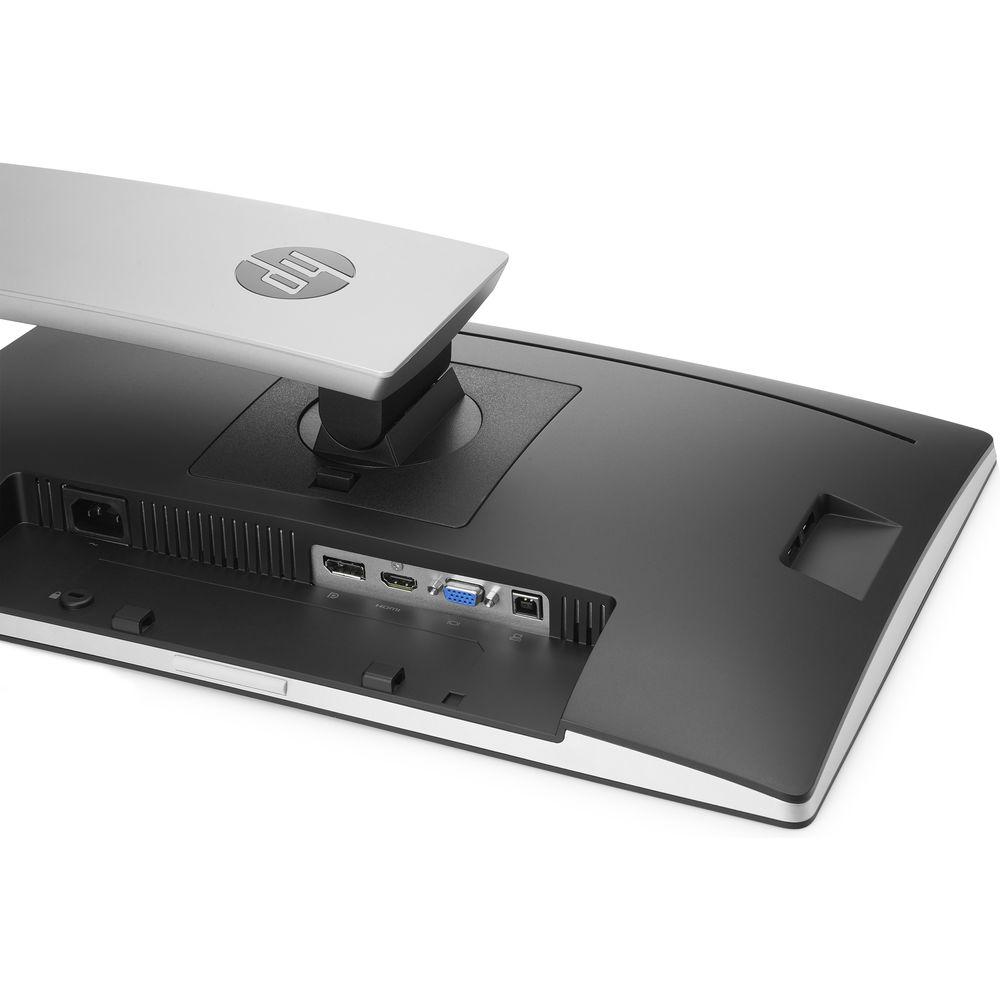

- Connects to a range of PCs and devices with HDMI, DisplayPort, and VGA inputs

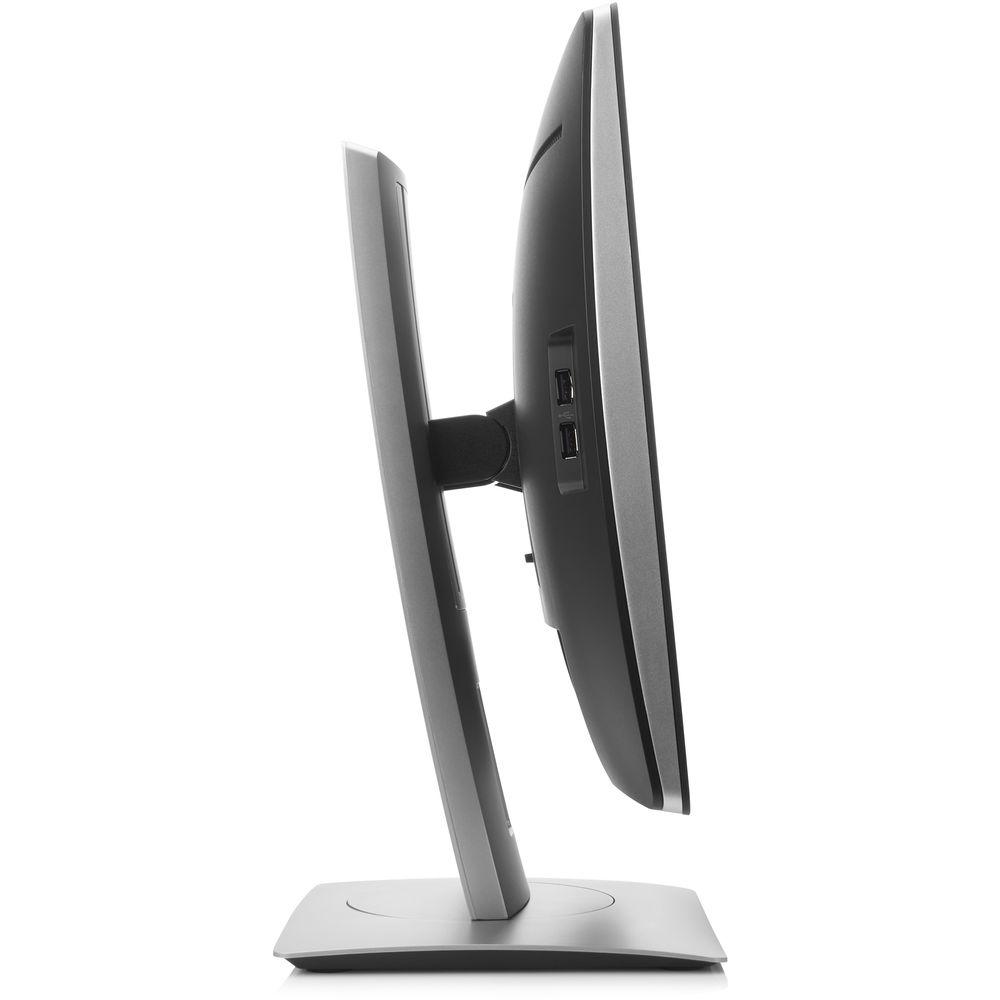

- Integrated USB hub for connecting devices with USB connections
- Attach your HP Desktop Mini, HP Chromebox, or select HP Thin Client directly behind the display
- Keep things tidy with an integrated power supply and cable management features
- Can be connected to a PC or notebook with Windows 10
- Energy-efficient design that is ENERGY STAR certified, EPEAT Gold registered
- Meets TCO Certified Edge requirements with 85% post-consumer recycled plastics
UPC: 889296442820 In the Box HP EliteDisplay E202 20" 16:9 IPS Monitor AC Power Cord DisplayPort Cable VGA Cable USB Cable Limited 3-Year Warranty User Manual PDF 1.8mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP EliteDisplay E202 20" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP E202 Specs | | | Size | 20" | | Screen Area | 17.4 x 9.8" / 44.3 x 24.9 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1600 x 900 | | Pixels Per Inch (ppi) | 91 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 70 kHz | | Vertical Frequency | 50 to 75 Hz | | Pixel Clock Frequency | 170 MHz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Response Time | 7 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.276 x 0.276 mm | | Backlight Lifespan | 40,000 Hours | | | | Connectivity | 1 x USB Type-B 2.0 Input
2 x USB Type-A 2.0 Output
1 x DisplayPort 1.2 Input
1 x HDMI
1 x VGA | | HDCP Support | Yes | | Supported Languages | Portuguese
Dutch
English
Spanish
Simplified Chinese
German
Japanese
Italian
Traditional Chinese
French | | | | Power Consumption | 33 W (Maximum)
0.5 W (Standby)
22 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 5 to 95% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, EPEAT GOLD, TCO Certified, WEEE, as per Manufacturer | | | | Height Adjustment | 5.9" / 15 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 25° | | Dimensions (W x H x D) | 19.4 x 18.9 x 7.4" / 49.3 x 47.9 x 18.9 mm (With Stand)
18.9 x 11.7 x 2.0" / 47.9 x 29.7 x 5.0 mm (Without Stand) | | Weight | 10.7 lb / 4.8 kg (With Stand)
6.2 lb / 2.8 kg (Without Stand) |
