User Manual for HP EliteDisplay E230t 23" 16:9 IPS Touchscreen Monitor Click to enlarge the picture
Contents of the user manual for the HP EliteDisplay E230t 23" 16:9 IPS
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP EliteDisplay E230t 23" 16:9 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The EliteDisplay E230t 23" 16:9 IPS Touchscreen Monitor from HP is a 10-point touchscreen display designed to be compatible with the Windows 10 operating system. It features a 250 cd/m² brightness rating and a 1920 x 1080 native resolution. A contrast ratio of 1000:1 showcases the monitor's ability to handle light and dark on-screen images, and the panel has 5 ms response time to combat image blur and distortion on moving images. -
- Plug-and-play operation
- Anti-glare panel
- User programmable
- Language selection
- On-screen controls
- LED backlights
- In-plane switching technology
- Integrated in-cell touch technology
- Three-sided micro edge scree
- Attach your HP Desktop Mini, HP Chromebox, or selected HP Thin Client directly behind the display (separate mount required)
- Use the integrated VESA mount to place the display on a wall or stand (mounting hardware required)
- Adjustable height up to 5.91"

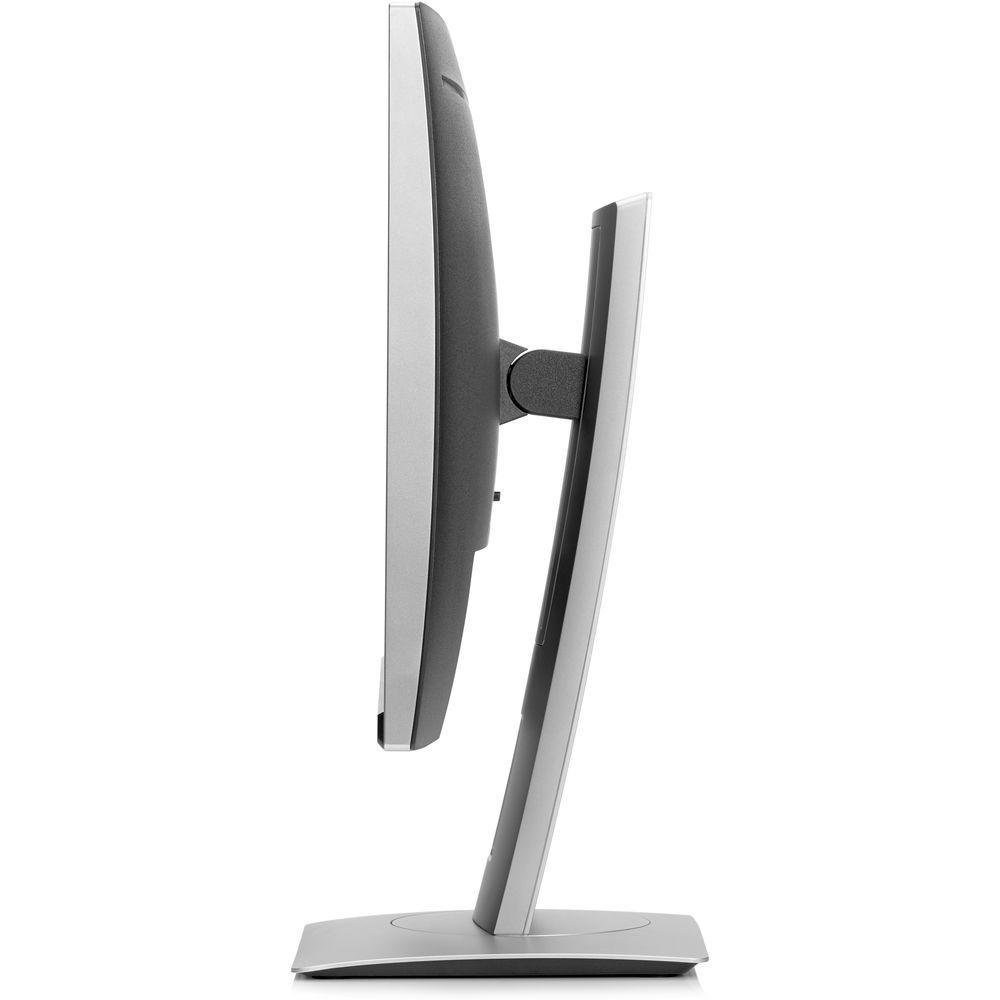

- Supports tilt and swivel
- Pivot rotation for portrait mode viewing
- Integrated VGA, DisplayPort, HDMI, and two-port USB 3.0 hub
- Includes HP Display Assistant software
In the Box HP EliteDisplay E230t 23" 16:9 IPS Touchscreen Monitor AC Power Cord VGA Cable USB Cable Driver CD Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP EliteDisplay E230t 23" 16:9 IPS Touchscreen Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP E230t Specs | | | Size | 23" | | Screen Area | 20.05 x 11.28" / 50.92 x 28.64 cm | | Panel Type | IPS-Type LCD | | Touchscreen | Yes | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 96 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 500,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | HDR Compatibility | None | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x VGA
1 x HDMI 1.4
1 x DisplayPort 1.2
2 x USB Type-A (USB 2.0) Output
1 x USB Type-B (USB 2.0) Input | | HDCP Support | Yes | | Built-In Speakers | None | | | | Power Consumption | 57 W (Maximum)
29 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, EPEAT GOLD, as per Manufacturer | | | | Height Adjustment | 5.91" / 15 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 180° | | Tilt Adjustment | -5 to 25° | | Lock Slot | No | | Dimensions (W x H x D) | 20.5 x 19.2 x 7.4" / 52.1 x 48.8 x 18.8 cm (With Stand)
20.5 x 19.2 x 2.1" / 52.1 x 48.8 x 5.3 cm (Without Stand) | | Weight | 10.8 lb / 4.90 kg (With Stand) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 60 owners. Add your rating and experience with the product.
