User Manual for HP EliteDisplay E230T 23" 16:9 Touchscreen IPS Monitor Click to enlarge the picture
Contents of the user manual for the HP EliteDisplay E230T 23" 16:9 Touchscreen
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP EliteDisplay E230T 23" 16:9 Touchscreen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

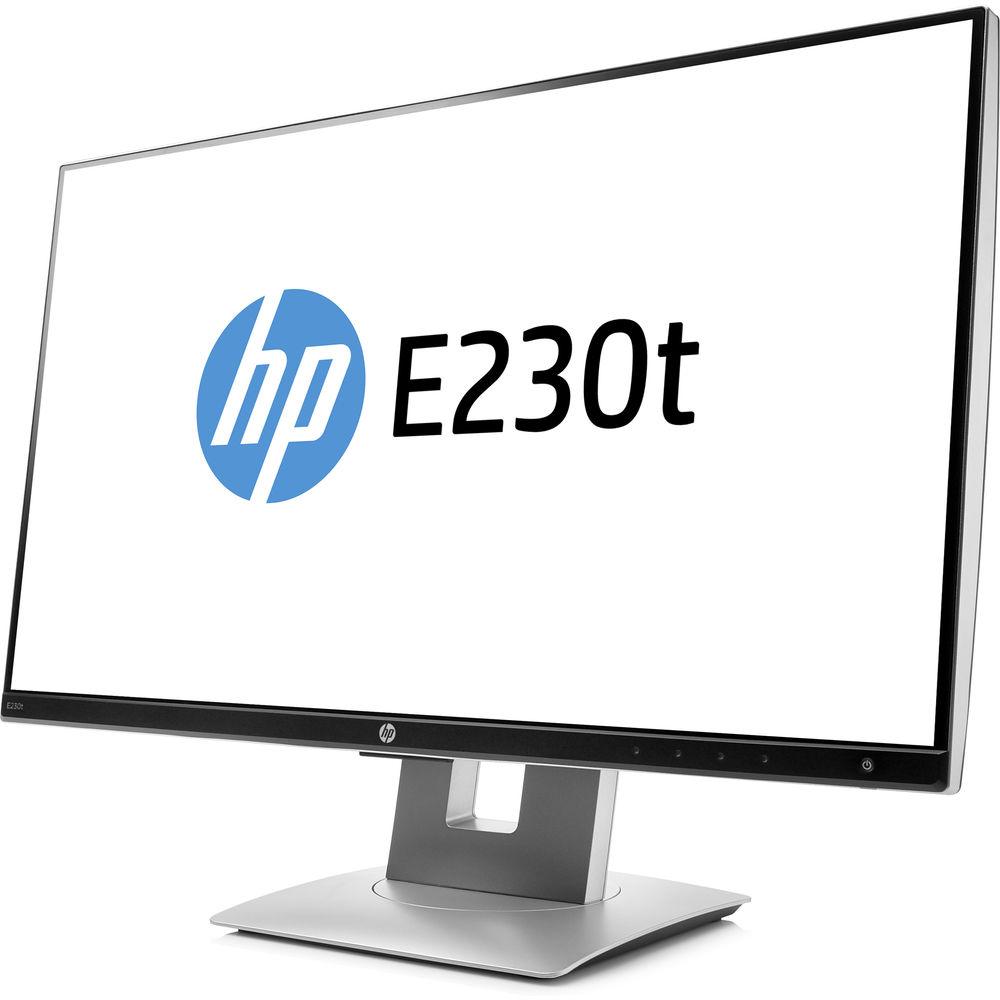

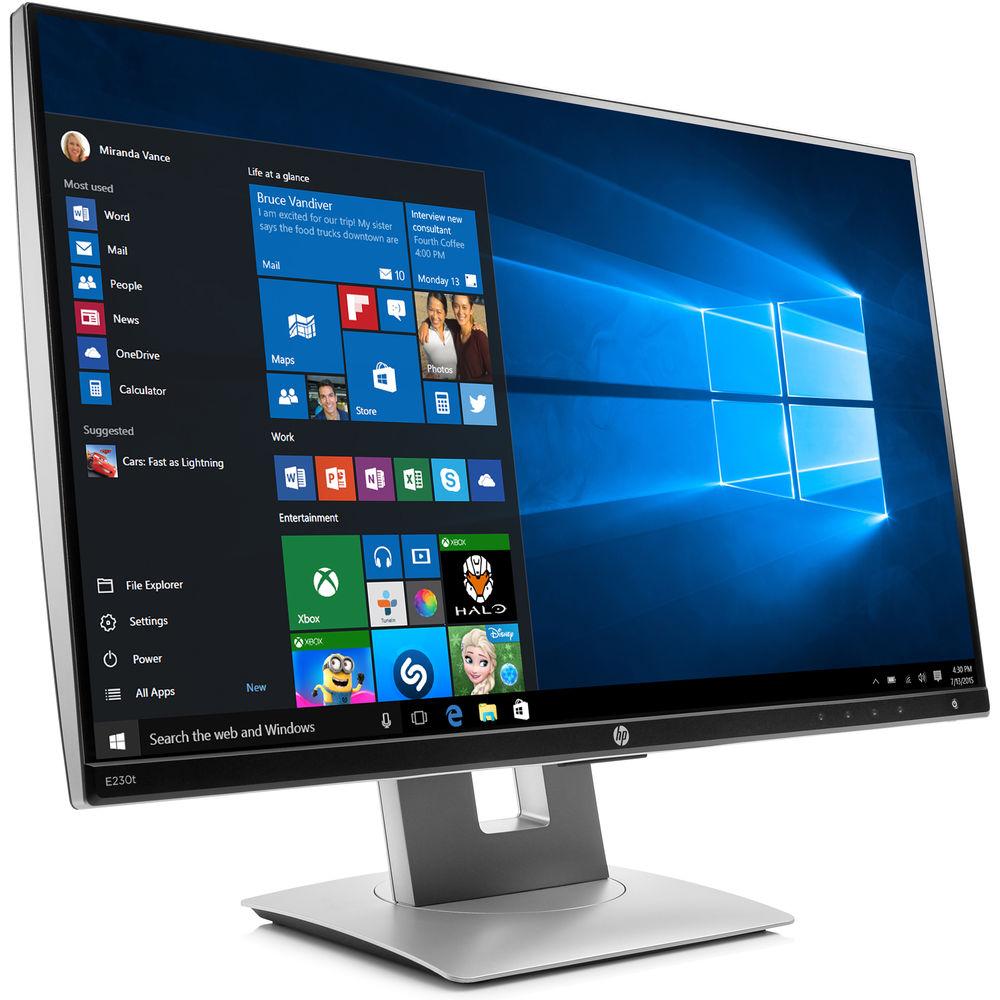

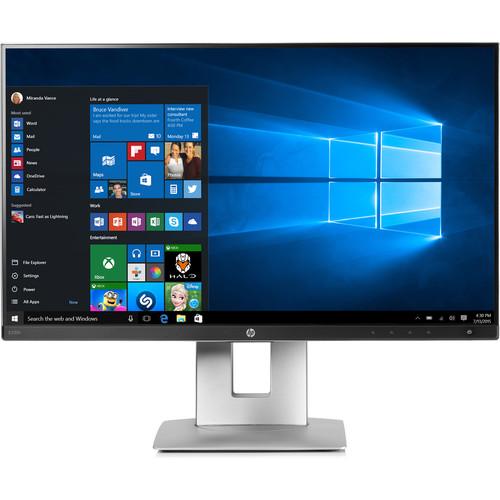

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a sleek, slim design, the EliteDisplay E230T 23" 16:9 Touchscreen IPS Monitor from HP offers 10-point multi-touch functionality and comes fully compatible with the Windows 10 operating system. In addition to enhanced touchscreen interactivity, this virtually borderless monitor features a reduced size bezel for an improved viewing experience whether attached to the included stand or mounted to the wall using a VESA compatible wall mount.
Setup and configuration is simple as this HP monitor comes equipped with VGA, DisplayPort, and HDMI inputs. Users can also plug in USB compatible peripherals to either of the two USB 3.0 ports. Once configured, the monitor offers a Full HD 1920 x 1080 resolution, a 1,000:1 contrast ratio, a 250 cd/m² brightness rating, and a 5 ms response time for a crisp clear picture quality with reduced ghosting. Additionally, the display can be tilted, pivoted, and the height can be adjusted to take full advantage of the 178° horizontal and vertical viewing angles. - Touch Display

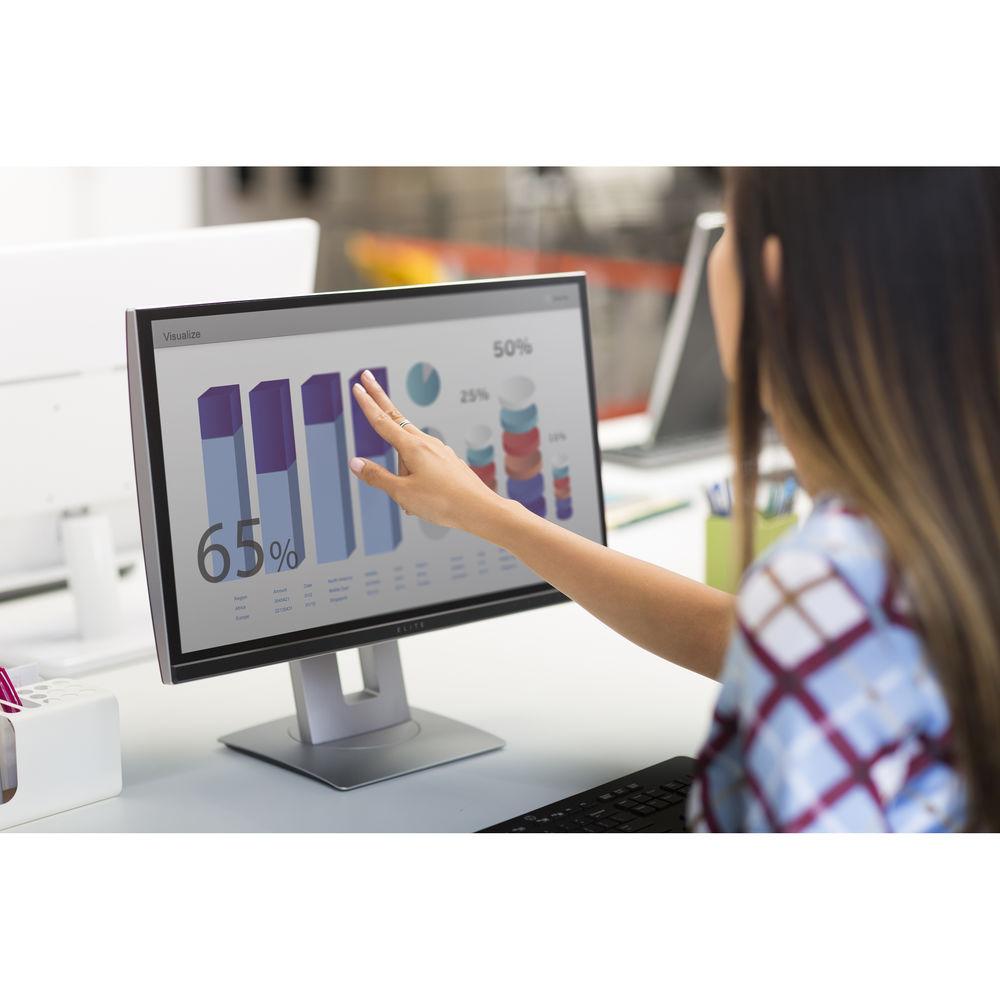

- Get a hands-on interactive touch experience minus the distractions of glare and messy fingerprints with integrated in-cell touch technology that also enables a sleek, slim display.
- Virtually Borderless Design
- Maximize your visual real estate and see even more of your work on a wide-angle display that has a three-sided micro edge screen, which makes it easy to tile in multi-monitor arrangements and keep clean.
- Efficient, Smart Setup
- Attach your HP Desktop Mini, HP Chromebox, or select HP Thin Client directly behind the display for an integrated workspace that's perfect for small spaces. Or, use the integrated VESA mount to place the display on a wall or stand.
- Optimized Ergonomics

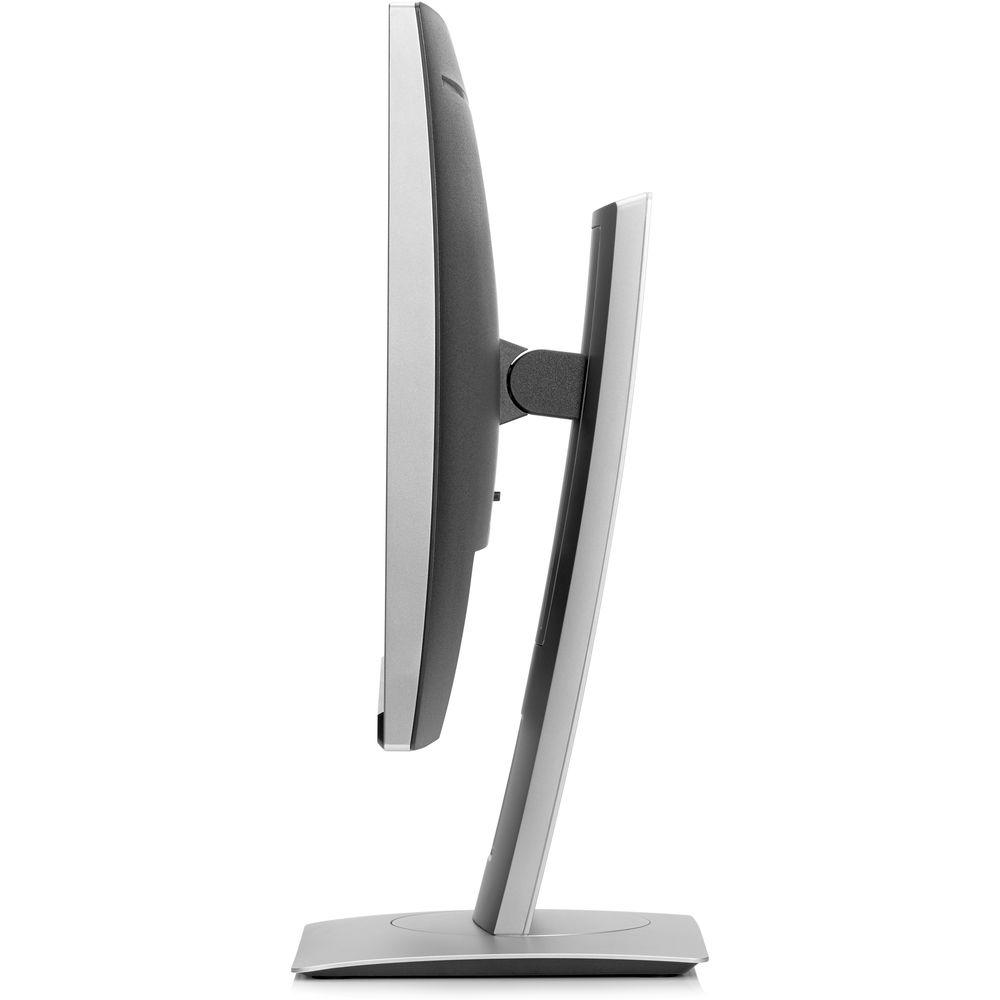

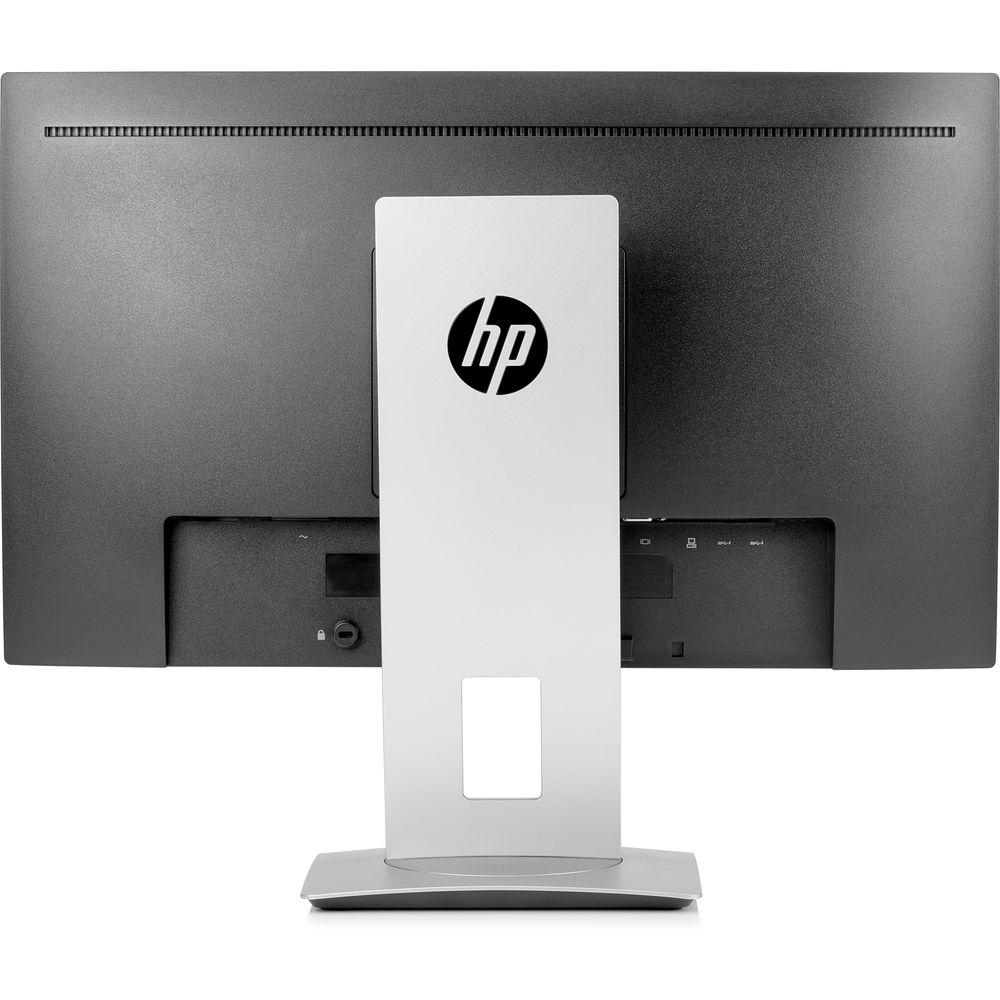

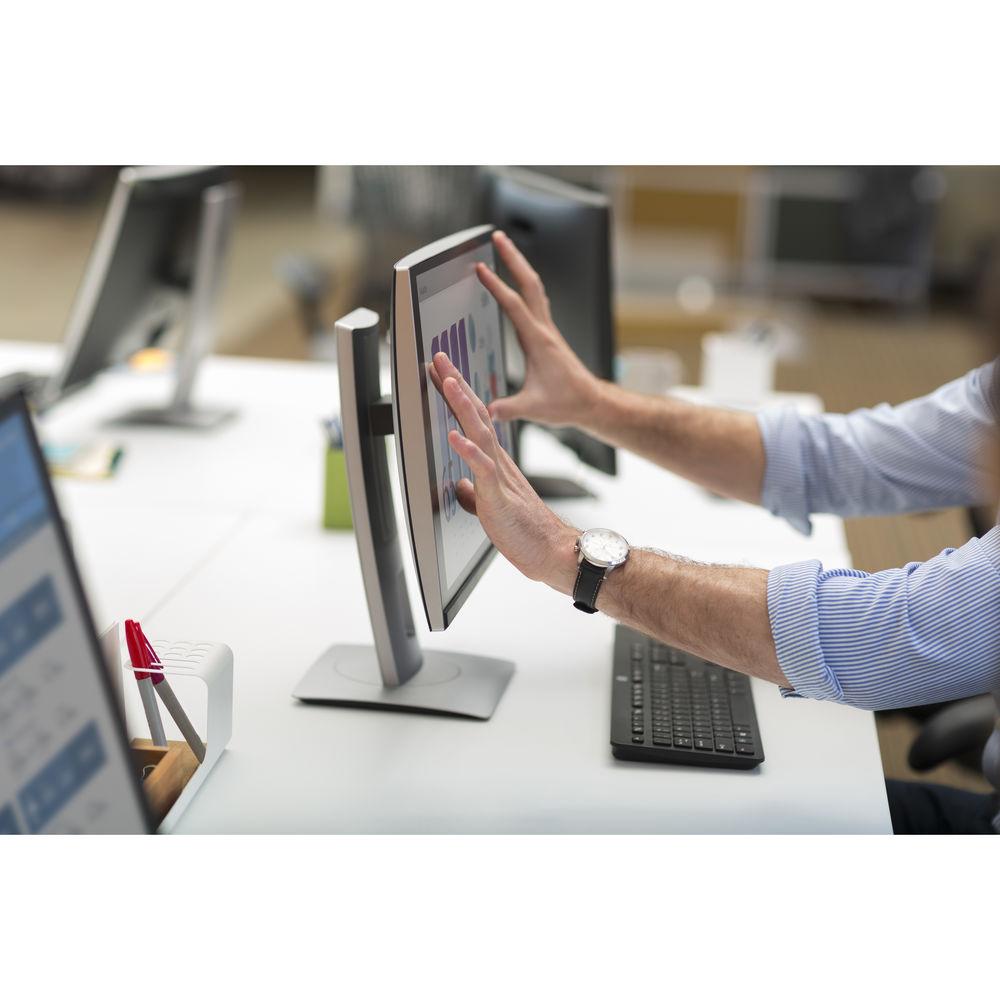

- Find the right position to be comfortable all day with adjustable height up to 5.9", tilt, and swivel, plus pivot rotation for portrait mode viewing. The included VESA pattern supports wall and arm mounting in tight spaces.
- Connect Legacy Devices
- Connect to your legacy and current environments with VGA, DisplayPort, and HDMI, and add your USB devices with the integrated two-port USB 3.0 hub.
- Reduce Power Consumption
- Reduce power consumption and help lower your costs with an energy-smart, EPEAT Gold registered design.
- Additional Features
- Anti-glare
In-Plane Switching (IPS)
Language selection
LED Backlight
On-screen controls
Pivot rotation
Plug-and-Play
User programmable
Touch enabled
User controls UPC: 889899308332 In the Box HP EliteDisplay E230T 23" 16:9 Touchscreen IPS Monitor AC Power Cord VGA Cable USB Cable Driver CD Limited 3-Year Warranty Data Sheet PDF 802.6kbwuffzuxxaeufftvuzfwbrre More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP EliteDisplay E230T 23" 16:9 Touchscreen IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP E230T Specs | | | Size | 23" | | Screen Area | 20.05 x 11.28" / 50.93 x 28.65 cm | | Panel Type | IPS-Type LCD | | Touchscreen | Yes | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 96 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | HDR Compatibility | None | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x VGA
1 x HDMI 1.4
1 x DVI 1.2
2 x USB (USB 3.1 Gen 1) Output
1 x USB (USB 3.1 Gen 1) Input | | HDCP Support | Yes | | Built-In Speakers | None | | | | Power Consumption | 57 W (Maximum)
29 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Height Adjustment | 5.91" / 150 mm | | Rotation Adjustment | 90° | | Swivel Adjustment | 180° (-90 to 90°) | | Tilt Adjustment | -5 to 25° | | Dimensions (W x H x D) | 20.5 x 19.2 x 7.4" / 52.1 x 48.8 x 18.8 cm (With Stand)
20.5 x 12.3 x 2.1" / 52.1 x 31.2 x 5.3 cm (Without Stand) | | Weight | 10.8 lb / 4.90 kg (With Stand) | | | | Package Weight | 15.85 lb | | Box Dimensions (LxWxH) | 24.3 x 15.7 x 9.9" |
