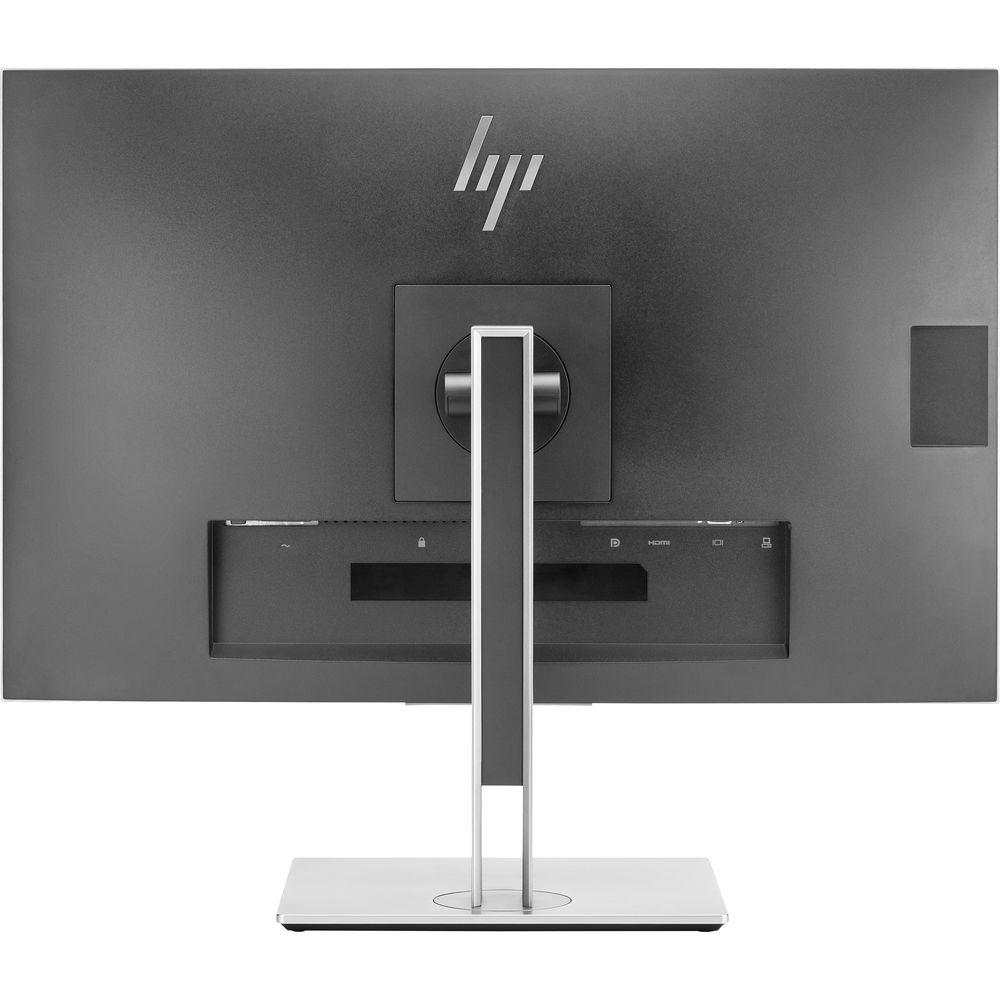

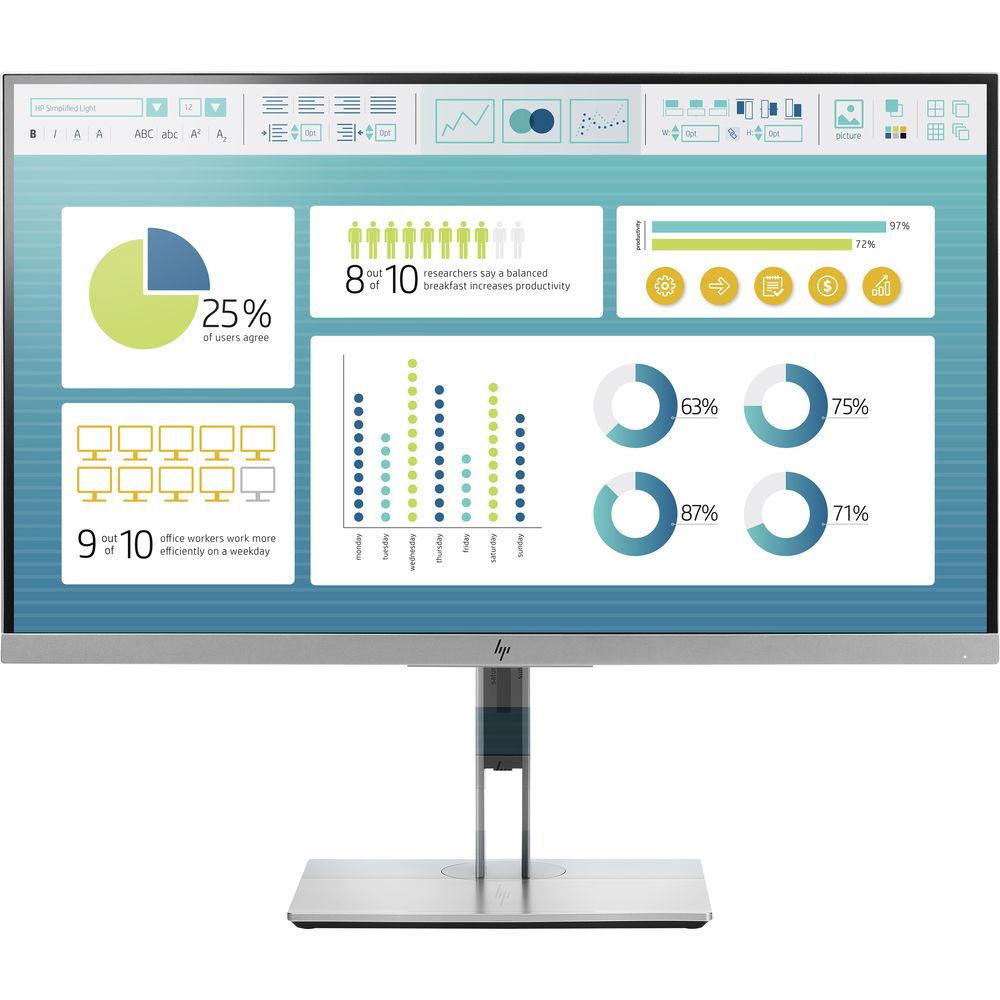

User Manual for HP EliteDisplay E273 27" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the HP EliteDisplay E273 27" 16:9 IPS
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP EliteDisplay E273 27" 16:9 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

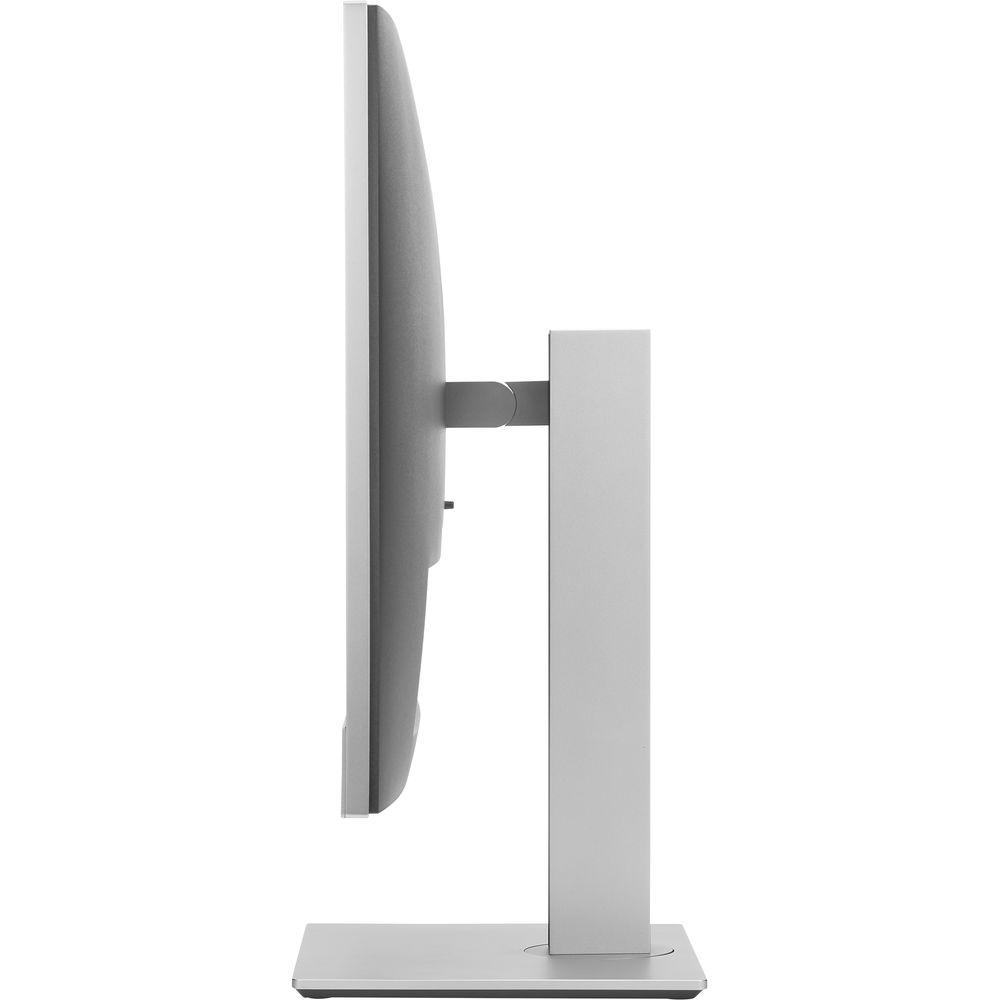

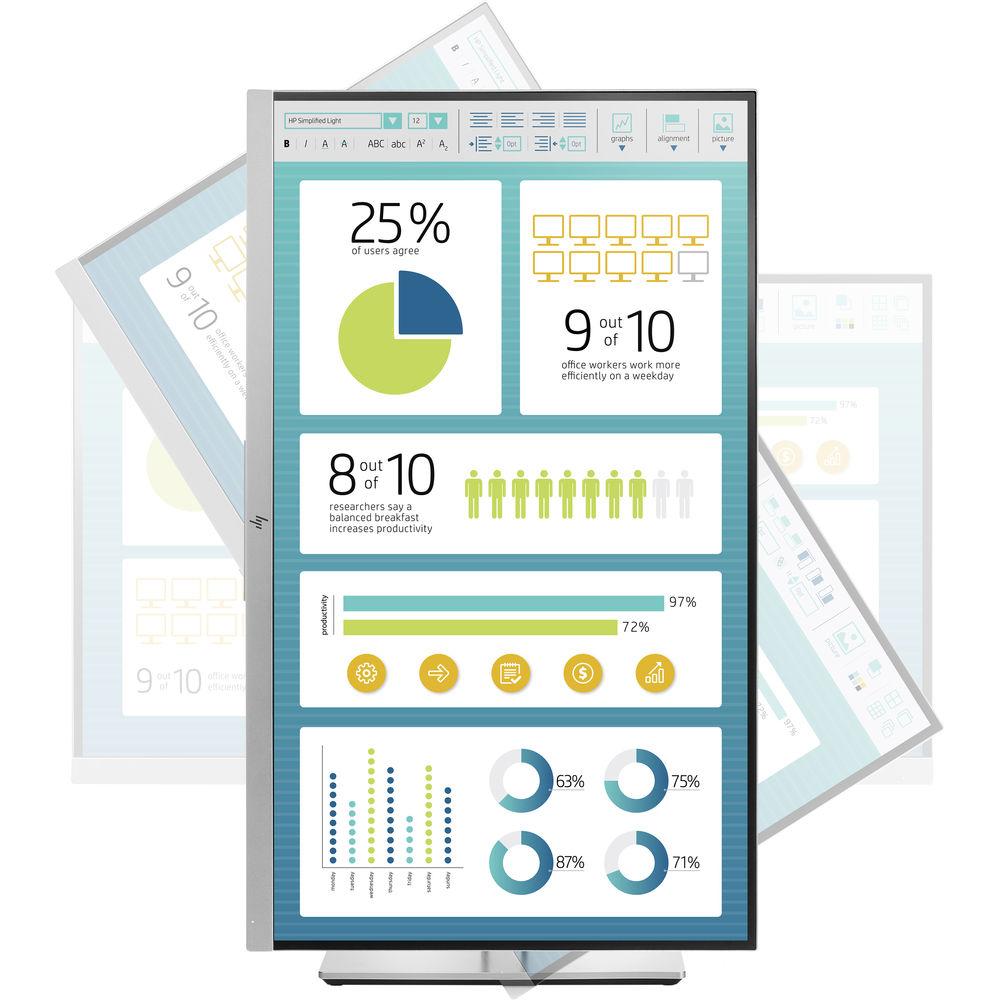

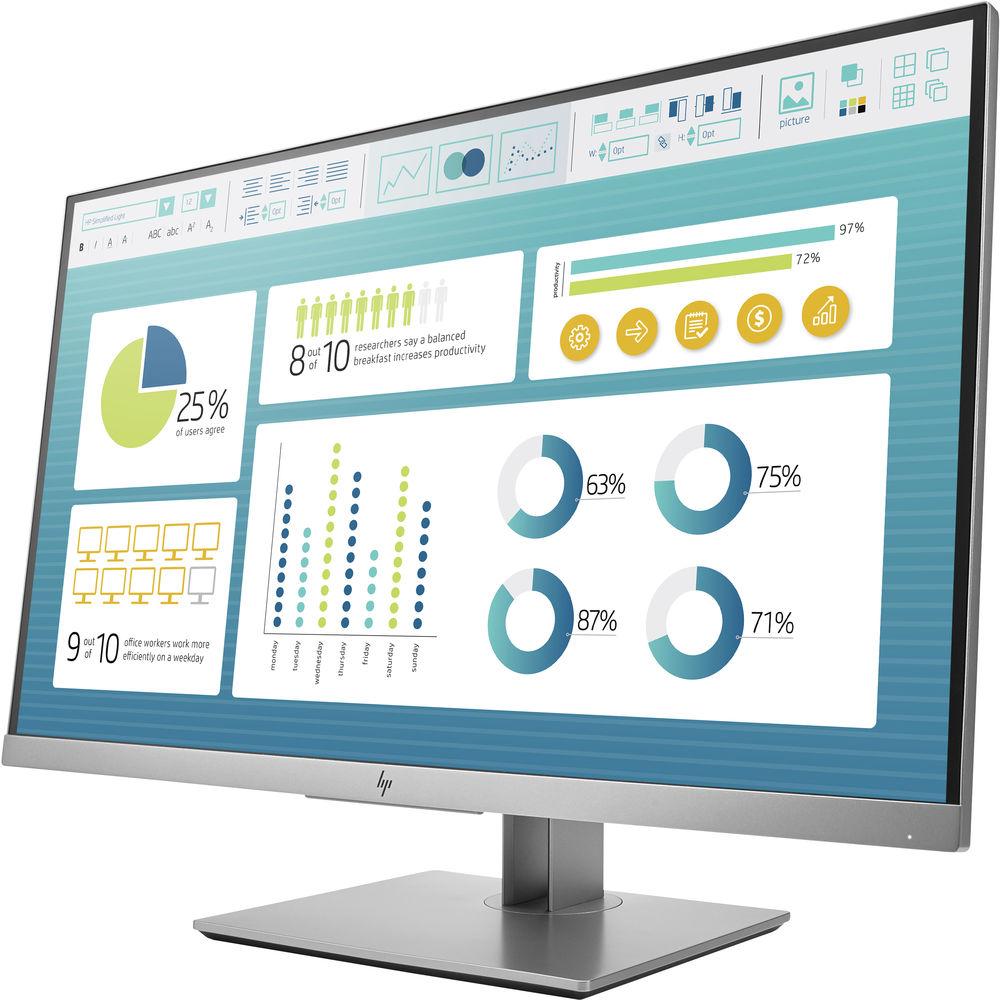

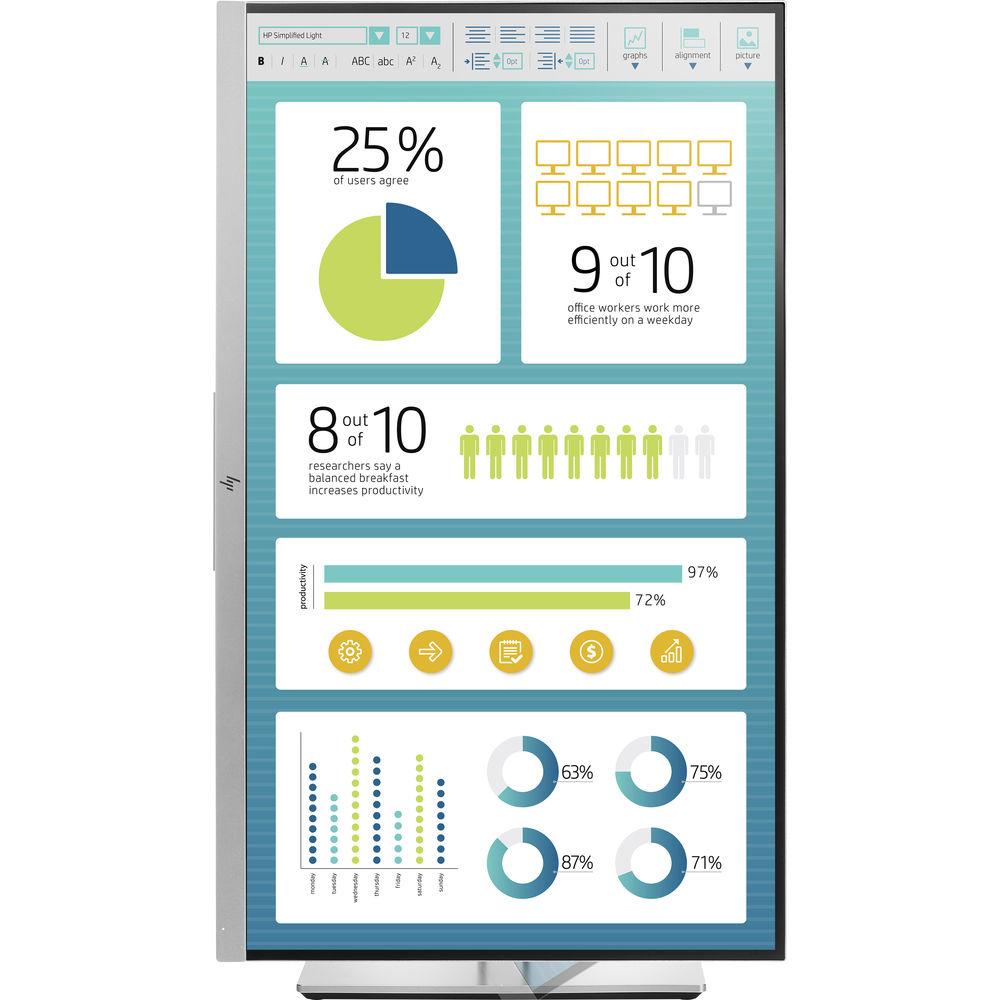

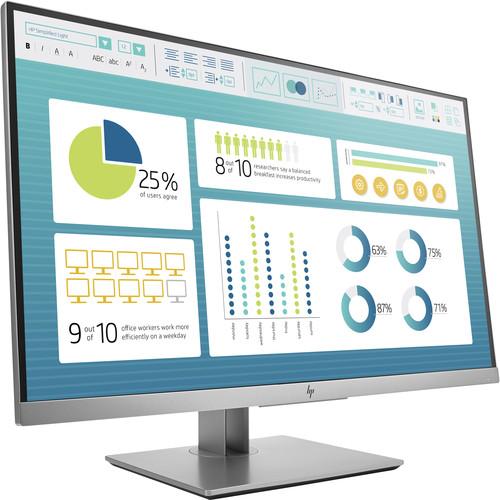

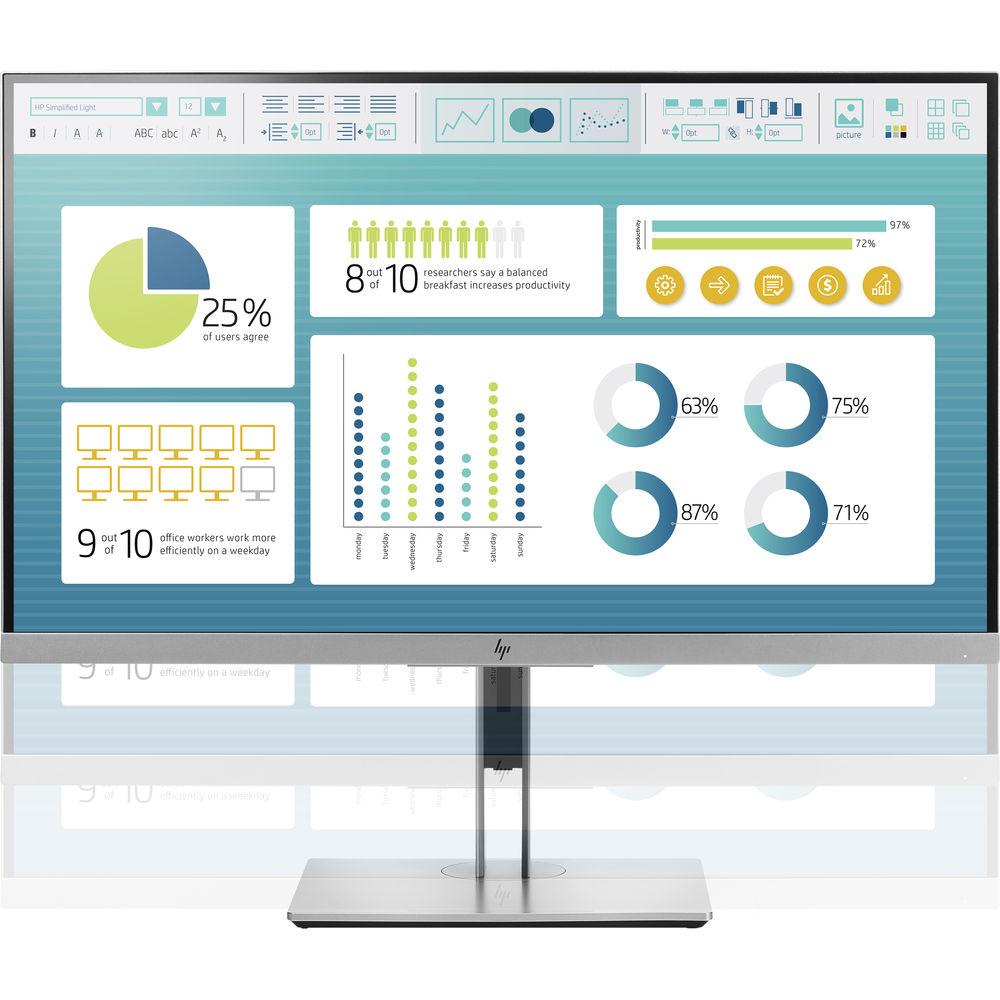

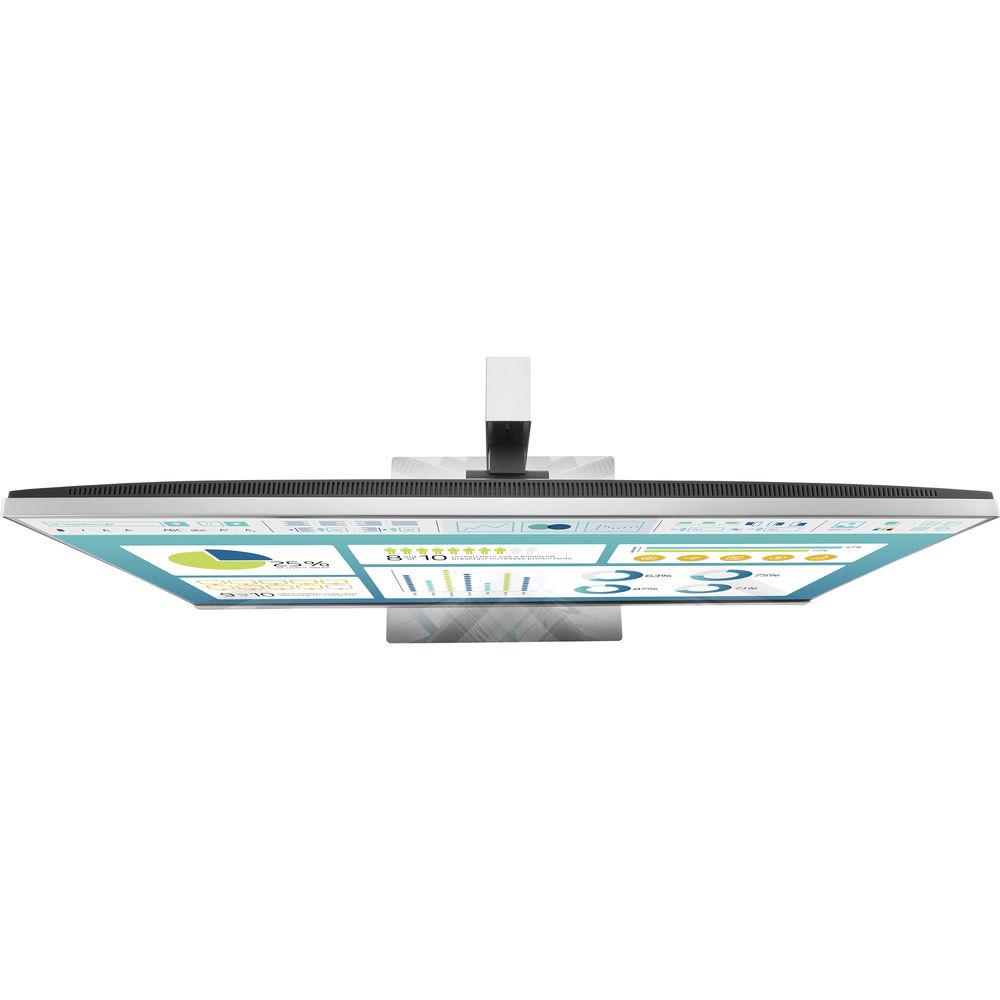

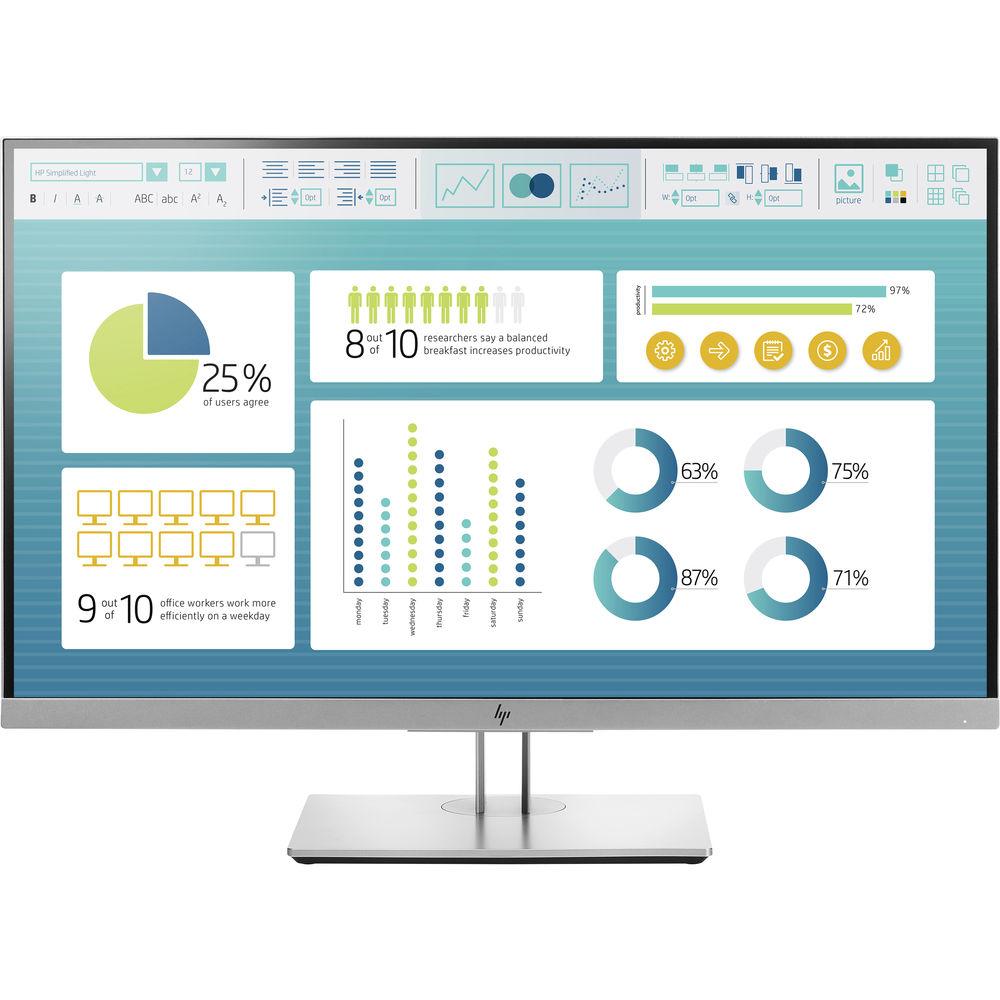

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The EliteDisplay E273 27" 16:9 IPS Monitor from HP is built with an IPS (In-Plane Switching) panel, which provides you with wide 178° horizontal and vertical viewing angles and vivid colors. Specs-wise, it has a 1920 x 1080 resolution, a 1000:1 static contrast ratio, a 250 cd/m² brightness rating, and a 5 ms response time. The Full HD monitor provides deeper blacks and brighter colors. This display features VGA, HDMI, and DisplayPort connectivity. Onced confirgured, you can tilt, swivel, pivot, adjust the height to your viewing preference. For your convenience, it has a built-in USB 3.0 hub so you can connect compatible devices. UPC: 190781288404 In the Box HP EliteDisplay E273 27" 16:9 IPS Monitor VGA Cable DisplayPort Cable USB Cable AC Power Cable Limited 3-Year Warranty More from Manufacturer bexetsvverze Table of Contents
|
Upload User Manual
Have you got an user manual for the HP EliteDisplay E273 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP EliteDisplay E273 Specs | | | Size | 27" | | Screen Area | 23.59 x 13.24" / 59.92 x 33.63 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 82 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 80 Hz | | Vertical Frequency | 50 to 60 Hz | | Pixel Clock Frequency | 170 MHz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% NTSC
94% sRGB | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.3114 x 0.3114 mm | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x DisplayPort 1.2 Input
1 x HDMI 1.4 Input
1 x VGA Input
1 x USB Type-B (USB 3.1 Gen 1)
2 x USB Type-A (USB 3.1 Gen 1) | | HDCP Support | Yes | | Built-In Speakers | None | | Supported Languages | Dutch
English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | | | Power Consumption | 42 W (Maximum)
25 W (Typical)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 5 to 95% | | Operating Altitude | 0 to 16,404' / 0.00 to 4999 m | | Storage Altitude | 0 to 40,000' / 0.00 to 12,192 m | | Certifications | CE, CSA, ENERGY STAR, EPEAT GOLD, FCC, Kcc, Microsoft WHQL, TCO Certified, TUV, UL, VCCI, WEEE, as per Manufacturer | | | | Height Adjustment | 5.91" / 15 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.1 x 20.6 x 8.4" / 61.2 x 52.3 x 21.3 cm (With Stand)
24.1 x 14.3 x 2.0" / 61.2 x 36.3 x 5.1 cm (Without Stand) | | Weight | 15.7 lb / 7.12 kg (With Stand)
9.9 lb / 4.49 kg (Without Stand) |
