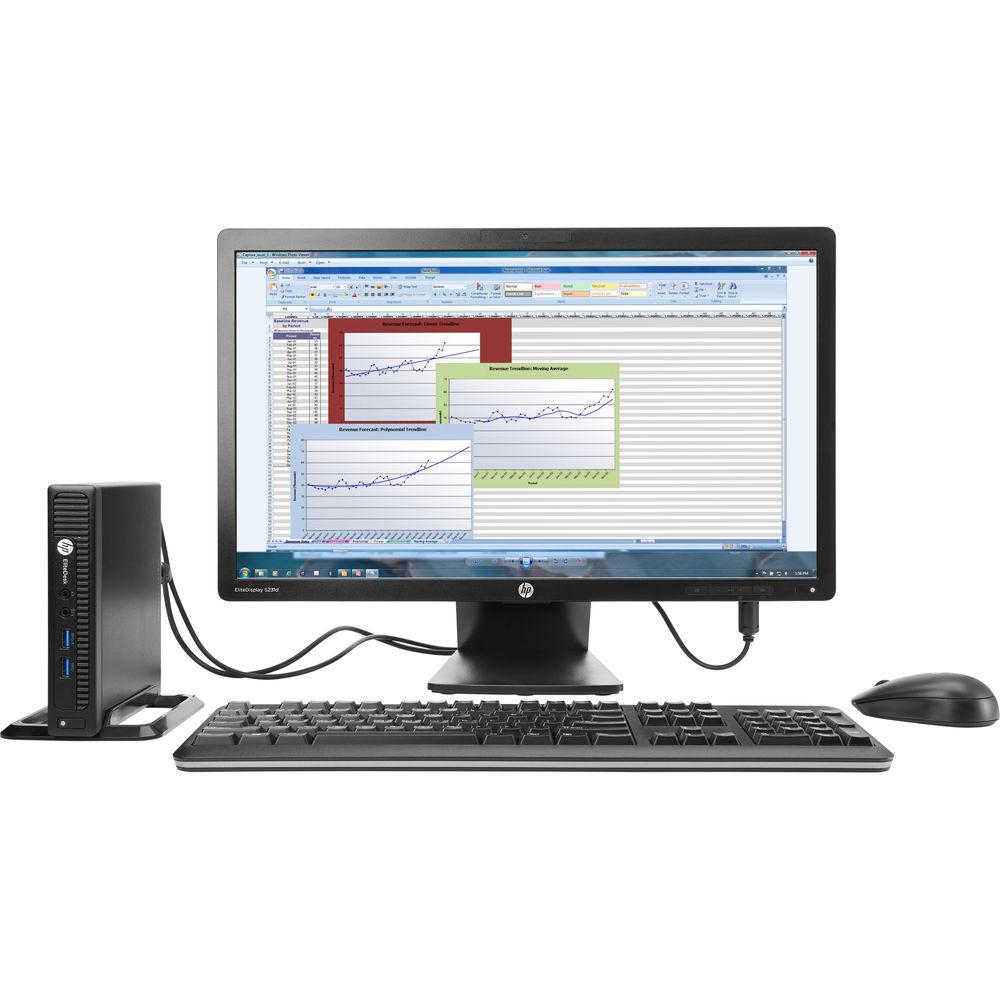

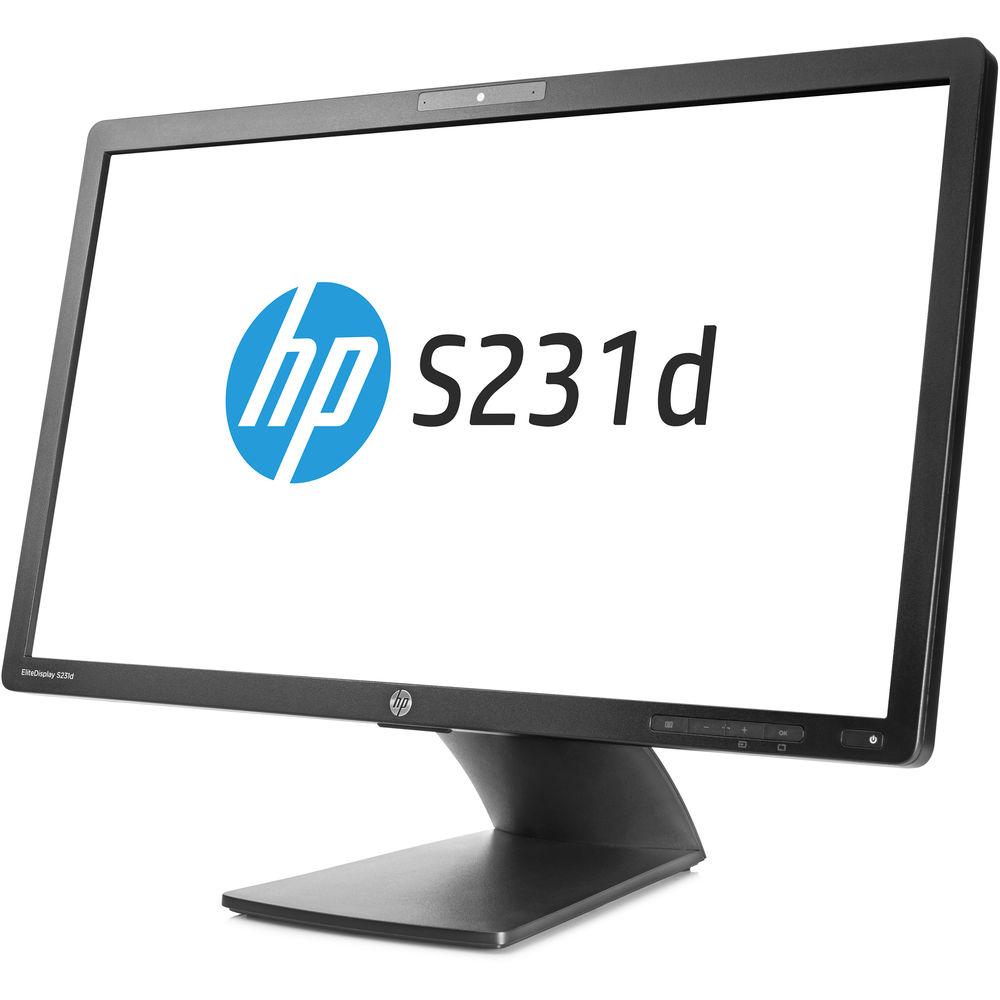

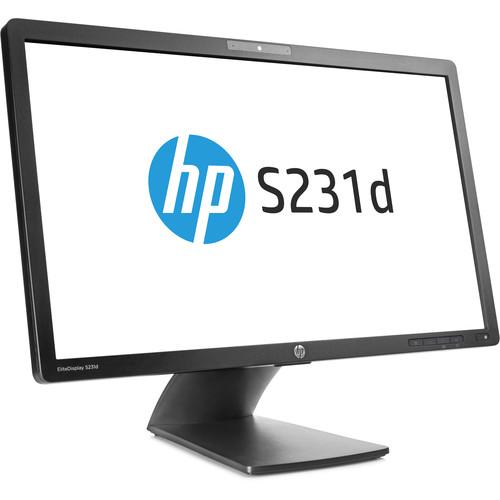

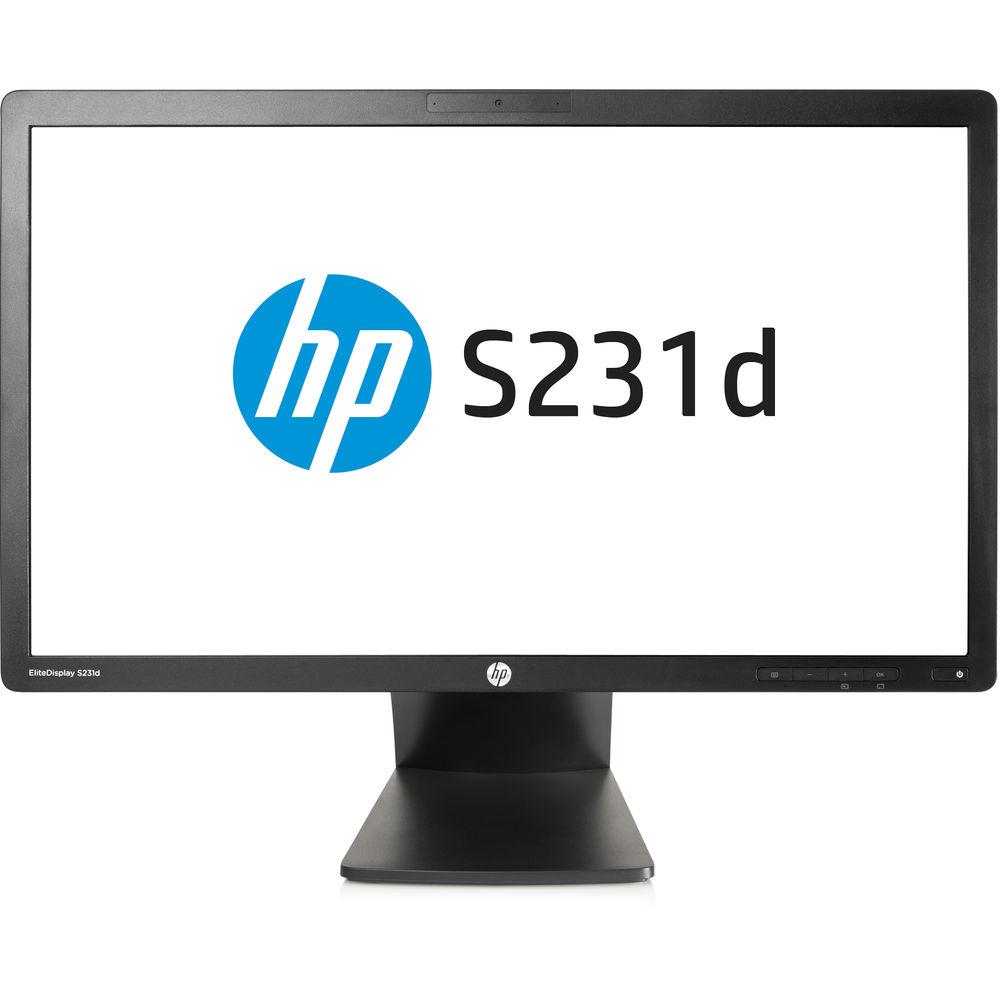

User Manual for HP EliteDisplay S231d 23" 16:9 IPS Notebook Docking Monitor Click to enlarge the picture
Contents of the user manual for the HP EliteDisplay S231d 23" 16:9 IPS
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP EliteDisplay S231d 23" 16:9 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Easily dock your notebook into the EliteDisplay S231d 23" 16:9 IPS Notebook Docking Monitor from HP and greatly enhance workflows. Simply plug your notebook computer into this HP monitor using a single USB cable and view the contents of your notebook computer on a larger display. The display features a 1920 x 1080 Full HD resolution complete with a 7 ms response time to reduce ghosting when viewing videos. The IPS (In-Plane Switching) panel also supports a 250 cd/m² brightness rating and an enhanced dynamic contrast ratio for deeper dark and brighter bright colors. Setup and configuration of this display is simple as it comes equipped with both VGA and DisplayPort connectivity as well as a built-in USB and Ethernet ports. Viewing this widescreen display has also been made easier thanks to 178° horizontal and vertical viewing angles, which greatly reduce distortion when looking at the display from various points of view. - Full HD IPS
- Get a large-screen 23-inch diagonal Full HD IPS panel display capable of supporting a personalized workspace of your pre-selected, pre-arranged, and pre-connected peripherals.
- Connect and Charge
- Boost productivity and lower costs with a display that does double duty as a large format monitor and port replicator that delivers network connectivity, port expansion, and HP Notebook charging-all in one device.
- Expand Your Reach
- Eliminate the time and expense of travel and keep the lines of communication open with an integrated 720p HD webcam and dual microphones plus virtual conferencing software so you can meet anywhere, anytime right from your desk.
In the Box HP EliteDisplay S231d 23" 16:9 IPS Notebook Docking Monitor Limited 3-Year Warranty User Manual PDF 1.9mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP EliteDisplay S231d 23" 16:9 IPS Notebook Docking Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP S231D Specs | | | Size | 23" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Response Time | 7 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x RJ45
2 x USB Type-A 2.0
2 x USB Type-A (USB 3.1 Gen 1)
1 x DisplayPort 1.2 Input
1 x VGA | | HDCP Support | Yes | | | | Power Consumption | 60 W (Maximum)
38 W (Typical)
2.2 W (Standby) | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, REACH, TCO Certified, as per Manufacturer | | | | Height Adjustment | 5.9" / 15 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 360° | | Tilt Adjustment | -5 to 30° | | Lock Slot | Yes | | Dimensions (W x H x D) | 21.4 x 18.5 x 9.5" / 54.4 x 47.0 x 24.2 mm (With Stand)
21.4 x 13.0 x 2.0" / 54.4 x 33.0 x 5.1 mm (Without Stand) | | Weight | 13.5 lb / 6.1 kg (With Stand)
8.5 lb / 3.9 kg (Without Stand) |
