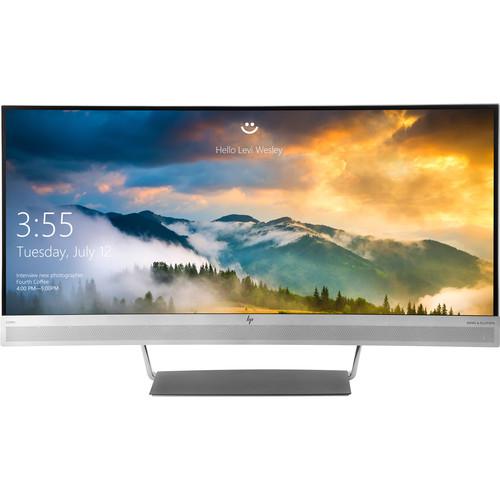

User Manual for HP EliteDisplay S340c 34" 21:9 Curved LCD Monitor Click to enlarge the picture
Contents of the user manual for the HP EliteDisplay S340c 34" 21:9 Curved
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP EliteDisplay S340c 34" 21:9 Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

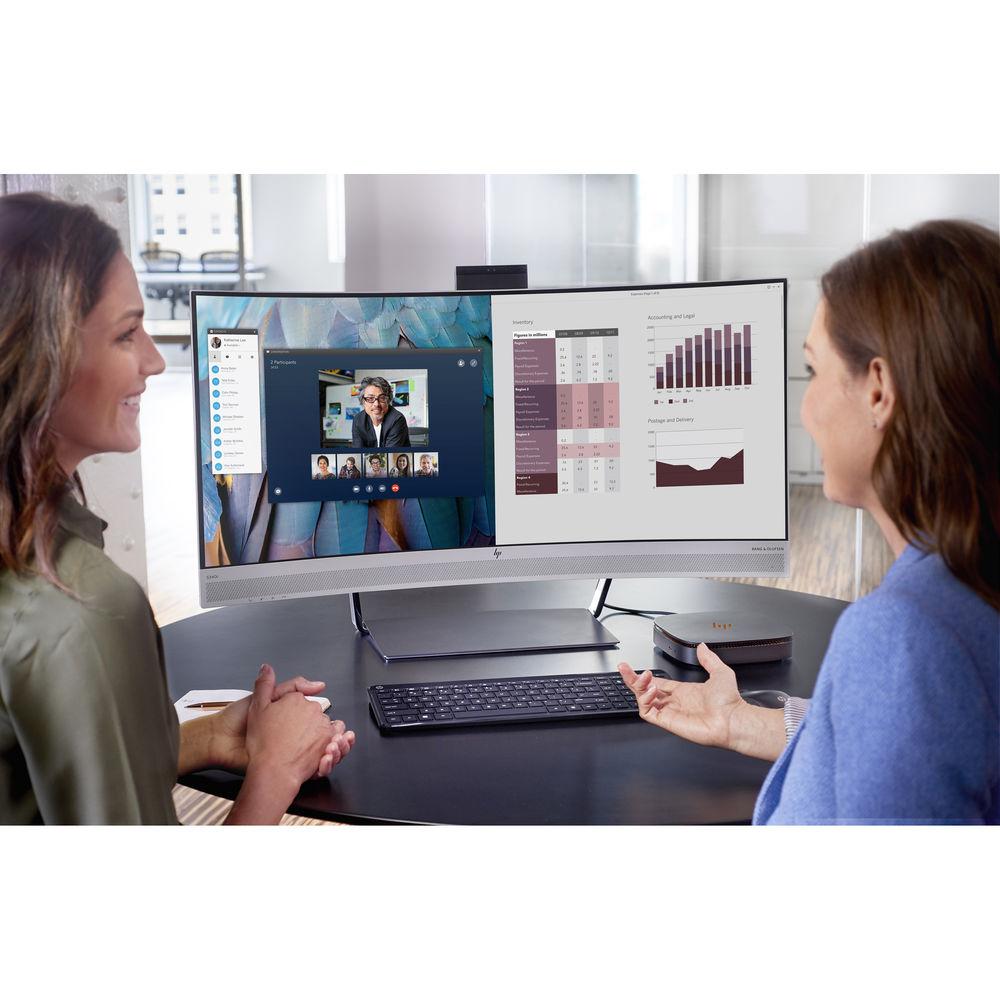

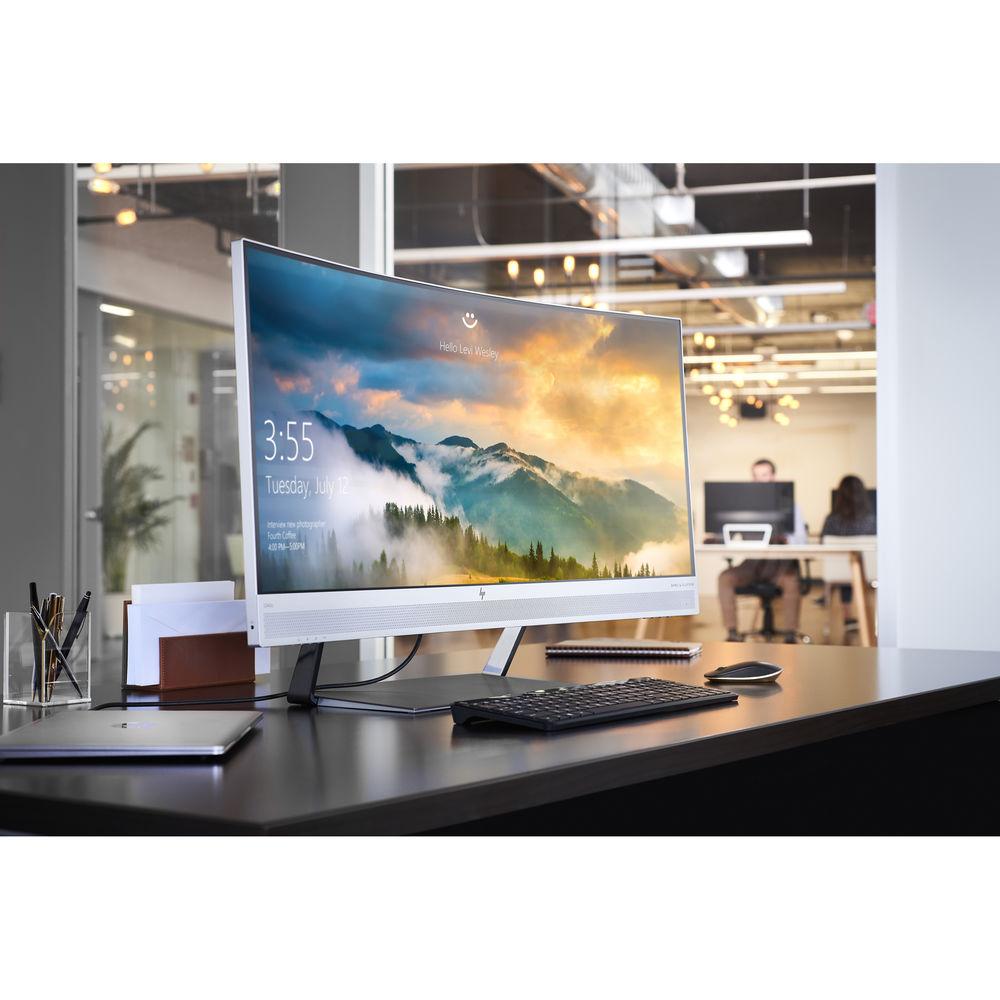

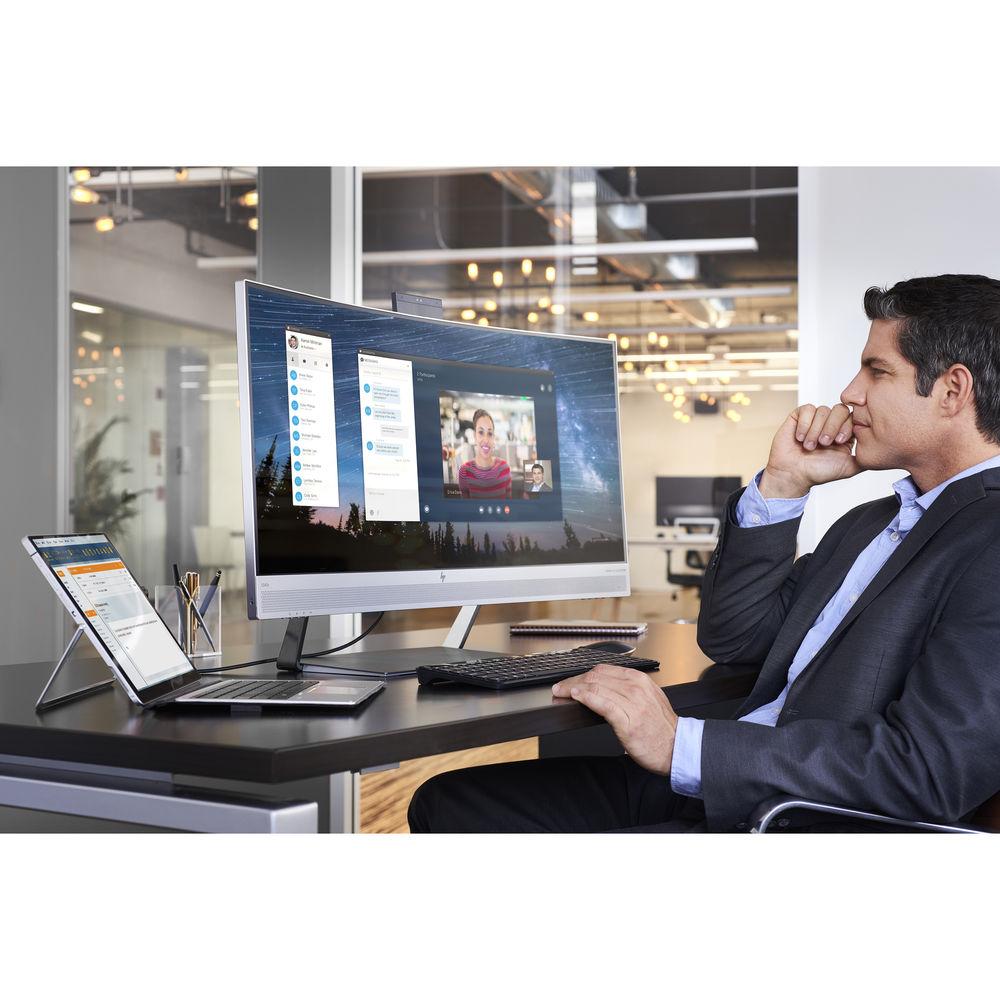

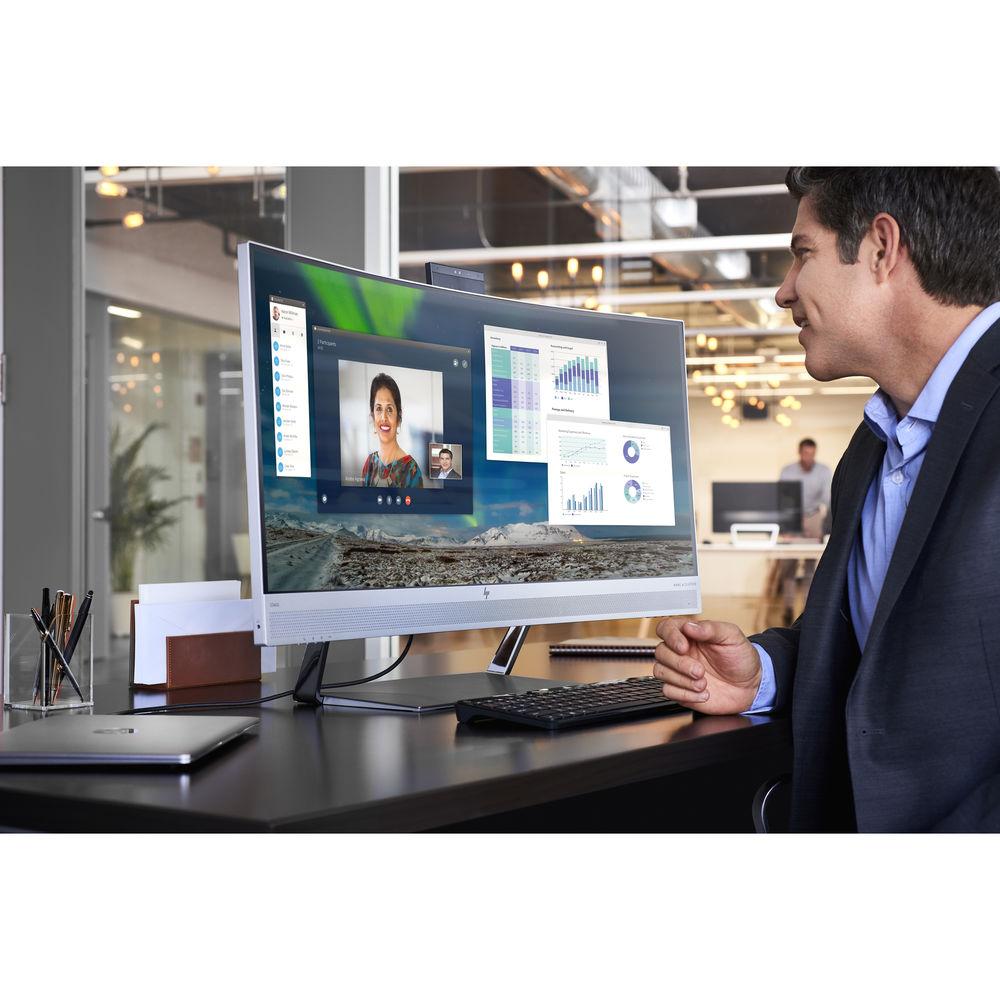

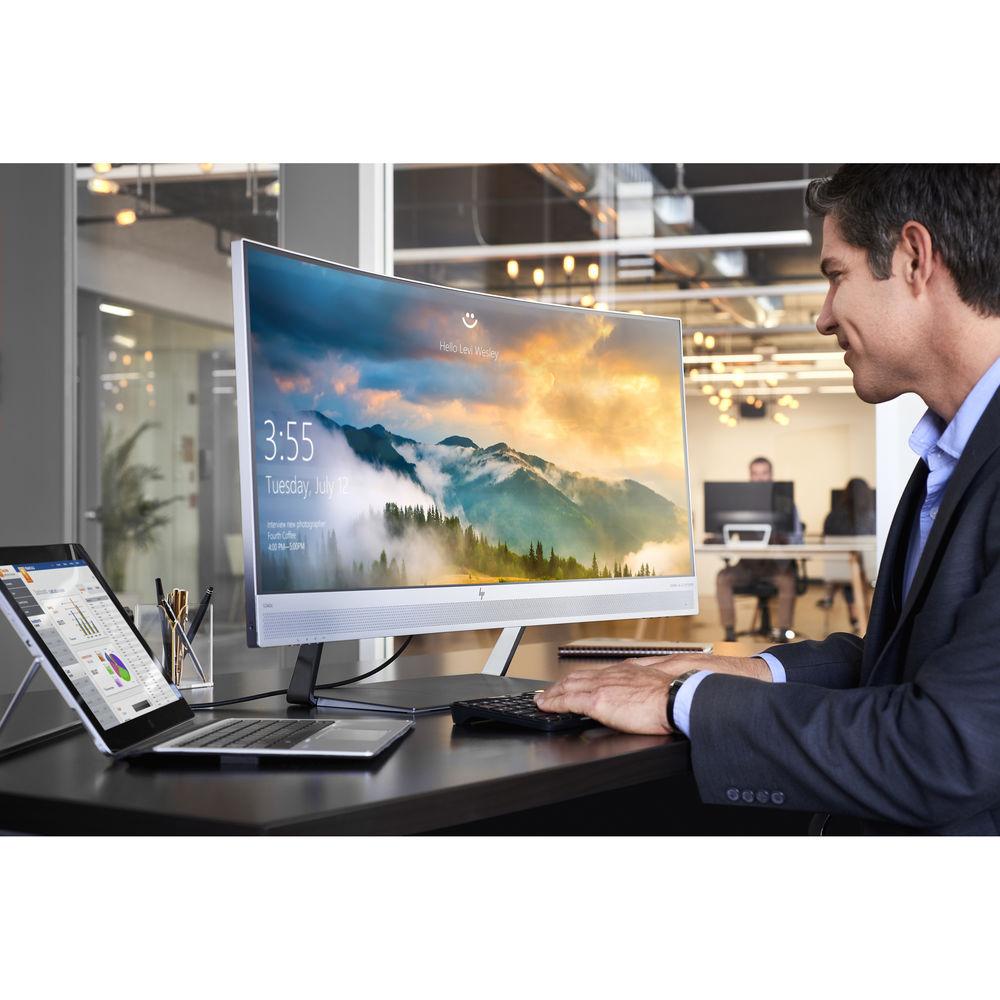

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More abxyexdyvy The EliteDisplay S340c 34" 21:9 Curved LCD Monitor from HP features a pop-up webcam, mic, and audio by Bang and Olufsen. This makes the display suitable for conferences. The EliteDisplay S340c lets you juggle conference calls, presentations, and spreadsheets in extra-wide QHD resolution. It features a 300 cd/m² brightness rating and a native resolution of 3440 x 1440. A contrast ratio of 3000:1 showcases the monitor's ability to handle light and dark on-screen images. The panel has 6 ms (GtG) response time to combat image blur and distortion on moving images. The monitor has a 720p integrated HD camera with dual microphones and LED. -
- Plug-and-play operation
- User programmable
- Language selection
- On-screen controls
- User controls
- LED backlights
- Anti-glare display
- Arsenic-free display glass
- Mercury-free display backlights
- Low halogen
- Three-sided micro-edge design
- 21:9 aspect ratio
- Skype for Business certified
- Simple, secure logins when you connect the display to your Windows 10 computer with Windows Hello
- Integrated pop-up webcam with IR recognizes your face and automatically logs you in through facial recognition
- Open and close the popup webcam with just one touch
- No manual password required
- With just one USB Type-C connection at the display, you can drive power to and get video from your HP Elite desktop, notebook, convertible, or mobile devices
- Integrated DisplayPort 1.2 and HDMI video support
- Two downstream and one upstream USB 3.0 for data
- Deter theft with HP Display Assistant's user-designated PIN that deactivates the display if it's disconnected from a computer without approval
- Adjustable tilt
- Integrated VESA pattern on the back of the display head for mounting the display on the wall
- Resolutions Supported
- 3440 x 1440, 2560 x 1440, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768, 800 x 600, 720 x 400, 640 x 480
In the Box HP EliteDisplay S340c 34" 21:9 Curved LCD Monitor AC Power Cord HDMI Cable DisplayPort Cable USB Type-C Cable VESA Mount Adapter External Power Adapter L-Type Screw Driver Driver CD Limited 3-Year Warranty Data Sheet PDF 3.4mbabxyexdyvy More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP EliteDisplay S340c 34" 21:9 Curved LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

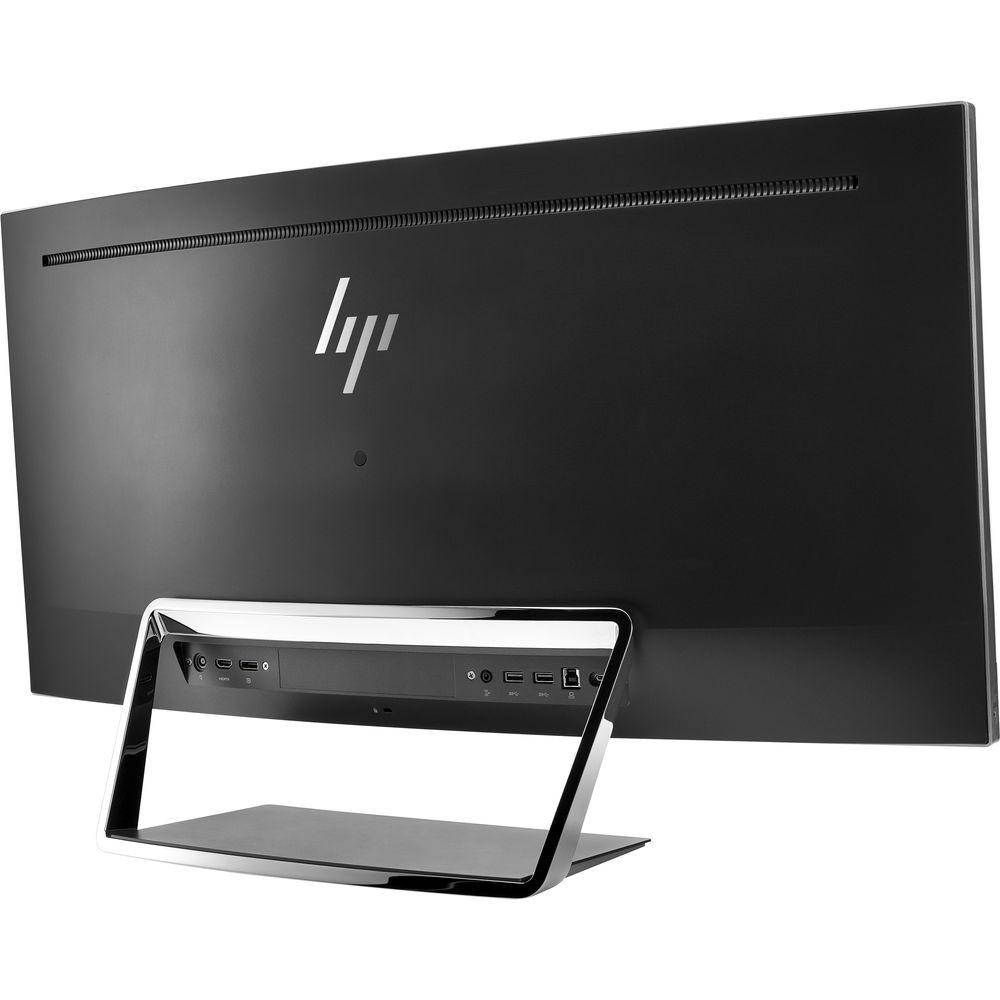

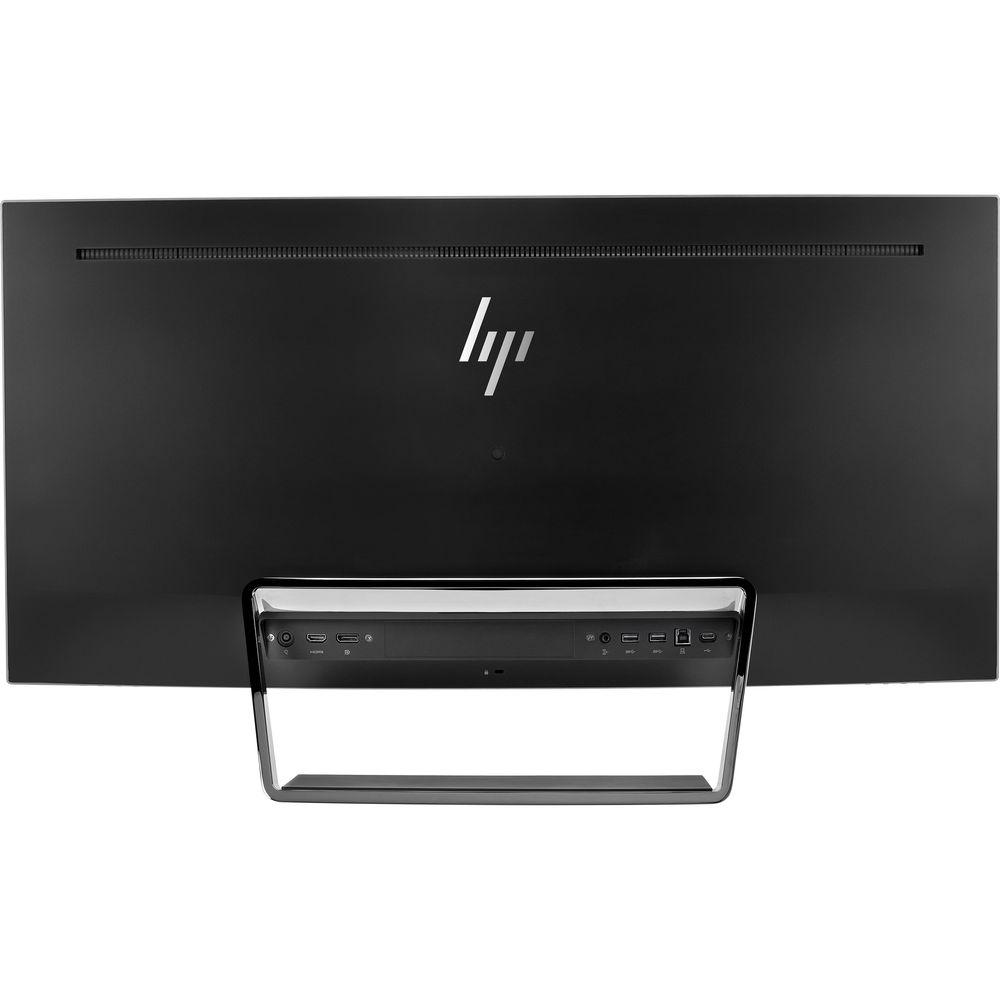

Technical parametersHP S340c Specs | | | Size | 34" | | Screen Area | 31.38 x 13.13" / 79.71 x 33.35 cm | | Panel Type | VA LCD With LED backlight | | Touchscreen | No | | Resolution | 3440 x 1440 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 110 ppi | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | HDR Compatibility | None | | Response Time | 6 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 2 x HDMI Input
1 x DisplayPort 1.2 Input
1 x USB Type-C
2 x USB Type-A (USB 3.1 Gen 1) | | HDCP Support | Yes | | Built-In Speakers | Yes, 4 x 7 W | | | | Power Consumption | 185 W (Maximum)
70 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | USB Power Delivery | 65 W | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | No | | Dimensions (W x H x D) | 31.9 x 18.8 x 7.8" / 81.0 x 47.8 x 19.8 cm (With Stand)
31.9 x 15.6 x 4.0" / 81.0 x 39.6 x 10.2 cm (Without Stand) | | Weight | 24.6 lb / 11.16 kg (With Stand) |
