User Manual for HP ENVY 34" 21:9 Curved LCD Monitor Click to enlarge the picture
Contents of the user manual for the HP ENVY 34" 21:9 Curved LCD
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP ENVY 34" 21:9 Curved LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More yryqqcwfrbebsaerbfzfzqxwwa The ENVY 34" 21:9 Curved LCD Monitor from HP offers horizontal and vertical viewing angles of 178° and a brightness rating of 300 cd/m2. This unit offers a native resolution of 3440 x 1440, a static contrast ratio of 3000:1, a response time of 6 ms, and a refresh rate of 100 Hz. The display comes with four integrated speakers that are custom-tuned by Bang & Olufsen. You can connect your laptop or mobile device to the USB Type-C port for viewing content on the big screen. You can also use this port to charge your connected device. The display features a built-in webcam and microphone that can be used with Skype. The included HP My Display Smart software allows you to partition the screen so that multiple application windows can be open at the same time. It also allows you to save user-preferred settings. - Built-in speakers with audio by Bang & Olufsen
- Integrated privacy webcam and microphone connect you to friends and family
- Curved display with a 3440 x 1440 resolution along with 5 million pixels
- USB Type-C with power delivery up to 60-watts
- 100 Hz refresh rate for smooth gameplay and improved detail
- AMD FreeSync helps to reduce pixel latency while enhancing response time
- Skype for Business certified simplifying the process of connecting to friends, family, and coworkers
UPC: 889899355824 In the Box HP ENVY 34" 21:9 Curved LCD Monitor DP Cable HDMI Cable USB Type C Cable AC Power Cable External Power Adapter VESA Mounting Bracket L-Type Screw Driver Limited 1-Year Warranty User Manual PDF 1.1mb More from Manufacturer yryqqcwfrbebsaerbfzfzqxwwa Table of Contents
|
Upload User Manual
Have you got an user manual for the HP ENVY 34" 21:9 Curved LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP W3T65AA#ABA Specs | | | Panel Type | VA | | Panel Active Area | 31.38 x 13.14" (79.7 x 33.4 cm) | | Display Size | 34" (86.4 cm) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Horizontal Scan Range | 30 to 145 kHz | | Vertical Scan Range | 24 to 100 Hz | | Surface Treatment | Anti-glare panel | | Recommended Resolution | 3440 x 1440 at 60 Hz | | Aspect Ratio | 21:9 | | Contrast Ratio | Static: 3000:1

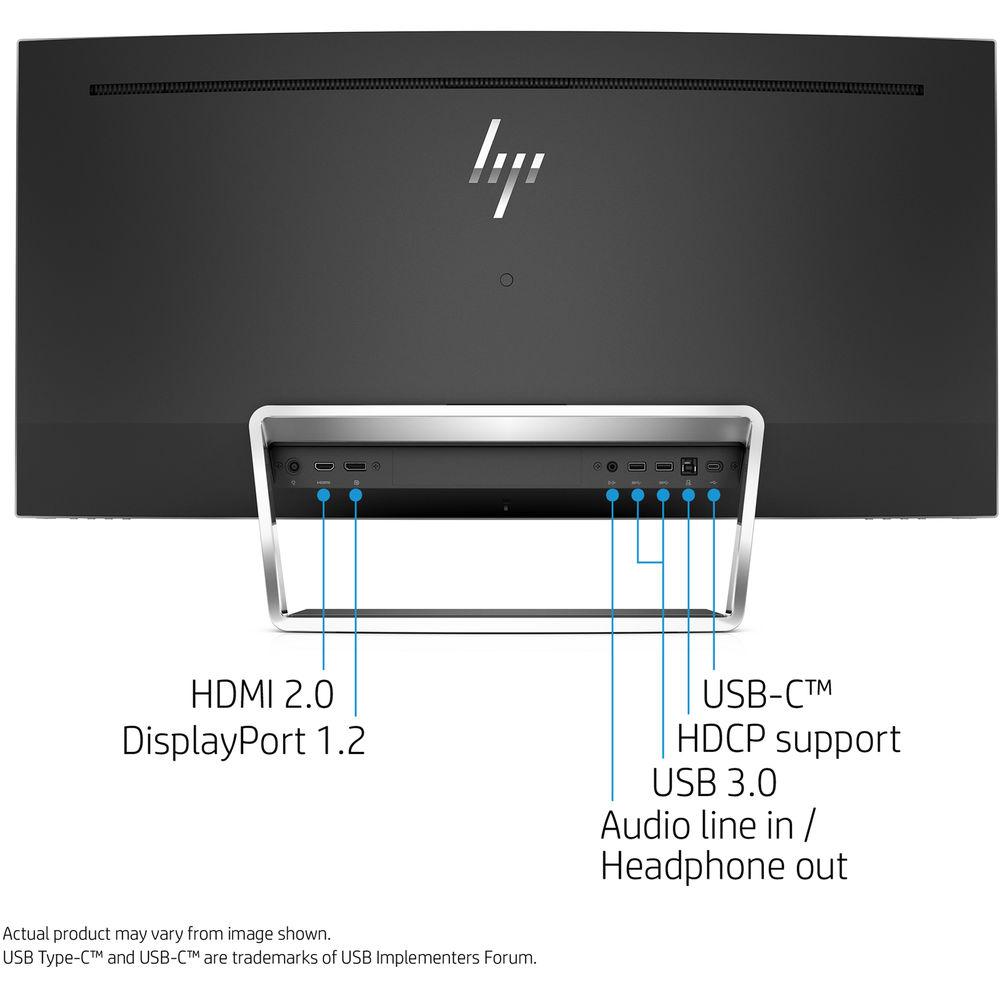

Dynamic: 5,000,000:1 | | Brightness | 300 cd/m2 (typical) | | Color Gamut | 99.5% sRGB | | Color Support | Up to 16.7 million colors with the use of FRC technology | | Pixel Pitch | 109.6 ppi | | Response Time | 6 ms (GtG with overdrive) | | Connectivity | DisplayPort 1.2
HDMI 2.0
HDCP support
USB-C with power delivery up to 60 W
USB 3.0 (2 x downstream)
Audio line-in / headphone out | | Power Supply | External | | Power Consumption | 185 W (maximum)
Energy Saving / Standby Mode: 0.5 W | | Tilt | -5 to 20° | | Base Area (Footprint) | 13.03 x 7.68" (33.1 x 19.5 cm) | | Detachable Stand | Yes | | VESA Compatibility | Mounting bracket (included) | | Certifications | Microsoft WHQL Certification: Windows 8, 10 | | Webcam | HP Webcam | | Audio | Audio by Bang & Olufsen
Type: 4 x 7 W integrated speakers | | Software | HP My Display Smart software | | On Screen Display | Brightness, contrast, color, image control, OSD control, management, language, information, factory reset, and input control | | User Controls | Menu, Minus ("-"), Plus ("+") / Input Control, OK / Auto, Power | | | | Languages | 10 (English, Spanish, German, French, Italian, Netherlands, Portuguese, Japanese, T-Chinese, and S-Chinese) | | Backlight Lamp Life | 30,000 hours | | Dimensions | 31.88 x 18.76 x 7.8" (80.9 x 47.7 x 19.8 cm) | | Weight | 24.56 lb (11.2 kg) | | | | Package Weight | 39.2 lb | | Box Dimensions (LxWxH) | 35.8 x 23.0 x 11.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
