User Manual for HP FirePro W2100 Graphics Card Click to enlarge the picture
Contents of the user manual for the HP FirePro W2100 Graphics Card
- Product category: Graphic Display Cards HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Graphic Display Cards
 |
User manual for the HP FirePro W2100 Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

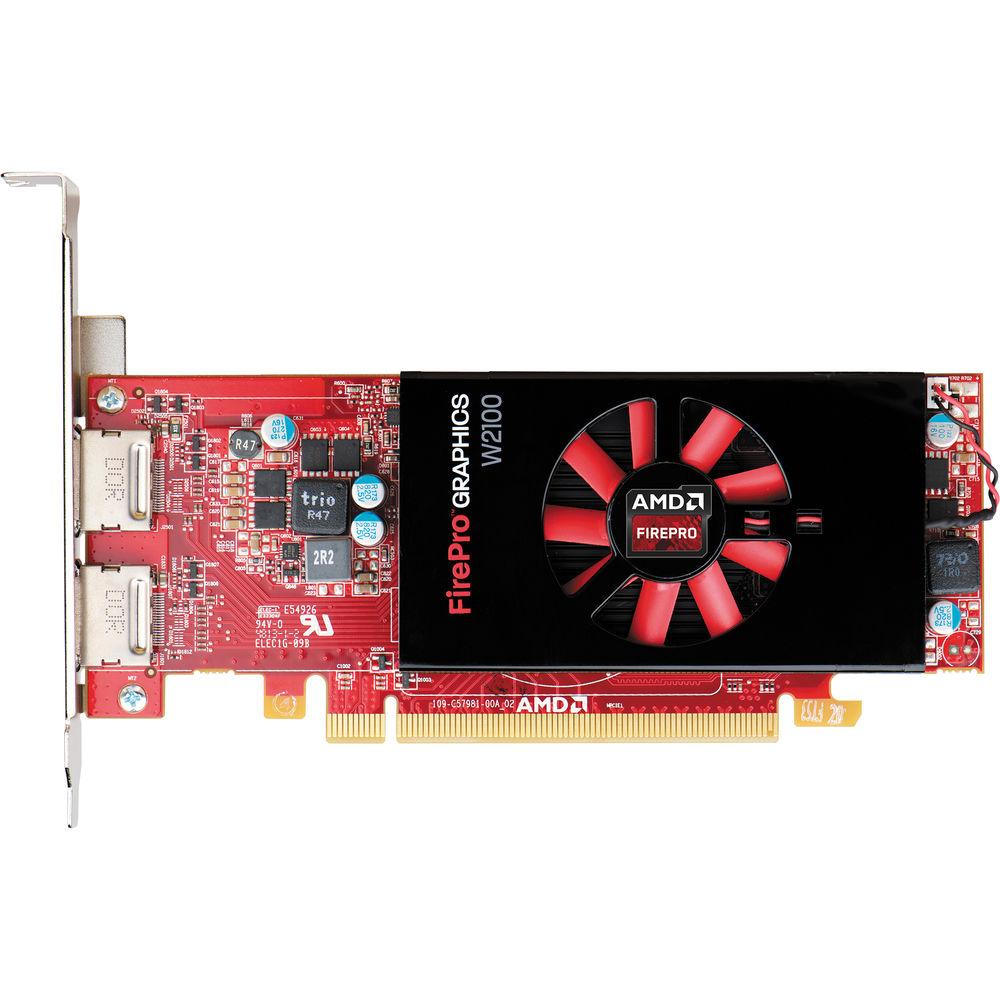

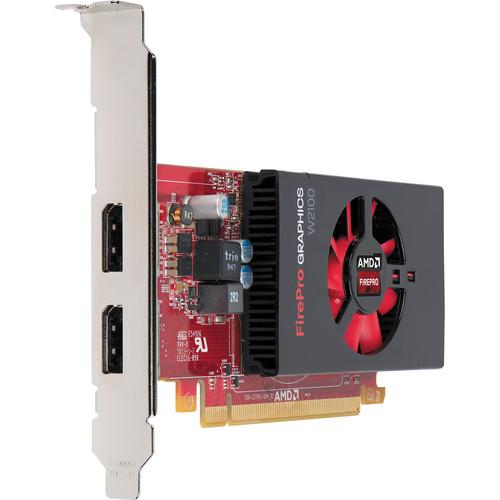

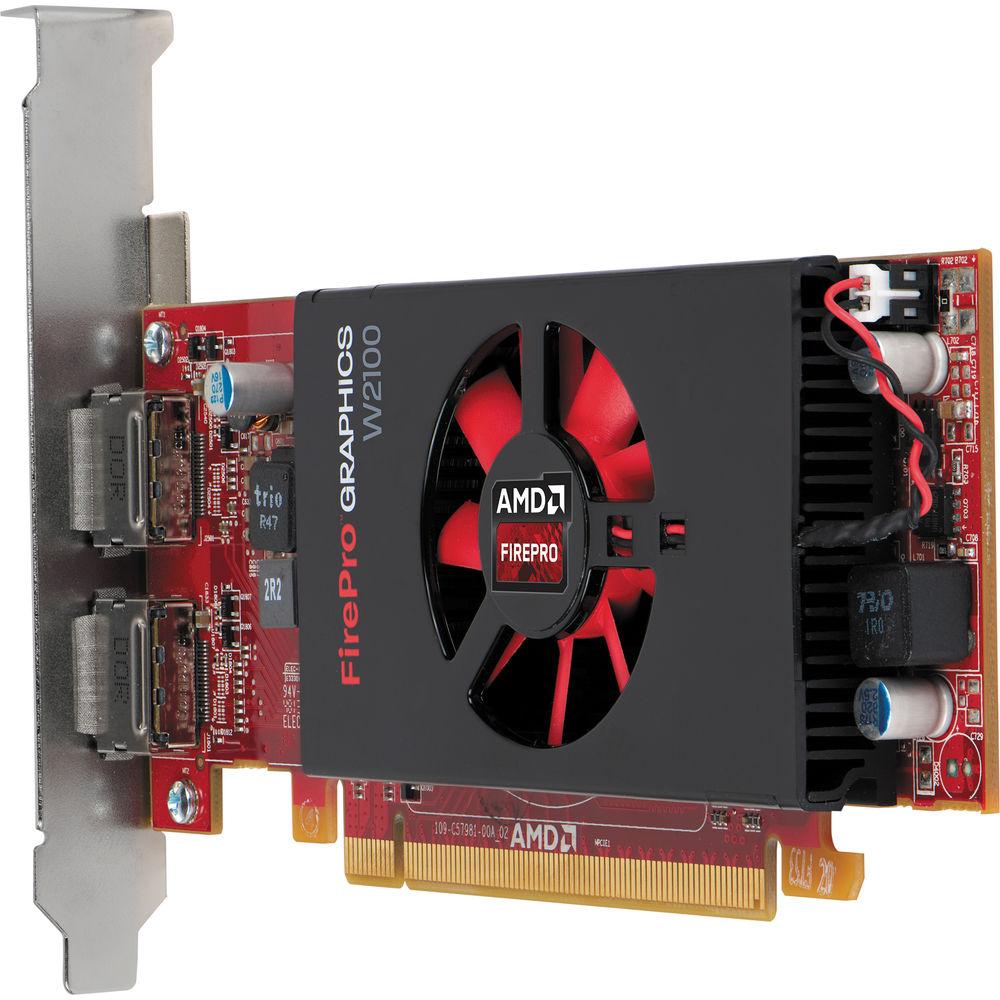

Product description With 2GB of DDR3 vRAM and 320 stream processors, the HP FirePro W2100 Graphics Card can drive up to two displays connected to the DisplayPort 1.2 outputs with up to 4K (4096 x 2160) resolution. The stream processors are arranged in AMD's GCN (Graphics Core Next) Architecture. The stream processors allow the W2100 to be used for hardware acceleration and assist with tasks that require parallel processing, such as video or graphics rendering. This card supports industry standard APIs like OpenCL, OpenGL, and DirectX. At peak single-precision, the GPU can crank out 403.2 GFLOPS. This card is half-height and half-length and will fit in more compact chassis without crowding or overheating. For cooling, the card features an active fansink which intakes air and blows it out across the components, quietly displacing hot air. -
- AMD Graphics Core Next (GCN) architecture designed to balance GPU compute and 3D workloads efficiently
- Optimized and certified for leading workstation ISV applications, the AMD FirePro professional graphics family is certified on more than 100 different applications for reliable performance
- AMD PowerTune and AMD ZeroCore Power technologies allow for state of the art dynamic power management of the GPU
- Two native display DisplayPort outputs with DisplayPort 1.2a
- PCI Express 3.0 compliant
UPC: 888793158166 In the Box HP FirePro W2100 Graphics Card Limited 1-Year Warranty (or the remainder of the warranty of the HP product in which it is installed) Quick Specs PDF 154.9kbxayvtsyvcasryrxuacfaba More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP FirePro W2100 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP W2100 Specs | Memory | 2GB DDR3
128-bit Interface
28.8 GB/s Bandwidth | | Compute Performance | 320 Stream Processors
403.2 GFLOPS peak single precision floating point performance
25.5 GFLOPS peak double precision floating point performance | | Display Output | 2 x DisplayPort 1.2a outputs
Max resolution: 4096 x 2160 | | API and OS Support | DirectX 11.2
OpenGL 4.4
OpenCL 1.2
AMD Mantle
Shader Model: 5.0
Microsoft Windows 8.1, Windows 7, and Windows Vista (32- or 64-bit)
Linux (32- or 64-bit) | | Power Consumption | <26 W maximum | | Cooling | Discreet active cooling solution | | Form Factor | Half-height/half-length, single-slot | | Bus Type | PCI Express 3.0 x8 | | System Requirements | Available PCIe x8 slot, 3.0 for optimal performance
2GB system memory
Microsoft Windows 8.1, Windows 7, Windows Vista, or Linux operating system (32- or 64-bit)
Internet connection for driver installation | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 10.0 x 8.3 x 2.7" |
Rating66% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
