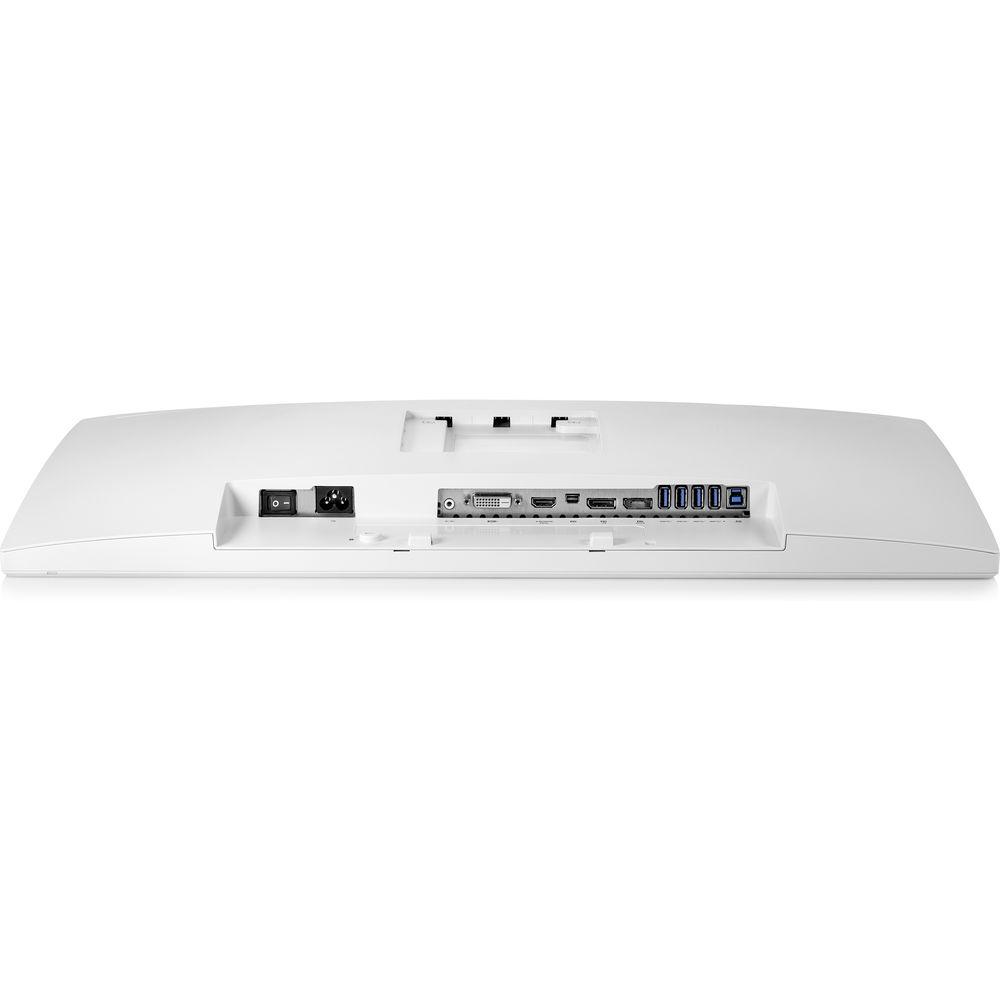

User Manual for HP HC270 27" 16:9 Healthcare Edition Monitor Click to enlarge the picture
Contents of the user manual for the HP HC270 27" 16:9 Healthcare Edition
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP HC270 27" 16:9 Healthcare Edition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The HC270 27" 16:9 Healthcare Edition Monitor from HP offers a 1000:1 contrast ratio, a brightness rating of 350 cd/m², and a 2560 x 1440 resolution. You can connect your display to a workstation and a range of digital video devices with HDMI, Mini DisplayPort, DisplayPort, DVI-D (MHL), and a USB 3.0 hub with a fast-charging port. DisplayPort enables daisy chaining up to four displays with just one computer or workstation connection.
Furthermore, you can use Picture-in-Picture or Picture-by-Picture to boost your multi-tasking productivity with simultaneous views from two connected devices. IPS (In-Plane Switching) technology delivers remarkably crisp images and vivid colors from any angle, even in portrait mode. You can design the screen for how you work with HP Display Assistant software, which enables screen partitioning and helps deter theft by deactivating a display that’s disconnected without approval. - With HP Pixel Policy, you get a screen with zero bright dots
- 27" diagonal IPS display with 2560 x 1440 resolution
- Attach your HP Desktop Mini or select HP Thin Client behind the display for an integrated, small footprint solution that's suitable for busy and shared spaces like nurse's or charting stations
- Connect to everyday and specialty devices with HDMI, Mini DisplayPort, DisplayPort, DVI-D (MHL), and a USB 3.0 hub with a fast-charging port
- DisplayPort enables daisy chaining up to four displays with just one computer or workstation connection
- Use Picture-in-Picture or Picture-by-Picture to boost your multi-tasking productivity with simultaneous views from two connected devices
- IPS technology delivers remarkably crisp images and vivid colors from any angle, even in portrait mode
- Manage and control the display with the integrated Ethernet interface and web server

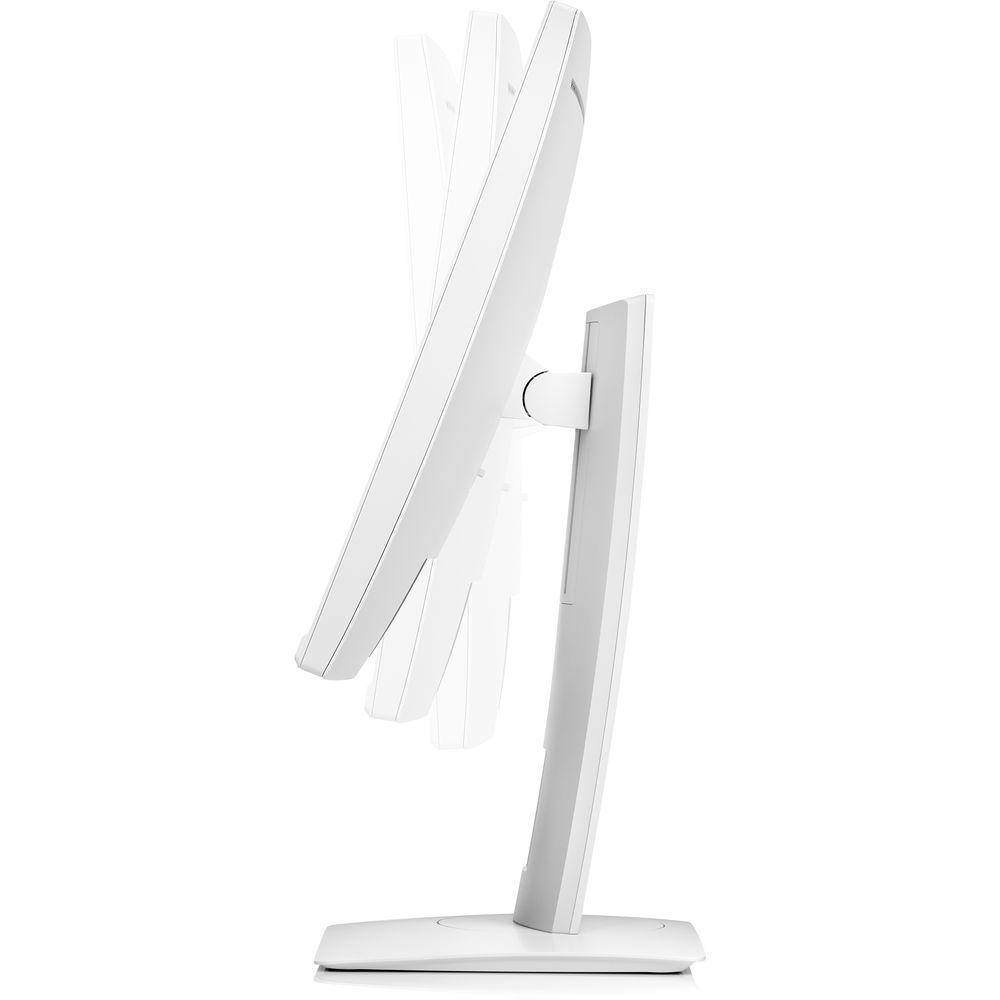

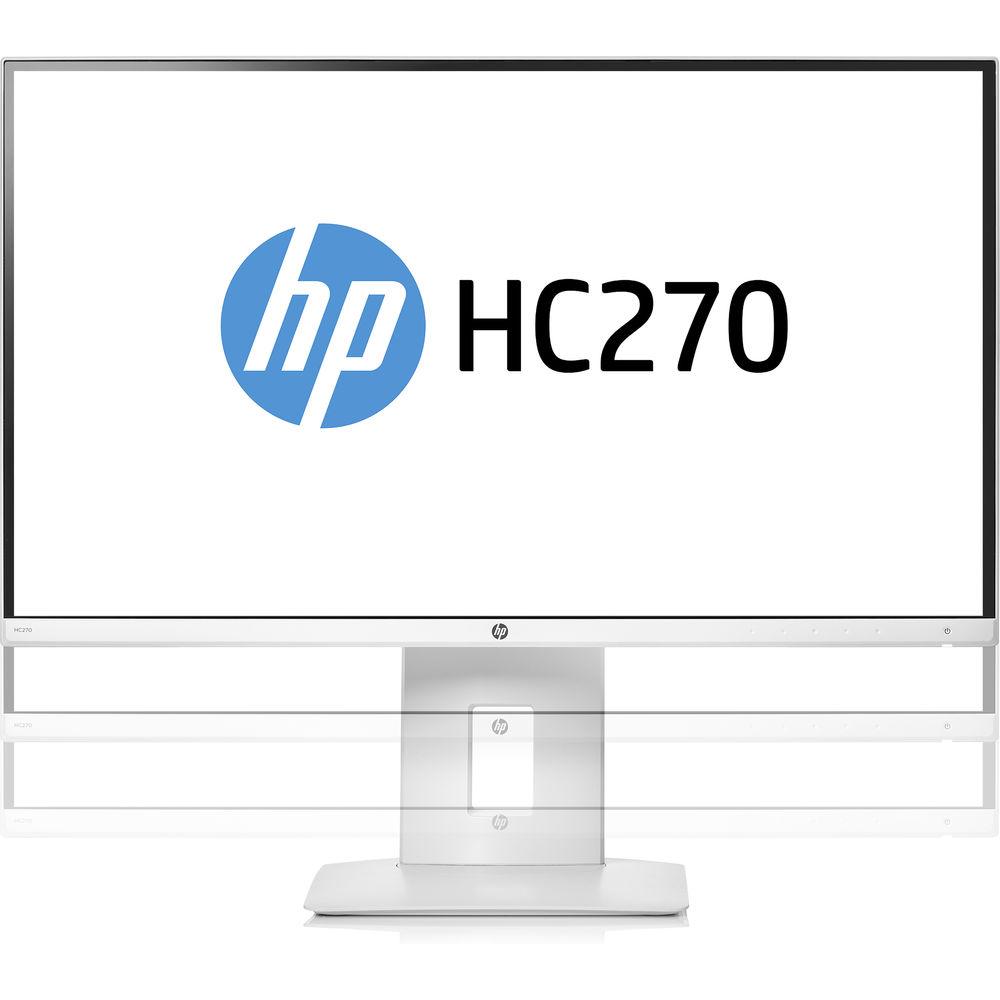

- Work comfortably with adjustable tilt, height adjustment, and swivel settings

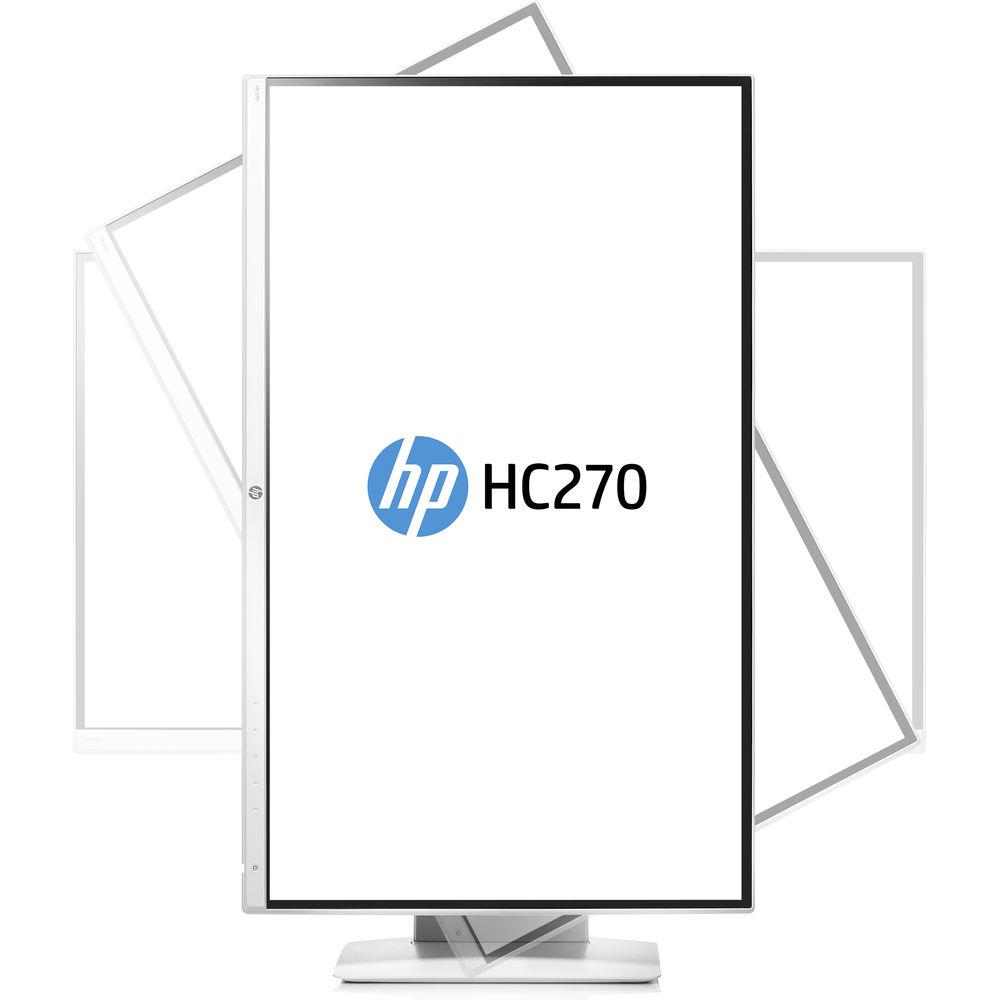

- Use pivot rotation to customize portrait or landscape views when using multiple displays
- Design the screen for how you work with HP Display Assistant software, which enables screen partitioning and helps deter theft by deactivating a display that's disconnected without approval
- Reduce power consumption and help lower your costs with an energy-efficient design
In the Box HP HC270 27" 16:9 Healthcare Edition Monitor AC Power Cord USB Cable DisplayPort Cable HDMI Cable HP Display Assistant Software Limited 3-Year Warranty User Manual PDF 1.5mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP HC270 27" 16:9 Healthcare Edition Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP HC270 Specs | | | Size | 27" | | Screen Area | 23.49 x 13.22" / 59.67 x 33.57 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 109 ppi | | Finish | Matte | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | HDR Compatibility | None | | Response Time | 14 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x DVI-D
1 x DisplayPort 1.2 Input
1 x DisplayPort 1.2 Output
1 x Mini DisplayPort 1.2
1 x HDMI (MHL)
3 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-B (USB 3.1 Gen 1) | | HDCP Support | Yes | | Built-In Speakers | None | | | | Power Consumption | 82.5 W (Maximum)
46.25 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, as per Manufacturer | | | | Height Adjustment | 5.12" / 13 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 45° | | Tilt Adjustment | -5 to 20° | | Lock Slot | Yes | | Dimensions (W x H x D) | 28.8 x 18.9 x 11.2" / 73.1 x 47.9 x 28.5 cm (With Stand)
24.2 x 14.3 x 2.1" / 61.4 x 36.4 x 5.4 cm (Without Stand) | | Weight | 16.98 lb / 7.7 kg (With Stand) |
