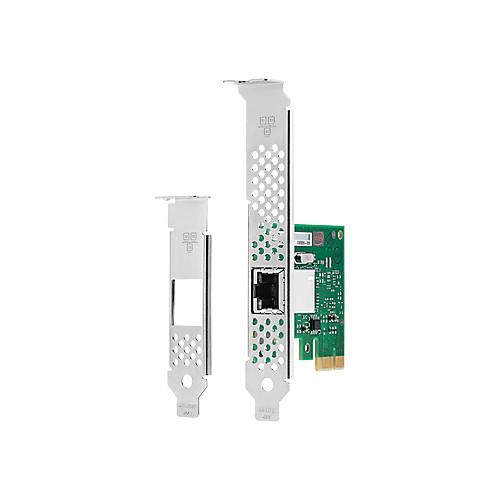

User Manual for HP Intel Ethernet I210-T1 GbE Network Interface Card Click to enlarge the picture
Contents of the user manual for the HP Intel Ethernet I210-T1 GbE Network
- Product category: Network Interface Cards & Adapters HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Network Interface Cards & Adapters
|
User manual for the HP Intel Ethernet I210-T1 GbE Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description The Intel Ethernet I210-T1 GbE Network Interface Card from HP offers Gigabit Ethernet networking with optimal performance. It offers Audio Video Bridging (AVB) support along with power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing in a single-port PCIe Gigabit Ethernet adapter. DMA Coalescing batches multiple packets together so that the processor, memory, and OS wake from idle states for group tasking. In addition, the low halogen design helps to minimize environmental impact. - This card can be used to synchronize, buffer, and queue streams for time-sensitive communication requirements with Audio Video Bridging (AVB).
- With this card you get Error Correcting Memory (ECC) protection and improved data reliability from four transmit and four receive queues that manage packets and reduce latency to optimize multi-core processing performance.
- DMA Coalescing batches multiple packets together so that the processor, memory, and OS wake from idle states for group tasking.
- Help reduce Ethernet connection power consumption with a card that meets the IEEE802.3az Energy Efficient Ethernet standard to switch to a low power idle state when not in use.
- Helps to minimize environmental impact with a low halogen design.
UPC: 887758430248 In the Box HP Intel Ethernet I210-T1 GbE Network Interface Card Low Profile Bracket CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Intel Ethernet I210-T1 GbE Network Interface Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP E0X95AA Specs | Connector | 1 x RJ-45 | | System Interface | PCIe x1 | | Controller | Intel I210 Gigabit Ethernet controller | | Memory | Integrated dual 48K configurable transmit receive FIFO buffers | | Data Rates Supported | 10/100/1000 Mb/s | | Standard | IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant, 802.3x flow control | | Bus Architecture | PCIe 2.1 | | Data Path Width | x1, 250 MB/s, bi-directional interface | | Data Transfer Mode | Bus-master DMA | | Boot ROM Support | Yes | | Network Transfer Mode | Full-duplex
Half-duplex (not available for the 1000BASE-T transceiver) | | Network Transfer Rate | 10BASE-T: Half-Duplex: 10 Mb/s
Full-Duplex: 20 Mb/s
100BASE-TX: Half-Duplex: 100 Mb/s
Full-Duplex: 200 Mb/s
1000BASE-T: Full-Duplex: 2000 Mb/s (actual rate limited by PCI bus) | | Power Requirements | Auxiliary: 3.3 V
1000BASE-T: 3.0 W
100BASE-T: 2.0 W | | Compatibility | HP Business Desktops
HP Compaq Pro 6305 Desktop PC series
HP Compaq Pro 6305 Microtower PC (ENERGY STAR)
HP Compaq Pro 6305 Small Form Factor PC
HP Compaq Pro 6305 Small Form Factor PC (ENERGY STAR)
HP EliteDesk 800 Desktop PC series
HP EliteDesk 800 G1 Small Form Factor PC
HP EliteDesk 800 G1 Small Form Factor PC (ENERGY STAR)
HP EliteDesk 800 G1 Tower PC
HP EliteDesk 800 G1 Tower PC (ENERGY STAR)
HP ProDesk 400 Desktop PC series
HP ProDesk 400 G1 Base Small Form Factor PC
HP ProDesk 400 G1 Microtower PC
HP ProDesk 400 G1 Small Form Factor PC
HP ProDesk 405 G1 Microtower PC
HP ProDesk 600 Desktop PC series
HP ProDesk 600 G1 Small Form Factor PC
HP ProDesk 600 G1 Small Form Factor PC (ENERGY STAR)
HP ProDesk 600 G1 Tower PC
HP ProDesk 600 G1 Tower PC (ENERGY STAR) | | OS Support | Windows 8 Pro, Windows 8, Windows 7 Professional (32/64-bit), Windows Vista Business (32/64-bit)
Red Hat Enterprise Linux 4 (RHEL 4.8 or newer), Red Hat Enterprise Linux 5 (RHEL 5.3 or newer), Red Hat Enterprise Linux 6, SUSE Linux Enterprise Desktop (SLED) 11 | | Management | WOL, PXE, DMI, WFM 2.0 | | Certification | FCC, B, CE, TUV- cTUVus Mark Canada and United States
TUV- GS Mark for European Union | | Temperature | Operating: 32 to 131°F (0 to 55°C) | | Humidity | Operating: 85% at 131°F (55°C) | | Dimensions | 2.5 x 2.1 x 0.8" (6.5 x 5.5 x 2.0 cm) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 9.8 x 8.1 x 2.6" |
