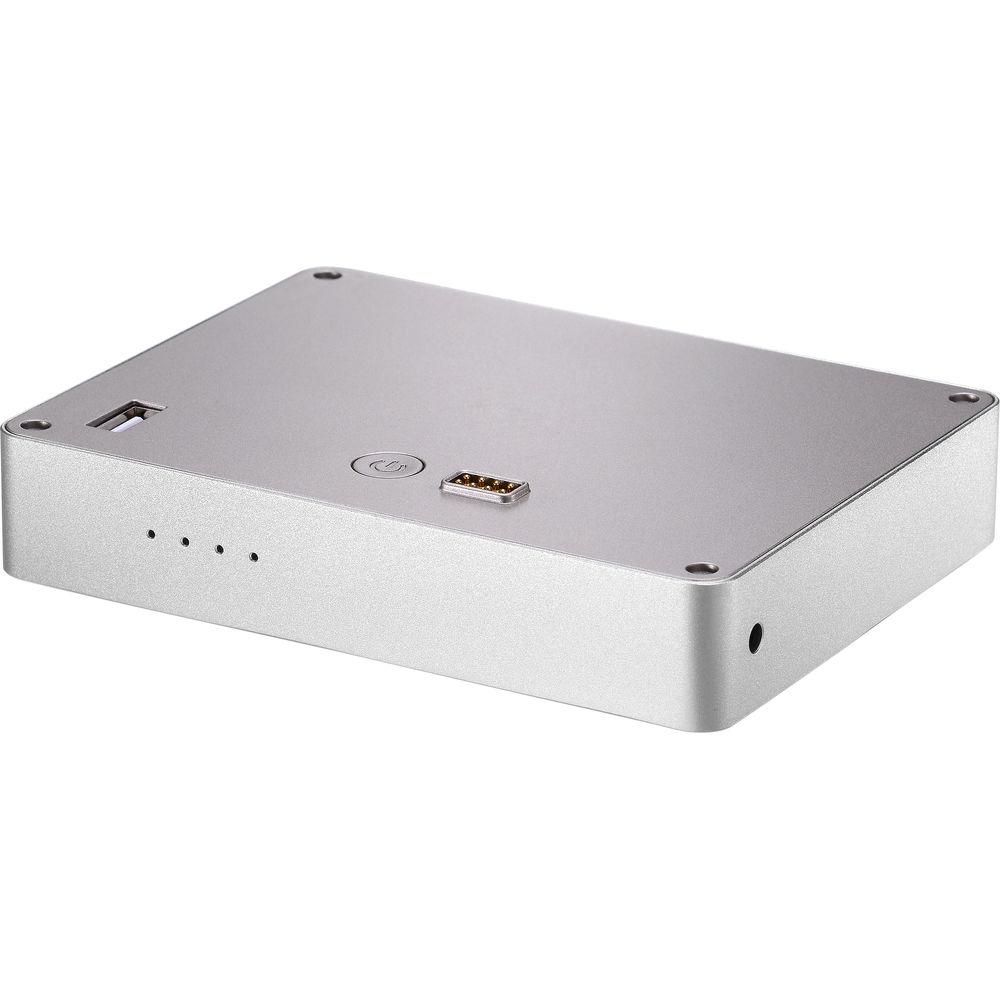

User Manual for HP IP400 400-Lumen HD DLP Pico Projector Click to enlarge the picture
Contents of the user manual for the HP IP400 400-Lumen HD DLP Pico
- Product category: Pico Projectors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Pico Projectors
 |
User manual for the HP IP400 400-Lumen HD DLP Pico contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

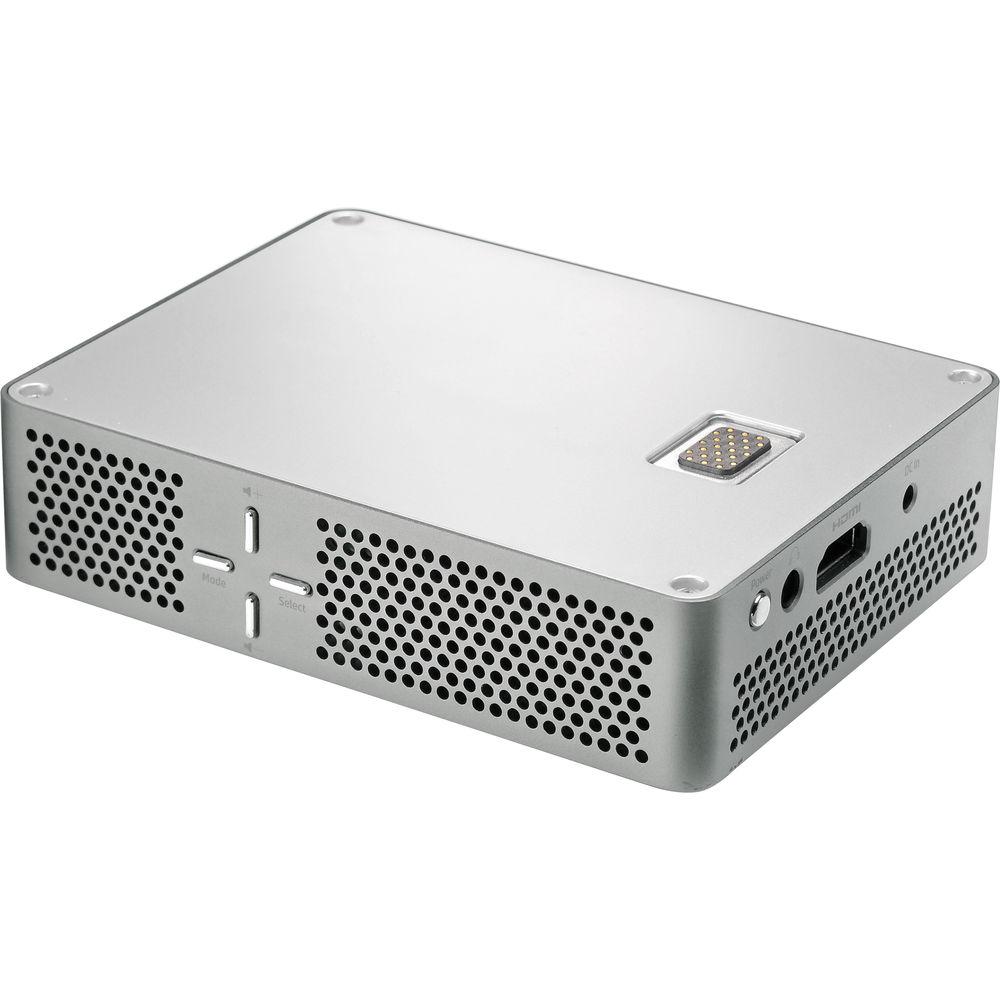

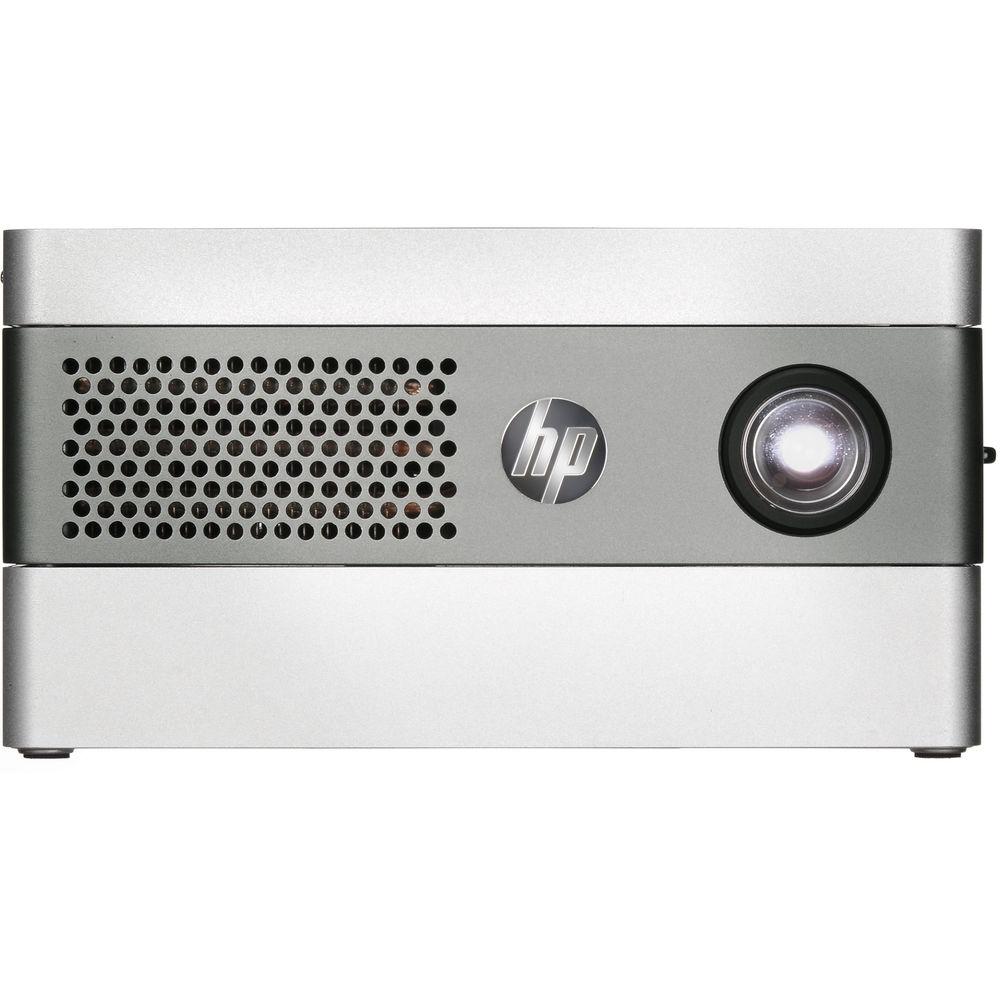

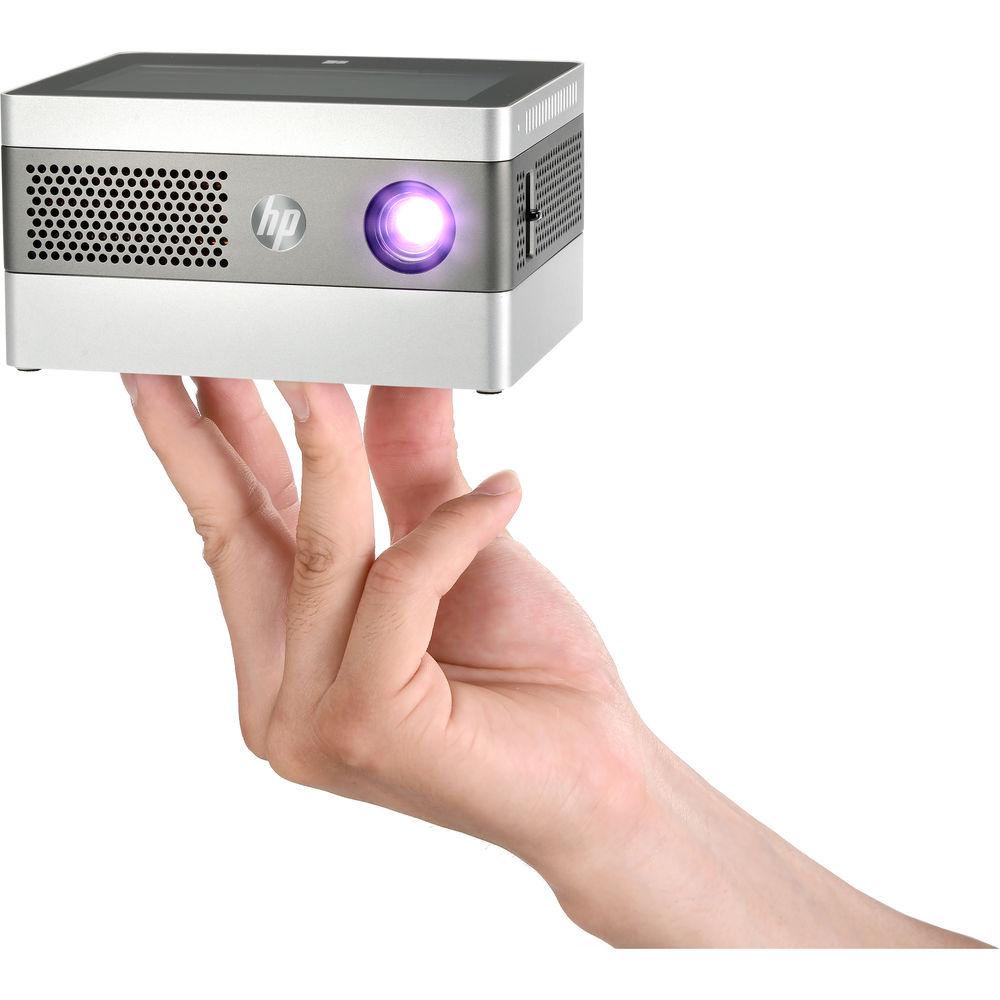

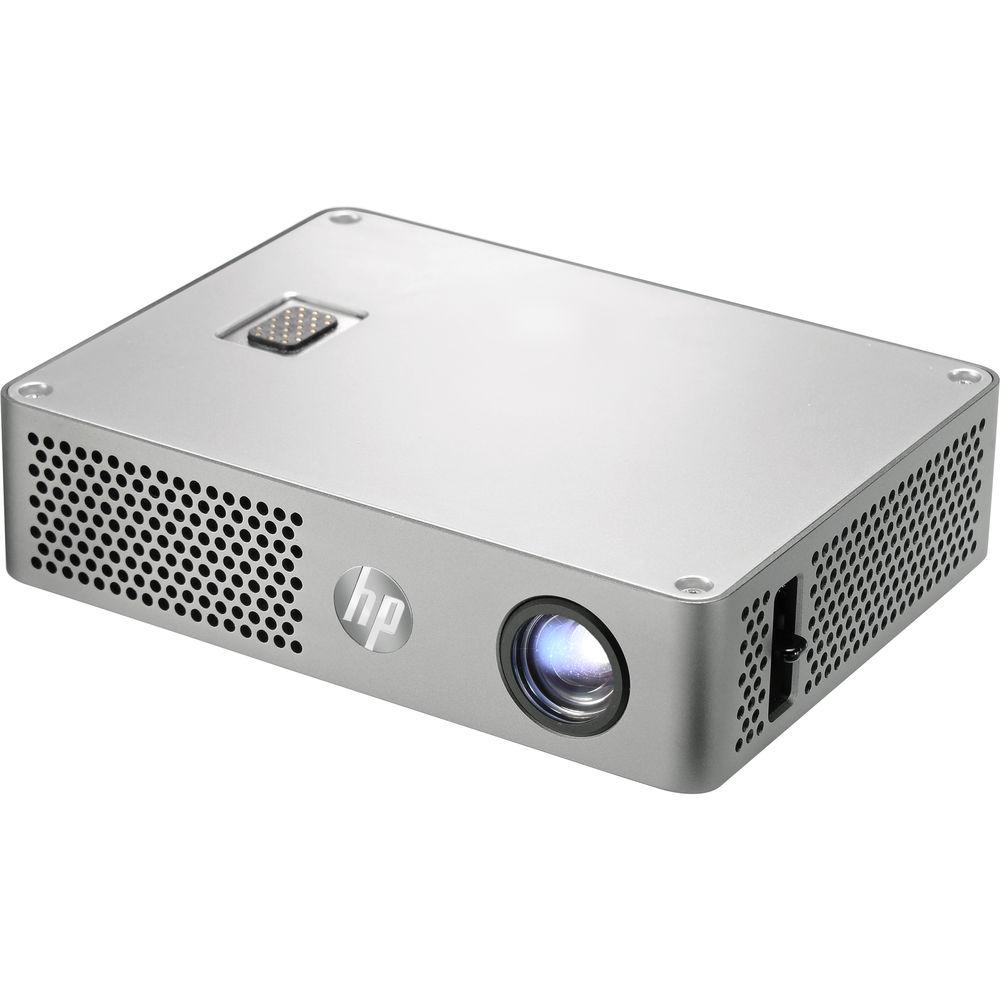

Product description Configure your projector the way you want with the HP IP400 400-Lumen HD DLP Pico Projector. It includes a battery module that will power the projector for up to two hours and a tablet module with a 4.5" touchscreen equipped with Windows 10. The tablet module also adds Wi-Fi, Bluetooth, microSD, USB, and micro-USB connectivity to the setup.
The projector's 400 lumens of brightness and 500:1 contrast ratio will help video, documents, and images appear clearly in dim areas. HDMI connectivity allows for projection of HD content with the projector's native 1280 x 720 HD resolution. - Designed for Perfect Unison

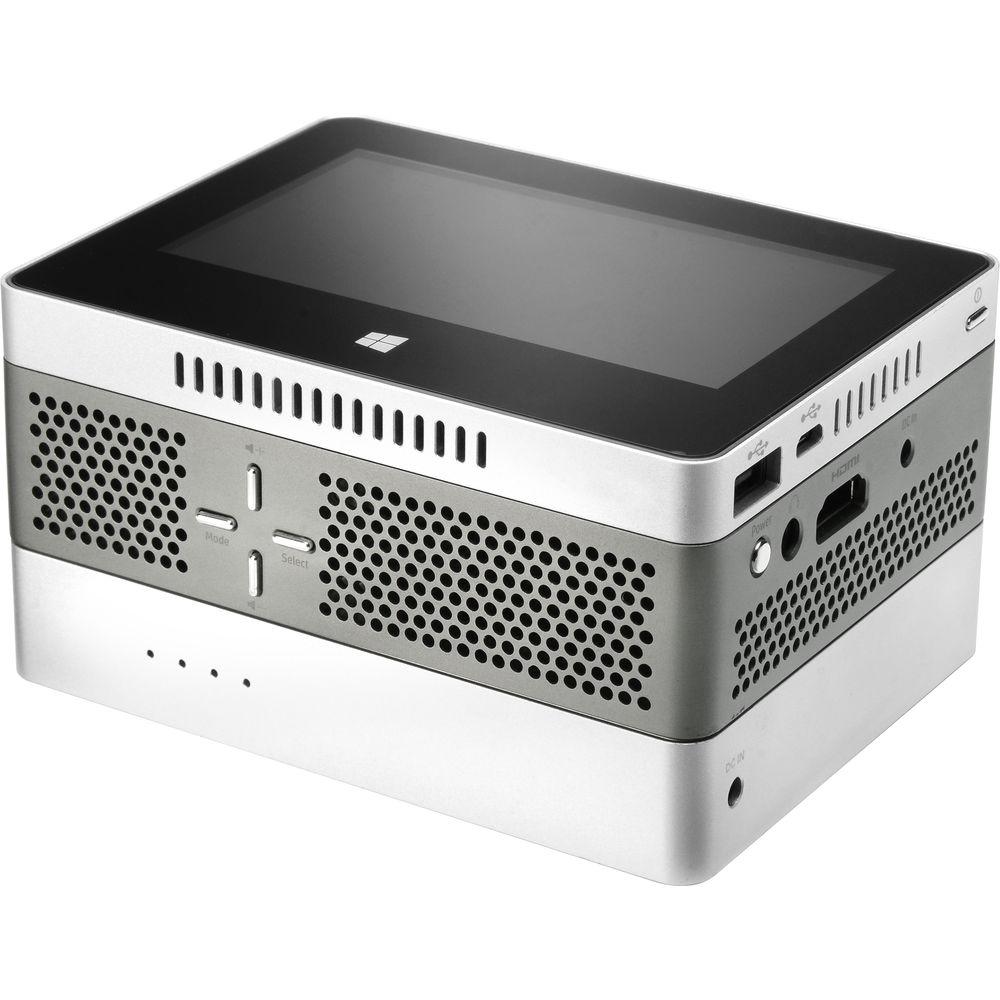

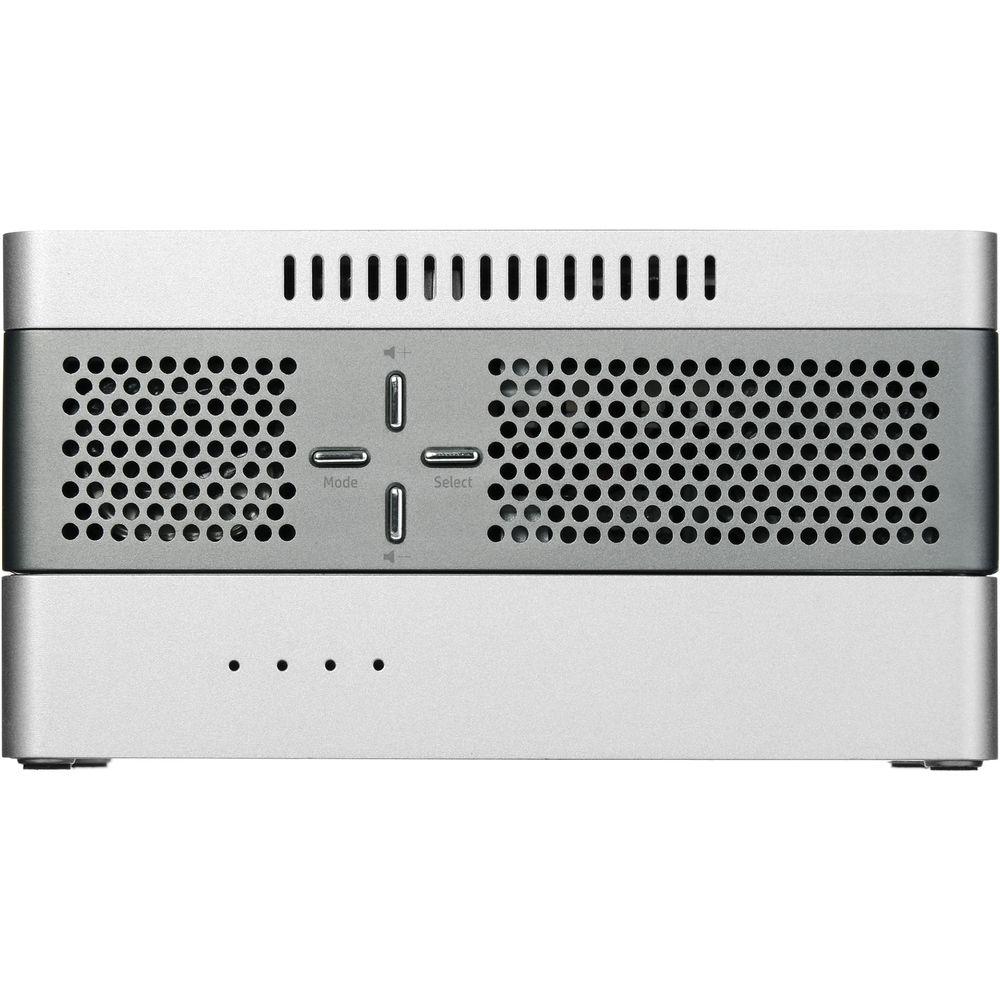

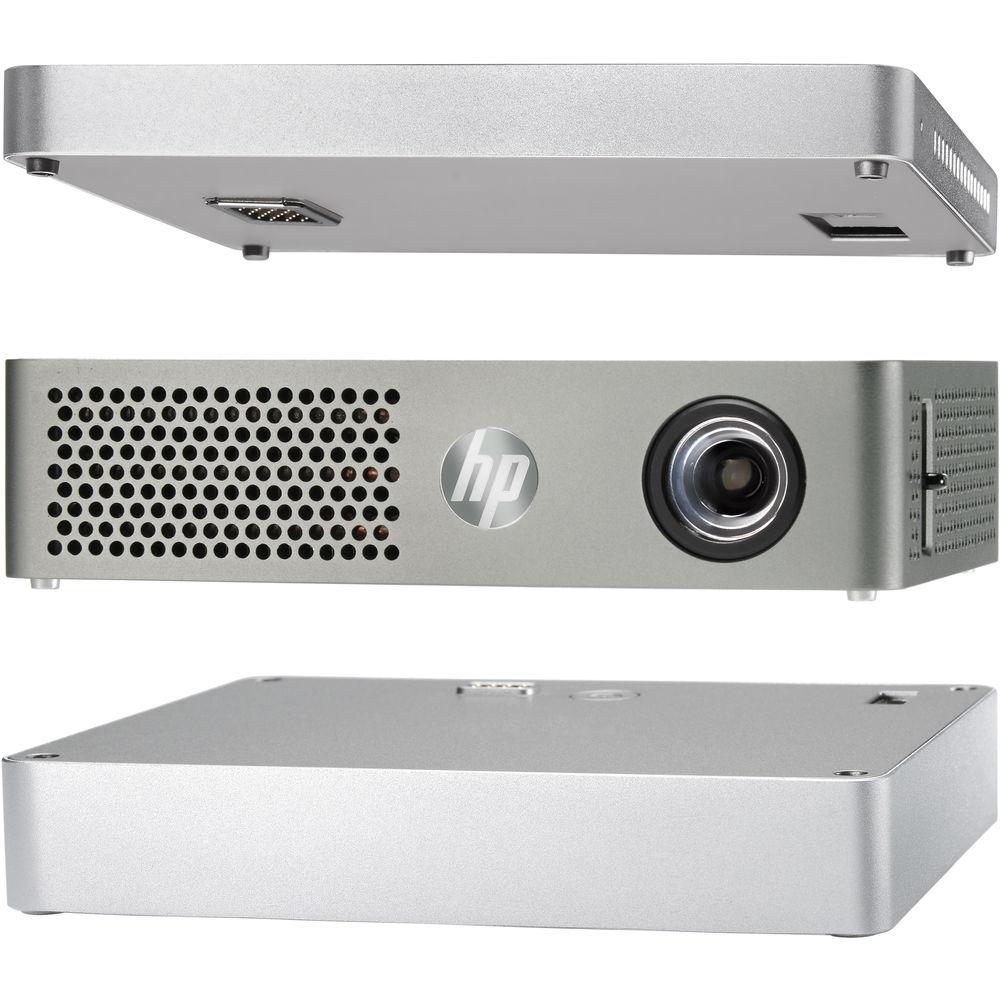

- The modular design allows for quick arrangement by stacking and unstacking the component blocks via a magnetic pogo pin connection.
- Enhance Your Productivity
- The tablet module features Windows 10 for enhanced on-the-go computing performance. Its multi-touch display is engineered to be responsive and smooth, and for those who prefer a more tactile interface, you can plug your favorite USB keyboard and mouse into the onboard USB port.
- DLP LED Technology
- With DLP LED technology outputting up to 400 lumens of brightness, you can project HD images up to 100". Auto-keystone technology adjusts the picture on the fly to help provide a properly proportioned image.
- A Variety of Connection Options

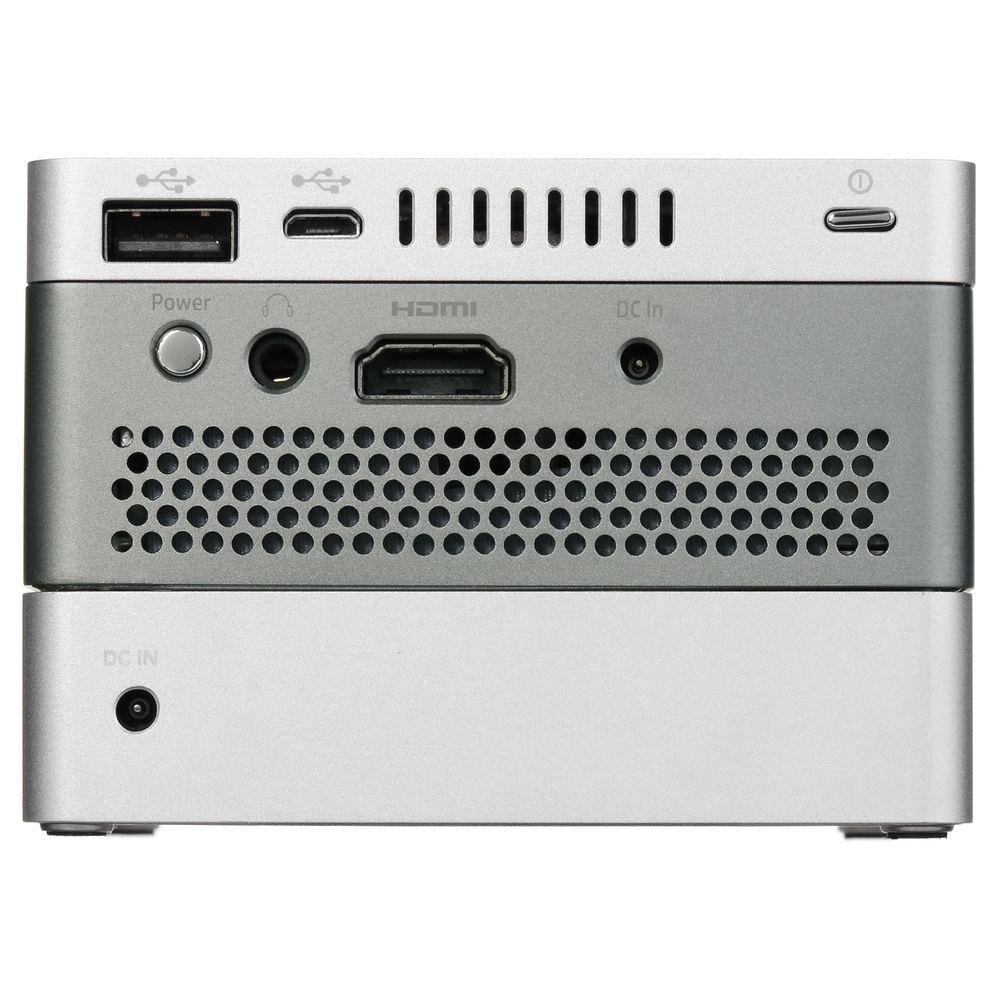

- Connect your devices via HDMI, Wi-Fi, Bluetooth, USB, and micro-USB ports. An onboard microSD card slot further enhances storage convenience.
- 2-Hour Battery
- The battery module can provide up to two hours of continuous projection on a single charge. It can also be used separately as a charging source for your mobile devices.
UPC: 190545100034 In the Box HP IP400 400-Lumen HD DLP Pico Projector HDMI Cable Carry Bag Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP IP400 400-Lumen HD DLP Pico Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP IP400 Specs | | | Display System | DLP | | Native Chip Resolution | 1280 x 720 (HD) | | Max Brightness | 400 Lumens | | Aspect Ratio | Native: 16:9 | | Contrast Ratio | 500:1 | | | | Focus | Manual | | Optical Zoom | None | | Throw Distance | 21 - 125" / 53.34 - 317.5 cm | | Throw Ratio | 1.2:1 | | Projection Size | 20 - 120" / 50.80 - 304.80 cm | | | | Keystone Correction | Auto | | Built-In Speaker | None | | | | Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input
1 x USB 2.0 (Micro-USB) Control Input
1 x USB 2.0 (USB Type-A) Audio, Power, Video Input/Output
1 x 1/8" (3.5 mm) Mini Headphone Output | | Memory Card Slot | 1 x microSD (Unspecified Type) (UHS-I [104 MB/s]) | | | | Onboard Touchscreen | 4.5" Capacitive | | Operating System | Windows 10 | | Processor | 1.33 GHz Intel Z3735F Quad-Core | | Internal Storage | 32.0GB | | RAM | 2 GB | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | LED | | Expected Lamp Life | Low Brightness: 20,000 Hours | | DC Power Requirements | 12 VDC | | Battery Capacity | 13200 mAh | | Dimensions (W x H x D) | 4.9 x 1.3 x 3.7" / 125.0 x 33.0 x 95.0 mm Projector module
4.9 x 0.6 x 3.7" / 125.0 x 15.0 x 95.0 mm Tablet module
4.9 x 1.0 x 3.7" / 125.0 x 25.0 x 95.0 mm Battery module | | Weight | 11.29 oz / 320 g Projector module
5.64 oz / 160 g Tablet module
14.29 oz / 405 g Battery module | | | | Package Weight | 3.62 lb | | Box Dimensions (LxWxH) | 10.3 x 6.9 x 5.1" |
