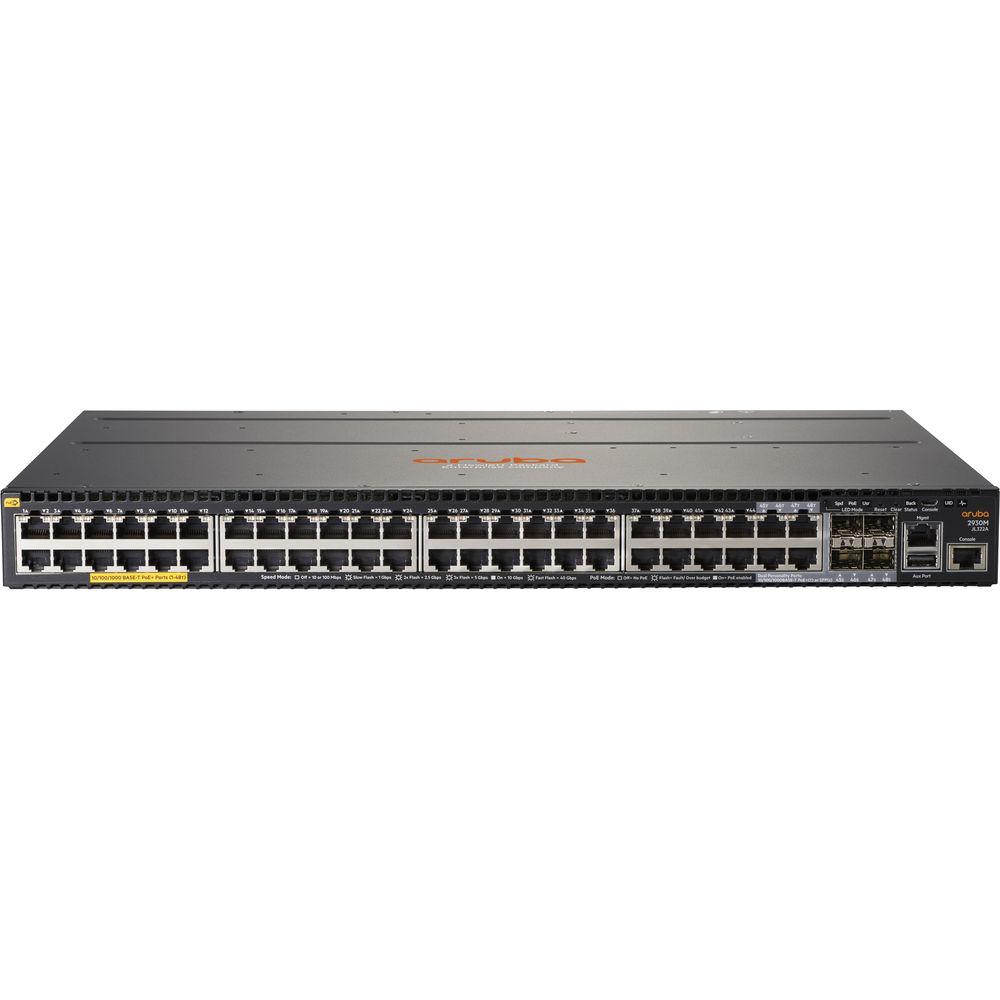

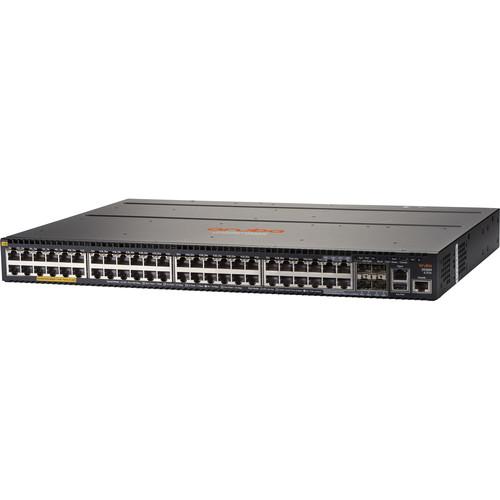

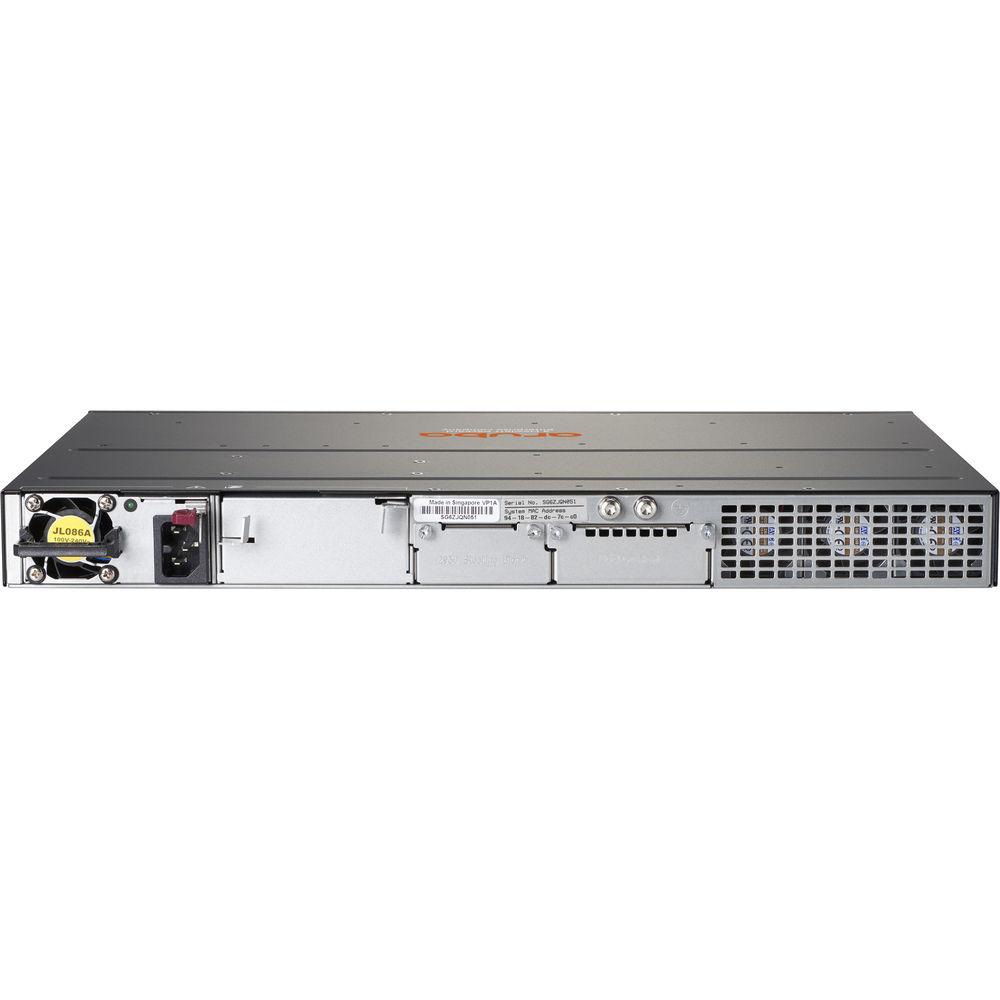

HP JL322A Aruba 2930M 48-Port Gigabit

User Manual for HP JL322A Aruba 2930M 48-Port Gigabit Ethernet 4SFP Switch

• Product category: Network Switches, Bridges & Hubs HP
• Brand: HP
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for HP Network Switches, Bridges & Hubs

Product description

Software-Defined Networking
• OpenFlow supports OpenFlow 1.3 specifications to enable SDN by allowing separation of the data (packet forwarding) and control (routing decision) paths

Unified Wired and Wireless
• ClearPass Policy Manager supports unified wired and wireless policies using Aruba ClearPass Policy Manager

  Switch auto-configuration automatically configures switch for different settings such as VLAN, CoS, PoE max power, and PoE priority when an Aruba access point is detected

  User role defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a group of users or devices, using switch-based local user role or download from ClearPass

  Tunnel Node provides a secure tunnel that transports network traffic on a per-port or per-user role basis to an Aruba Controller. In a per-user role Tunnel Node, users are authenticated by the ClearPass Policy Manager which directs traffic to be tunneled to an Aruba controller or switch locally

  HTTP redirect function supports HPE Intelligent Management Center (IMC) bring your own device (BYOD) solution

Quality of Service (QoS)
• Traffic prioritization (IEEE 802.1p) allows real-time traffic classification into eight priority levels mapped to eight queues

  Layer 4 prioritization enables prioritization based on TCP/UDP port numbers

  Class of Service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ

  Rate limiting sets per-port ingress enforced maximums and per-port, per-queue minimums

  Large buffers Provide graceful congestion management

Connectivity
• HPE Smart Rate multi-gigabit (IEEE 802.3bz) Ethernet connectivity-24 port Smart Rate switch and 4 port Smart Rate module available to connect to 802.11ac wireless access points

  Flexible 10 Gb/s Ethernet connectivity-Modular 4 port 10 Gigabit (SFP+) available

  40 Gb/s Uplink port connectivity-Modular 40 Gb/s QSFP+ port available

  Auto-MDIX provides automatic adjustments for straight-through or crossover cables on all 10/100 and 10/100/1000 ports

  IEEE 802.3at Power over Ethernet (PoE+) provides up to 30W per port to support the latest PoE+ capable devices such as IP phones, wireless access points, security cameras, and IEEE 802.3af-compliant end devices. It also eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments

  Pre-standard PoE support detects and provides power to pre-standard PoE devices

  IPv6
  - IPv6 host enables switches to be managed in an IPv6 network
  - Dual stack (IPv4 and IPv6) transitions from IPv4 to IPv6, supporting connectivity for both protocols
  - MLD snooping forwards IPv6 multicast traffic to the appropriate interface
  - IPv6 ACL/QoS supports ACL and QoS for IPv6 network traffic
  - IPV6 Routing supports Static, RIPng and OSPFv3 protocols
  - Security provides RA guard, DHCPv6 protection, dynamic IPv6 lockdown, and ND snooping

Performance
• Energy-efficient design
  - 80 PLUS Gold and Platinum Certified power supplies increase power efficiency and savings
  - Energy-efficient Ethernet (EEE) support reduces power consumption in accordance with IEEE 802.3az

  Aruba Provision ASIC in all locations. Architecture is designed with the latest Aruba Provision ASIC in all locations, providing very low latency, increased packet buffering, and adaptive power consumption

  Selectable queue configurations allows for increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications

  Stacking Topology
  - High Performance Stacking: up to 100 Gb/s of stacking throughput per switch. Each 2-port stacking module can support up to 25 Gb/s in each direction per port
  - Ring topology: Supports up to 10-member stack
  - Virtualized Switching: The switches act as a single chassis when stacked for simplified management

Convergence
• IP multicast snooping and data-driven IGMP automatically prevent flooding of IP multicast traffic

  LLDP-MED (Media Endpoint Discovery) defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to configure automatically network devices such as IP phones

  IEEE 802.1AB Link Layer Discovery Protocol (LLDP) facilitates easy mapping using network management applications with LLDP automated device discovery protocol

  PoE and PoE+ allocations support multiple methods (automatic, IEEE 802.3 at dynamic, LLDP-MED fine grain, IEEE 802.3af device class, or user-specified) to allocate and manage PoE/PoE+ power for more efficient energy savings

  Local MAC Authentication assigns attributes such as VLAN and QoS using locally configured profile that can be a list of MAC prefixes

  IP multicast routing includes PIM sparse and dense modes to route IP multicast traffic

Resiliency and High Availability
• Virtual Router Redundancy Protocol (VRRP) allows groups of two routers to back each other up dynamically to create highly available routed environments in IPV4 and IPV6 networks

  IEEE 802.1s Multiple Spanning Tree provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w

  IEEE 802.3ad link-aggregation-control protocol (LACP) and port trunking Support up to 26 static, dynamic, or distributed trunks with each trunk having up to eight links (ports) per static trunk

  SmartLink provides easy-to-configure link redundancy of active and standby links

  Dual Hot Swappable Power Supplies
  - Increased Resiliency provides secondary power supply to enable complete switch power redundancy in case or power line or supply failure
  - Increased PoE+ Power provides secondary power supply to increase the total available PoE+ power

Management
• Aruba Central cloud-based management platform offers simple, secure and cost effective way to manage switches

  Zero-Touch-Provisioning (ZTP) simplifies installation of the switch infrastructure using Aruba Activate-based or DHCP-based process with AirWave Network Management

  Built-in programmable and easy to use REST API interface provides configuration automation for Mobile-first campus networks

  Out-of-band Ethernet management port enables management a separate physical management network, and keeps management traffic segmented from network data traffic

  SNMPv1, v2, and v3 provide complete support of SNMP; provide full support of industry-standard Management Information Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption

Manageability
• Dual flash images provides independent primary and secondary operating system files for backup while upgrading

  Friendly port names allow assignment of descriptive names to ports

  Find-Fix-Inform finds and fixes common network problems automatically, then informs administrator

  Multiple configuration files allow multiple configuration files to be stored to a flash image

  Software updates free downloads from the Web

  RMON, XRMON, and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events

  Troubleshooting ingress and egress port monitoring enable network problem solving

  Unidirectional link detection (UDLD) monitors the link between two switches and blocks the ports on both ends of the link if the link goes down at any point between the two devices

  Power down mode allows power savings while the switch is not in use by powering down most of the switch, except for a clock which will boot up the switch on a schedule

Layer 2 Switching
• IEEE802.1ad QinQ increases the scalability of an Ethernet network by providing a hierarchical structure; connects multiple LANs on a high-speed campus or metro network

  VLAN Support and Tagging supports IEEE 802.1Q (4094 VLAN IDs) and 2K VLANs simultaneously

  Jumbo packet support improves the performance of large data transfers; supports frame size of up to 9220 bytes

  IEEE 802.1v protocol VLANs isolate select non-IPv4 protocols automatically into their own VLANs

  Rapid Per-VLAN Spanning Tree (RPVST+) allows each VLAN to build a separate spanning tree to improve link bandwidth usage; is compatible with PVST+

  GVRP and MVRP allows automatic learning and dynamic assignment of VLANs

  VxLAN encapsulation (tunneling) protocol for overlay network that enables a more scalable virtual network deployment

  IEEE 1588v2 Transparent Clock Mode1-step and end to end delay mode support critical timing Applications

Layer 3 Services
• DHCP server centralizes and reduces the cost of IPv4 address management

Layer 3 Routing
• Static IP routing provides manually configured routing; includes ECMP capability

  Routing Information Protocol (RIP) provides RIPv1, RIPv2, and RIPng routing

  Access OSPF provides OSPFv2 and OSPFv3 protocols for routing between access and the next layer on the LAN. One OSPF area and up to eight interfaces are supported.

  Policy-based routing uses a classifier to select traffic that can be forwarded based on policy set by the network administrator (limited to 16 next-hop routes)

Security
• Multiple user authentication methods
  - IEEE 802.1X uses an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server to authenticate in accordance with industry standards
  - Web-based authentication provides a browser-based environment, similar to IEEE 802.1X, to authenticate clients that do not support the IEEE 802.1X supplicant
  - MAC-based authentication authenticates the client with the RADIUS server based on the client's MAC address

  TPM-based Security
  - Includes a Trusted Platform Module (TPM) for secure hardware-based generation and storage of cryptographic keys that can be used for a variety of authentication purposes

  Authentication flexibility
  - Multiple IEEE 802.1X users per port provides authentication of multiple IEEE 802.1X users per port; prevents a user from "piggybacking" on another user's IEEE 802.1X authentication
  - Concurrent IEEE 802.1X, Web, and MAC authentication schemes per port switch port will accept up to 32 sessions of IEEE 802.1X, Web, and MAC authentications

  Access control lists (ACLs) provide IP Layer 3 filtering based on source/destination IP address/subnet and source/destination TCP/UDP port number

  Source-port filtering allows only specified ports to communicate with each other

  Control Plane Policing: Set rate limit on control protocols to protect CPU overload

  RADIUS/TACACS+ eases switch management security administration by using a password authentication server

  Secure shell encrypts all transmitted data for secure remote CLI access over IP networks

  Secure Sockets Layer (SSL) encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch

  Port security allows access only to specified MAC addresses, which can be learned or specified by the administrator

  MAC address lockout prevents particular configured MAC addresses from connecting to the network

  Secure FTP allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file

  Switch management logon security helps secure switch CLI logon by optionally requiring either RADIUS or TACACS+ authentication

  Custom banner displays security policy when users log in to the switch

  STP BPDU port protection blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks

  DHCP protection blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks

  Dynamic ARP protection blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data

  STP root guard protects the root bridge from malicious attacks or configuration mistakes

  Identity-driven ACL enables implementation of a highly granular and flexible access security policy and VLAN assignment specific to each authenticated network user

  Per-port broadcast throttling Configures broadcast control selectively on heavy traffic port uplinks

  Private VLAN provides network security by restricting peer-to-peer communication to prevent a variety of malicious attacks; typically a switch port can only communicate with other ports in the same community and/or an uplink port, regardless of VLAN ID or destination MAC address

  IEEE 802.1AE MACsec provides security on a link between two switch ports (1Gbps or 10Gbps or HPE Smart Rate) using standard encryption and authentication

Monitor and Diagnostics
• Digital optical monitoring of SFP+ and 1000BASE-T transceivers allows detailed monitoring of the transceiver settings and parameters

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

HP Aruba 2930M Specs

I/O Ports	44 x Autosensing 10/100/1000 ports IEEE 802.3 Type 10BASE-T IEEE 802.3u Type 100BASETX IEEE 802.3ab Type 1000Base-T IEEE 802.3at PoE+ Duplex: 10BASE‑T/100BASE-TX: Half or full 1000BASE-T: Full only
Additional Ports	1 x Dual personality (RJ-45 or USB Micro-B) serial console port 1 x USB B port for uploading/downloading files 1 x 100BASE-T out of band management port 1 x Uplink slot 1 x Stacking module slot 2 x Power supply slots (power supplies not included)
Memory and Processor	Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet Buffer Size: 12.38 MB and 4.5 MB ingress/7.875 MB egress 4 GB eMMC
