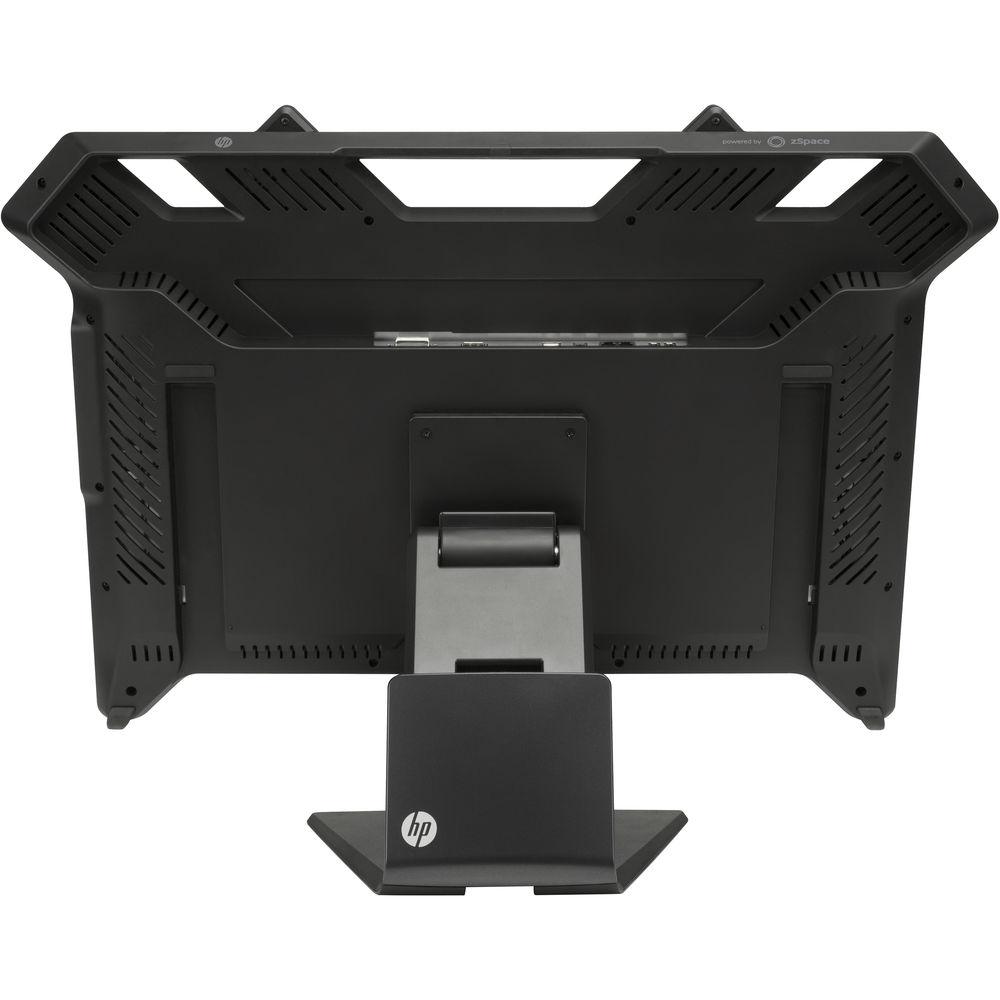

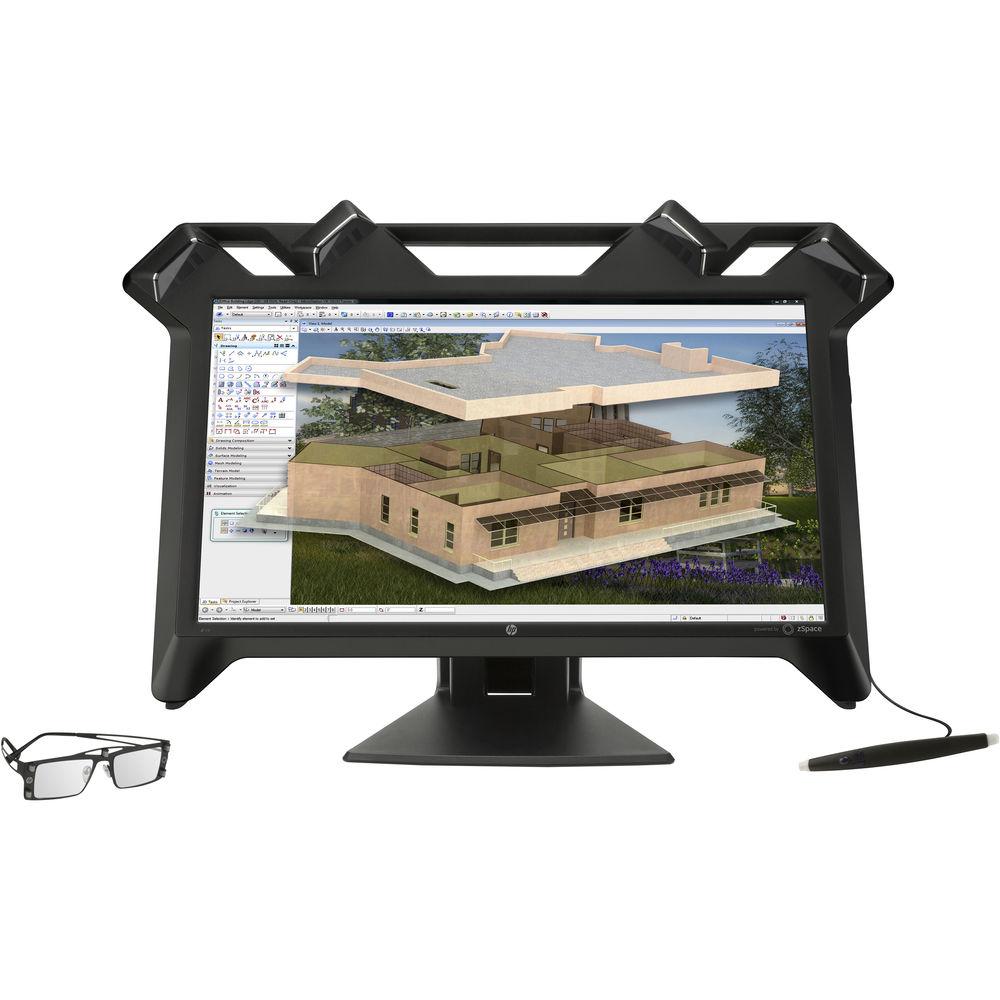

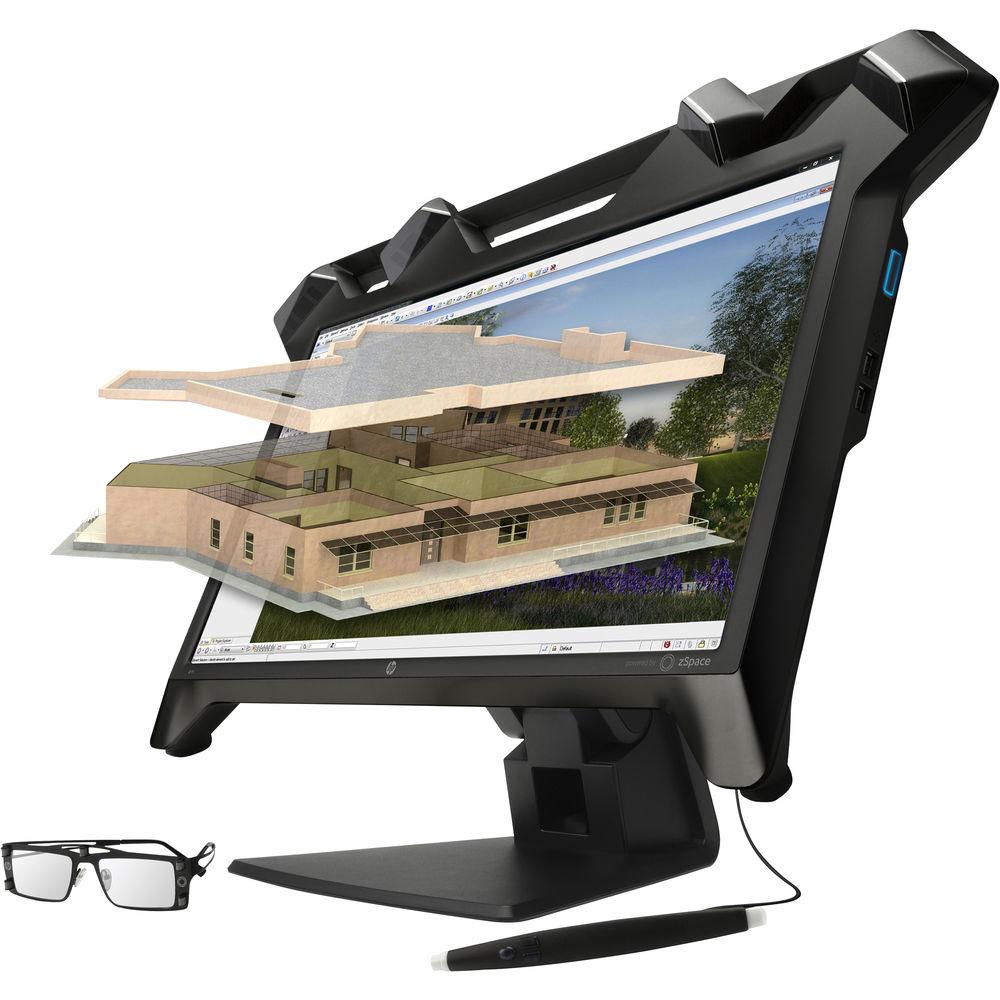

User Manual for HP K5H59A8 23.6" 16:9 Virtual Reality LCD Monitor Click to enlarge the picture
Contents of the user manual for the HP K5H59A8 23.6" 16:9 Virtual Reality
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP K5H59A8 23.6" 16:9 Virtual Reality contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More View virtual-holographic 3D images right from the K5H59A8 23.6" 16:9 Virtual Reality LCD Monitor from HP. This monitor features four IR webcams along with full-motion parallax sensors designed to pair with the included passive glasses to provide a 3D viewing experience.
In addition to viewing the 3D content, you can also rotate, manipulate, navigate, and zoom throughout the display giving you complete interactivity with nearly any 3D supported content you may be viewing. Setup of this Virtual Reality LCD Monitor is simple as it comes equipped with both DVI-D and DisplayPort inputs, making it easy to plug this monitor in to a variety of computer configurations. Additionally, viewers can also plug in compatible USB peripherals to either of the dedicated USB 2.0 ports. Once configured, the display stand offers tilt and swivel capabilities, and the monitor offers plug-and-play functionality and anti-glare support to reduce glare when viewing the display in various lighting conditions. - Intuitive Virtual Reality
- Experience real-time, natural interaction with your 3D content as the Full HD stereoscopic display's full-motion parallax sensors track and respond to the movement of your lightweight, passive glasses.
• User must be wearing 3D glasses for tracking to occur
• 3D glasses, 3D glass clip-on, and stylus pen are included
• 3D content is required for 3D performance - Put a Pen in It
- Rotate, manipulate, navigate, and zoom in and out of every detail of the holographic image with the stylus pen.
- Collaboration with Third-Party Hardware
- Project your 3D models to a 2D big screen for easy team collaboration using your choice of third-party hardware (sold separately).
- Get Connected
- Easily drive your architectural, MCAD, education, and scientific content from an HP Z Workstation or HP Business Desktop with dual-link DVI or DisplayPort connectors.
- Be Creative
- Create your own design, prototyping, and education-specific software with the included zSpace Developer Kit.
• Disc included - Additional Features
- Plug-and-play setup
Anti-glare display
LED backlit display In the Box HP K5H59A8 23.6" 16:9 Virtual Reality LCD Monitor AC Power Cord External Power Supply DisplayPort Cable Active Stylus Passive Eyewear Passive Eyewear (Clip-Ons) Limited 3-Year Warranty More from Manufacturer ryatdsye Table of Contents
|
Upload User Manual
Have you got an user manual for the HP K5H59A8 23.6" 16:9 Virtual Reality LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP K5H59A8 Specs | Display Size | 23.6" / 59.9 cm | | Panel Active Area | 20.52 x 11.54" / 52.12 x 29.31 cm | | Aspect Ratio | 16:9 | | Resolution | Up to 1920 x 1080 | | Pixel Pitch | 0.272 mm | | Brightness | 200 cd/m² in 3D mode | | Contrast Ratio | 300:1 average in 3D mode
1000:1 average in 2D mode | | Viewing Angles (H/V) | 170°/160° | | Response Time | 5 ms on/off | | Tilt | -5 to 60° | | Swivel | ±180° | | Connectivity | 1 x DVI-D (with HDCP support)
1 x DisplayPort 1.2 (with HDCP support)
3 x USB 2.0 ports (2 x downstream / 1 x upstream) | | Webcam | 4 IR cameras | | Power | Input Voltage
100 to 240 VAC
Power Consumption
90 W (maximum)
65 W (typical) with 3D mode enabled
0.5 W (standby) "Soft OFF" | | Temperature & Humidity | Operating Temperature
41 to 95°F / 5 to 35°C
Operating Humidity
20 to 80% RH | | Environmental | Mercury-free display backlights
Arsenic-free display glass
Low halogen | | Certification and Compliance | UL/CSA, CE, KC, NOM, TUV-S, TuV-GS, VCCI, PSB, C-tick, FCC marking, CB | | Dimensions | With Stand
27.17 x 11.14 x 20.68" / 69 x 28.29 x 52.53 cm
Without Stand
27.17 x 2.68 x 20.68" / 69 x 6.81 x 52.53 cm | | Weight | With Stand
21.43 lb / 9.72 kg
Without Stand
14.08 lb / 6.39 kg | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 30.5 x 25.0 x 14.0" |
