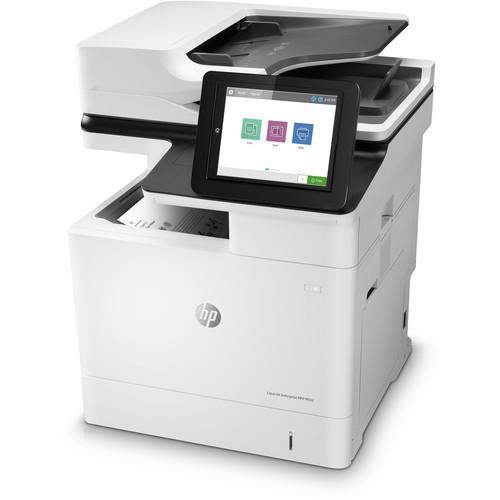

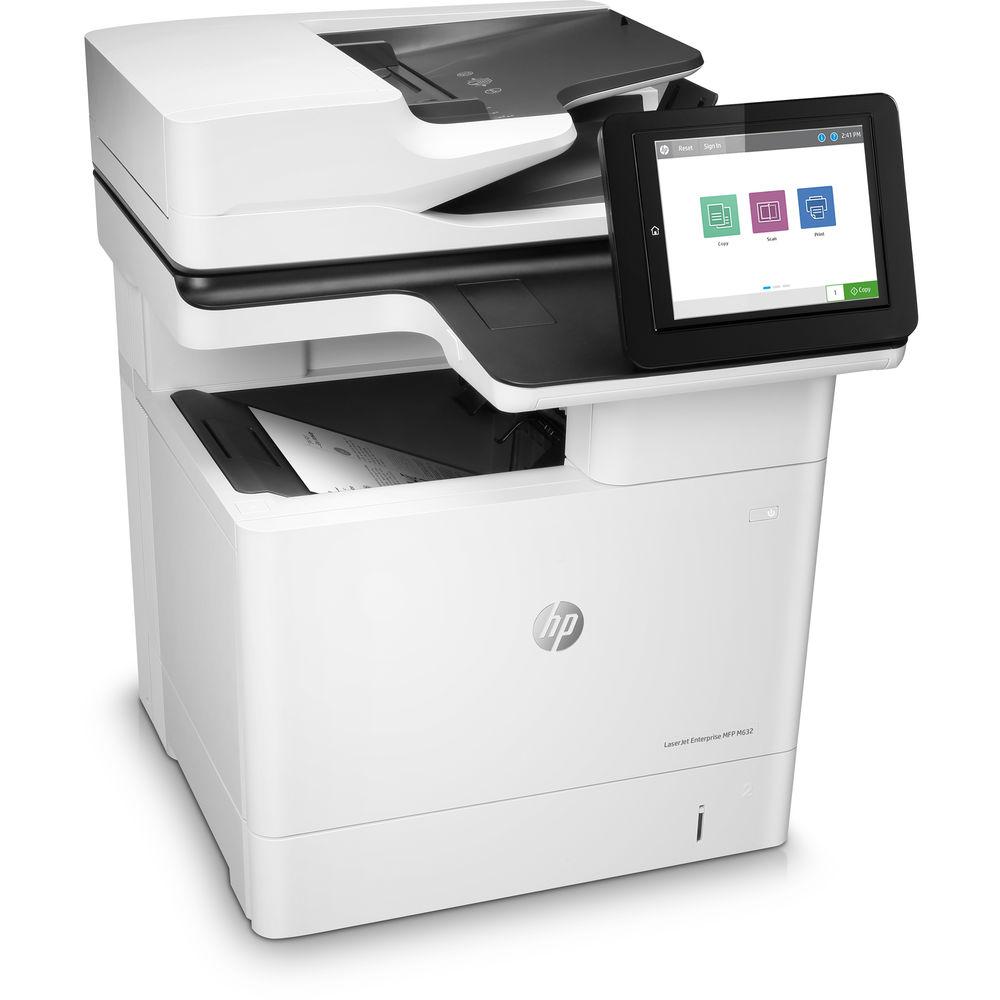

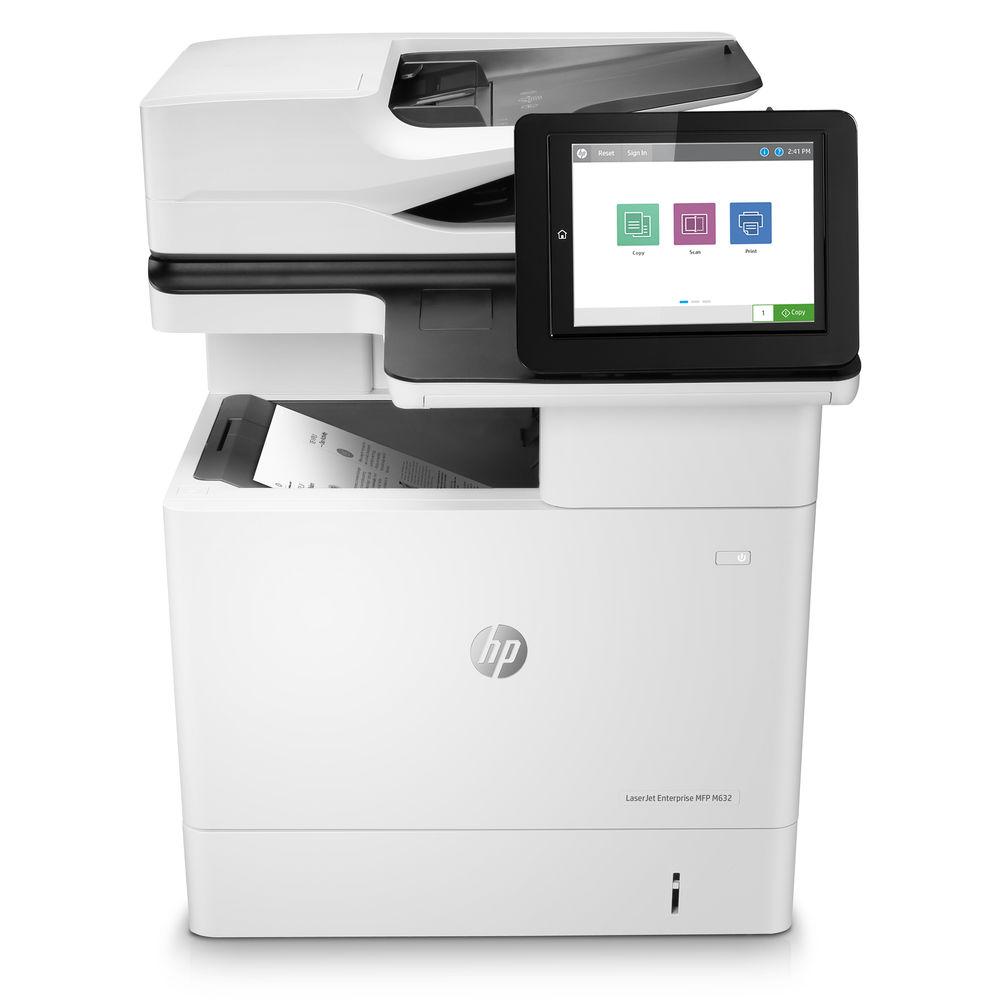

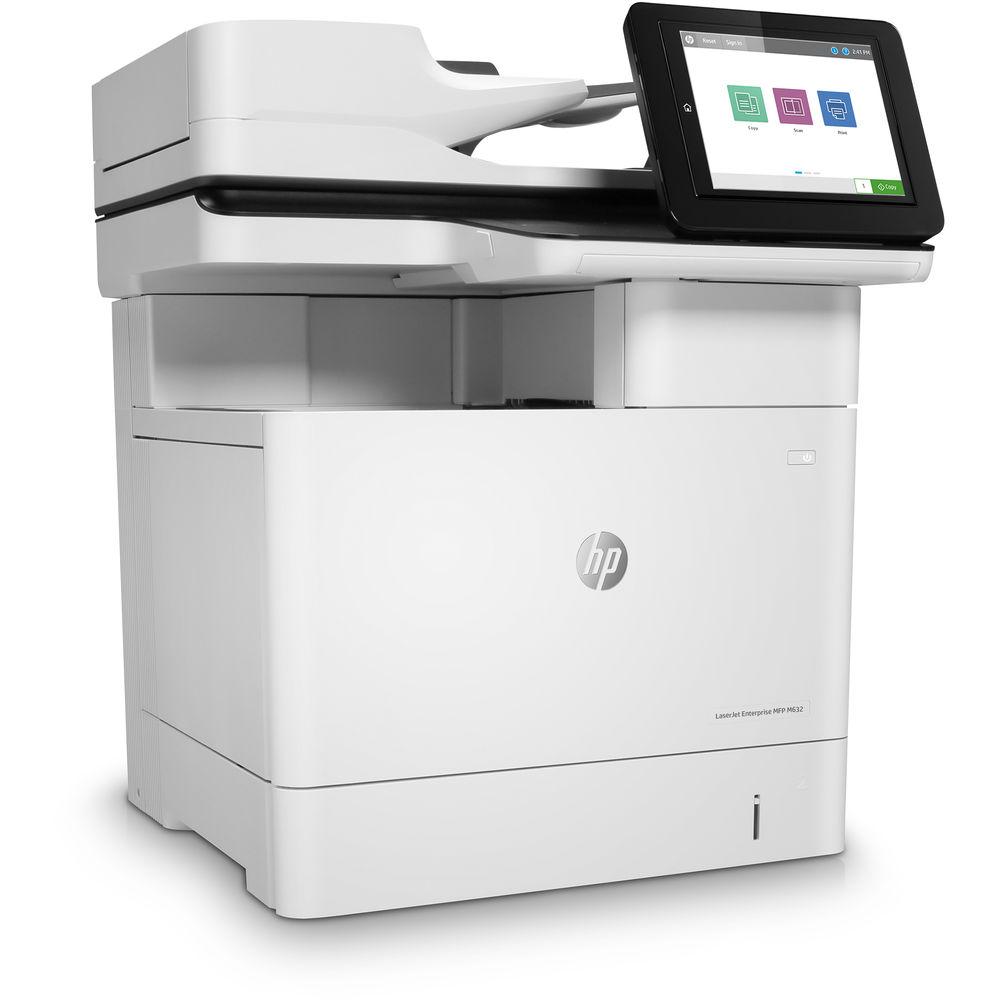

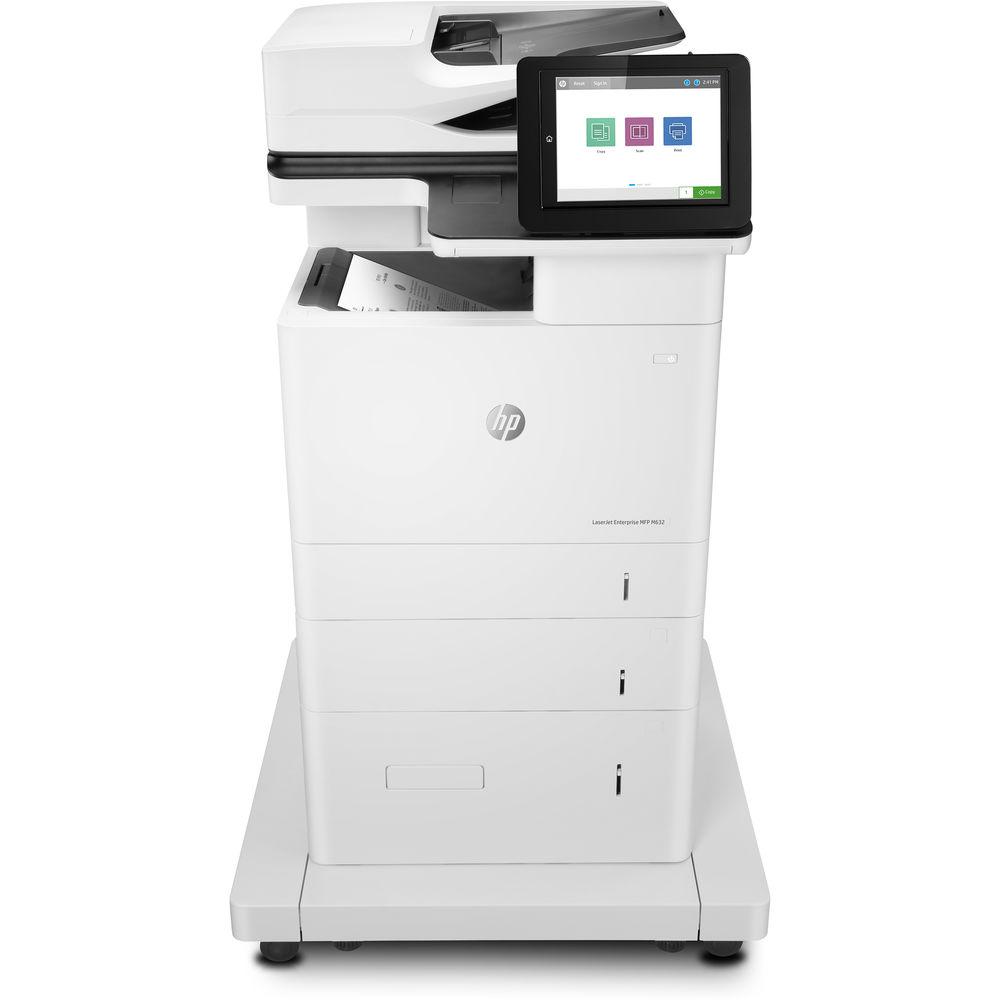

Product description Designed for demanding workplaces, the LaserJet Enterprise M632h Monochrome All-In-One Laser Printer from HP takes things up a notch with exceptional security, outstanding print features, and multi-functional capabilities including scanning and copying that will make this machine one of the few you will need for your essential office needs. This model can produce detailed documents at up to 1200 x 1200 dpi and can even reach speeds of up to 65 ppm for maximum productivity. It also works with a variety of media up to 8.5 x 14" and can perform automatic duplexing for 2-sided printing.
For scanning, the M632h uses a CCD sensor with either the 8.66 x 14.38" flatbed or a 150-sheet ADF capable of handling media up to 8.5 x 34" in size. Scans also benefit from an optical resolution of 600 dpi. For general media handling users have access to a 100-sheet multipurpose tray and a 550-sheet input tray. For operation, there is a large 8" CGD touchscreen as well as an easy-access USB port for direct printing. Additionally, USB 2.0 or Ethernet connectivity can be used for setting up the printer exactly as needed. - Print
-
- Print resolutions are available at up to 1200 x 1200 dpi.
- Users can print at speeds up to 65 ppm.
- First print out time of 5.3 seconds.
- Automatic duplexing for 2-sided prints.
- Mobile printing capabilities include Apple AirPrint, Google Cloud Print 2.0, HP ePrint, and Mopria.
- Standard print language of HP PCL 6, HP PCL 5, HP PostScript Level 3 emulation, native PDF v1.7, and Apple AirPrint.
- A 100-sheet multipurpose tray and 550-sheet input tray are present for versatile media handling.
- Supported media types include plain paper, photo paper, thick paper, recycled paper, and more.
- Monthly duty cycle of 300,000 pages with a recommended monthly volume of 5000-30,000 pages.
- Scan
-
- Uses a Charge Coupled Device (CCD) with an optical resolution of 1200 dpi.

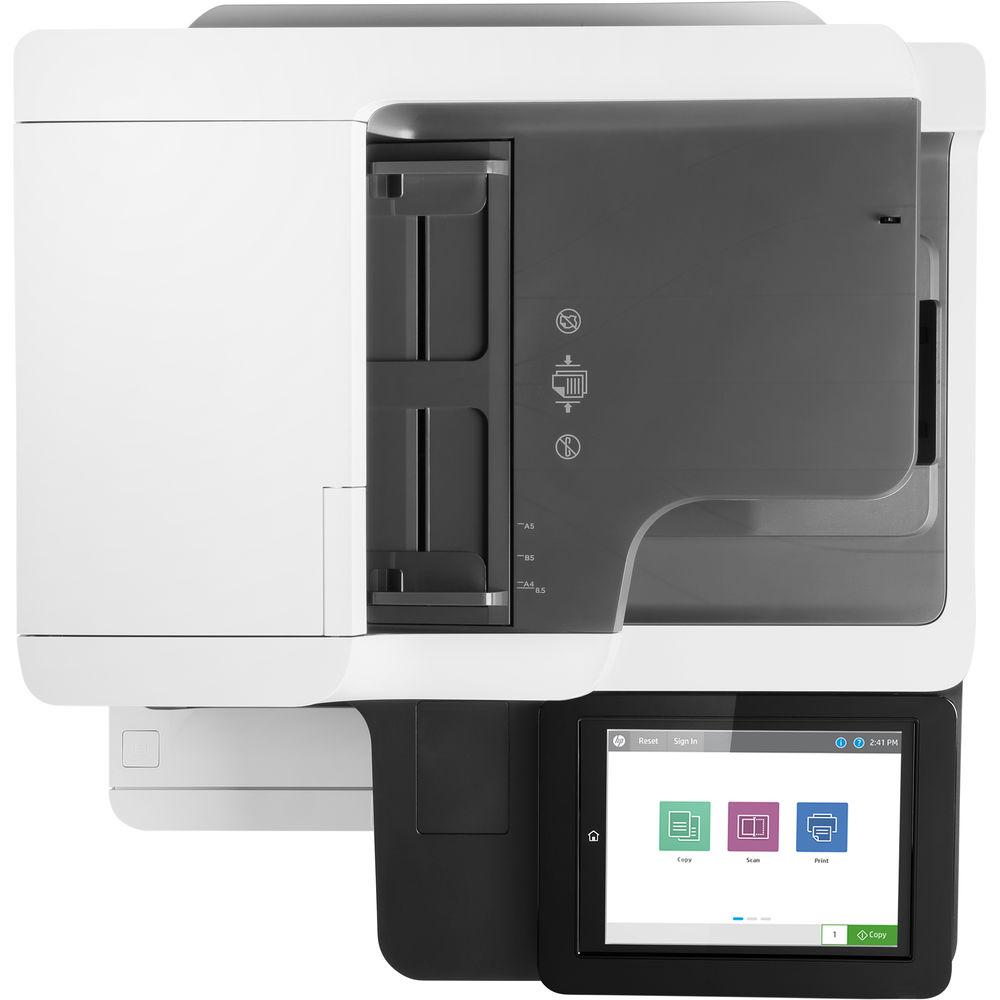

- Both an 8.66 x 14.38" flatbed and 150-sheet automatic document feeder are available for scanning.
- The ADF can handle documents from 2.7 x 5.8" up to 8.5 x 34" in size.
- The scanner has a hardware resolution of 600 x 600 dpi.
- Scanning benefits from a color depth of 24-bit and a grayscale depth of 8-bit or 256 levels.
- Scanning can be performed at speeds up to 75 ppm, or 120 ipm with duplexing.
- Native scan file formats include PDF, Hi-Compression PDF, JPEG, TIFF, MTIFF, XPS, and PDF/A.
- Digital sending features include scan to email, save to network folder, save to USB drive, send to Sharepoint, send to FTP, send to Internet fax, local address book, SMTP over SSL, blank page removal, edge erase, auto color sense, auto crop to content, and compact PDF.
- Advanced scanner features include optimize text/picture, image adjustments, job build, output quality setting, selectable scan resolution from 75-600 dpi, auto detect color, edge erase, job notification, blank page suppression, and HP Quick Sets.
- Copy
-
- Copy resolutions of up to 600 dpi are available.
- Copies can be made at speeds of up to 65 cpm.
- Reduction/enlargement from 25-400%.
- Up to 9999 copies can be made at a time.
- Copy settings include two-sided copying, scalability, image adjustments (darkness, contrast, background cleanup, sharpness), N-up, N or Z-ordering, content orientation, collation, booklet, job build, edge-to-edge, job storage, ID Copy, Book Copy, and A-to-B Copy (different media sizes).
- General
-

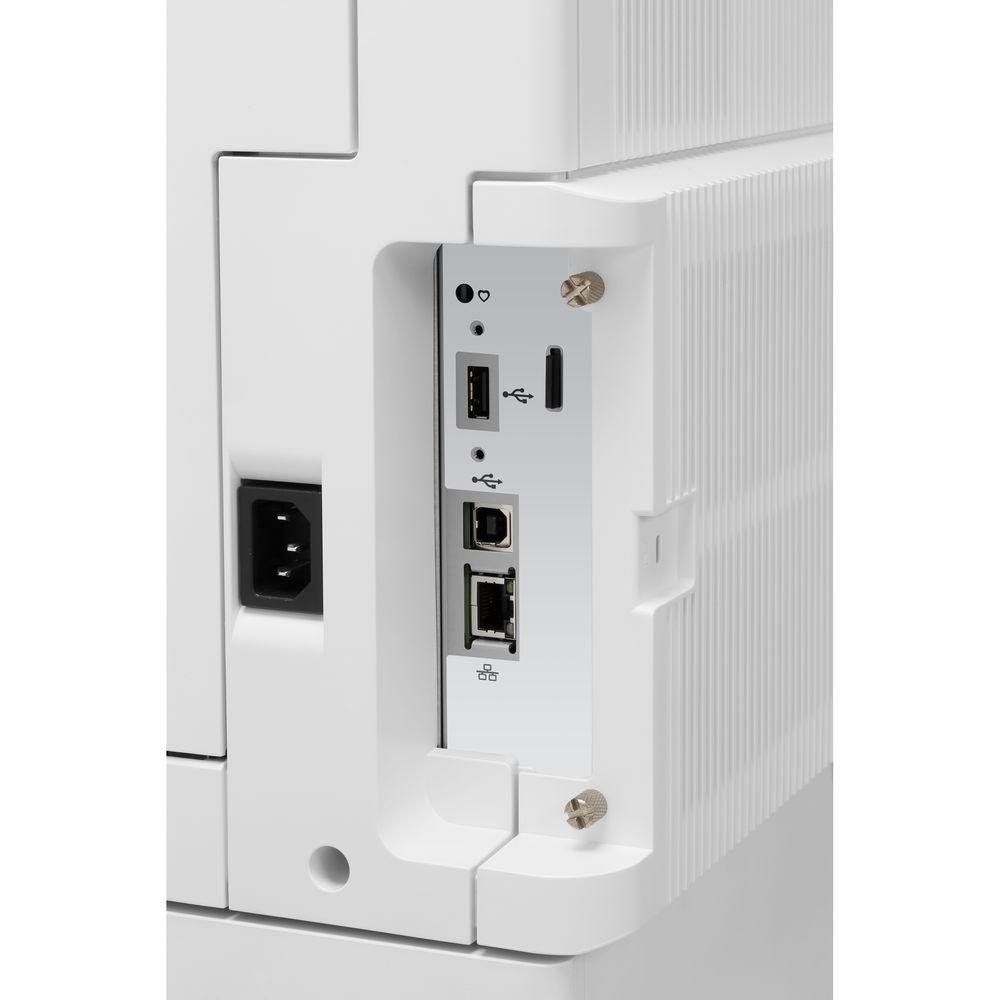

- USB 2.0 and Ethernet connectivity are available, as well as one RJ11 port for the fax function.

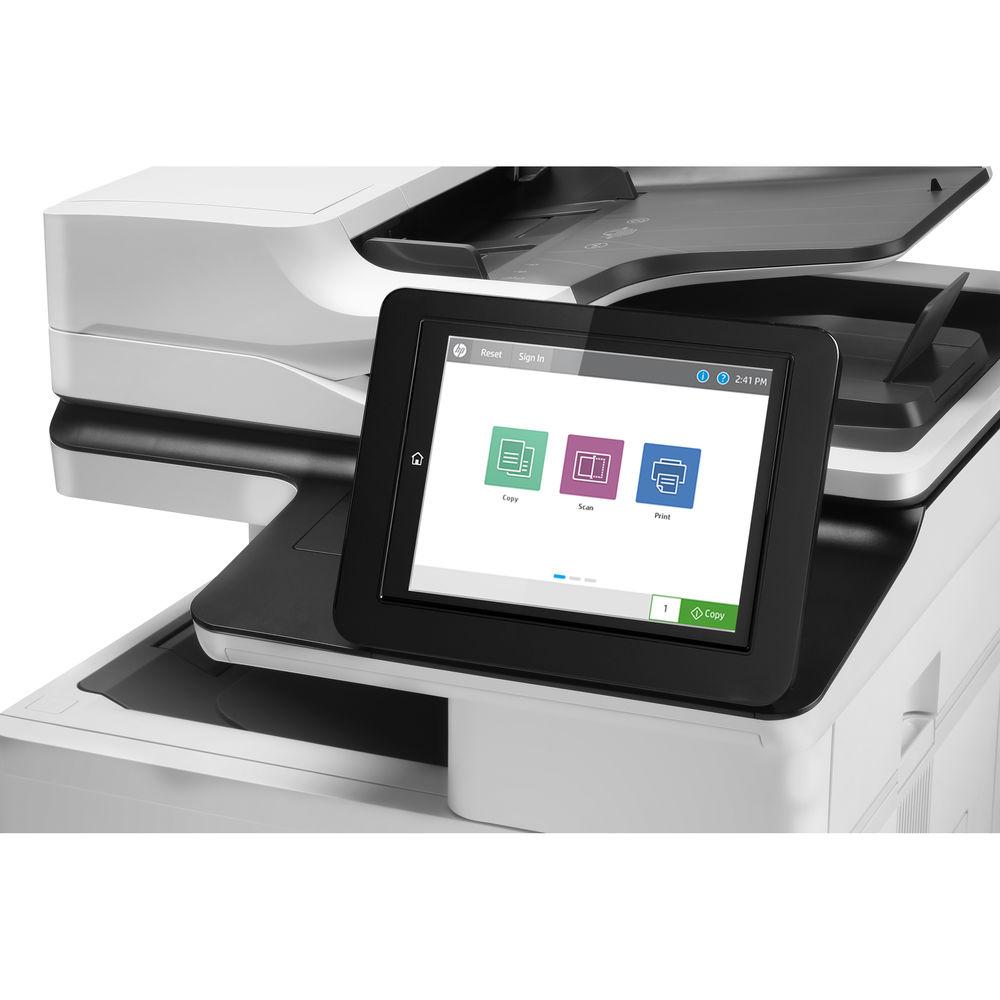

- A large, tilting 8" CGD touchscreen is available for intuitive control over settings.

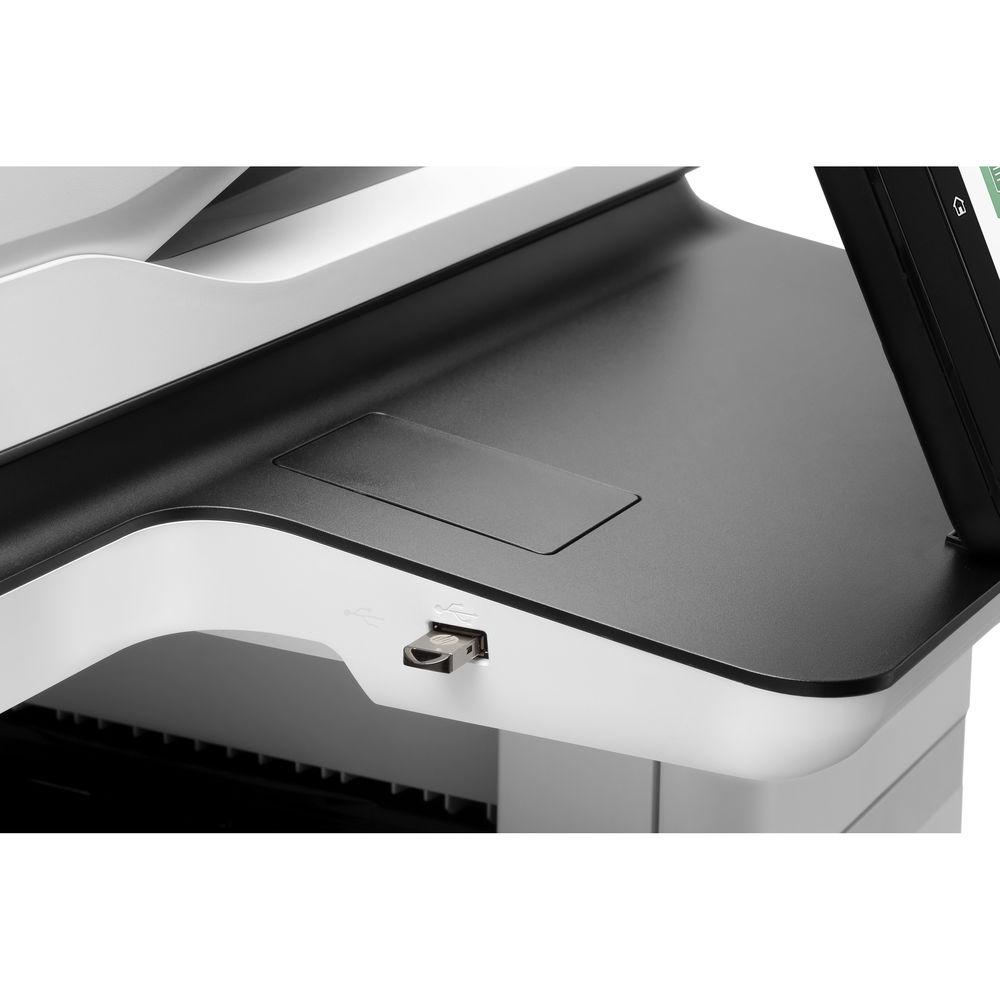

- An easy-access USB port is available for printing from and scanning to a portable storage device.
- HP Sure Start automatically checks the printer's operating code and repairs itself to help prevent hacks.
- Run-time intrusion detection monitors to detect and stop attacks and will then automatically reboot the unit.
- HP Web Jetadmin provides centralized control over your print network.
- A Hardware Integration Port is available for expanding functionality of the printer.
- Standard memory includes 1.5GB for the printer and 512MB for the scanner.
- A 320GB HP High-Performance Secure Hard Disk with AES 256 hardware encryption or better is available to safeguard your data.
- A multitude of security management tools are available to help protect your network and data.
- Wake-up time of just 7.8 seconds.
- Built-in fonts and typefaces include 105 TrueType fonts, 92 scalable PostScript fonts, one Unicode font, two Windows Vista 8 fonts, and more.

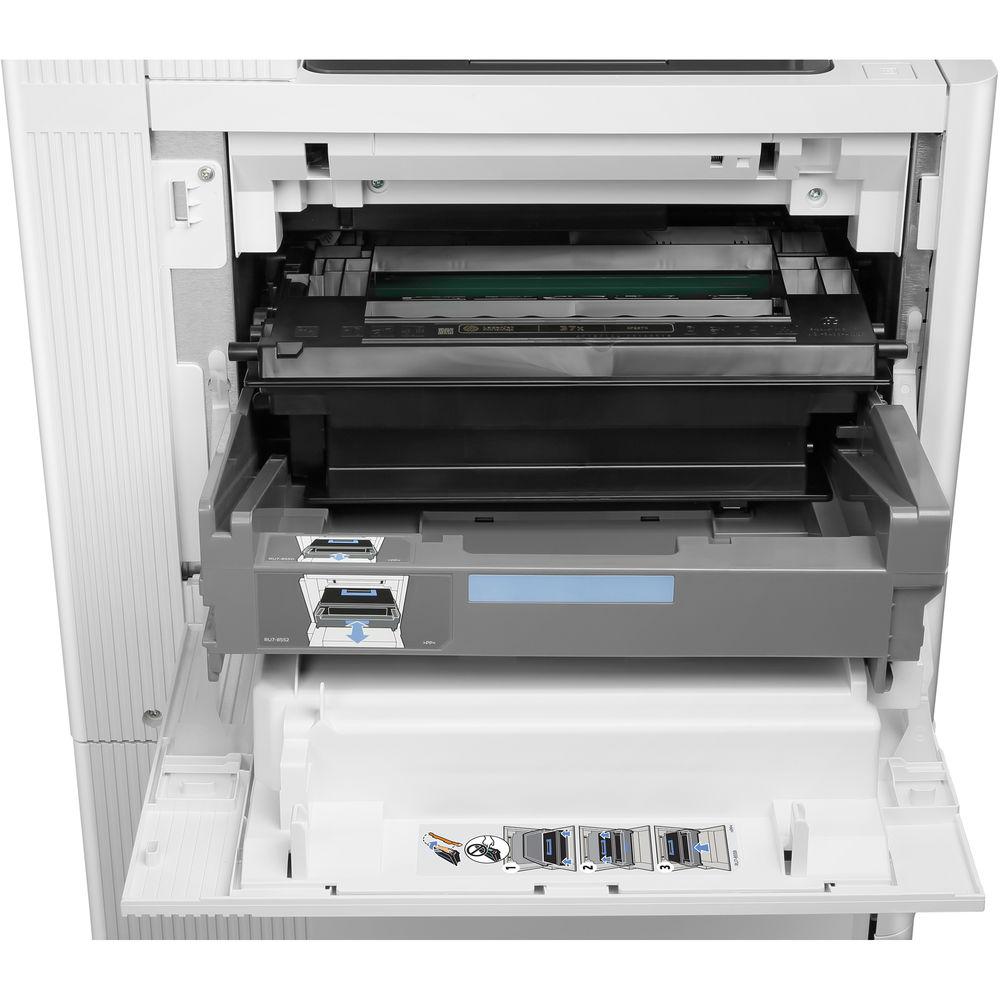

UPC: 889894195562 In the Box HP LaserJet Enterprise M632h Monochrome All-In-One Laser Printer - 37A LaserJet Enterprise Black Toner Cartridge
- Power Cord
- Documentation and Software CD-ROM
- Limited 1-Year Warranty
More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP LaserJet Enterprise M632h Monochrome All-In-One Laser Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP MFP M632h Specs | Functions | Print
Scan
Copy | | | | Printing Technology | Laser | | Print Resolution | 1200 x 1200 dpi | | Print Speed | 65 ppm | | First Print Out Speed | 5.3 seconds | | Duplex Printing | Yes | | Ink Type | Toner | | Ink Palette | Black | | Ink Cartridge Configuration | 1 individual cartridge | | Printer Duty Cycle | Monthly: 300,000 pages
Recommended Monthly Volume: 5000-30,000 pages | | Printer Language | HP PCL 6
HP PCL 5
HP PostScript Level 3 emulation
Native PDF v1.7
Apple AirPrint | | | | Scanner Type | Flatbed
ADF | | Image Sensor | Charge Coupled Device (CCD) | | Optical Resolution | 600 dpi | | Hardware Resolution | 600 x 600 dpi | | Scan Speed | 75 ppm / 120 ipm | | Scan Area | Flatbed: 8.66 x 14.38" / 22 x 36.5 cm
ADF: 2.7 x 5.8" to 8.5 x 34" / 6.8 x 14.7 cm to 21.6 x 86.4 cm | | Duplex Scanning | Yes | | Color Depth | Internal: 30-bit
External: 24-bit | | Grayscale Tones | 256 | | Scan File Format | PDF
JPEG
TIFF
MTIFF
XPS
PDF/A | | | | Copy Resolution | Flatbed: 600 x 600 dpi
ADF: 600 x 450 dpi | | Copy Speed | 65 cpm | | Reduction/Enlargement | 25-400% | | Number of Copies | Up to 9999 | | Duplex Copying | Yes | | | | Paper Handling | Multipurpose Tray 1
Input Tray 2
Automatic Document Feeder
Output Tray | | Media Sizes | Multipurpose Tray 1: 3 x 5" to 8.5 x 14" / 7.6 x 12.7 cm to 21.6 x 35.6 cm
Input Tray 2: 3.9 x 5.8" to 8.5 x 11.7" / 9.9 x 14.7 cm to 21.6 x 29.7 cm
ADF: 2.7 x 5.8" to 8.5 x 34" / 6.8 x 14.7 cm to 21.6 x 86.4 cm | | Media Weight | Multipurpose Tray 1: 16-53 lb / 60-200 gsm
Input Tray 2: 16-32 lb / 60-120 gsm
ADF: 12-53 lb / 45-199 gsm | | Paper Capacity | Multipurpose Tray 1: 100 sheets
Input Tray 2: 550 sheets
ADF: 150 sheets
Output Tray: 500 sheets | | | | Interface | USB 2.0
Ethernet | | Direct Printing | USB port
HP ePrint
Apple AirPrint
Mopria
Google Cloud Print 2.0 | | Processor | 1.2 GHz | | Memory | Printer: 1.5 GB
Scanner: 512 MB
Maximum: 2 GB | | Hard Disk | 320 GB | | Compatible Operating Systems | Windows
macOS/OS X
Linux | | | | Front Panel Controls | 8" / 20.3 cm CGD touchscreen
Button | | Power Requirements | 100-127 VAC, 50-60 Hz, 12 A | | Power Consumption | Maximum: 740 W
Ready: 29 W
Sleep: 3.3 W
Auto Off/Manual On: 0.1 W
Manual Off: 0.1 W
TES: 2.849 kWh/week | | Acoustics | Power Emissions: 7 B(A)
Pressure Emissions: 56 dB(A) | | Operating Conditions | Temperature: 59 to 90.5°F / 15 to 32.5°C
Humidity: 10 to 80%
Recommended Temperature: 59 to 80.6°F / 15 to 27°C
Recommended Humidity: 30 to 70% | | Storage Conditions | Temperature: -4 to 104°F / -20 to 40°C
Humidity: 10 to 90% | | Dimensions (WxDxH) | 20.2 x 22 x 25.2" / 51.2 x 55.8 x 64 cm
Maximum: 40.5 x 31.7 x 34.1" / 103 x 80.8 x 86.5 cm | | Weight | 73.2 lb / 33.2 kg | | | | Package Weight | 84.55 lb | | Box Dimensions (LxWxH) | 31.0 x 27.0 x 25.0" |
