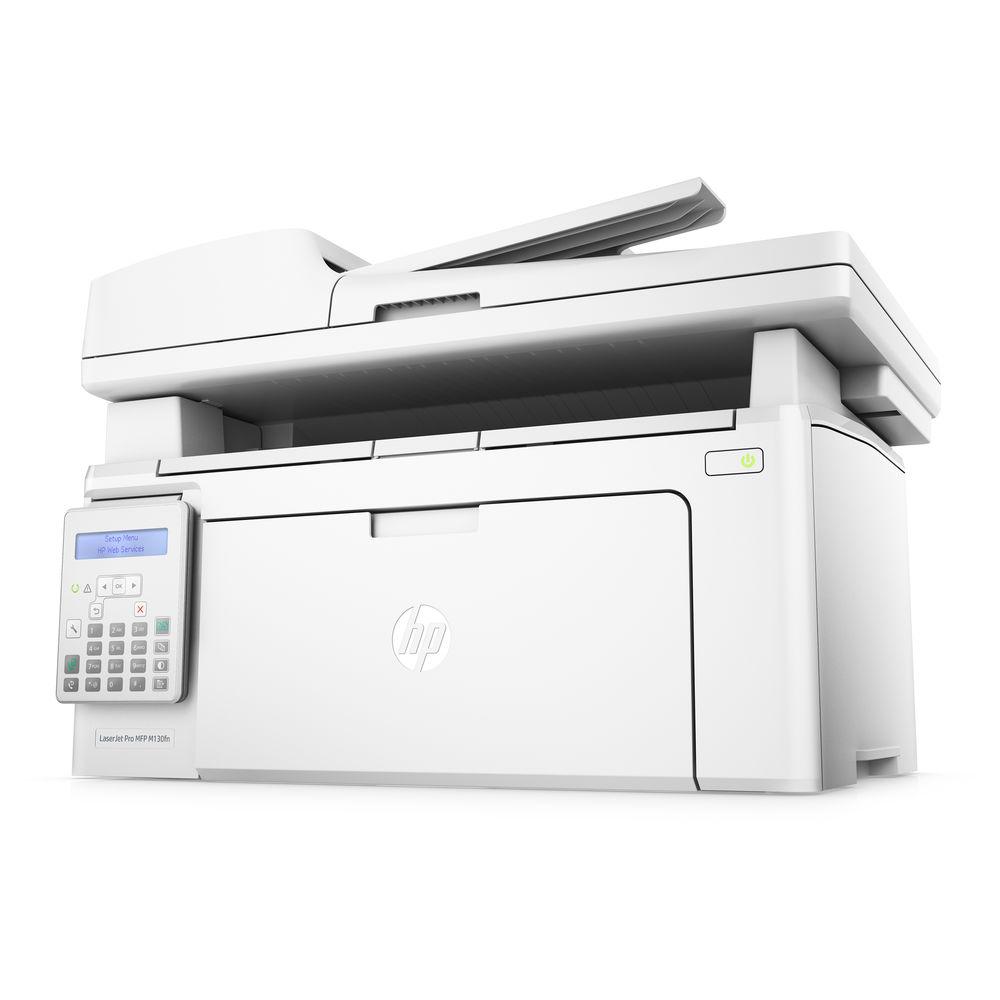

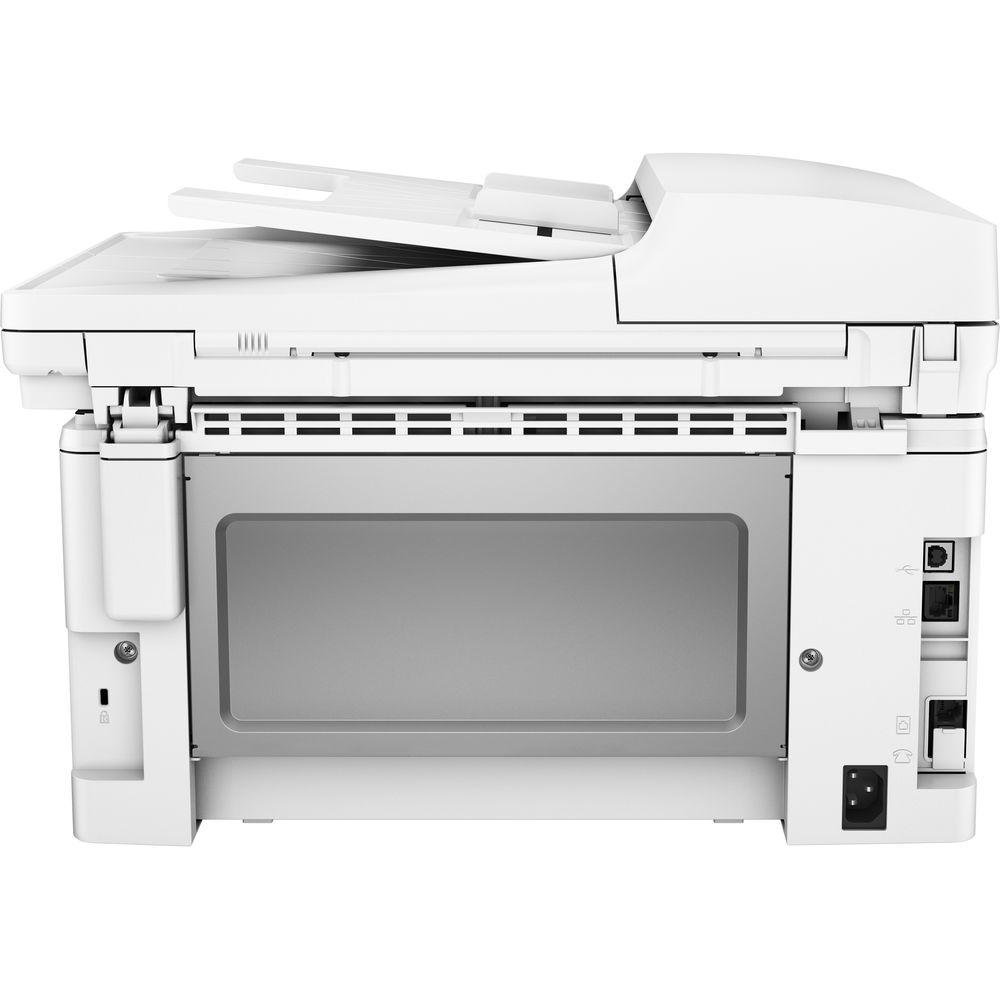

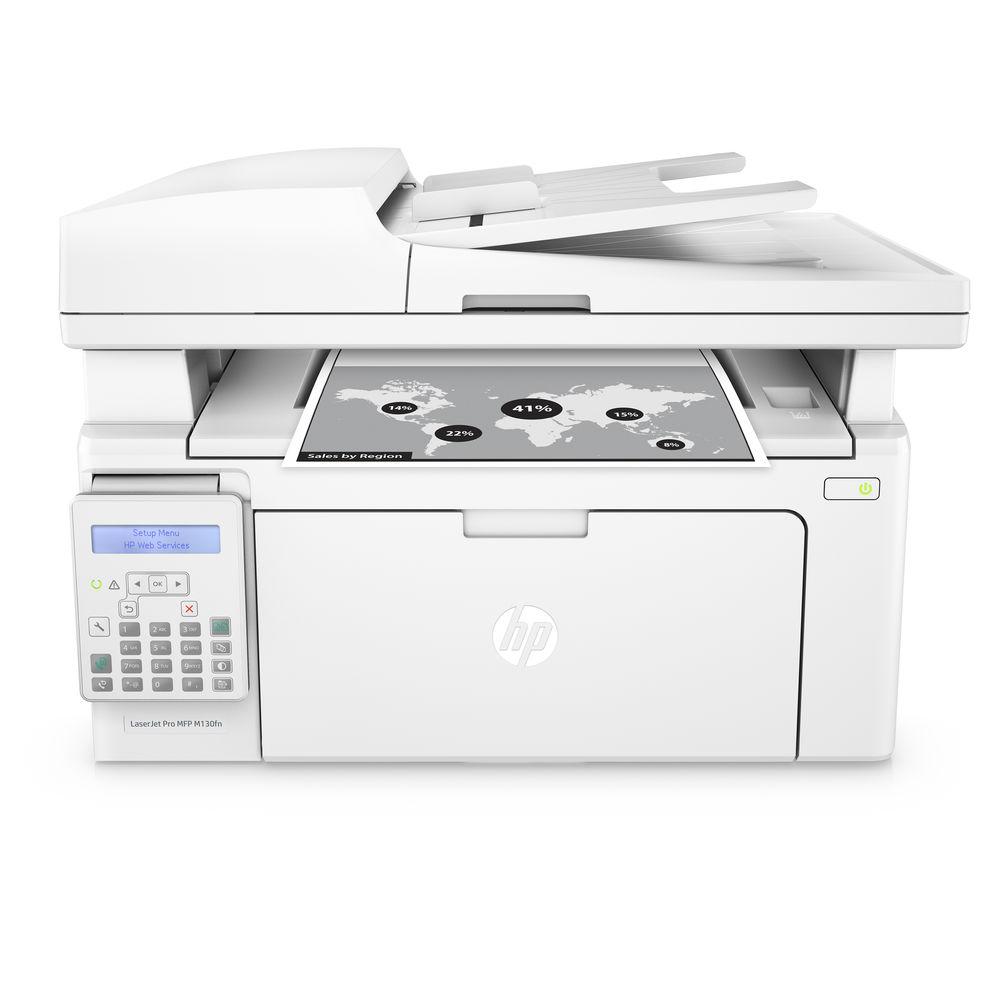

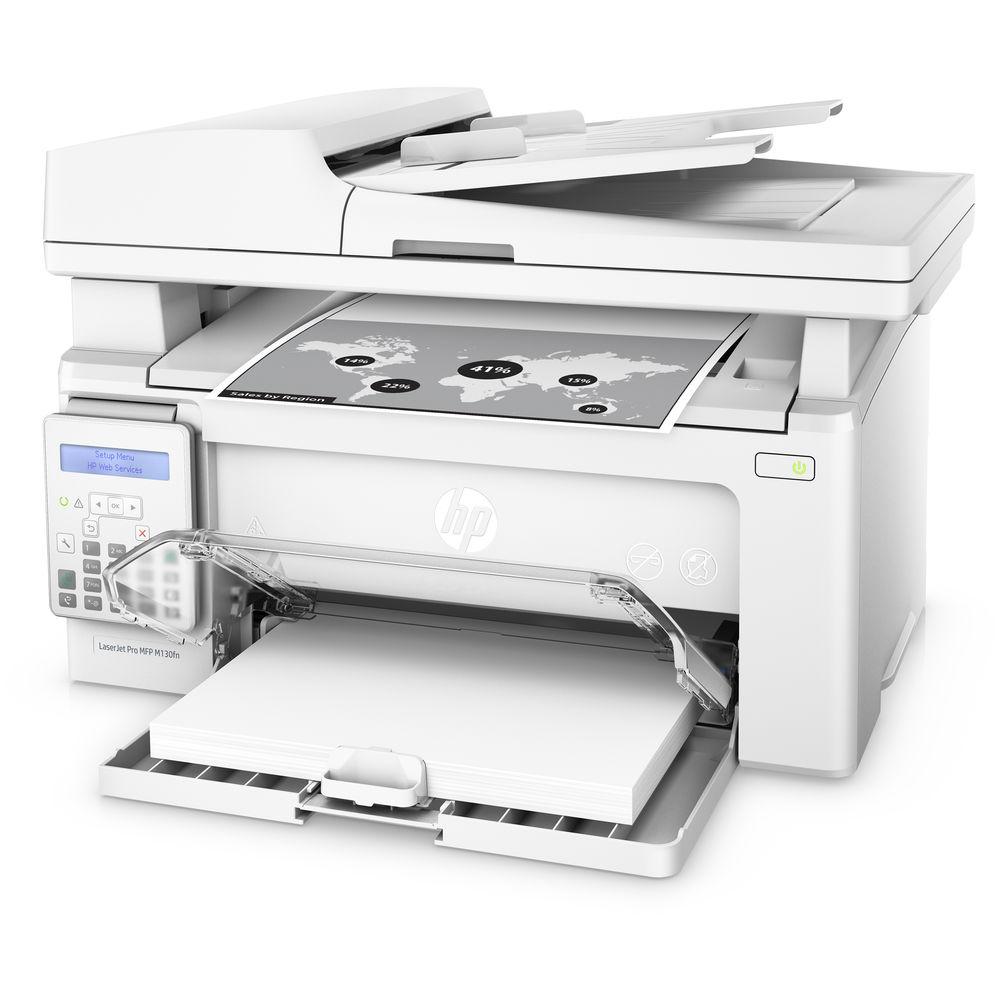

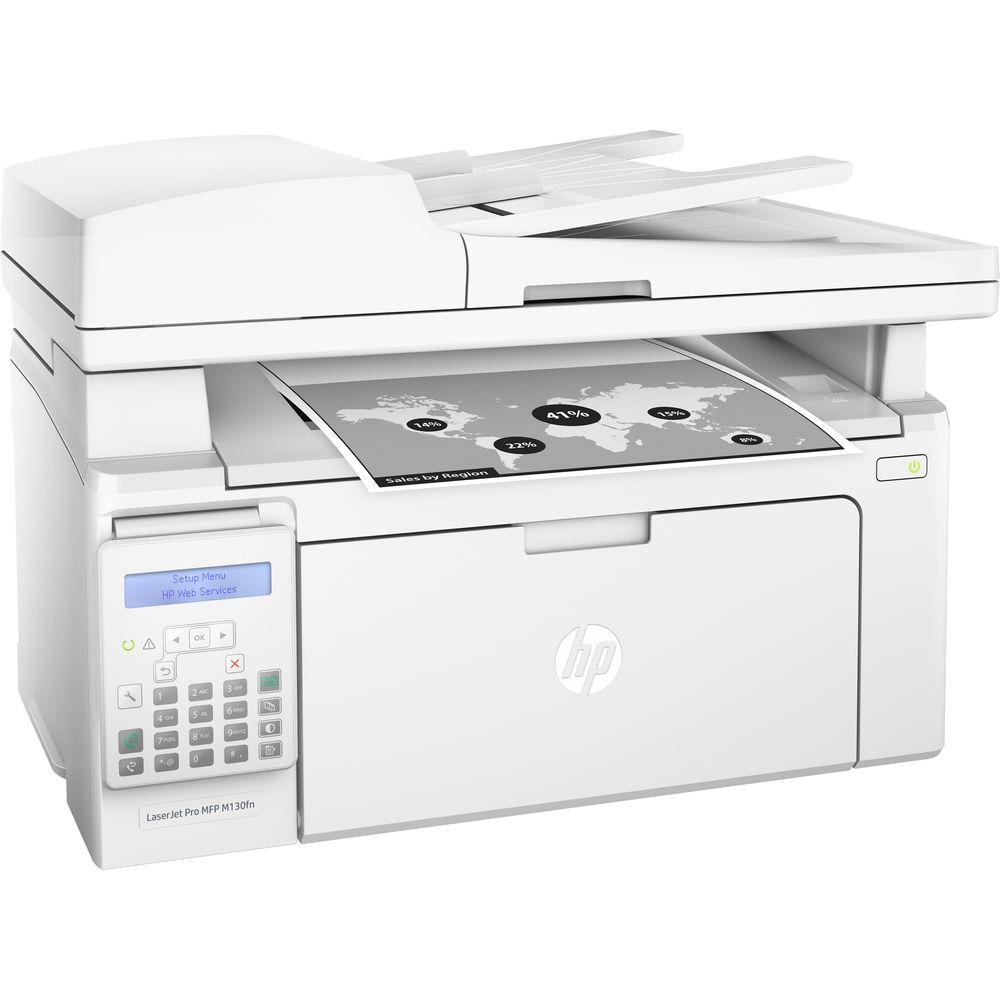

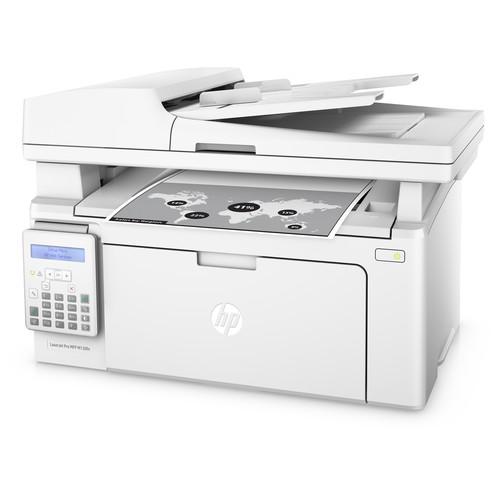

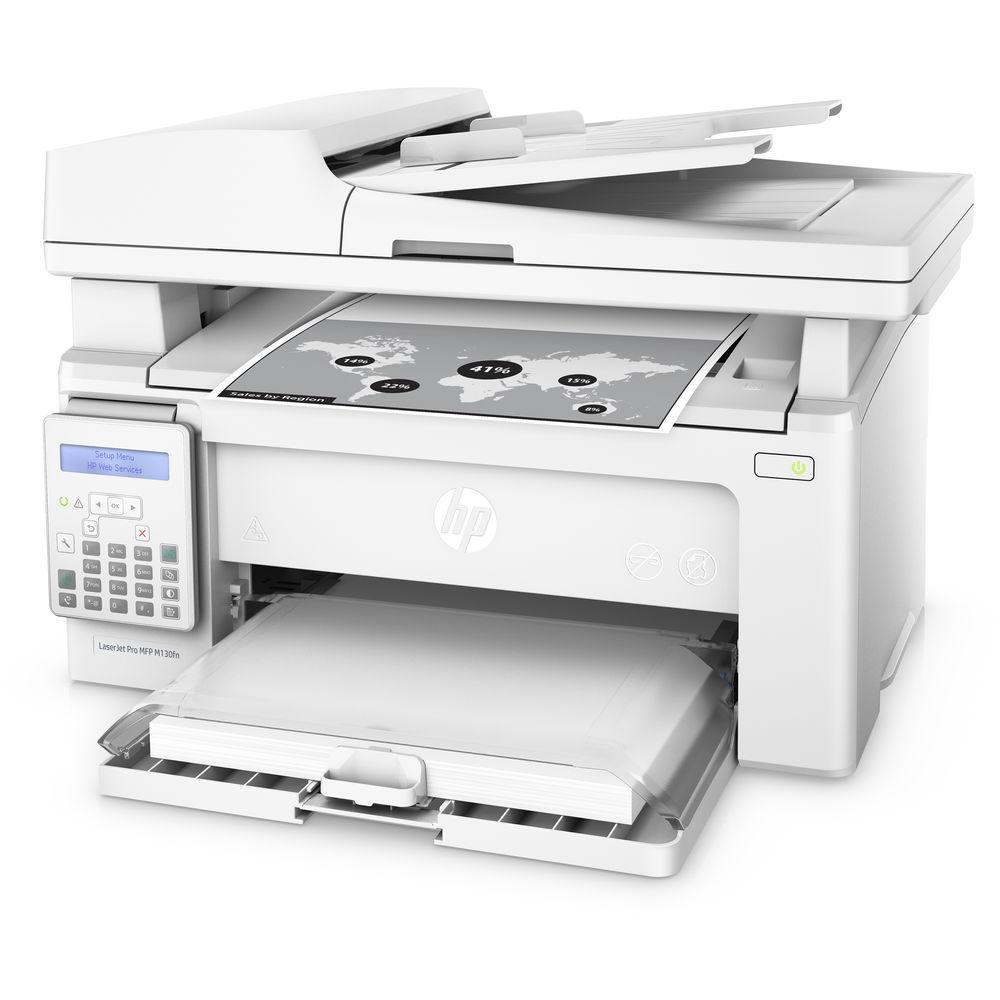

User Manual for HP LaserJet Pro M130fn All-in-One Monochrome Laser Printer Click to enlarge the picture
Contents of the user manual for the HP LaserJet Pro M130fn All-in-One Monochrome
- Product category: Laser Printers HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Laser Printers
 |
User manual for the HP LaserJet Pro M130fn All-in-One Monochrome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

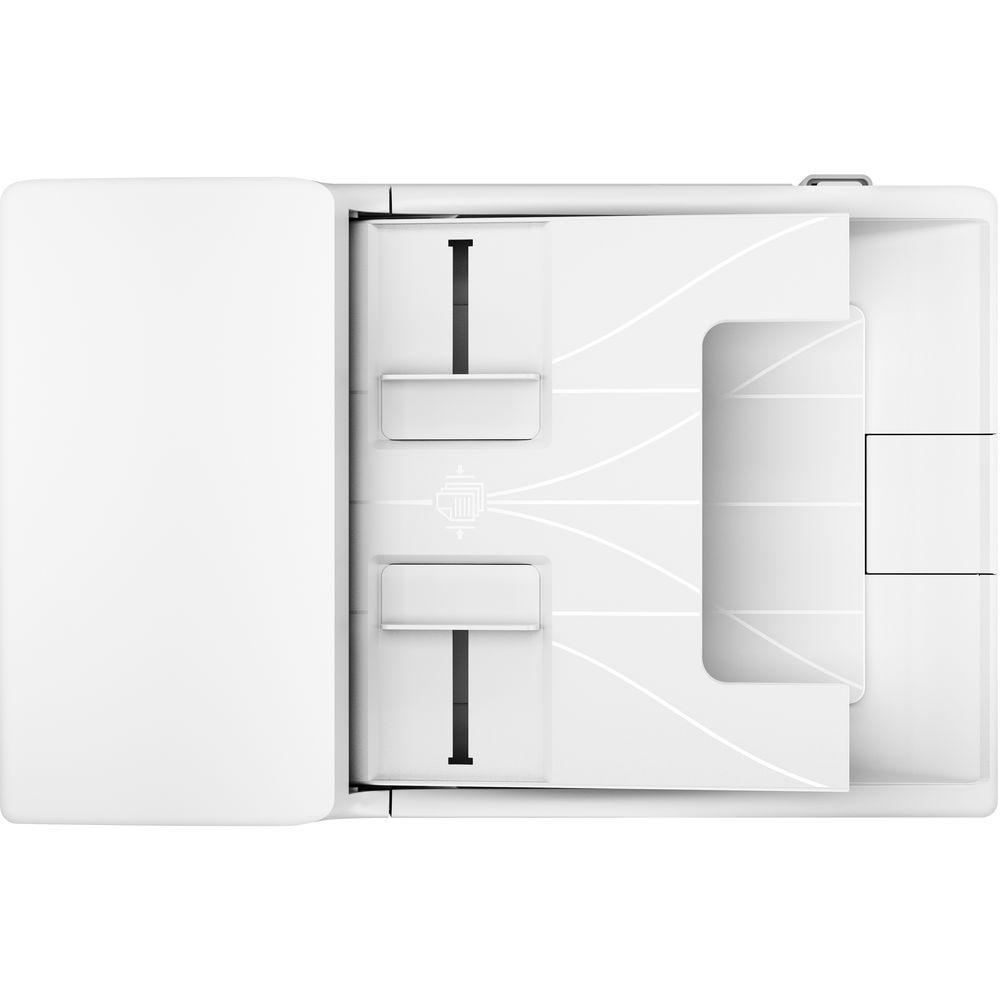

Product description Simplify your setup with the compact LaserJet Pro M130fn All-in-One Monochrome Laser Printer from HP, which packs in printing, scanning, copying, and faxing capabilities in a single unit. Create sharp documents thanks to FastRes technology, which can boost the 600 x 600 dpi resolution to effectively 1200 dpi. Also, it works quickly with a print speed of up to 23 ppm. Using a 150-sheet input tray and a 35-sheet ADF, users can print documents ranging in size from 3 x 5" to 8.5 x 14".

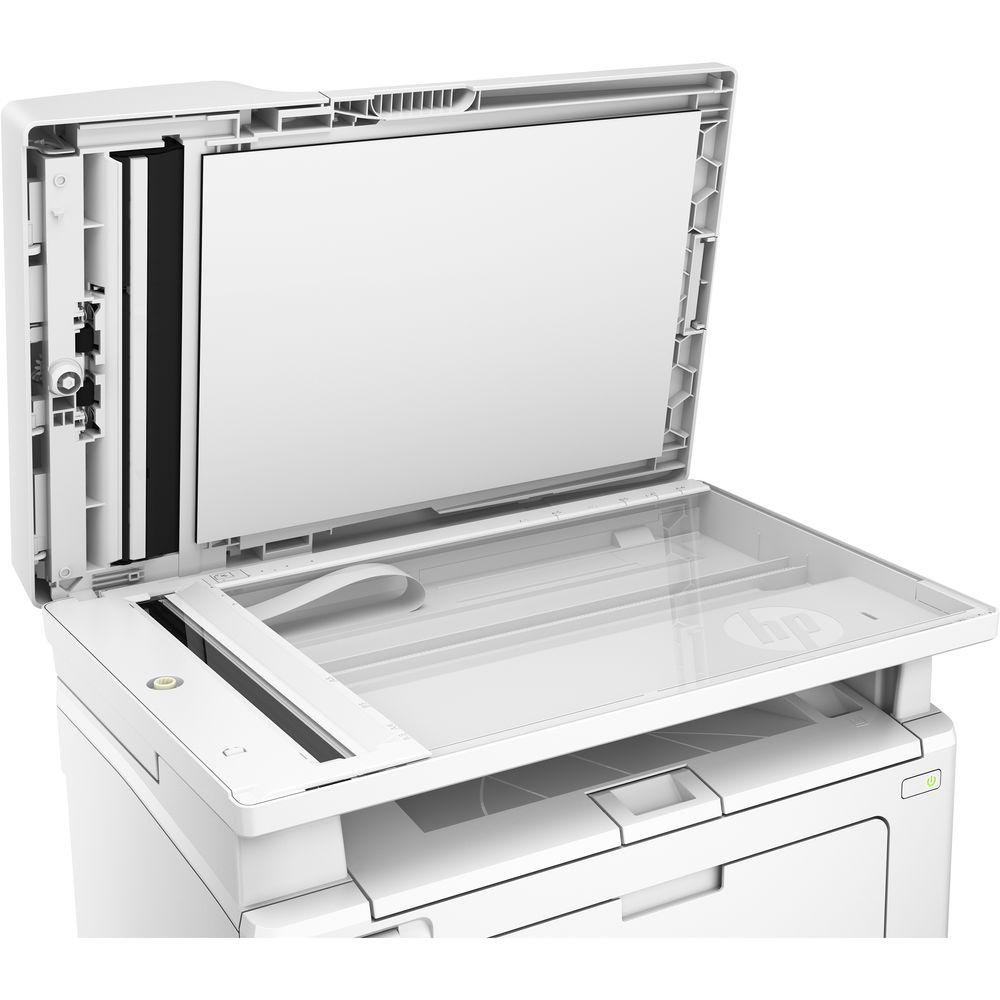

Scanning, copying, and faxing is enabled through the implementation of both flatbed and ADF scanners, both of which can handle color and black and white documents up to 8.5 x 11.7". The flatbed can reach up to 1200 dpi with monochrome scanning and 600 dpi in color while the ADF will scan at up 300 dpi. For checking status and settings, the front control panel features a 2-line LCD and numeric keypad. Additionally, it offers USB 2.0 and Ethernet for connecting to a network or a computer. - HP Auto-On/Auto-Off Technology will help save energy when the printer is not in use.
- Print through your network from a mobile device or computer thanks to built-in support for Apple AirPrint, Google Cloud Print 2.0, and Mopria.
- Copies can be adjusted with lighter/darker, optimize, and draft mode settings.
- The fax capabilities include a memory of up to 1000 pages, auto fax reduction, auto-redialing, fax delayed sending, distinctive ring support, fax forwarding, phone TAM interface support, fax polling support, telephone mode, junk barrier, speed dials, PC interface, and telephone handset support.
UPC: 725184117213 In the Box HP LaserJet Pro M130fn All-in-One Monochrome Laser Printer Introductory Black LaserJet Toner Cartridge (~700 Pages) 19A LaserJet Imaging Drum USB Cable Phone Cord Power Cord Setup Poster Documentation & Software CD-ROM Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP LaserJet Pro M130fn All-in-One Monochrome Laser Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP M130fn Specs | Functions | Print
Scan
Copy
Fax | | | | Printing Technology | Laser | | Maximum Resolution | 600 x 600 dpi | | Print Speed | 23 ppm | | First Print Out Speed | 7.3 seconds | | Duplex Printing | Manual | | Ink Palette | Black | | Ink Cartridge Configuration | 1 individual cartridge | | Duty Cycle | Monthly: 10,000 pages
Recommended Monthly Volume: 150-1,500 pages | | Printer Language | PCLmS
WRF
PWG | | | | Type | Flatbed
ADF | | Image Sensor | Contact Image Sensor (CIS) | | Optical Resolution | ADF: 300 dpi
Flatbed: 600 dpi (color), 1200 dpi (monochrome) | | Hardware Resolution | ADF: 300 x 300 dpi
Flatbed: 600 x 600 dpi (color), 1200 x 1200 dpi (monochrome) | | Scan Speed | 12 ppm | | Color Depth | 24-bit | | Grayscale Tones | 256 levels | | Maximum Scan Size | Flatbed: 8.5 x 11.7" / 21.6 x 29.7 cm
ADF: 8.5 x 11.7" / 21.6 x 29.7 cm | | Scan File Format | JPEG
PDF
PNG
BMP
TIFF | | | | Copy Resolution | 600 x 400 dpi | | Copy Speed | 23 cpm | | Number of Copies | Up to 99 | | Reduction/Enlargement | 25-400% | | Maximum Copy Size | 8.5 x 11.7" / 21.6 x 29.7 cm | | | | Modem Speed | 4.2 kBps | | Transmission Speed | 3 seconds per page | | Fax Resolution | Best: 300 x 300 dpi
Standard: 203 x 98 dpi | | Memory | 1000 pages | | Speed Dial Capacity | 120 numbers
119 group dials/broadcast locations | | | | Paper Handling | Input tray 1
Automatic document feeder
Output tray | | Paper Sizes | 3 x 5" to 8.5 x 14" / 7.6 x 12.7 cm to 21.6 x 35.6 cm | | Paper Weight | 16-43 lb | | Paper Capacity | Input Tray 1: 150 sheets
ADF: 35 sheets
Output Tray: 100 sheets | | Special Media Support | Envelopes | | | | Interface | USB 2.0
Ethernet
RJ11 | | Processor | 600 MHz | | Memory | 256 MB | | Compatible Operating Systems | Windows
Mac OS X
Linux | | | | Control Panel | 2-line LCD
Numeric keypad | | Acoustic Noise | Power Emissions: 6.5 B(A)
Pressure Emissions: 51 dB(A) | | Power Requirements | 110-240 VAC (±10%), 50/60 Hz, 2.8-4.8 A | | Power Consumption | Maximum: 255 W
Ready: 4.2 W
Sleep: 1 W
Off: 0.05 W | | Operating Conditions | Temperature: 59 to 90.5°F / 15 to 32.5°C
Humidity: 10 to 80%
Recommended Temperature: 63.5 to 77°F / 17.5 to 25°C
Recommended Humidity: 30 to 70% | | Storage Conditions | Temperature: -4 to 140°F / -20 to 60°C
Humidity: 10 to 90% | | Dimensions (WxDxH) | 16.3 x 11.3 x 11" / 41.4 x 28.8 x 27.9 cm
Maximum: 16.3 x 20.1 x 16.7" / 41.4 x 51.1 x 42.4 cm | | Weight | 16.8 lb / 7.6 kg | | | | Package Weight | 24.05 lb | | Box Dimensions (LxWxH) | 19.1 x 13.6 x 12.9" |
