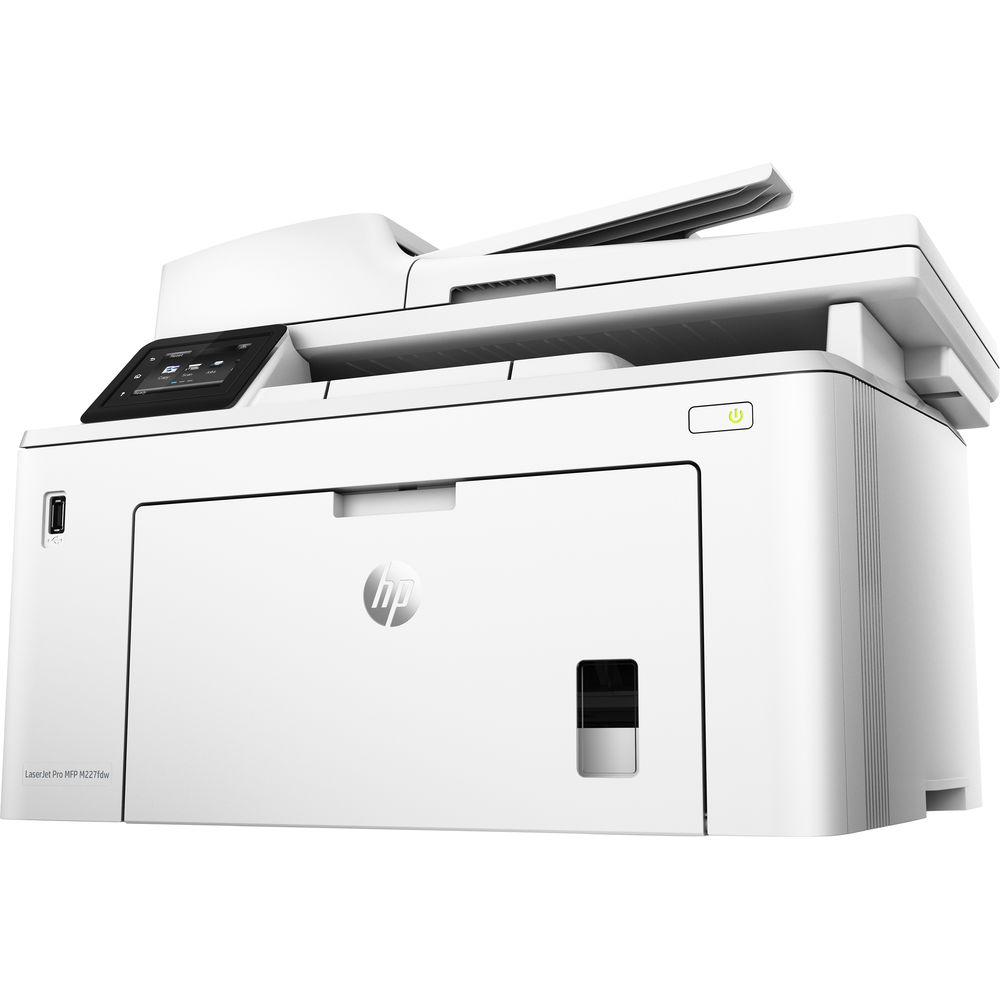

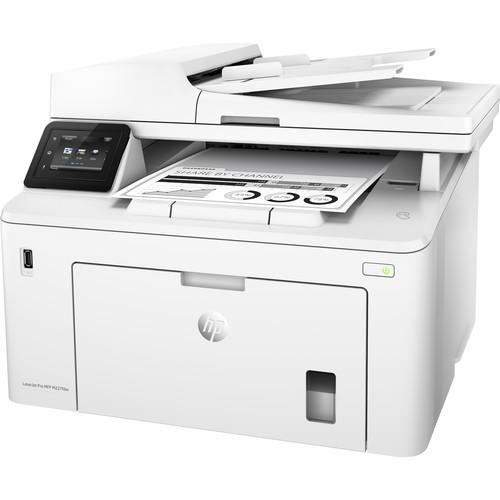

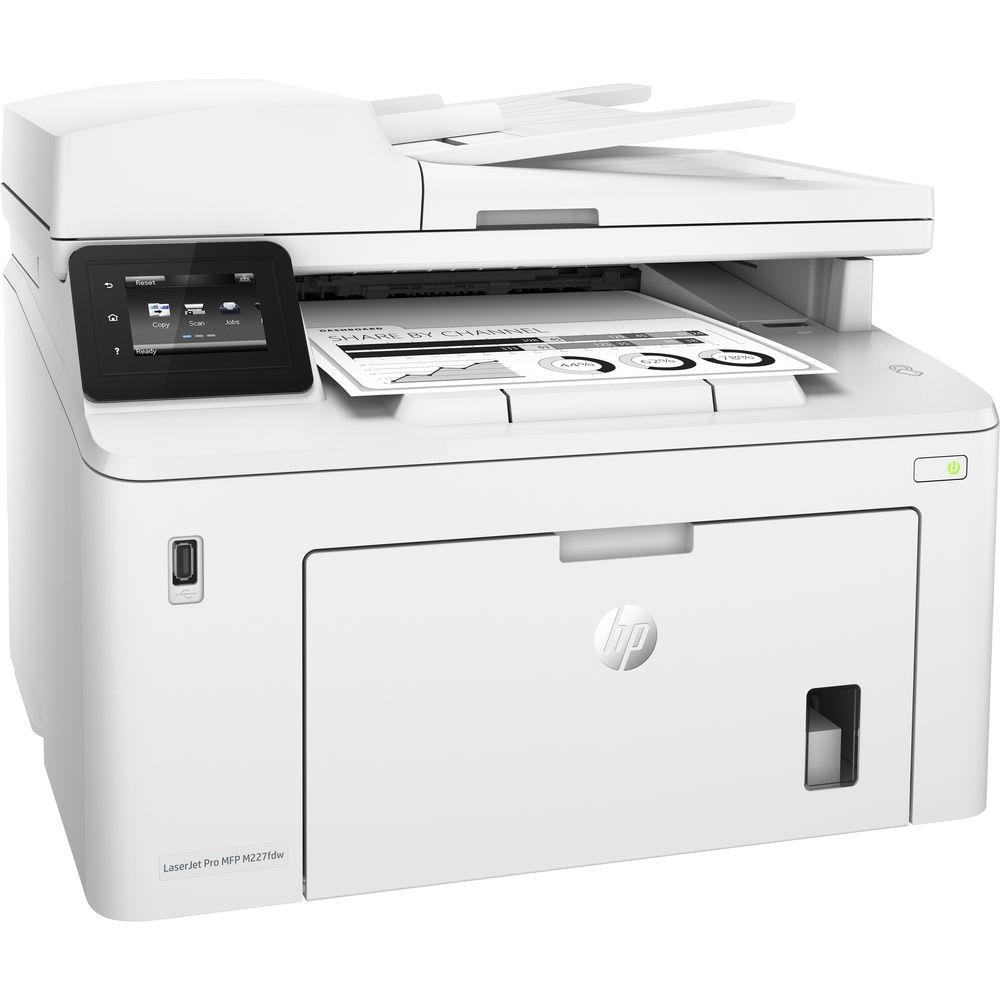

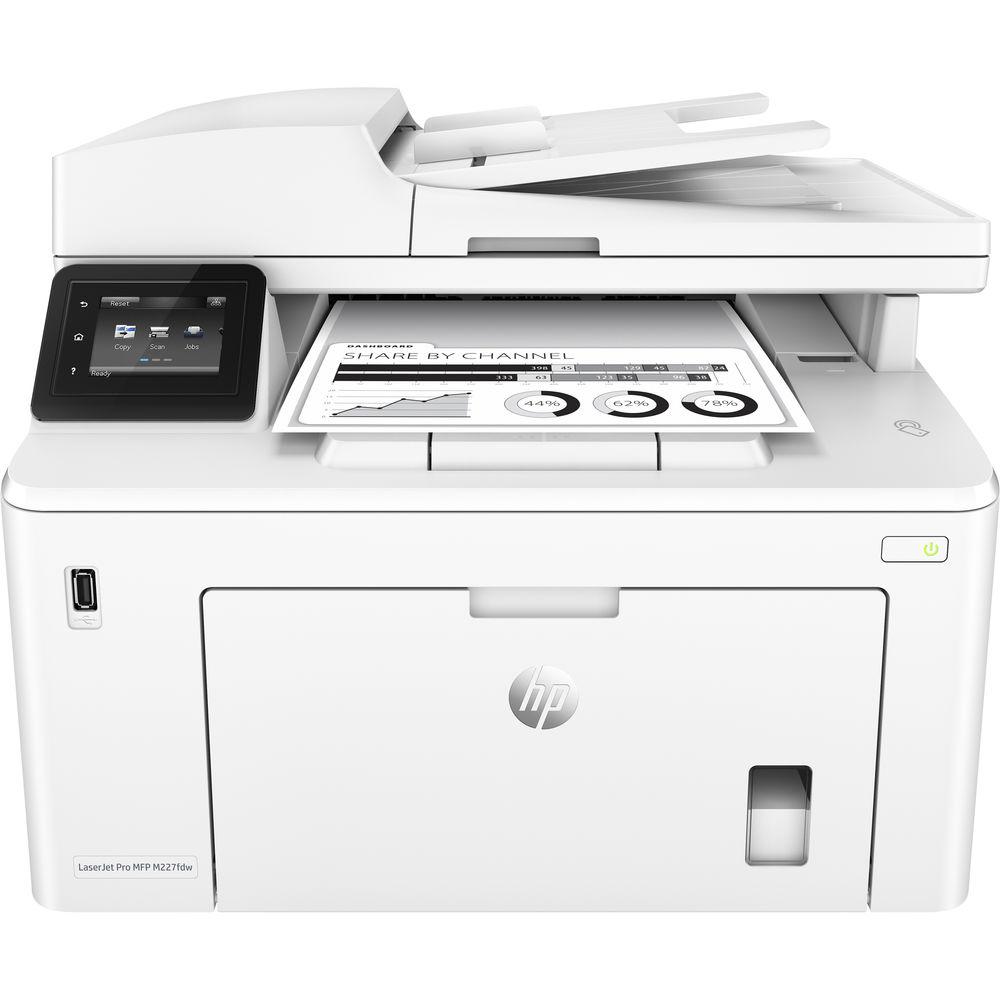

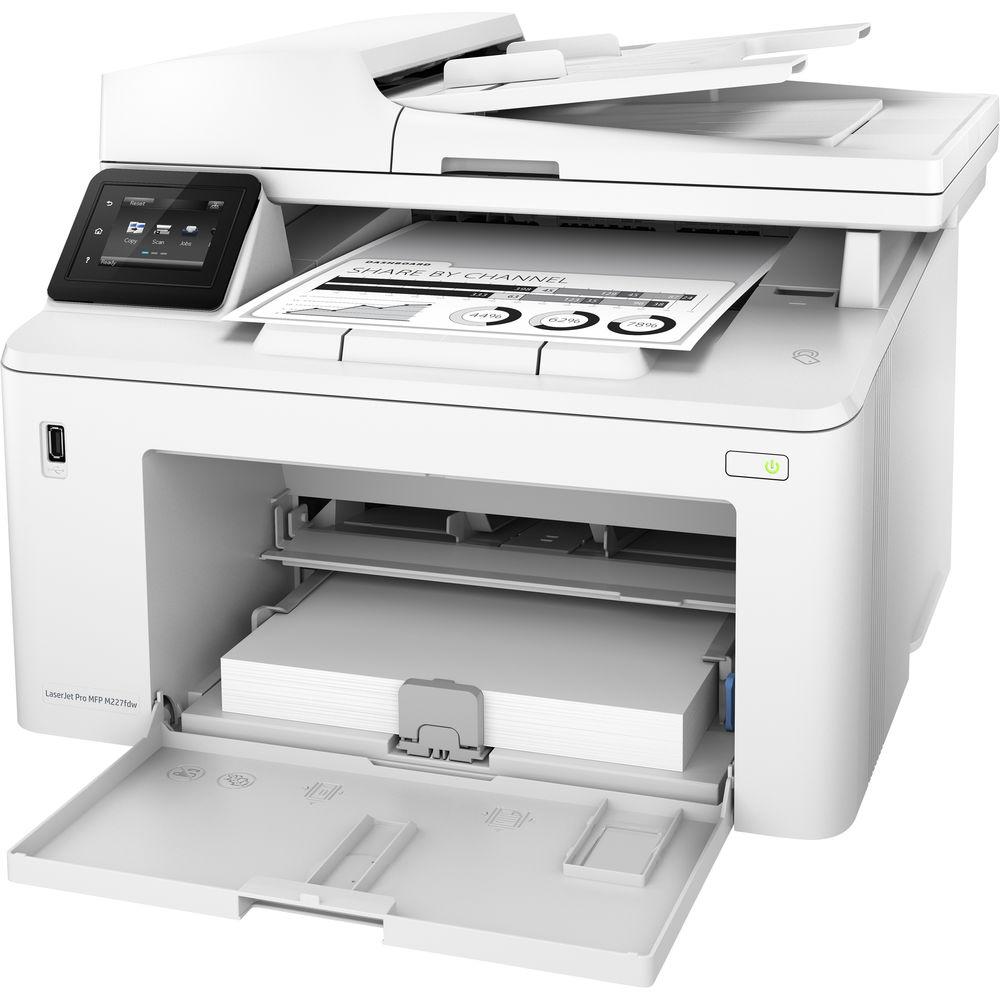

Product description Able to easily fit into smaller workspaces, the LaserJet Pro M227fdw All-in-One Monochrome Laser Printer from HP still manages to deliver outstanding speed as well as a multi-functional design that incorporates printing, scanning, copying, and faxing into a single unit. It will help your office deliver sharp documents with its 1200 x 1200 dpi resolution and can work quickly and efficiently at up to 30 ppm in simplex. Automatic duplex printing is also available at up to 18 ipm and the printer has built-in Wi-Fi connectivity and NFC for various mobile printing protocols, including tap-to-print.

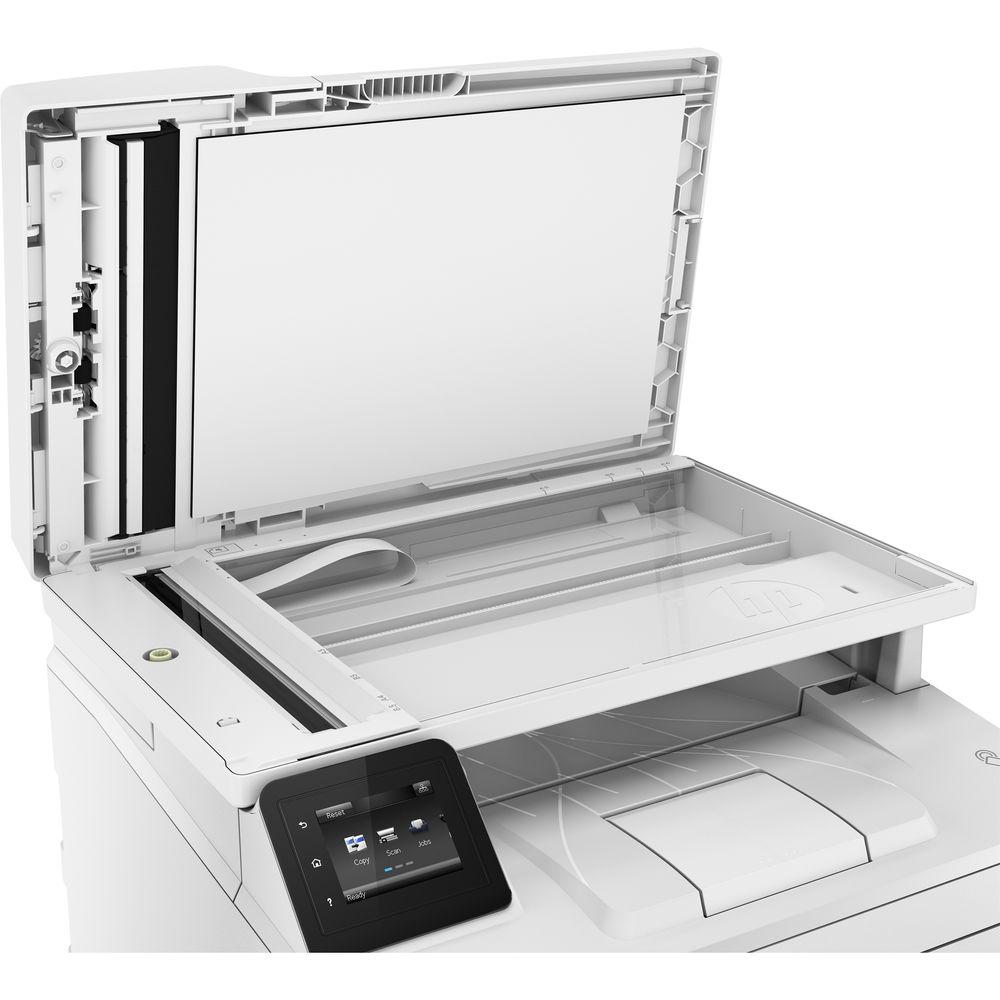

Opening the door for scanning, copying, and faxing is the inclusion of the 8.5 x 11.7" flatbed and a 35-sheet ADF that can work with media up to 8.5 x 14" in size. General media handling is offered in two ways, either through the main 250-sheet input tray or a 10-sheet priority tray. Operation of the printer is intuitive through the 2.7" touchscreen LCD and there is a front USB port for directly printing from or scanning to a portable drive. Additionally, it offers USB 2.0 and Ethernet, in addition to the wireless options. - Print
-
- HP ProRes and FastRes technology with laser printing at up to 1200 x 1200 dpi.
- Print speeds of up to 30 ppm as well as duplex printing at up to 18 ipm.
- First print out speed of 6.7 seconds.
- Standard print languages include PCL 6, PCL 5c, PS, PCLmS, PDF, URF, and PWG.
- Mobile printing is possible using HP ePrint, Apple AirPrint, Google Cloud Print 2.0, Wi-Fi Direct, and NFC touch-to-print protocols.
- Smart software features include Instant-on Technology, HP Auto-On/Auto-Off Technology, JetIntelligence cartridges, and duplex printing.
- Printer management is possible using HP Printer Assistant (UDC), HP Utility (Mac), HP Device Toolbox, and HP JetAdvantage Security Manager.
- This printer features a monthly duty cycle of 30,000 pages with a recommended monthly volume of 250-2500 pages.
- Scan
-
- Flatbed with 8.5 x 11.7" glass for delicate or unusually-sized originals.
- The 35-sheet ADF offers scanning rates of 15 ppm.
- Optical scan resolution of 600 dpi for detailed color images and 1200 dpi for sharp monochrome images.
- A color depth of 24-bit and 256 grayscale levels help ensure color accurate images with smooth gradations.
- Supported scan file formats include JPG, RAW (BMP), PNG, TIFF, and PDF.
- Digital Sending features include scan to email, scan to USB, and save to network folder.
- Copy
-
- Copy documents up to 8.5 x 14" via the ADF scanner or 8.5 x 11.7" via the flatbed.
- Copy resolutions of up to 600 x 600 dpi are available.
- Can produce up to 30 cpm as well as print duplex copies at a rate of 18 cpm.
- Reduction/enlargement from 25-400%.
- Standard copy features include lighter/darker, optimize, multi-page copy, collation, and draft mode.
- Fax
-
- Using a 33.6 kbps modem, this fax can transmit a document in about 3 seconds.
- It offers fax resolutions of up to 300 x 300 dpi.
- This unit supports fax sizes up to 8.5 x 14".
- There are 120 speed dial locations and 119 group dials.
- Broadcasting is possible for up to 119 locations.
- Fax features include auto fax reduction, auto redialing, delayed sending, distinctive ring detection, fax forwarding, support for TAM interfaces, fax polling (poll to receive only), telephone mode, junk barrier, PC interface support, and telephone handset support.
- Media Handling
-
- A 10-sheet priority tray can work with media from 3 x 5" up to 8.5 x 14" in size.
- The 250-sheet input tray can accept media from 3 x 5" up to 8.5 x 14".
- The 35-sheet ADF works with media from 5.8 x 8.3" up to 8.5 x 14".
- The output tray can hold up to 150 sheets.
- Works with paper (laser, plain, photo, rough, vellum) envelopes, labels, cardstock, and postcards.
- General
-
- HP Auto-On/Auto-Off Technology, as well as HP Instant-On Technology, help limit power usage when the printer is not in use.
- ENERGY STAR, Blue Angel, and EPEAT Silver certified.

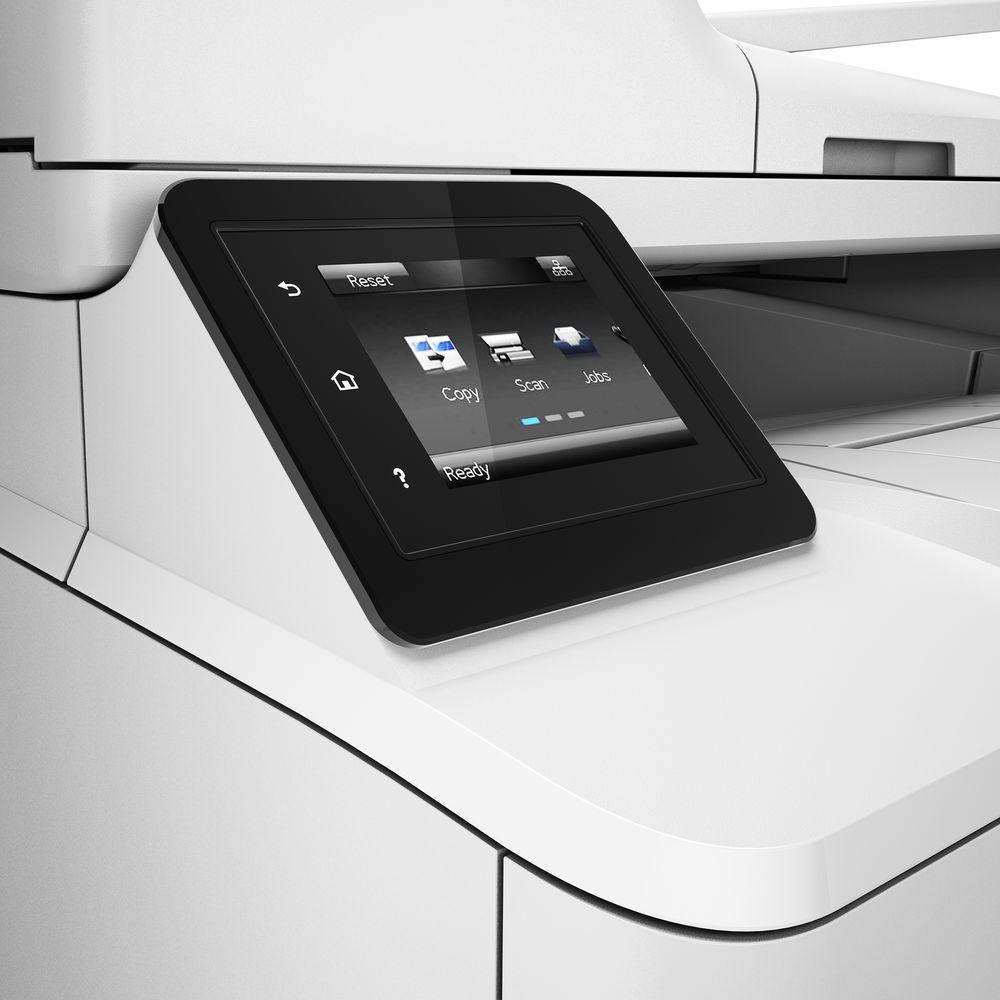

- A 2.7" touchscreen LCD and keypad provide an effective and intuitive method for controlling settings and entering data.
- The printer uses a 800 MHz processor and comes with 256MB of memory

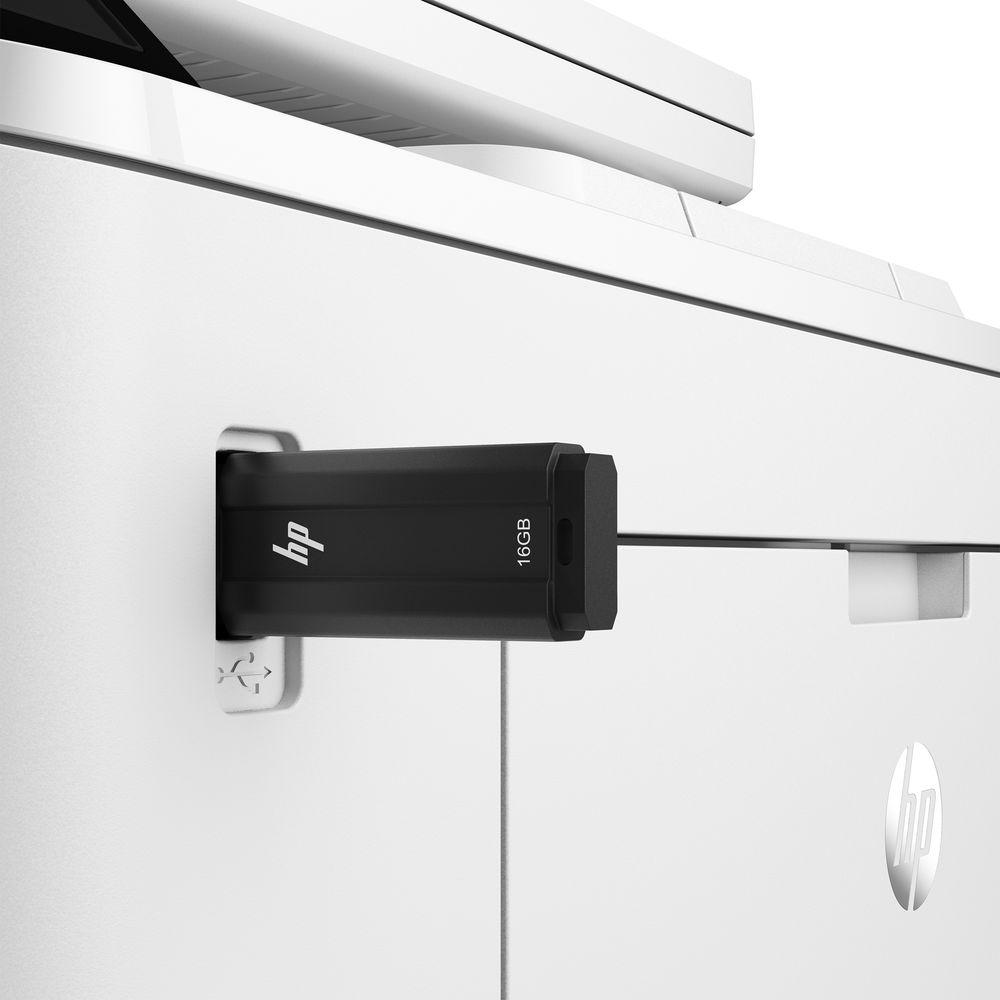

- Front USB for printing from and scanning to a portable drive.
- USB 2.0, Ethernet, and Wi-Fi with NFC connectivity options.
UPC: 725184115059 In the Box HP LaserJet Pro M227fdw All-in-One Monochrome Laser Printer - 30A Black Original LaserJet Toner Cartridge
- 32A Original Black LaserJet Imaging Drum
- Power Cord
- Software & Documentation CD-ROM
- Limited 1-Year Warranty
More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP LaserJet Pro M227fdw All-in-One Monochrome Laser Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP M227fdw Specs | Functions | Print
Scan
Copy
Fax | | | | Printing Technology | Laser | | Maximum Resolution | 1200 x 1200 dpi | | Print Speed | Simplex: 30 ppm
Duplex: 18 ipm | | First Print Out Speed | 6.7 seconds | | Duplex Printing | Yes | | Ink Palette | Black | | Ink Cartridge Configuration | 1 individual cartridge | | Duty Cycle | Monthly: 30,000 pages
Recommended Monthly Volume: 250-2500 pages | | Printer Language | PCL 6
PCL 5c
PS
PCLmS
PDF
URF
PWG | | | | Type | Flatbed
ADF | | Image Sensor | CIS | | Optical Resolution | Flatbed: 600 dpi color / 1200 dpi monochrome
ADF: 300 dpi | | Hardware Resolution | Flatbed: 600 x 600 dpi color / 1200 x 1200 dpi monochrome
ADF: 300 x 300 dpi | | Scan Speed | 15 ppm | | Color Depth | 24-bit | | Grayscale Tones | 256 | | Duplex Scanning | No | | Maximum Scan Size | Flatbed: 8.5 x 11.7" / 21.6 x 29.7 cm
ADF: 8.5 x 14.0" / 21.6 x 35.6 cm | | Scan File Format | JPG
RAW (BMP)
PNG
TIFF
PDF | | | | Copy Resolution | 600 x 600 dpi | | Copy Speed | Simplex: 30 cpm
Duplex: 18 cpm | | Number of Copies | Up to 99 | | Reduction/Enlargement | 25-400% | | Duplex Copying | Yes (printing only) | | Maximum Copy Size | 8.5 x 14.0" / 21.6 x 35.6 cm | | | | Modem Speed | 33.6 kbps | | Transmission Speed | 3 sec/page | | Fax Resolution | Super-Fine: 300 x 300 dpi
Standard: 203 x 98 dpi | | Max Size | 8.5 x 14.0" / 21.6 x 35.6 cm | | Fax Memory | 1000 pages | | Speed Dialing | 120 numbers | | Fax Broadcasting | 119 locations | | | | Paper Handling | Input Tray
Priority Tray
Automatic Document Feeder
Output Tray | | Paper Sizes | Input Tray: 3.0 x 5.0" to 8.5 x 14.0" / 7.6 x 12.7 cm to 21.6 x 35.6 cm
Priority Tray: 3.0 x 5.0" to 8.5 x 14.0" / 7.6 x 12.7 cm to 21.6 x 35.6 cm
ADF: 5.8 x 8.3" to 8.5 x 14.0" / 14.9 x 21.0 cm to 21.6 x 35.6 cm | | Paper Weight | Input Tray: 16-43 lb / 60-163 gsm
Priority Tray: 16-43 lb / 60-163 gsm
ADF: 18.5-24 lb / 70-90 gsm | | Paper Capacity | Input Tray: 250 sheets
Priority Tray: 10 sheets
ADF: 35 sheets
Output Tray: 150 sheets | | | | Interface | USB 2.0
Ethernet
2 x RJ11
Wi-Fi
NFC | | Direct Printing | USB port
Wi-Fi Direct
NFC Touch-to-Print
HP ePrint
Apple AirPrint
Google Cloud Print 2.0 | | Processor | 800 MHz | | Memory | 256 MB | | Hard Drive | None | | Compatible Operating Systems | Windows
Mac OS X, macOS
Linux
UNIX | | | | Control Panel | 2.7" / 6.9 cm touchscreen LCD
Keypad | | Acoustic Noise | Pressure Emissions
Printing: 52 dB(A)
Scanning: 44 dB(A)
Copying: 51 dB(A)
Ready: 16 dB(A)
Power Emissions
Printing: 6.6 B(A)
Scanning: 5.7 B(A)
Copying: 6.5 B(A)
Ready: 2.8 B(A) | | Power Requirements | 110-127 VAC, 50/60 Hz, 5.9 A | | Power Consumption | Maximum: 475 W
Ready: 4.5 W
Sleep: 1 W
Auto-Off/Auto-On: 0.1 W
Auto-Off/Manual-On: 0.05 W
Off: 0.05 W | | Typical Power Consumption | 0.9 kWh/week | | Operating Conditions | Temperature: 59 to 90.5°F / 15 to 32.5°C
Humidity: 10 to 80%
Recommended Temperature: 63.5 to 77°F / 17.5 to 25°C
Recommended Humidity: 30 to 70% | | Storage Conditions | Temperature: -4 to 140°F / -20 to 60°C
Humidity: 10 to 90% | | Dimensions (WxDxH) | 15.9 x 16.0 x 12.3" / 40.3 x 40.7 x 31.2 cm
Maximum: 15.9 x 24.6 x 17.9" / 40.3 x 62.4 x 45.6 cm | | Weight | 20.7 lb / 9.4 kg | | | | Package Weight | 29.0 lb | | Box Dimensions (LxWxH) | 19.5 x 19.4 x 15.5" |
