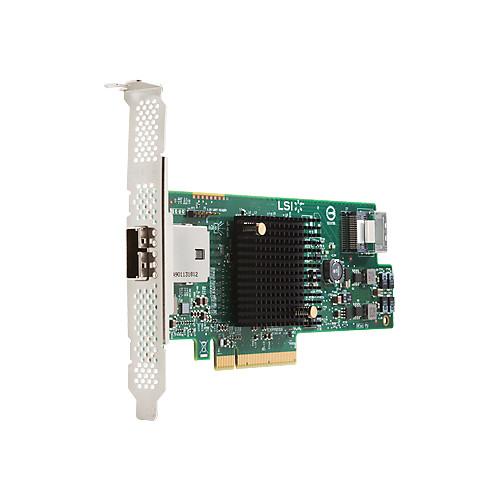

Product description The LSI 9217 8-Port 6 Gb/s SAS RAID Controller Card from HP is designed to provide high-speed throughput to internal drives and scalability to external storage arrays. It features four internal and four external 6 Gb/s SAS/SATA ports along with one internal and external x4 mini-SAS. The card enables fast signaling of high-bandwidth applications with eight lanes of PCIe 3.0. With a low profile form factor design, it offers integrated RAID (0, 1, 1E, and 10) support. This card supports up to 256 SAS or SATA end devices and is compatible with HP Z420 and HP Z620 workstations. - The card features four internal and four external 6 Gb/s SAS/SATA ports
- One x4 internal mini-SAS (SFF8087), one x4 external mini-SAS (SFF8088)
- Eight lanes of PCIe 3.0 provide faster signaling for high-bandwidth applications
- Low profile form factor design
- Offers integrated RAID level (0, 1, 1E, and 10) support
- Fusion-MPT 2.0 architecture
- Supports up to 256 SAS or SATA end devices
UPC: 887758427767 In the Box HP LSI 9217 8-Port 6 Gb/s SAS RAID Controller Card Driver CD Internal mini-SAS (SFF8087) Connectors for use in Z420 & Z620 Workstations Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP LSI 9217 8-Port 6 Gb s SAS RAID Controller Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP E0X20AA Specs | | | Version | PCIe 3.0 | | Lanes | 8 | | RAID Level | Integrated RAID 0, 1, 1E, and 10 | | Data Burst Transfer Rate | Half Duplex x8, PCIe: 8000 MB/s | | Card Type | 3.3 V add-in card | | Voltage | 12 V ± 10% | | Power | Typical: 9.8 W, airflow minimum 200 LFM | | Certification | PCIe 3.0 compliant | | | | Bandwidth | Half Duplex: 600 MB/s per lane | | Processor | LSI SAS2308/fusion MPT 2.0 | | | | Internal | Four 6 Gb/s SAS/SATA
One x4 mini-SAS (SFF8087) | | External | Four 6 Gb/s SAS/SATA
One x4 mini-SAS (SFF8088) | | Maximum Number of SCSI Devices | 256 non-RAID SAS/SATA devices | | OS Support | Windows 7 Professional (32/64-bit), Windows 8 Pro (64-bit)
Linux SLED and RHEL | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -49 to 221°F (-45 to +105°C) | | Relative Humidity | Operating: 5 to 90% (non-condensing)
Storage: 5 to 90% (non-condensing) | | Bracket | Full height and low profile | | MTBF | >2,000,000 hours | | Compliance | EMC: Class B-US (CFR 47, P15B), Canada (ICES-003), Japan (V-3/02.04), Europe (EN55022/EN55024), Australia/New Zealand (AS/NZS 3548)
Safety: EN60950, RoHS, WEEE | | Dimensions (H x W) | 2.6 x 6.6" (6.6 x 16.7 cm) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 9.9 x 8.2 x 2.6" |
