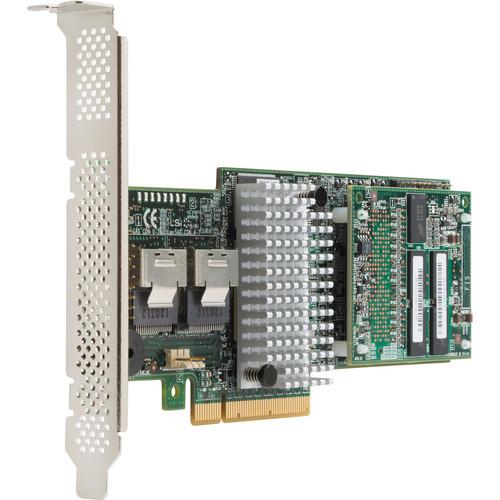

Product description The LSI 9270-8i SAS 6 Gb/s ROC Internal RAID Card from HP offers a combination of enterprise RAID data protection and proven interoperability with workstations and server platforms, based on the PCIe 3.0 specification. The card features eight internal ports, two 800 MHz PC processor cores, and a 72-bit DDR3 interface that drives 1GB cache memory. Powered by the LSISAS2208 dual core ROC, the controller card includes PCIe 3.0 and 6 Gb/s SAS/SATA technology to maximize the performance benefits of solid-state storage. Standard support for RAID level and accessories, including RAID 5, RAID 6, and battery backup, further strengthen the data protection capabilities of the MegaRAID SAS 9270-8i. - The controller card consists of eight internal 6 Gb/s SATA+ SAS ports over two mini-SAS (SFF8087) internal connectors
- With 1GB DDR3 cache memory, the card also supports PCIe 3.0 host interface
- Supports RAID levels 0, 1, 5, 6, 10, 50, 60
- Support for optional heat-tolerant battery backup module
UPC: 887758427774 In the Box HP LSI 9270-8i SAS 6 Gb/s ROC Internal RAID Card 1 x Full Height Bracket Drive Adapter Cables Controller Card Driver CD Drive Adapter Cables for the HP Z820/Z620 and Z420 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP LSI 9270-8i SAS 6 Gb s ROC Internal RAID Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP E0X21AA Specs | PCI Bus | PCIe 3.0 x8 lane compliant | | Connectivity | 2 x mini-SAS SFF8087 x4 (internal connectors) | | RAID Levels | RAID 0, 1, 5, and 6
RAID spans 10, 50, and 60 | | PCI Card Type | Low profile
Single PCIe slot design with full height bracket | | PCI Voltage | +3.3 V add-in card | | PCI Power | +3.3 V, +12 V | | Host Interface | PCIe 3.0 | | IO Bus | Compatible SAS/SATA Ports: 8 x 6 Gb/s and 3 Gb/s | | Compatibility | HP Z820, Z620, and Z420
Supports >2.2 TB RAID data arrays with large capacity drives 1 TB, 2 TB, and 3 TB | | SAS Processor | LSISAS2208 dual core RAID on chip (ROC) | | Maximum Number of SCSI Devices | Up to 128 SAS and/or SATA hard drives and SSDs HP Workstations do not support these many internal drives | | LED Indicators | Heartbeat LED on card | | Operating Temperature | Maximum Ambient
Controller Card: 140°F (60°C) (131°F (55°C) with optional LSIiBBU09)
Storage: -49 to +221°F (-45 to +105°C) | | Relative Humidity | Operating/Storage: 5 to 90% (non-condensing) | | MTBF | 766,841 hours | | Compliances | EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3
FCC Class A, Class B
UL1950
UL
CSA C22.2
VCCI
RRL for MIC
BSMI
C-tick | | Operating System Support | Microsoft Genuine Windows 7 Professional (32-bit and 64-bit)
Red Hat Enterprise Linux 4, 5, 6 (desktop)
Novell SLED 11 | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 9.9 x 8.1 x 2.5" |
