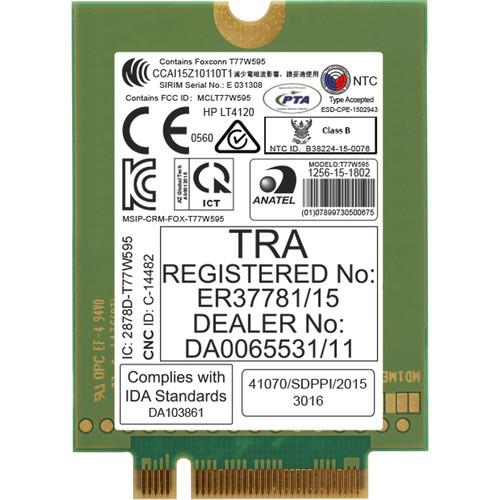

User Manual for HP lt4120 LTE EV-DO HSPA WWAN Mobile Module Click to enlarge the picture
Contents of the user manual for the HP lt4120 LTE EV-DO HSPA WWAN
- Product category: Wireless Adapters & Cards HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Wireless Adapters & Cards
|
User manual for the HP lt4120 LTE EV-DO HSPA WWAN contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description The lt4120 LTE/EV-DO/HSPA+ WWAN Mobile Module from HP provides integrated WWAN technology and allows you to check e-mail, browse the Internet, and connect to your corporate network with dedicated broadband. HP Mobile Broadband modules use this integrated WWAN technology to connect to wireless networks operated by mobile network operators in many countries worldwide. (Separately purchased mobile operator service required.) Compatibility - HP EliteBook Notebook PCs
-
- HP EliteBook 820 G3 Notebook PC
- HP EliteBook 820 G3 Notebook PC (ENERGY STAR)
- HP EliteBook 840 G3 Notebook PC (ENERGY STAR)
- HP EliteBook 850 G3 Notebook PC (ENERGY STAR)
UPC: 889894045300 In the Box HP lt4120 LTE/EV-DO/HSPA+ WWAN Mobile Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP lt4120 LTE EV-DO HSPA WWAN Mobile Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP N8T16UT#ABA Specs | Operating Bandwidth | LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3), 1700/2100 (Band 4), 850 (Band 5), 2600 (Band 7), 900 (Band 8), 700 (Band 12 lower), 700 (Band 13 upper), 700 (Band 17 lower), 800 (Band 20), 1900 (Band 25), 850 (Band 26), 700 (Band 28)
HSPA+: 2100 (Band 1), 1900 (Band 2), 1700/2100 (Band 4), 850 (Band 5), 900 (Band 8) MHz
EV-DO: 850 (BC0), 1900 (BC1) MHz, 850 (BC10)
E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8) MHz | | Wireless Protocols | 3GPP Release 10 LTE Specification CAT.4, 20 MHz BW
WCDMA R99, 3GPP Release 5, 6, 7 and 8 UMTS Specification 1xEVDO Release 0, A and B
E-GPRS: Class B, Multi-slot class 12, coding schemes CS1 - CS4 and MSC1 - MSC9 | | GPS | Standalone, A-GPS (MS-A, MS-B and XTRA)
Bands: 1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607 MHz | | Data Rates | Maximum:
LTE: 150 Mbps (Download), 50 Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21 Mbps (Download), 5.76 Mbps (Upload)
CDMA 1xRTT: 153.6 kbps (Download), 153.6 kbps (Upload)
EVDO Rel.A: 3.1 Mbps (Download), 1.8 Mbps (Upload)
EVDO Rel.B: 14.7 Mbps (Download), 5.4 Mbps (Upload)
EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)
GPRS: 85.6 kbps (Download), 85.6 kbps (Upload) | | Maximum Output Power | LTE: 23 dBm
HSPA+: 23.5 dBm
1xRTT/EVDO: 24dBm
E-GPRS 1900/1800: 26 dBm
E-GPRS 900/850: 27 dBm
GPRS 1900/1800: 29.5 dBm
GPRS 900/850: 32.5 dBm | | Maximum Power Consumption | LTE: 1,200 mA (peak); 900 mA (average)
HSPA+: 1,100 mA (peak); 800 mA (average)
1xRTT/EVDO: 1,000 mA (peak); 700 mA (average)
E-GPRS: 2,800 mA (peak); 500 mA (average) | | Form Factor | M.2, 3042-S3 Key B | | Dimensions | 1.6 x 1.2 x 0.1" (4.2 x 3.0 x 0.2 cm) | | Weight | 0.2 oz (6.2 g) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 9.3 x 8.2 x 1.0" |
