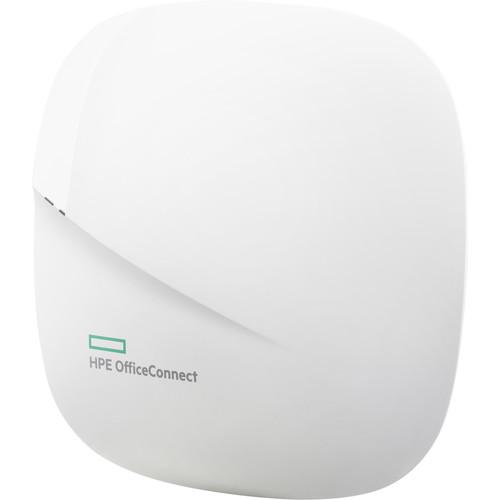

User Manual for HP OfficeConnect OC20 AC1300 Wireless Dual-Band Access Point Click to enlarge the picture
Contents of the user manual for the HP OfficeConnect OC20 AC1300 Wireless Dual-Band
- Product category: Wireless Access Points HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Wireless Access Points
|
User manual for the HP OfficeConnect OC20 AC1300 Wireless Dual-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Designed for small businesses, the OfficeConnect OC20 AC1300 Wireless Dual-Band Access Point from HP offers a reliable Wi-Fi connection to multiple clients. This access point supports the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies providing wireless data transfer rates of up to 1.3 Gbps.
In addition to enhanced wireless coverage, this access point features OfficeConnect Smart Air software to help reduce interference while optimizing wireless coverage. If a single access point isn't enough, you can add up to seven more to cover larger areas. Once installed, the OfficeConnect OC20 AP can be managed using the OfficeConnect app, making it easy to manage various aspects of the network, including setting up employee and guest Wi-Fi networks.
Powering this HP access point is simple, as it supports both DC and PoE power, making it easy to install it virtually anywhere. - Dual Radio 802.11ac Access Point
- The OfficeConnect AP supports up to 867 Mbps in the 5 GHz band (with 2SS/VHT80 clients) and up to 400 Mbps in the 2.4 GHz band.
With 2SS/VHT40 clients - Smart Air for RF Management
- Smart Air software automatically assigns channel and power settings, provides airtime fairness (boosts overall network performance by allowing faster clients to move quicker on the network) and ensures that APs stay clear of RF interference to deliver a reliable, high-bandwidth wireless network.
- Security
- Website filtering identifies, classifies, and blocks access to applications and web content to provide comprehensive protection against advanced online threats.
WPA2 with advanced encryption keeps your network traffic secure and protects sensitive business information. - Management
- The OfficeConnect iOS or Android mobile applications allows you to set-up an employee and guest network in a few easy steps.
New APs added to the network automatically get their configuration from the first AP without manual configuration; Create a network of up to eight APs and manage them from the OfficeConnect mobile application.
Remotely monitor the network with a quick health dashboard that provides visibility into the status of the access points, their signal strength, connected users and web applications. UPC: 190017178899 In the Box HP OfficeConnect OC20 AC1300 Wireless Dual-Band Access Point Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP OfficeConnect OC20 AC1300 Wireless Dual-Band Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP OfficeConnect OC20 Specs | I/O Ports | 1 x 10/100/1000BASE-T Ethernet network interface (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
• Visual Indicators (Multi-Color LEDs): For system and radio status
• Reset Button: Factory reset (during device power up)
• Kensington security slot | | Wi-Fi Connectivity | Indoor, dual radio, 5 GHz 802.11ac 2x2 MIMO and 2.4 GHz 802.11n 2x2 MIMO
• Connectivity standard IEEE 802.11 a/b/g/n/ac
• Supported Frequency Bands (Country-Specific Restrictions Apply):
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
• Available Channels: Dependent on configured regulatory domain
• Short guard interval for 20 MHz, 40 MHz and 80 MHz channels
• Space-time block coding (STBC) for increased range and improved reception
• Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
• Transmit beam-forming (TxBF) for increased signal reliability and range
• Supported Data Rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 300 (MCS0 to MCS15)
- 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80 | | Antennas | Two integrated dual-band downtilt omni-directional antennas for 2x2 MIMO with maximum antenna gain of 3.4 dBi in 2.4 GHz and 6.6 dBi in 5 GHz | | Power | The AP supports direct DC power and Power over Ethernet (PoE)
• When both power sources are available, DC power takes priority over PoE
• Power sources are sold separately
• Direct DC source: 12 VDC nominal, +/- 5%
• Power over Ethernet (PoE): 48 VDC (nominal) 802.3af/802.3at compliant source
• Maximum (worst-case) power consumption: 12.3 W (PoE) or 10.1 W (DC)
• Maximum (worst-case) power consumption in idle mode: 5.3 W (PoE) or 4.4 W (DC) | | Mounting | • The AP ships with two (black) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling
• Several optional mount kits are available to attach the AP to a variety of surfaces; see the Ordering Information section below for detail | | Temperature & Humidity | Operating Temperature
32 to 122°F / 0 to 50°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
5 to 95% non-condensing | | Regulatory | FCC/Industry of Canada
CE Marked
RED Directive 2014/53/EU
Low Voltage Directive (2014/35/EU)
EN 300 328
EN 301 489
EN 301 893
UL/IEC/EN 60950
EN 60601-1-1, EN60601-1-2 | | Certifications | CB Scheme Safety, cTUVus
UL2043 plenum rating
Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac | | Reliability | MTBF: 753,457 hours (86 years) at 77°F / +25°C operating temperature | | Dimensions | 5.9 x 5.9 x 1.6" / 15.0 x 15.0 x 4.1 cm | | Weight | 0.8 lb / 380 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 7.5 x 7.1 x 3.7" |
