User Manual for HP OMEN 27" 16:9 LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the HP OMEN 27" 16:9 LCD Gaming
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP OMEN 27" 16:9 LCD Gaming contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

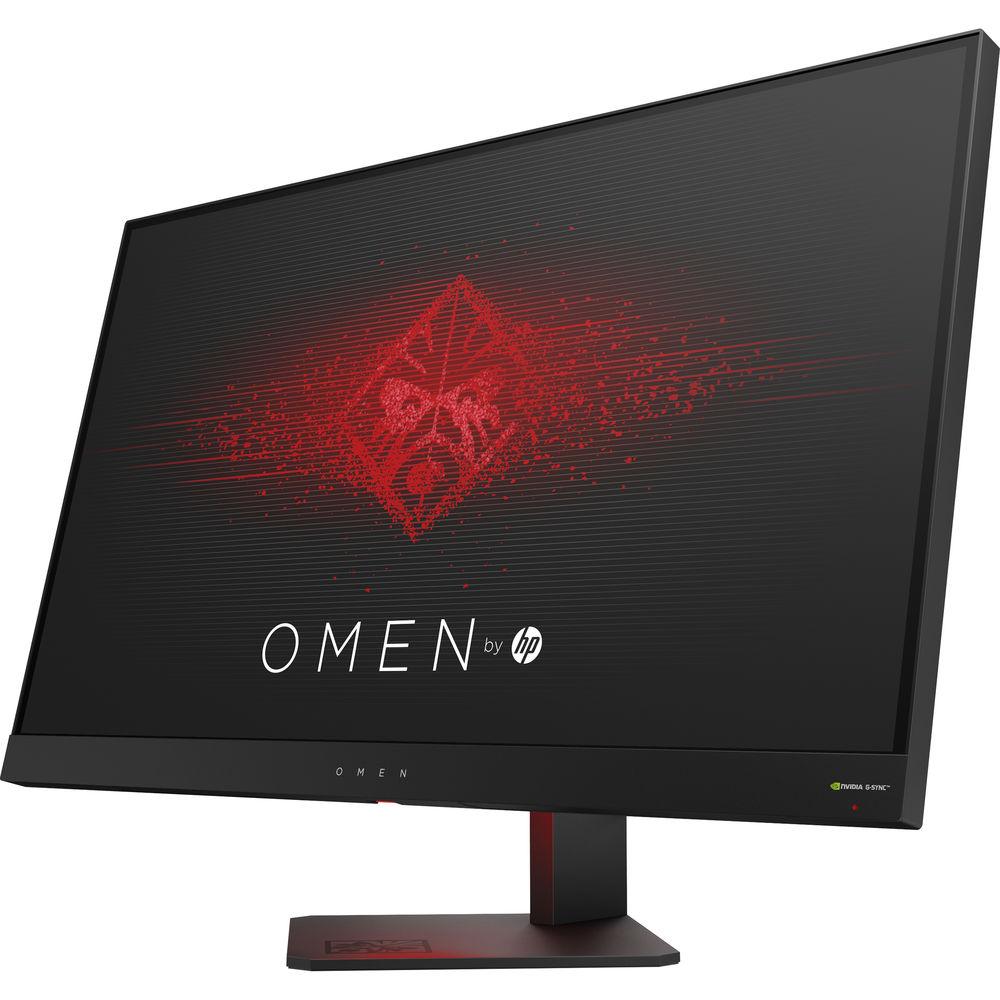

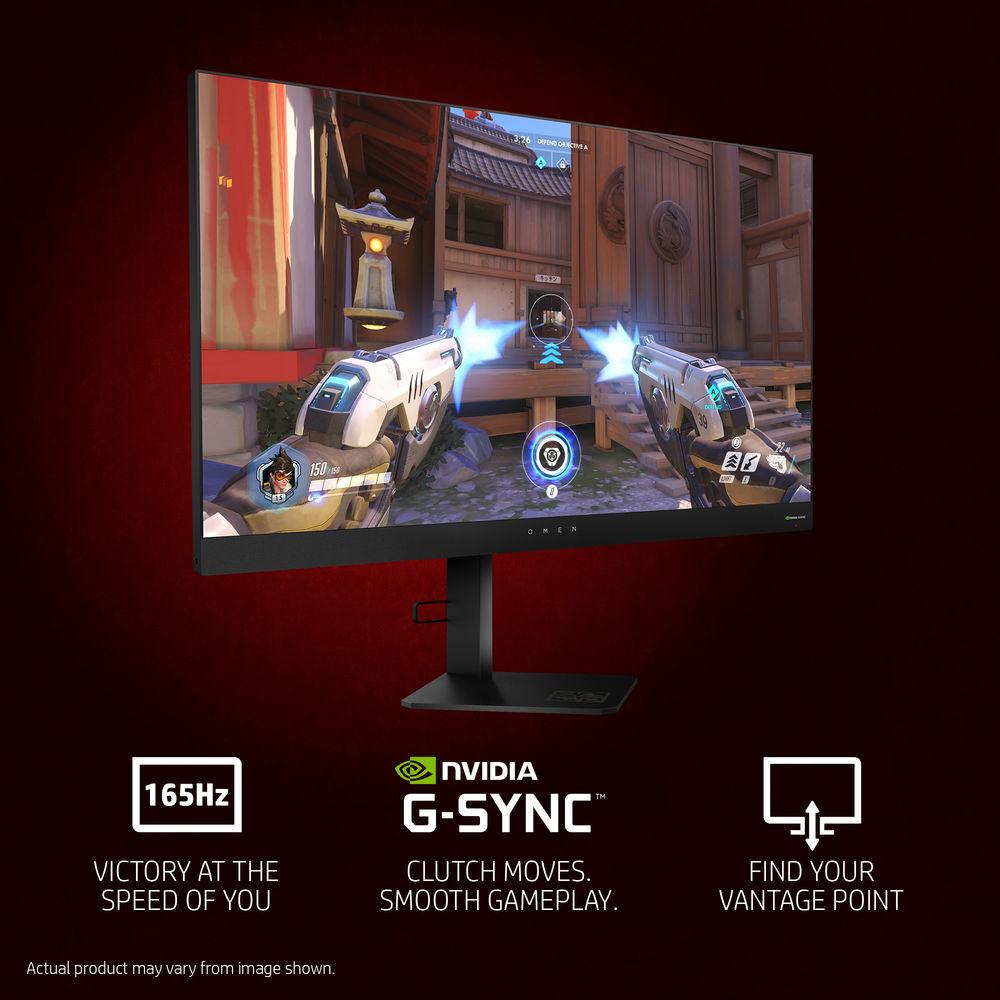

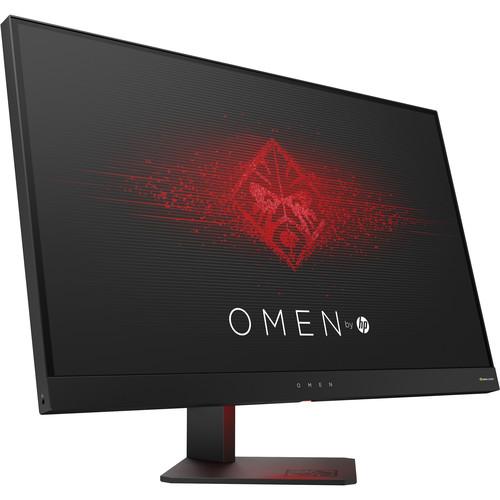

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More udcteusr The 165 Hz refresh rate and 1 ms response time found on the OMEN 27" 16:9 LCD Gaming Monitor from HP offer greatly reduced ghosting, tearing, and blur when playing fast moving games. In addition to the enhanced response time and refresh rate this HP monitor also features NVIDIA G-Sync technology, which is designed to sync the refresh rate of your monitor with compatible NVIDIA graphics cards.
Setup and configuration of the OMEN LCD Gaming monitor is simple as it comes equipped with both HDMI and DisplayPort inputs as well as dual USB 3.0 ports. Once configured, viewers can take advantage of the WQHD 2560 x 1440 resolution display accompanied by a 1000:1 static contrast ratio and a 350 cd/m² brightness rating, making this monitor suitable for a variety of tasks from gaming to watching videos, web browsing, and much more. The OMEN also features a height adjustable stand and low blue light capabilities to ensure you receive a comfortable viewing experience. - QHD Display with a maximum resolution of 2560 x 1440
- TN (Twisted Nematic) panel
- 1 ms response time with Overdrive for reducing artifacting or screen tearing
- 5.12" height adjustable stand

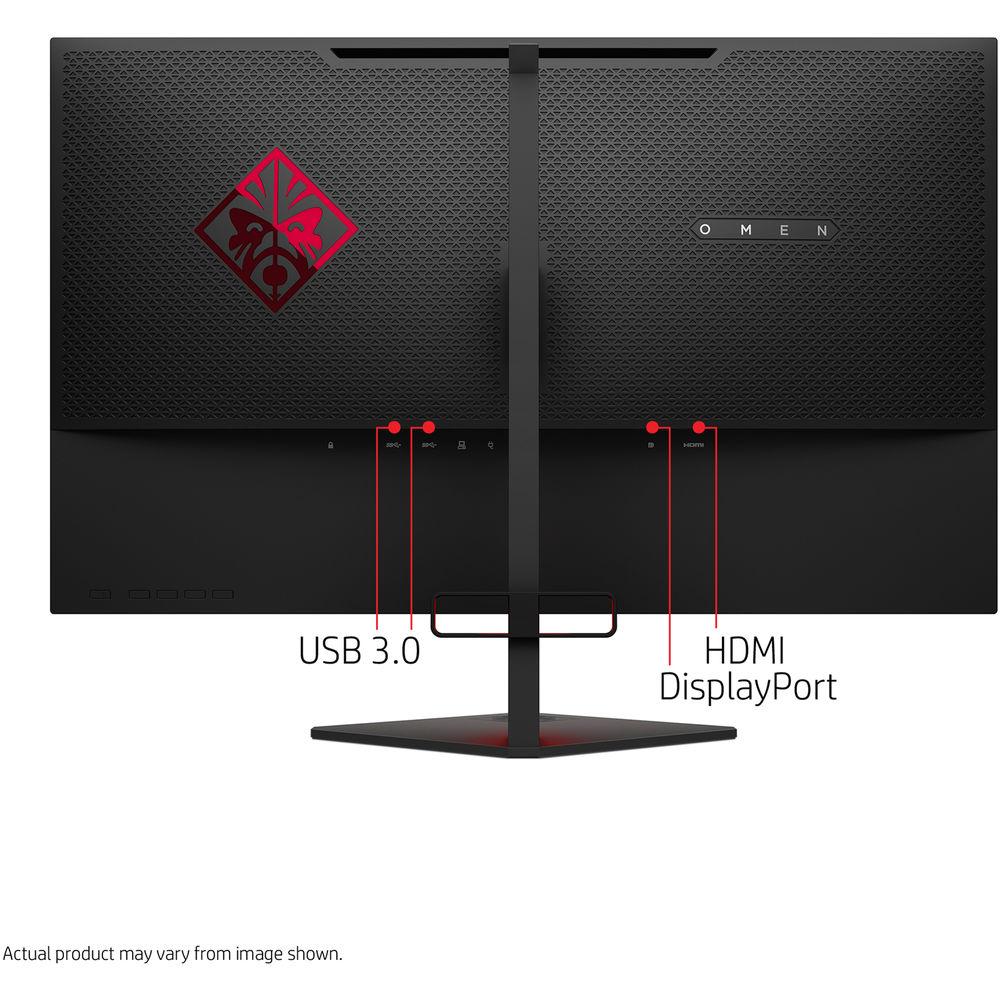

- Connectivity options include one HDMI 2.0, one DisplayPort 1.2, and two USB 3.0 ports
- Features a headphone jack
- Energy efficient components such as mercury-free display backlighting, low halogen design, arsenic-free display glass, and recyclable packaging
UPC: 190780749487 In the Box HP OMEN 27" 16:9 LCD Gaming Monitor Adapter HDMI Cable DisplayPort Cable USB 3.0 Upstream Cable Limited 1-Year Warranty User Manual PDF 1.1mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP OMEN 27" 16:9 LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Z4D33AA#ABA Specs | | | Panel Type | TN with backlight | | Display Size | 27" (68.6 cm) | | Panel Active Area | 23.5 x 13.21" (59.7 x 33.6 cm) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Horizontal Scan Range | 34 to 222 kHz (DisplayPort) overclock off
34 to 240 kHz (DisplayPort) overclock on
30 to 140 kHz (HDMI) | | Vertical Scan Range | 30 to 144 Hz (DisplayPort) overclock off
30 to 165 Hz (DisplayPort) overclock on
24 to 60 Hz (HDMI) | | Surface Treatment | Anti-glare panel | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Contrast Ratio | Static: 1000:1
Dynamic: 10,000,000:1 | | Brightness | 350 cd/m2 (typical) | | Color Gamut | 72% | | Color Support | Up to 16.7 million colors with the use of FRC technology | | Pixel Pitch | 0.233 x 0.233 mm
108.97 ppi | | Response Time | 1 ms (GtG) | | Connectivity | 1 x DisplayPort 1.2
1 x HDMI
HDCP support (DP and HDMI)

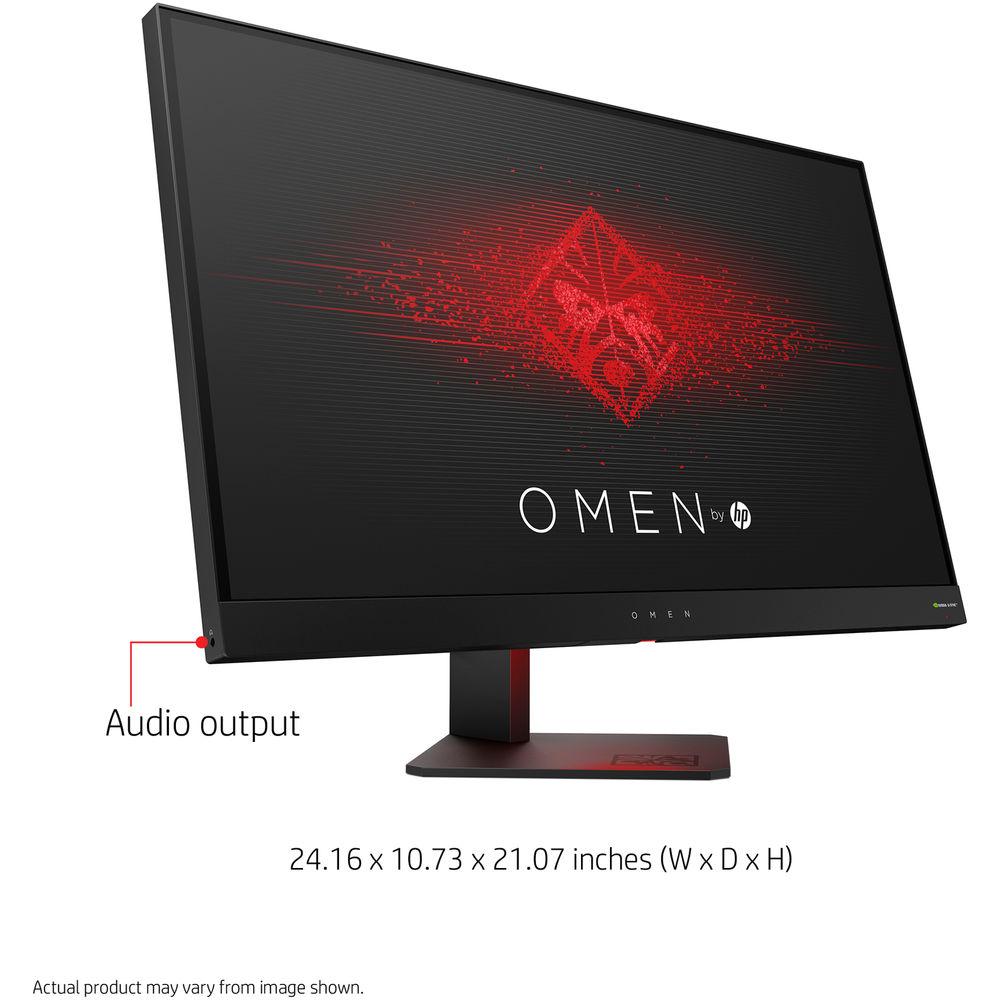

1 x Audio output
2 x USB 3.0 ports | | Power Supply | External | | Power Consumption | Maximum: 75 W
Saving/Stand-By: 0.5 W | | Stand | Tilt: -5 to 23°
Height Adjustable: 5.12" (130 mm) | | Base Area (Footprint) | 10.29 x 10.29" (261.5 x 261.5 mm) | | | | On Screen Display | Luminance, color control, input control, image control, power control, menu control, management, ambient, lighting, language, information, and exit
Menu, Minus ("-") / Viewing Modes, Plus ("+") / Luminance, Back, and Power | | Certifications | Microsoft WHQL Certification: Windows 7, 8, 8.1, 10
Worldwide Application
CE, CB, KC / KCC / NOM / PSB / ICE / TUV-S / ISO 9241-307 / EAC / UL / CSA / PSB / ISC / CCC / CEL / CECP / SEPA / TCO / TCO Certified Edge / ISC / VCCI / FCC / BSMI / Vietnam MEPS / Australian-New Zealand MEPS / WEEE | | Languages | 10 (English, Spanish, German, French, Italian, Netherlands, Portuguese, Japanese, Traditional Chinese, and Simplified Chinese) | | Backlight Lamp Life | 30,000 hours | | Dimensions | 24.16 x 10.73 x 21.07" (613.66 x 272.54 x 535.18 mm) | | Weight | 14.29 lb (6.48 kg) | | | | Package Weight | 23.6 lb | | Box Dimensions (LxWxH) | 29.0 x 19.0 x 10.0" |
