User Manual for HP OMEN Obelisk 875-0020 Desktop Computer Click to enlarge the picture
Contents of the user manual for the HP OMEN Obelisk 875-0020 Desktop Computer
- Product category: Desktop Computers HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Desktop Computers
 |
User manual for the HP OMEN Obelisk 875-0020 Desktop Computer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Built with the power to drive competitive gaming, premium entertainment, and intensive multitasking, the HP OMEN Obelisk 875-0020 Desktop Computer is powered using a 2.8 GHz Intel Core i5-8400 six-core processor with 9MB of Intel Smart Cache, which allows you to run multiple applications while providing significant performance. If you need more power, the CPU can deliver extra performance by increasing the clock speed up to 4.0 GHz utilizing Intel's Turbo Boost technology.
The OMEN Obelisk's 8GB of 2666 MHz DDR4 RAM allows the computer to run multiple applications simultaneously and quickly access frequently used files and programs. Moreover, the OMEN Obelisk is equipped with two 288-pin DIMM slots that can be upgraded for a total of 16GB of RAM. For long-term storage of your files, this system is equipped with a 256GB PCIe NVMe M.2 solid-state drive, which means it contains no moving parts, so it can be more resistant against bumps, drops, and other kinds of damage. SSDs also receive less wear and tear than traditional hard drives, as there are no read and write heads.

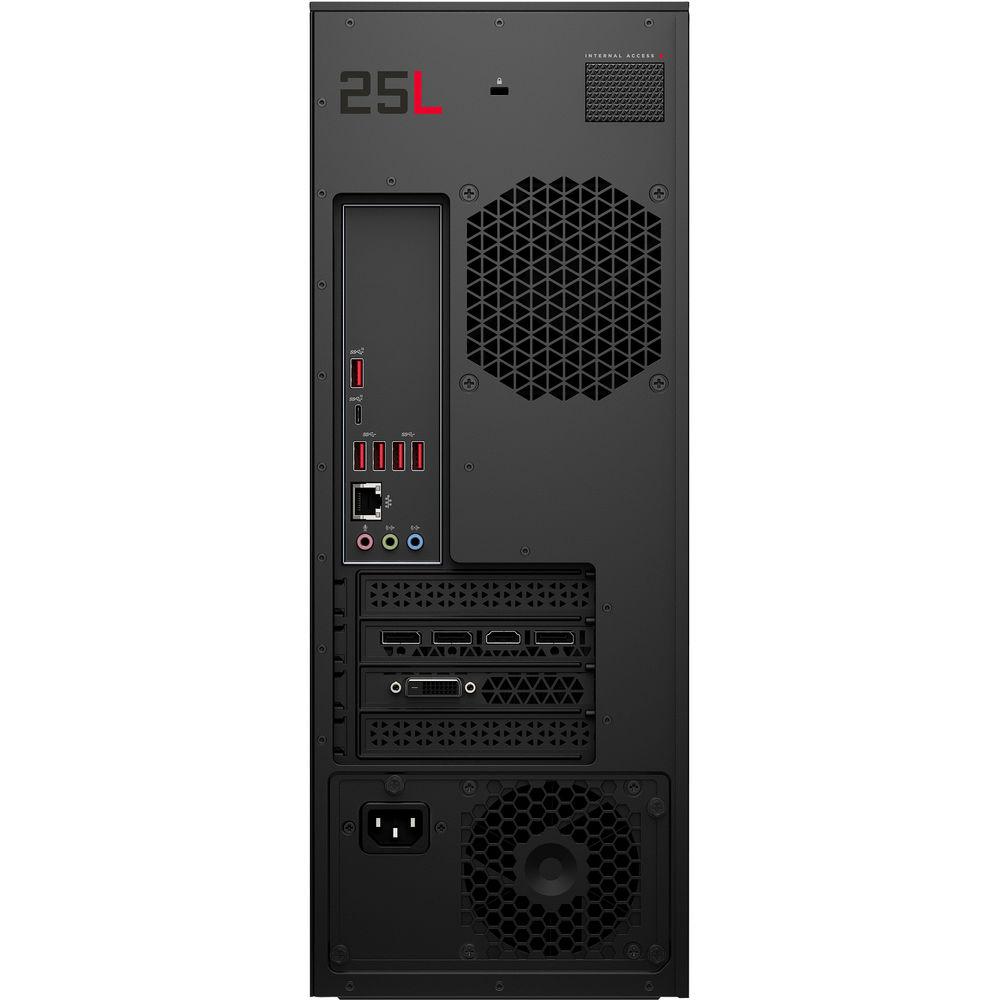

If you want to add external storage drives or other peripherals, the OMEN Obelisk 875-0020 features seven USB 3.1 Gen 1 Type-A ports, one USB 3.1 Gen 2 Type-A port, and one USB 3.1 Gen 2 Type-C port. The dedicated NVIDIA GeForce GTX 1060 graphics card features 6GB of GDDR5 RAM over a 192-bit memory interface and delivers a sharp, clear picture while allowing for up to four simultaneous displays to be used via its three DisplayPort outputs, one HDMI output, and one Dual-Link DVI-D output at resolutions up to 7680 x 4320 @ 60 Hz.
HP's OMEN Obelisk 875-0020 Desktop Computer is powered by a 500W power supply that operates using 100-240V. Included is a USB keyboard, a USB optical mouse, and a power cord. The installed operating system is Windows 10 Home (64-bit). General Features - NVIDIA GeForce GTX 1060 Graphics Card
- The dedicated NVIDIA GeForce GTX 1060 graphics card has 6GB of GDDR5 memory, three DisplayPort outputs, one HDMI output, and one Dual-Link DVI-D output. The DisplayPort outputs support a maximum resolution of 5120 x 3200 x 24 bpp / 7680 x 4320 @ 60 Hz YUB 420 8-bit, the HDMI 2.0 port supports a maximum resolution of 4096 x 2160 x 24 bpp @ 60 Hz, and the Dual-Link DVI-D port supports a maximum resolution of 2560 x 1600 x 24 bpp @ 60 Hz. Up to four independent displays are simultaneously supported with independent resolutions up to the maximum.
- Plethora of Ports
- The OMEN Obelisk 875-0020 features seven USB 3.1 Gen 1 Type-A ports, one USB 3.1 Gen 2 Type-A port, and one USB 3.1 Gen 2 Type-C port that will allow you to connect external peripherals such as hard drives, printers, and memory card readers. At 5 Gb/s, USB 3.1 Gen 1 transfers data up to 10 times faster than USB 2.0, which operates at 480 Mb/s. Meanwhile USB 3.1 Gen 2 transfers data up to 10 Gb/s.
- Wi-Fi 5 (802.11ac) & Bluetooth 4.2
- Connect to the internet wirelessly using Wi-Fi 5 (802.11ac) and pair additional wireless peripherals, such as keyboards, mice, and headsets using Bluetooth 4.2 technology.
- Gigabit Ethernet
- An integrated Realtek RTL8118 Gigabit Ethernet controller allows for Internet access when connected to a router, modem, or network switch.
- Built for Gaming
- Get the performance and power efficiency to play at your best with the industry's latest components, micro-ATX compatible upgradability, and a design that you can personalize. The OMEN Obelisk is also equipped with a GPU that's designed to support advanced VR rendering, real-time ray tracing, and AI.
- Made for Game Streaming
- Now you can easily play PC games on your big screen TV with OMEN Game Stream, a free remote gaming service that lets you stream from your OMEN PC to other Windows 10 PCs.
- Easy to Upgrade
- The OMEN Obelisk is designed to deliver the performance needed to play at your best with industry components. Get inside quickly and upgrade how you want to with a tool-less design and adherence to micro-ATX standards. Furthermore, it features a design that you can personalize.
- Customizable Chassis

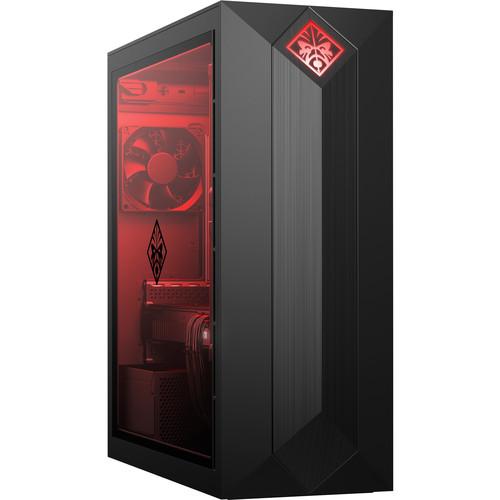

- Stand out from the competition with a sleek chassis, customizable RGB lighting, and optional transparent side panel.
OMEN Command Center - Lighting Control
- The OMEN Command Center is designed so users can get creative and customize the chassis' exterior and interior RGB lighting. Users can choose from five pre-programmed modes or create effects.
- Network Booster
- The software has an option that's capable of reducing latency by prioritizing game network traffic to the front of the line. Dual Force functionality splits traffic across two data streams, sending game traffic over the fastest connection available and all other traffic over Wi-Fi.
- System Vitals
- This dashboard is designed to dynamically display key metrics of your OMEN computer, including utilization and temperature of our GPU, CPU, and memory.
Windows 10 Home (64-bit) - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
UPC: 193015477001 In the Box HP OMEN Obelisk 875-0020 Desktop Computer Wired Black Mouse USB Wired Black Keyboard with Volume Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP OMEN Obelisk 875-0020 Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP OMEN Obelisk Specs | Operating System | Windows 10 Home (64-Bit) | | | | Chipset | Intel H370 | | CPU | 2.8 GHz Intel Core i5-8400 6-Core | | Maximum Boost Speed | 4.0 GHz | | L3 Cache | 9 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 8 GB | | Memory Configuration | 1 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 16 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 1 | | Graphics Type | Dedicated | | GPU | NVIDIA GeForce GTX 1060 with 6 GB GDDR5 VRAM | | | | SSD Slots | 1 x M.2 | | Solid State Storage | 1 x 256 GB M.2 PCIe | | Optical Drive | None | | | | Ports | 1 x USB Type-A (USB 3.1 Gen 2)
7 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x USB 3.1 Gen 2 | | Display | 3 x DisplayPort
1 x HDMI
1 x DVI-D DL | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8" / 3.5 mm Microphone Input
1 x 1/8" / 3.5 mm Line Output
1 x 1/8" / 3.5 mm Line Input | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | | | Keyboard | Full-Size Keyboard | | Pointing Device | USB Mouse | | | | Power Supply | 500 W | | Dimensions | 6.5 x 17 x 14.1" / 16.5 x 43.3 x 35.7 cm | | Weight | 20.3 lb / 9.2 kg | | | | Package Weight | 25.115 lb | | Box Dimensions (LxWxH) | 20.0 x 19.4 x 11.7" |
