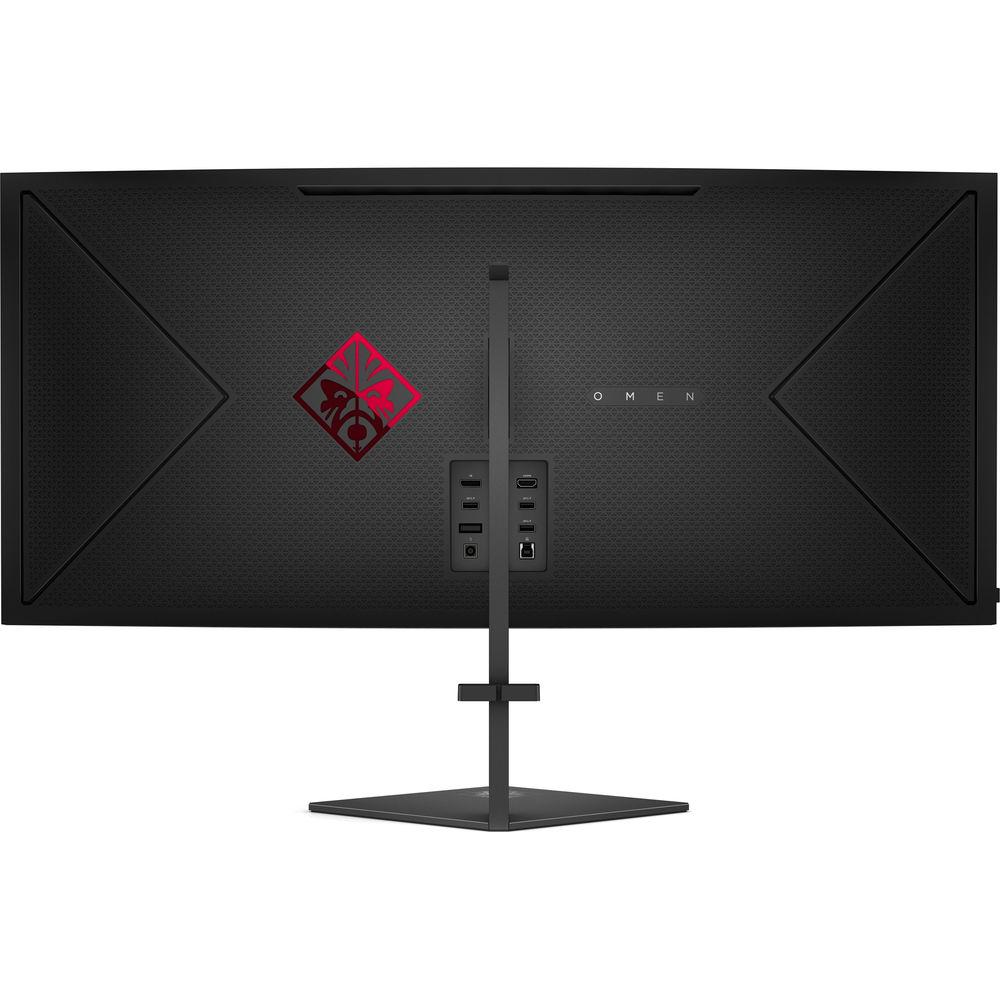

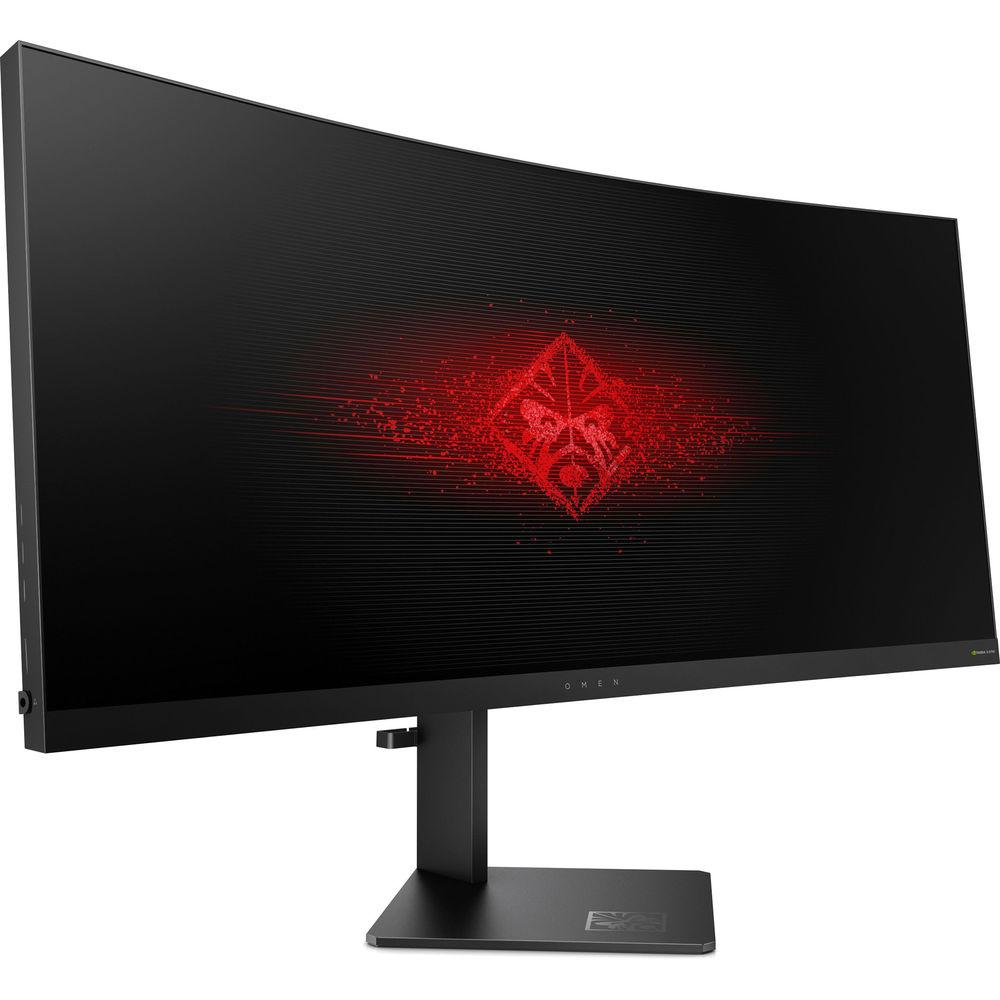

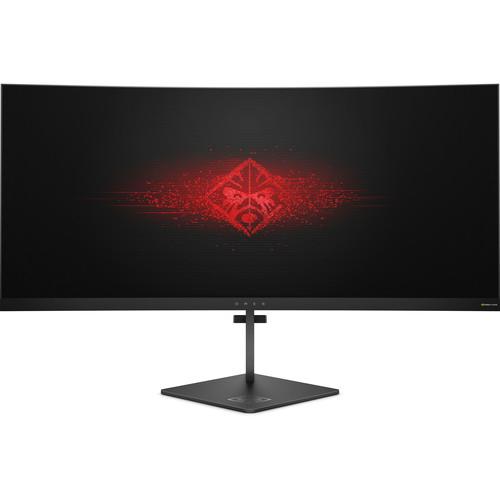

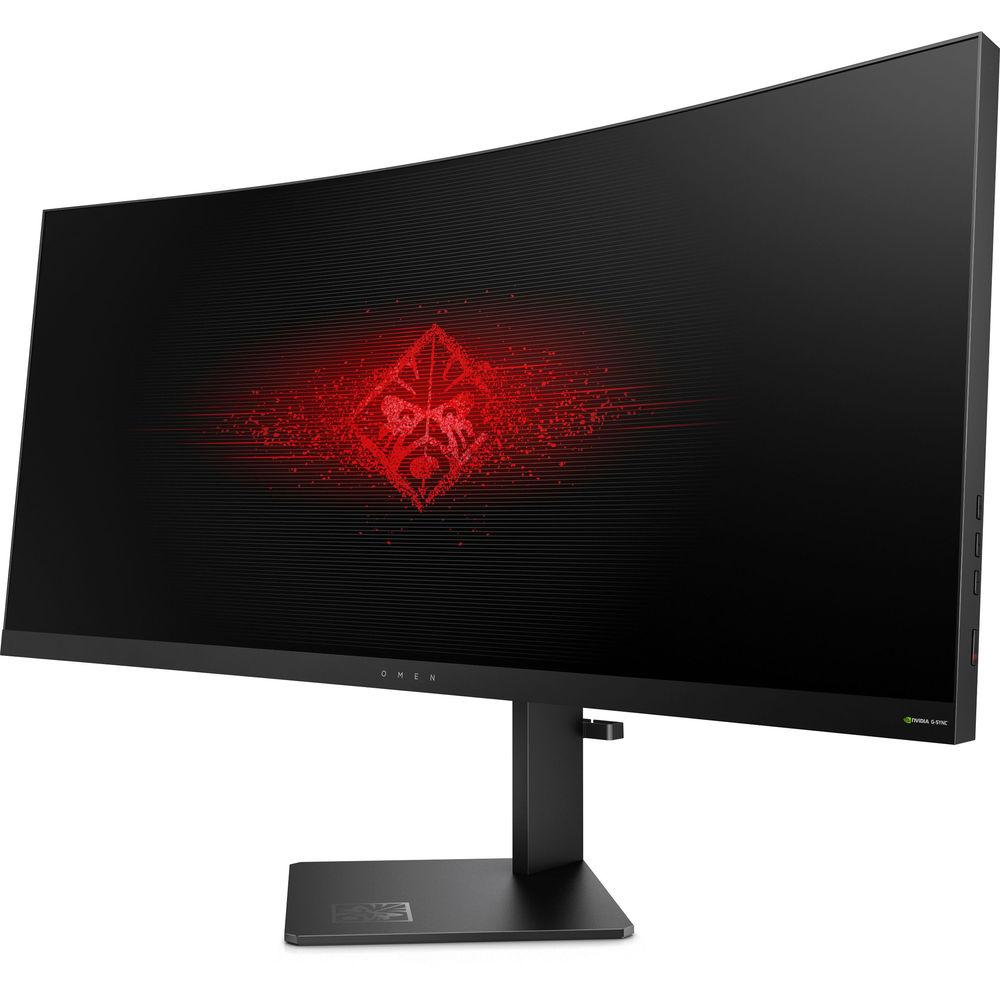

User Manual for HP Omen X 35" 21:9 Curved G-Sync LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the HP Omen X 35" 21:9 Curved
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP Omen X 35" 21:9 Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More cqaytfduvrfrd With the Omen X 35" 21:9 Curved G-Sync LCD Gaming Monitor from HP you can immerse yourself in your game as this ultra-wide 21:9 curved display puts every portion of the screen at an equal distance from your eye. In addition to the 1800R curvature of the display, users benefit from built-in ambient lighting that can be tailored to your environment, while the integrated headphone jack accommodates your headphones when not in use.
The Omen X Gaming Monitor features a 3440 x 1440 resolution along with a 2500:1 contrast ratio, a 300 cd/m² brightness rating, and a 4 ms response time to offer a crisp clear picture quality with reduced ghosting. Setup and configuration is simple as this HP monitor comes equipped with both DisplayPort and HDMI inputs and a built-in USB 3.0 hub to connect USB enabled peripherals directly to the display.
Once configured, the Omen X can be tailored to your viewing needs with the ability to adjust the height of the display. The monitor can also be mounted to the wall using a VESA compatible mount. Once set up, the 178° horizontal and vertical viewing angles allow the screen to be viewed from nearly any angle. - Ambient Lighting
- Customize the lighting color to match the system lighting on your PC, keyboard, and mouse.
- Built-In Headphone Hook
- When you're done gaming with your friends, store your headset in a safe place.
- 100 Hz Refresh Rate
- Enjoy smooth gameplay with a 100 Hz refresh rate that gives you clear details and minimal interruption.
- 2500:1 Contrast Ratio
- Enjoy truer blacks that add more depth to shadows and dimly lit scenes.
- Height Adjustment Stand
- Easily adjust your display to the most comfortable position with 5.1" range of travel.
- 4 ms Response Time with Overdrive
- Eliminates motion blur for crisp, fluid gameplay no matter what's happening on-screen.
- NVIDIA G-SYNC
- This technology synchronizes GPU frame rate output and display refresh rate for sharp, stutter-free gameplay.
- Ultra WQHD Curved Display
- Be surrounded by 5 million pixels of definition, for completely immersive entertainment.
- 1800R Curved Display
- A deeper curve delivers a realistic experience and more expansive field of view.
- Micro-Edge Display
- With virtually no bezel encircling the display, an ultra-wide viewing experience provides for seamless multi-monitor set-ups.
- Extensive Port Connectivity
- HDMI, DisplayPort, and USB 3.0 inputs deliver advanced connectivity for hardware and accessories.
UPC: 889899871560 In the Box HP Omen X 35" 21:9 Curved G-Sync LCD Gaming Monitor AC Power Cord HDMI 2.0 Cable USB 3.0 Type-A to Type-B Cable DisplayPort Cable External Power Adapter Limited 1-Year Warranty Data Sheet PDF 325.7kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Omen X 35" 21:9 Curved G-Sync LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP X3W57AA#ABA Specs | | | Size | 35" | | Screen Area | 32.3 x 13.6" / 81.9 x 34.6 cm | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 3440 x 1440 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 106 ppi | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 2500:1 | | Dynamic Contrast Ratio | 10,000,000:1 | | Refresh Rate | 100 Hz | | Adaptive Sync Technology | G-Sync | | Horizontal Frequency | 73 to 151 kHz (DisplayPort)
30 to 140 kHz (HDMI) | | Vertical Frequency | 30 to 100 Hz (DisplayPort)
24 to 60 Hz (HDMI) | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Color Gamut | 100% sRGB | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.242 x 0.242 mm | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 2 x 3.5 mm Output
3 x USB Type-A (USB 3.1 Gen 1)
1 x DisplayPort 1.2 Input
1 x HDMI 1.4 | | Supported Languages | Dutch
English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | | | Power Consumption | 120 W (Maximum)
0.5 W (Standby) | | Power Adapter Type | External | | | | Certifications | WEEE, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Tilt Adjustment | -5 to 23° | | Lock Slot | Yes | | Dimensions (W x H x D) | 32.8 x 13.0 x 16.1" / 83.3 x 32.9 x 41.0 cm | | Weight | 26.6 lb / 12 kg | | | | Package Weight | 43.6 lb | | Box Dimensions (LxWxH) | 39.5 x 21.0 x 16.0" |
