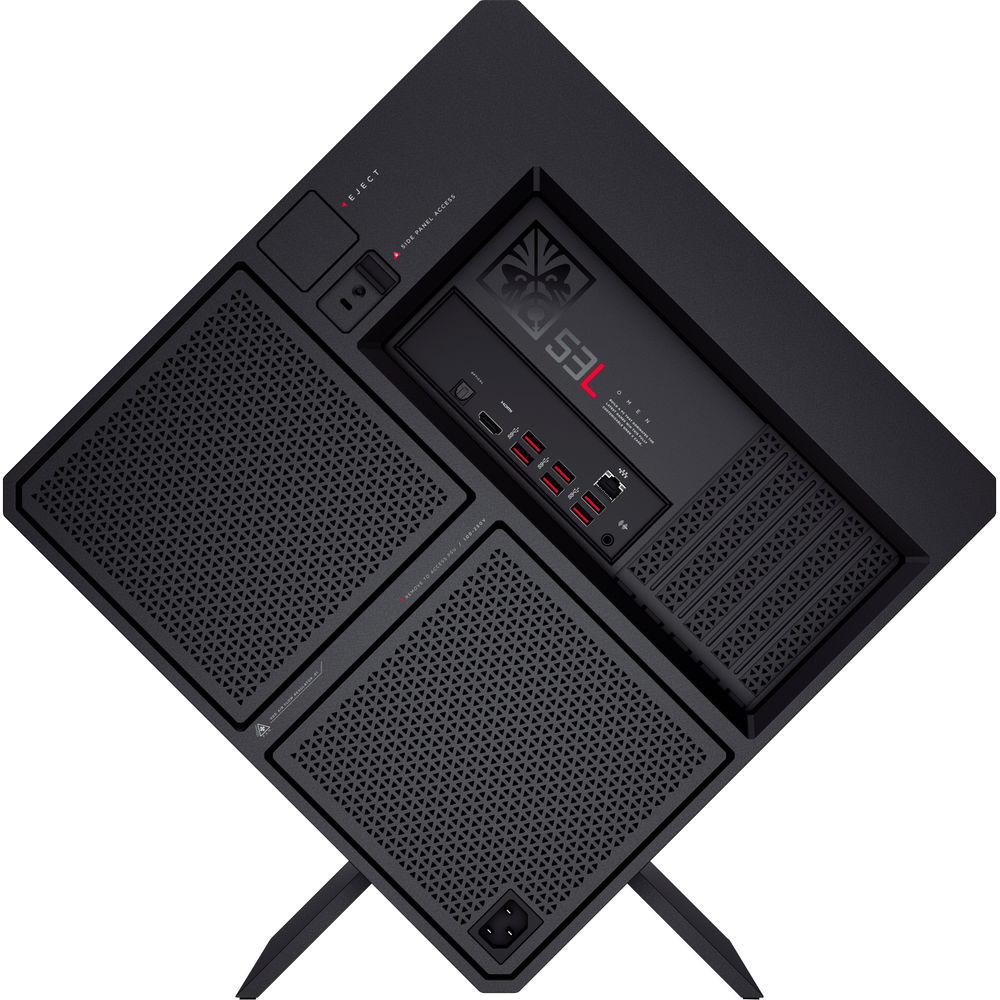

User Manual for HP OMEN X 900-210 Gaming Desktop Computer Click to enlarge the picture
Contents of the user manual for the HP OMEN X 900-210 Gaming Desktop
- Product category: Desktop Computers HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Desktop Computers
 |
User manual for the HP OMEN X 900-210 Gaming Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

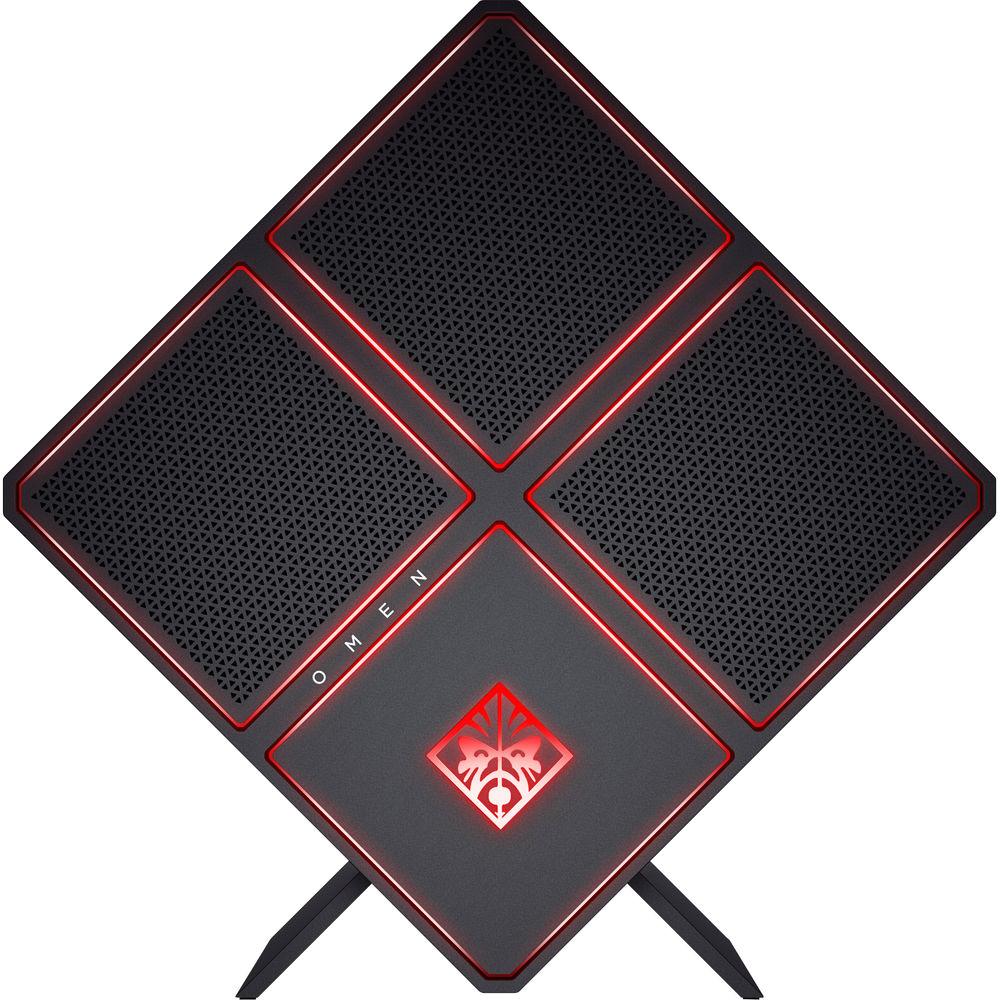

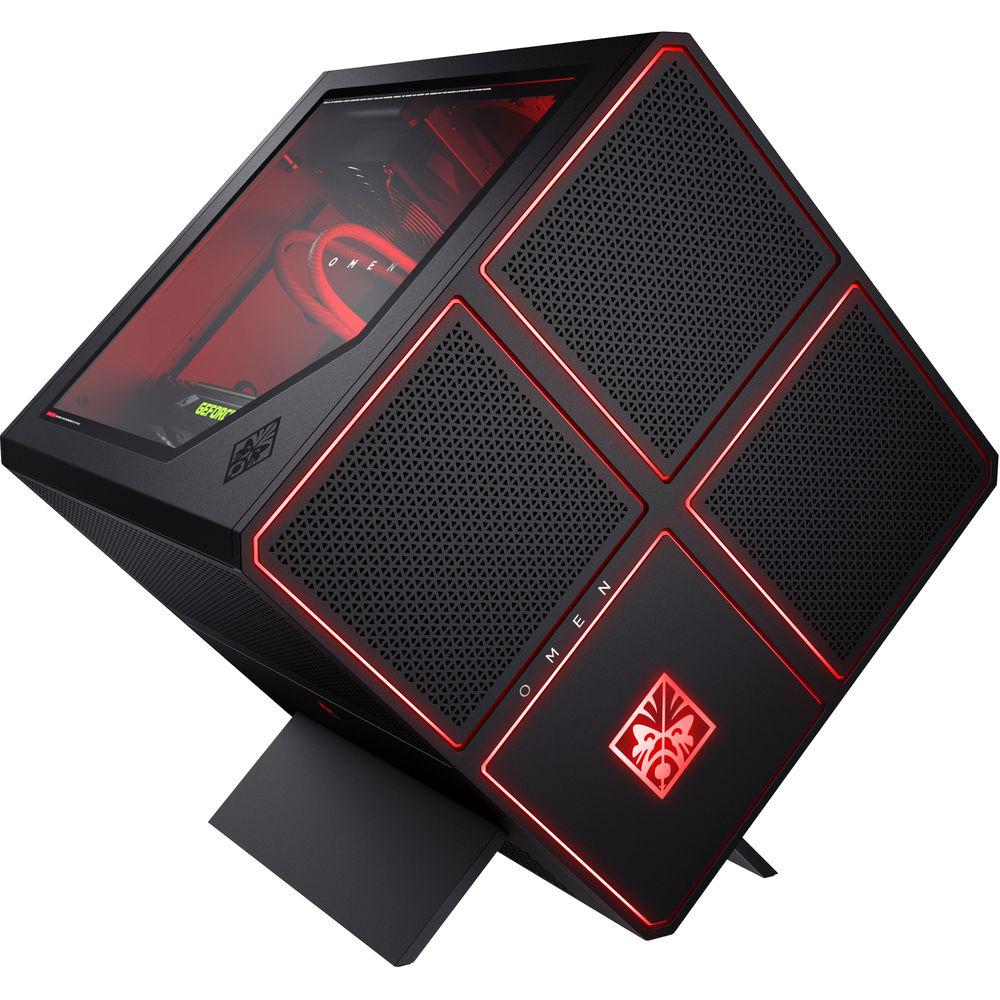

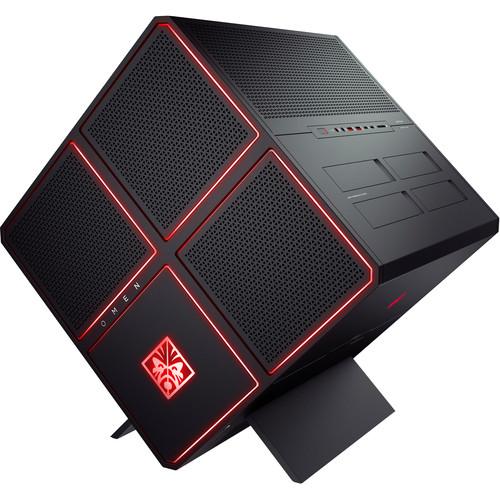

Product description Designed for gaming from the ground up and VR-certified, the OMEN X 900-210 Gaming Desktop Computer from HP delivers insane power and innovative cooling to take on AAA games, even at higher settings. And thanks to an upgradeable case, this system can evolve to satisfy future performance demands.
HP's OMEN X 900-210 is powered by a 3.6 GHz Intel Core i7-7820X Eight-Core processor with 11MB of L3 cache, providing significant performance gains when running multi-threaded tasks that allow you to run multiple applications simultaneously. If you need more power, the CPU can deliver extra performance by increasing the clock speed up to 4.3 GHz utilizing Intel's Turbo Boost 2.0 technology, or 4.5 GHz using Intel Turbo Boost Max Technology 3.0.
The 16GB of 2400 MHz DDR4 RAM allows the computer to run multiple applications simultaneously and also to quickly access frequently used files and programs. The OMEN X 900-210 is equipped with four 288-pin DIMM slots that can be upgraded to 16GB per slot for a total of 64GB of RAM. For storage of your files, this system is equipped with a both a 512GB SATA 2.5" SSD and a 2TB 7200 rpm SATA 3.5" hard drive, for a total storage capacity of 2.512TB. While the SSD may not have the larger storage capacity of the 2TB spinning disk, it contains no moving parts, which helps it to be more resistant against bumps, drops, and other kinds of damage. SSDs also receive less wear and tear than traditional hard drives, as there are no read and write heads.
If you want to add external storage drives or other peripherals, the OMEN X 900-210 features one USB 3.1 Gen 2 Type-C port, one USB 3.1 Gen 2 Type-A port, two USB 3.1 Gen 1 Type-C ports, and eight USB 3.1 Gen 1 Type-A ports, with one of the 3.1 Gen 1 Type-A ports doubling as a fast charging port. The dedicated NVIDIA GeForce GTX 1080 graphics card features 8GB of GDDR5X RAM over a 256-bit memory interface and delivers a sharp, clear picture while allowing for up to four simultaneous displays to be used via its three DisplayPort 1.4, one HDMI 2.0b, and one Dual-Link DVI-D video outputs at resolutions up to 7680 x 4320 @ 60 Hz. Whether you are listening to music, watching a movie, or playing a game, the integrated audio controller outputs high-definition audio, and supports DTS Studio Sound and DTS Headphone:X, delivering higher fidelity than standard audio controllers.

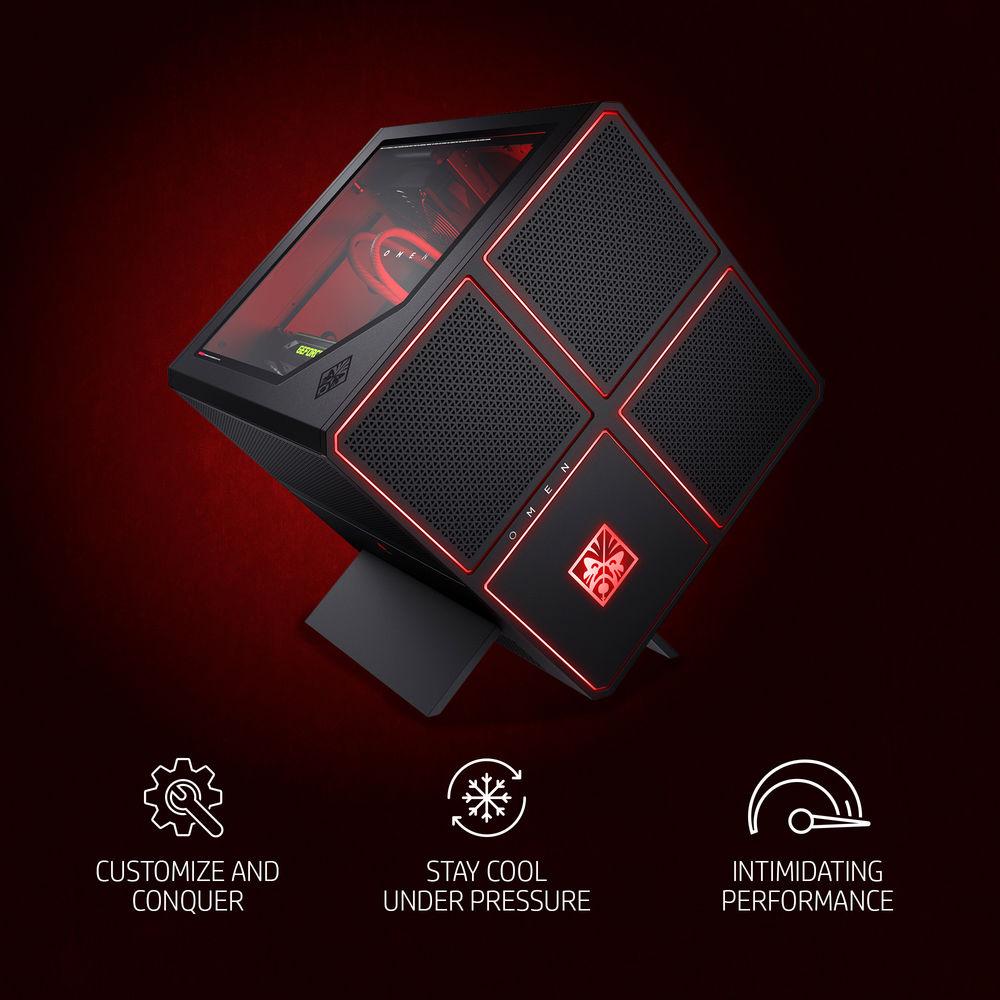

HP's OMEN X 900-210 Gaming Desktop Computer is powered by a 1300W Gold power supply. The installed operating system is Windows 10 Home (64-bit). General Features - Customize and Conquer
- You don't have to be limited by your hardware with a case developed for current and next-gen technology. Angled for easy access, this galvanized steel case was designed for upgradeability with industry standard components and a spacious, chambered interior.
- Stay Cool Under Pressure
- Monstrous power demands serious cooling. Optional liquid cooling, a tri-chamber design that separates hot components into their own thermal systems, and top mounted angled vents help keep your rig cold.
- SD/SDHC/SDXC Memory Card Reader
- An integrated 3-in-1 memory card reader supports SD, SDHC, and SDXC media.
- NVIDIA GeForce GTX 1080 Graphics Card
- The dedicated GeForce GTX 1080 graphics card has 8GB of GDDR5X memory, three DisplayPort 1.4 outputs, one HDMI 2.0b output, and one Dual-Link DVI-I output that supports resolutions up to 7680 x 4320 @ 60 Hz.
- Gigabit Ethernet
- An integrated Gigabit Ethernet controller allows for Internet access when connected to a router, modem, or network switch.
- USB 3.1 Gen 2 | USB 3.1 Gen 1 | USB 2.0

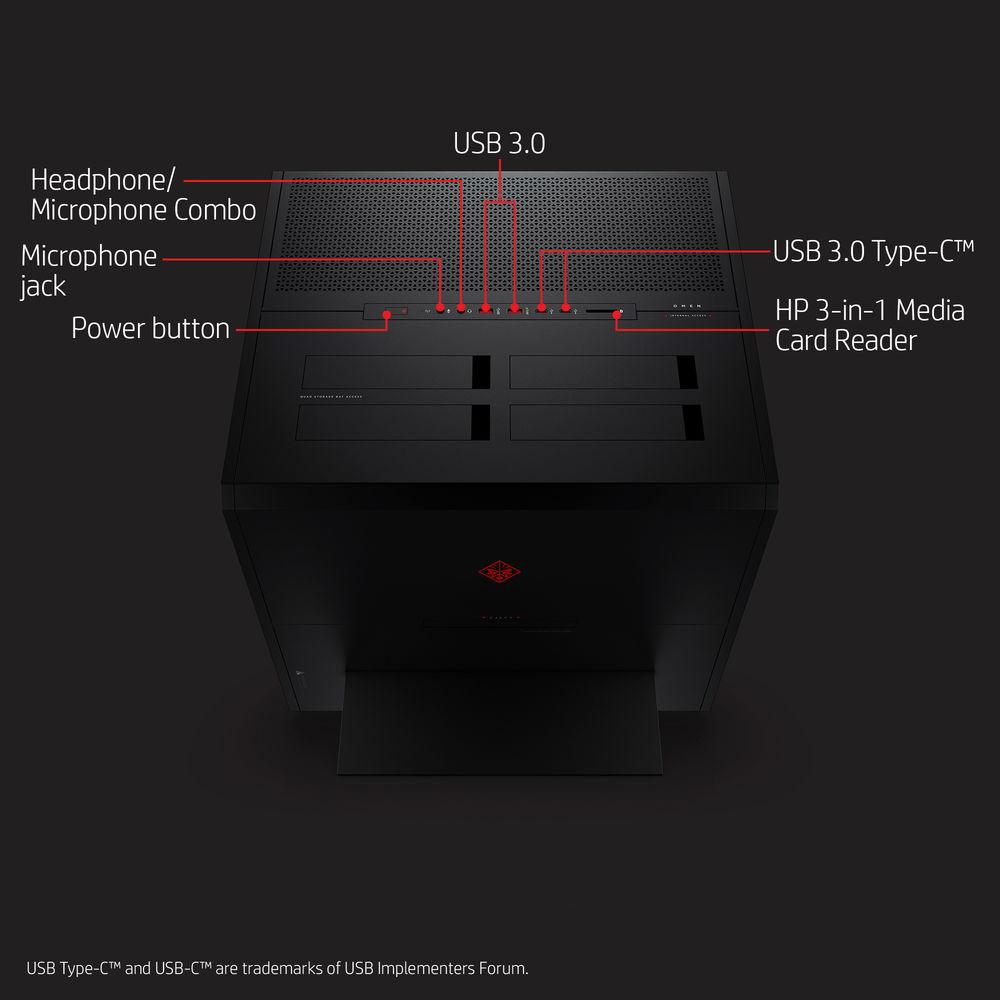

- The OMEN X 900-210 features one USB 3.1 Gen 2 Type-C port (rear), one USB 3.1 Gen 2 Type-A port (rear), two USB 3.1 Gen 1 Type-C ports (side), and eight USB 3.1 Gen 1 Type-A ports (six rear, two side), with one of the 3.1 Gen 1 Type-A ports doubling as a fast charging port. These ports that will allow you to connect external peripherals such as hard drives, printers, and memory card readers.
- 802.11ac Wi-Fi & Bluetooth 4.2
- Connect to the Internet wirelessly using dual-band 2.4 and 5 GHz 802.11ac Wi-Fi and pair additional wireless peripherals, such as keyboards, mice, and headsets using Bluetooth 4.2 technology.

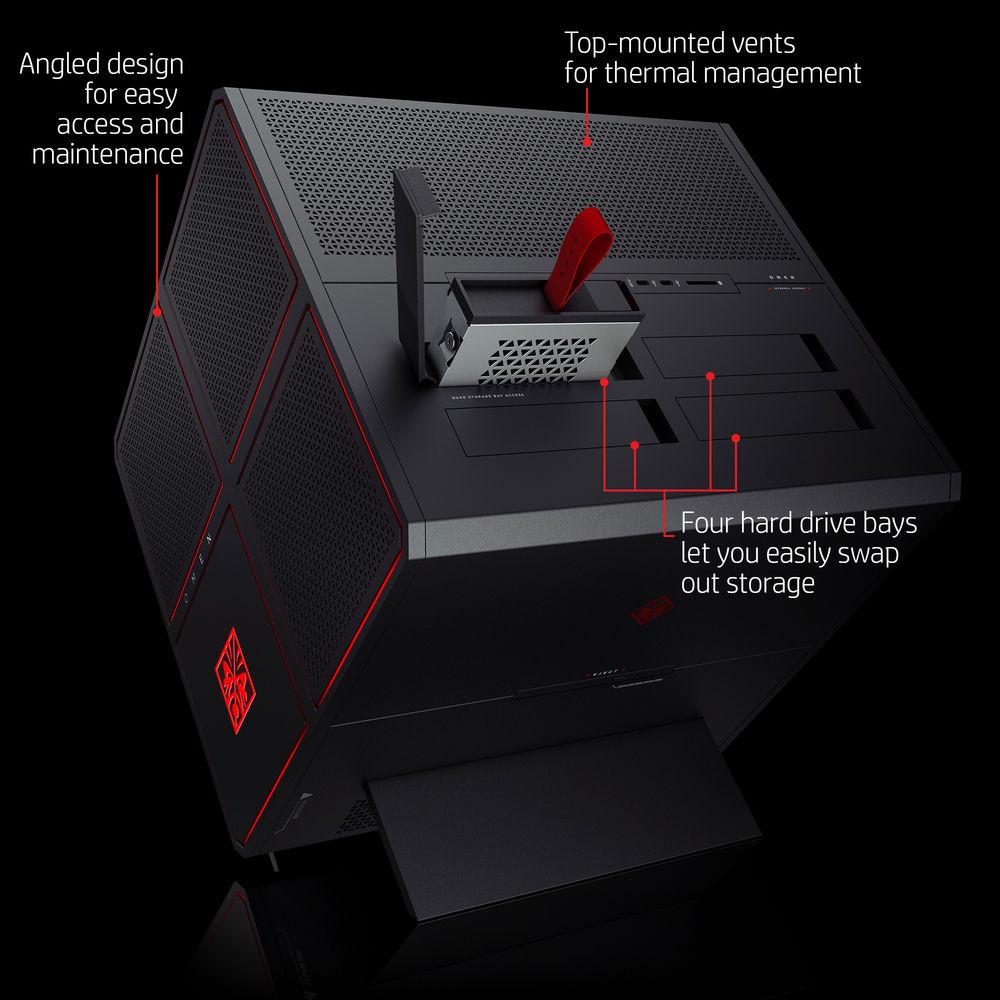

- Drive Expansion
- The OMEN X 900-210 has a total of one 2.5" and three 3.5" SATA drive bays. The 2.5" bay is currently occupied by the 512GB SSD and one 3.5" bay is occupied by the 2TB hard drive, leaving two empty 3.5" drive bays for additional internal storage. There is also one empty M.2 storage slot.
- PCIe Expansion
- The motherboard has two PCIe x16 slots, one PCIe x1 slot, and one M.2 slot, which is currently used for the Wi-Fi & Bluetooth combo card.
Windows 10 Home (64-bit) - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
UPC: 191628649167 In the Box HP OMEN X 900-210 Gaming Desktop Computer Tool Kit Power Cord Limited 90 Days of Phone Support Complimentary Chat Support within Warranty Period Limited 1-Year Hardware Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP OMEN X 900-210 Gaming Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP OMEN X Specs | Operating System | Windows 10 Home (64-Bit) | | | | CPU | 3.6 GHz Intel Core i7-7820X 8-Core | | Maximum Boost Speed | 4.3 GHz | | L3 Cache | 11 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 16 GB | | Memory Configuration | 1 x 16 GB (User-Replaceable) | | Maximum Memory Capacity | 64 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 3 | | Graphics Type | Dedicated | | GPU | NVIDIA GeForce 1080 with 8 GB GDDR5X VRAM | | | | Total Drive Bays | 1 x 2.5" (Internal)
3 x 3.5" (Internal) | | SSD Slots | 1 x M.2 (Available) | | Solid State Storage | 1 x 512 GB 2.5" SATA | | Hard Disk Storage | 1 x 2 TB 3.5" SATA (7200 rpm) | | PCI Expansion | 1 x M.2 2230 (E-Key)
1 x PCIe x1
2 x PCIe x16 | | Optical Drive | None | | | | Ports | 1 x USB Type-A (USB 3.1 Gen 2)
8 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x USB 3.1 Gen 2
2 x USB 3.1 Gen 1 | | Display | 3 x DisplayPort 1.4
1 x HDMI 2.0
1 x DVI-I DL | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8" / 3.5 mm Line Output
1 x 1/8" / 3.5 mm Microphone Input
1 x TOSLINK S/PDIF Output | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | | | Power Supply | 1300 W | | Dimensions | 19.9 x 20.3 x 16" / 50.5 x 51.6 x 40.6 cm | | Weight | 62.2 lb / 28.2 kg |
