User Manual for HP P232 23" Widescreen LED Backlit ProDisplay Monitor Click to enlarge the picture
Contents of the user manual for the HP P232 23" Widescreen LED Backlit
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP P232 23" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

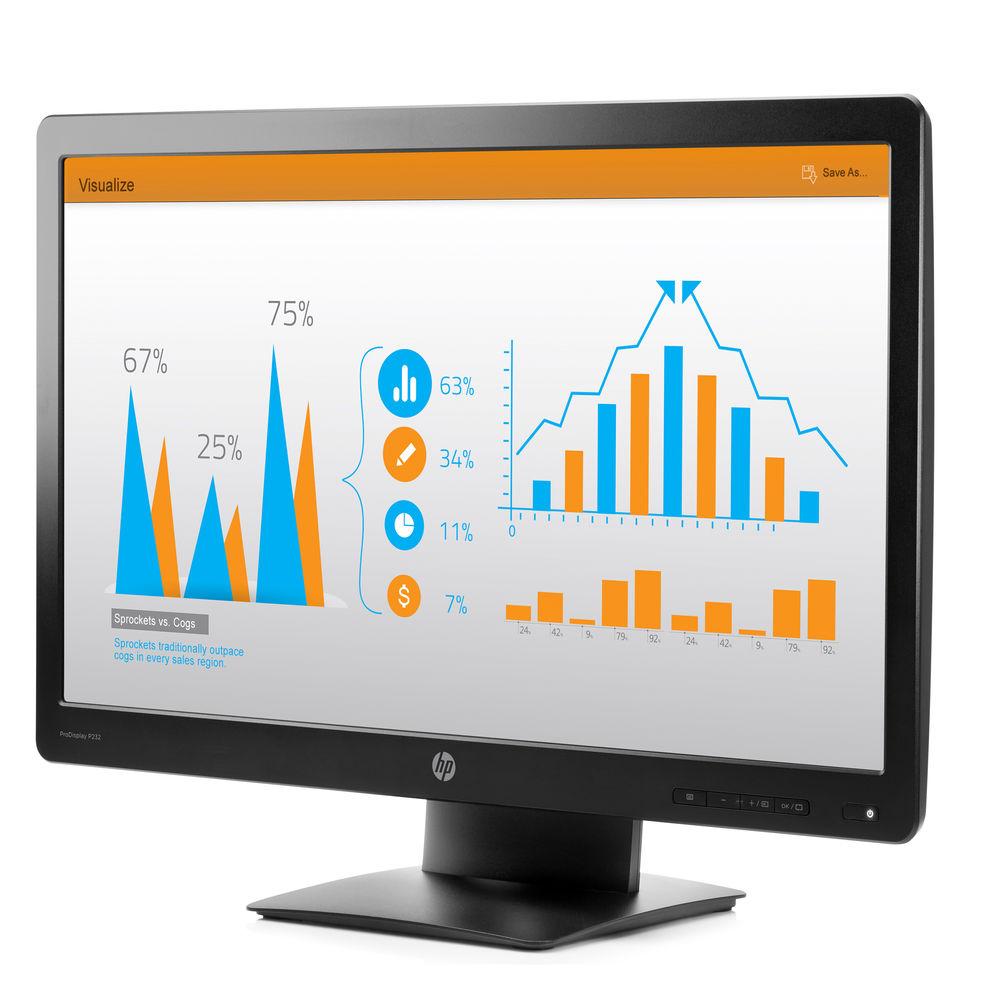

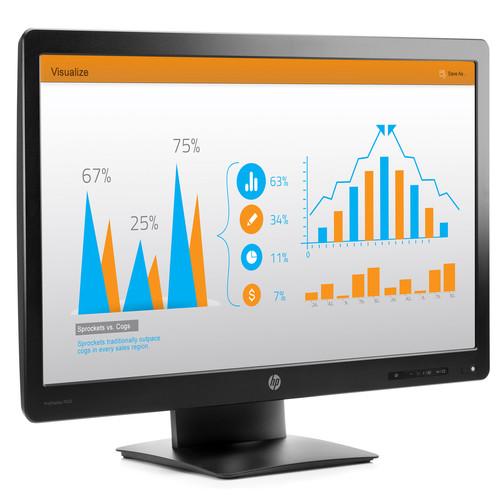

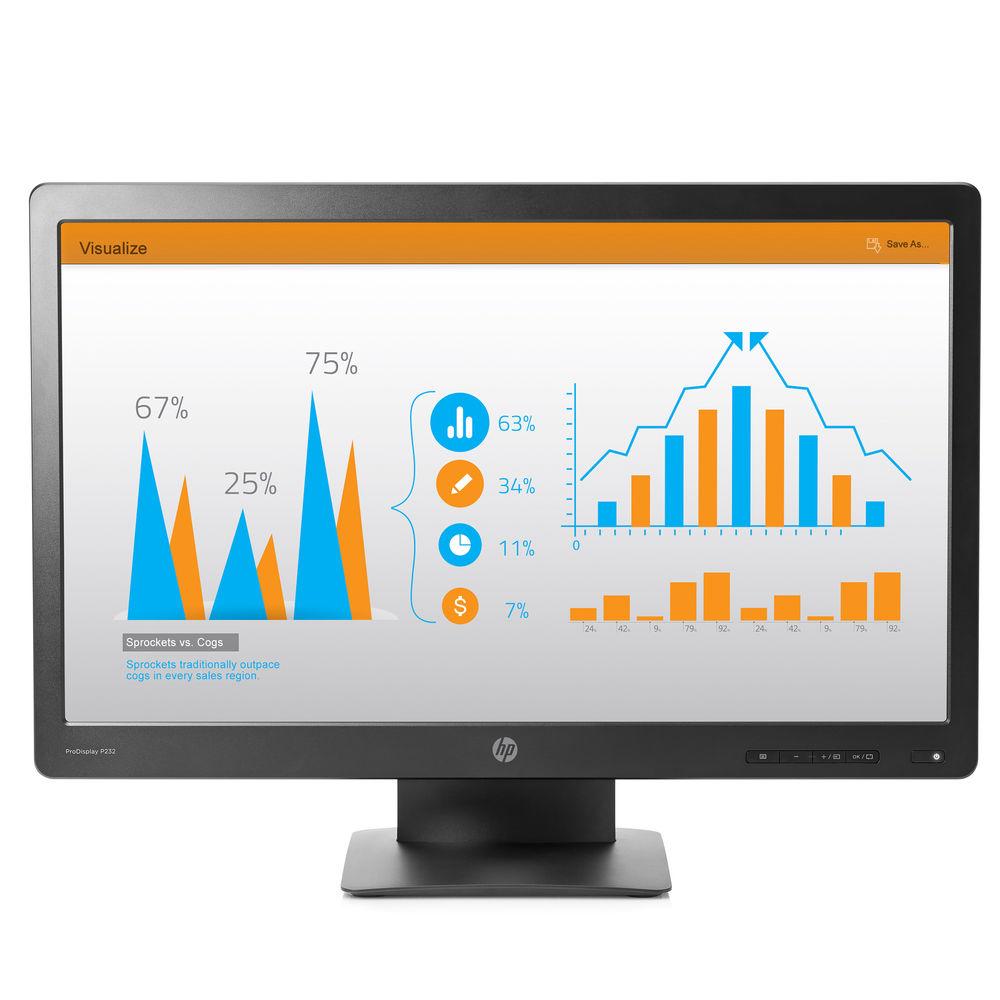

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Designed to work with the HP Pro PC, the P232 23" Widescreen LED Backlit ProDisplay Monitor from HP has the tools needed to streamline your workflow. With a 1920 x 1080 resolution you receive a crisp, clear picture, while the enhanced 1,000:1 contrast ratio provides a more dynamic picture with deeper darks and brighter light colors. You also benefit from a 250 cd/m² brightness rating, and a 5 ms response time for reduced ghosting when viewing videos. Setup and configuration is simple with VGA and DisplayPort 1.2 inputs making it easy to plug this monitor into a variety of computer configurations. - High Speed Connection for FHD Imagery
- Experience enhanced FHD picture quality, fast graphics refresh, and improved color representation from the DisplayPort connection, which also supports multiple monitor connections from a single PC. Get legacy device compatibility from the VGA connector.
- Be Energy Smart
- Reduce power consumption and help lower your costs with an intelligent, energy-efficient, low halogen design that is ENERGY STAR and TCO certified and EPEAT Gold registered.
UPC: 888793867235 In the Box HP P232 23" Widescreen LED Backlit ProDisplay Monitor AC Power Cord VGA Cable DisplayPort Cable CD (Includes User Guide, Drivers) Limited 3-Year Warranty User Manual PDF 1.1mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP P232 23" Widescreen LED Backlit ProDisplay Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP P232 Specs | | | Size | 23" | | Screen Area | 20 x 11.3" / 50.9 x 28.6 cm | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Adaptive Sync Technology | None | | Response Time | 5 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | | | Connectivity | 1 x DisplayPort 1.2 Input
1 x VGA | | HDCP Support | Yes | | | | Power Consumption | 30 W (Maximum)
24 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 20 to 80% | | | | Tilt Adjustment | -5 to 22° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 21.6 x 7.3 x 16.1" / 54.9 x 18.5 x 40.8 mm (With Stand)
21.6 x 13.6 x 2.2" / 54.9 x 34.6 x 5.5 mm (Without Stand) | | Weight | 8.8 lb / 4 kg (With Stand) | | | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 25.0 x 16.0 x 5.0" |
