User Manual for HP ProDesk 400 G4 Mini Desktop Computer Click to enlarge the picture
Contents of the user manual for the HP ProDesk 400 G4 Mini Desktop
- Product category: Desktop Computers HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Desktop Computers
 |
User manual for the HP ProDesk 400 G4 Mini Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

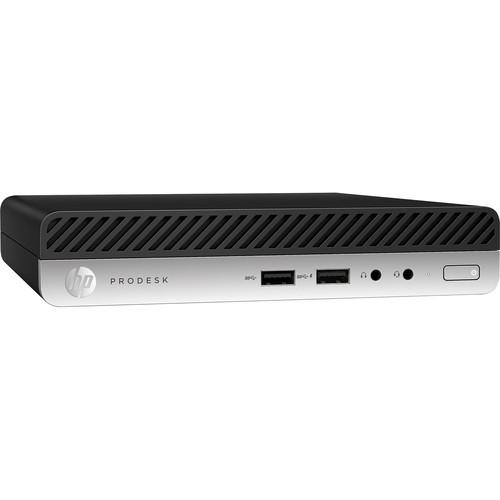

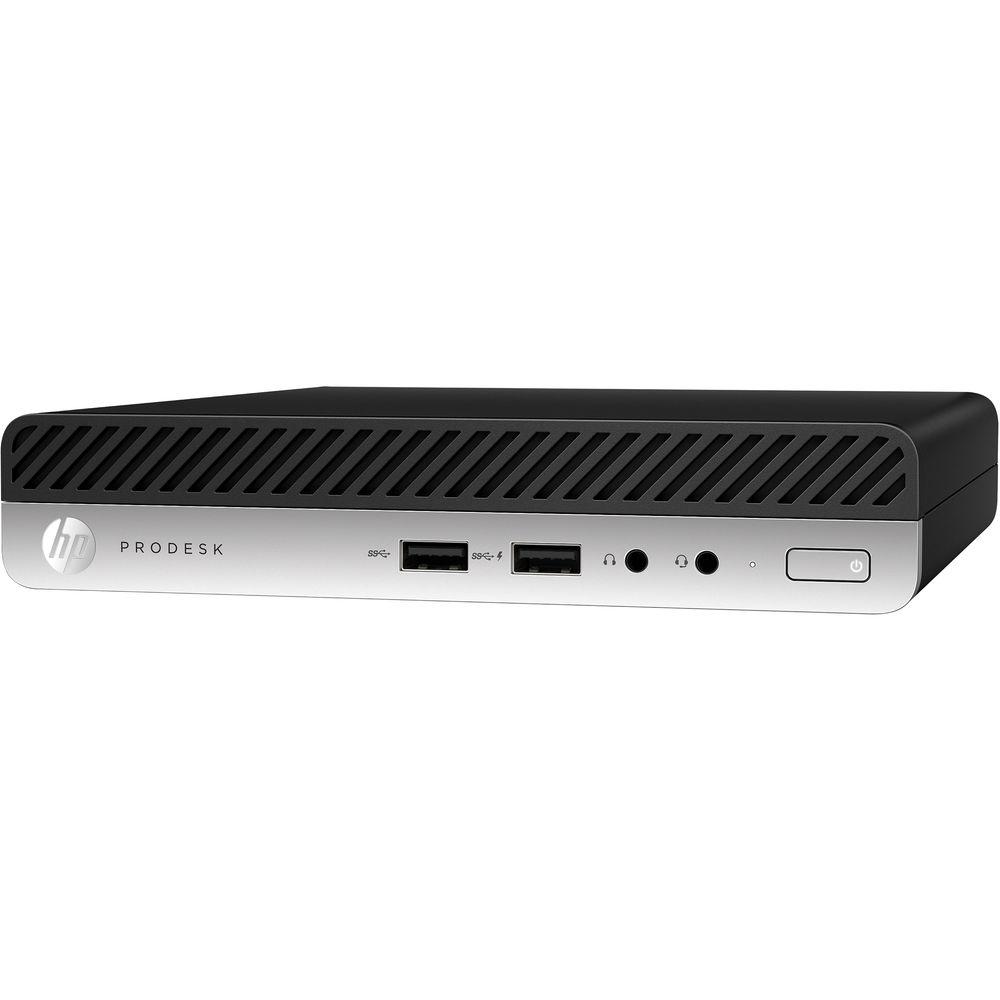

Product description Designed to fit in modern workspaces, the compact ProDesk 400 G4 Mini Desktop Computer from HP delivers reliability and performance for your growing business. It is powered by a 3.1 GHz Intel Core i3-8100T quad-core processor that will allow you to run multiple applications simultaneously. The 4GB of 2666 MHz DDR4 RAM also helps the computer to run multiple applications simultaneously, as well as access frequently used files and programs. The current memory configuration is one 4GB module with an additional slot available for memory upgrades, making for a total of two 260-pin SO-DIMM slots. With both slots in use, this system supports 32GB of RAM.
For long-term storage of your files, the ProDesk 400 G4 is equipped with a 500GB 7200 rpm SATA III 2.5" hard drive. If you want to connect with external storage drives or other peripherals, there are four USB 3.1 Gen 1 Type-A ports, one of which doubles as a charging port, and two USB 2.0 Type-A ports. The integrated Intel UHD Graphics 630 chipset delivers a sharp, clear picture. Whether you are listening to music, watching a movie, or playing a game, the Conexant CX20632 codec outputs high-definition audio and delivers higher fidelity than standard audio controllers.
The ProDesk 400 G4 Mini Desktop Computer includes an HP USB Business Slim keyboard, an HP USB optical mouse, a 65W external power supply that is 89% efficient, and a 6' power cord. The installed operating system is FreeDOS. Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations. Each HP ProDesk includes a 3/3/3 warranty - 3-years limited warranty for parts, 3-years limited warranty for labor, and 3-years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175. General Features - Place It Where You Need It
- Take your footprint down to near zero with a chassis that attaches behind an HP EliteDisplay, or mount and secure it almost anywhere with HP accessories. Declutter your space with short cables and rear I/O ports that connect to a range of displays.
- HP-Exclusive Security and Manageability
- Help prevent data breaches and downtime with HP BIOSphere Gen4 and protect against web-based attacks with HP Sure Click. Manage devices through Microsoft System Center Configuration Manager with the HP Manageability Integration Kit.
- Gigabit Ethernet & 802.11ac Wi-Fi
- The system uses an integrated Realtek RTL8111HSH-CG Gigabit Ethernet controller for internet access when connected to a router, modem, or network switch. For those who prefer to connect wirelessly, there is also an 802.11ac Wi-Fi card installed in an M.2 2230 PCIe x1 slot.
- Bluetooth 5.0
- Compatible wireless peripherals, such as keyboards, mice, and headsets, can be paired with this system using Bluetooth 5.0 technology.
- 4 x USB 3.1 Gen 1 Type-A | 2 x USB 2.0 Type-A

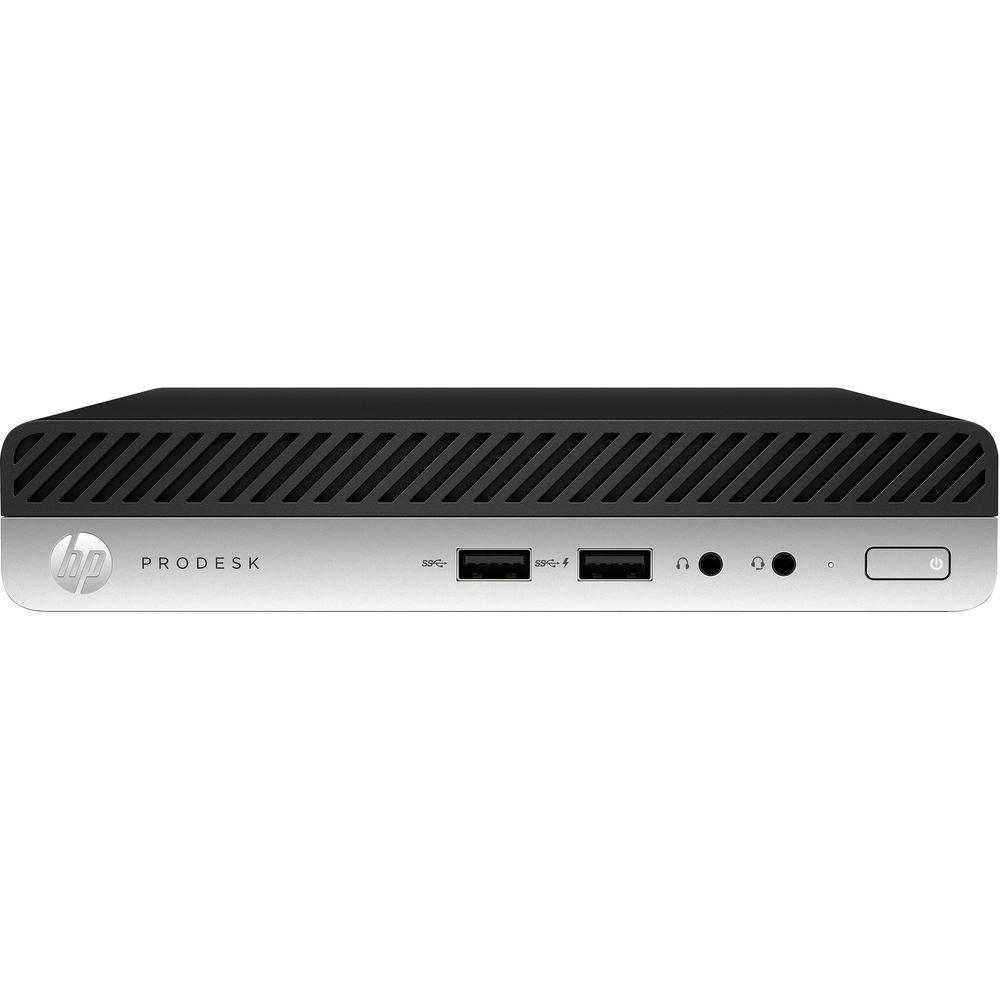

- On the front of the chassis, one of the two USB 3.1 Gen 1 Type-A ports doubles as charging port. There are also two additional rear USB 3.1 Type-A ports.
- Audio Output
- The front of the chassis has two 3.5mm jacks, one of which supports headphones, while the other supports CTIA-style headsets. Headset connectors are retaskable to function as a line-in, microphone-in, line-out, or headphone-out port.
- Drive Bays
- Users can upgrade the storage in the system's 2.5" drive bay, as well as add additional internal storage using the M.2 slot, which supports M.2 PCIe x4 drives with a 2230 or 2280 form factor.
- Power Supply
- The 65W power supply is up to 89% efficient.
UPC: 192545394833 In the Box HP ProDesk 400 G4 Mini Desktop Computer HP USB Business Slim Keyboard HP USB Optical Mouse 65W Power Supply Power Cord (6.0' / 1.8m) Limited 3-Year Warranty for Parts Limited 3-Year Warranty for Labor 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-866-625-1175 Table of Contents
|
Upload User Manual
Have you got an user manual for the HP ProDesk 400 G4 Mini Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

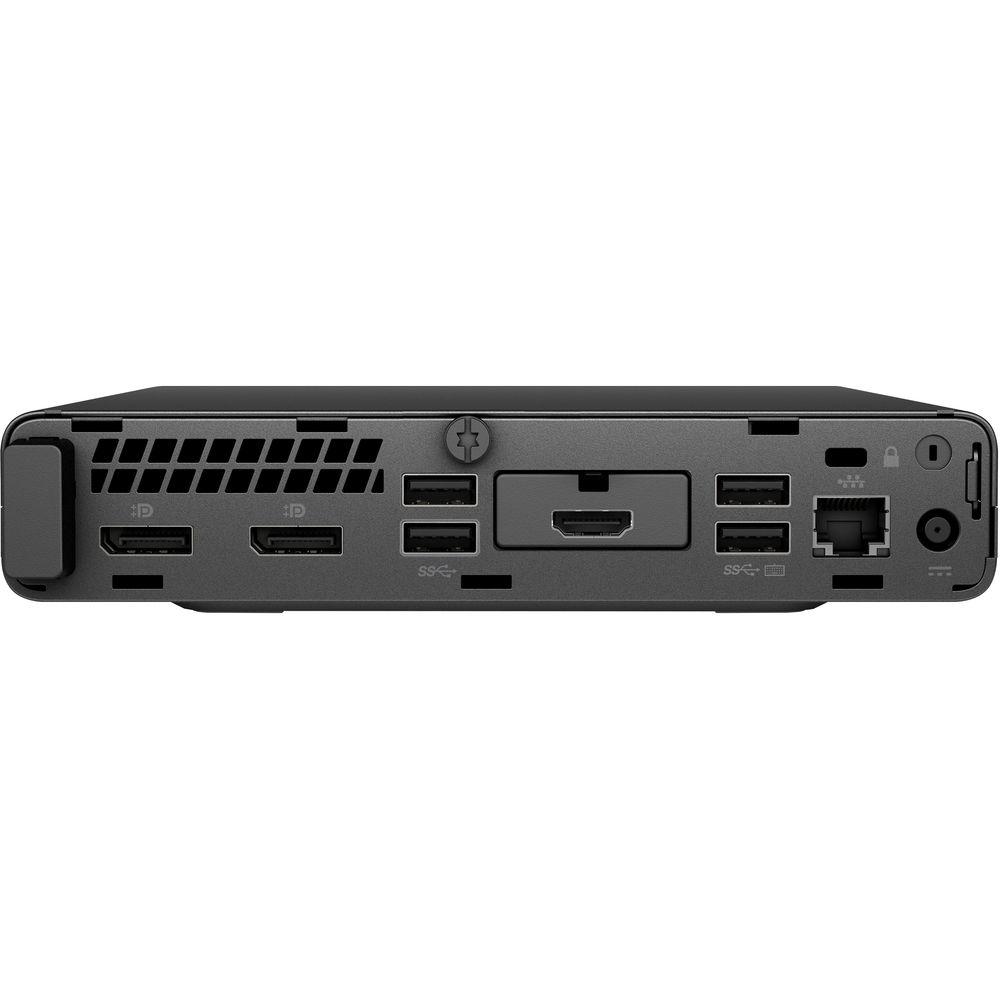

Technical parametersHP 400 G4 Specs | Operating System | FreeDOS 2.0 | | | | Chipset | Intel B360 | | CPU | 3.1 GHz Intel Core i3-8100T Quad-Core | | L3 Cache | 6 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 4 GB | | Memory Configuration | 1 x 4 GB (User-Replaceable) | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 1 | | Graphics Type | Integrated | | GPU | Intel UHD Graphics 630 | | | | SSD Slots | 1 x M.2 | | Hard Disk Storage | 1 x 500 GB 2.5" SATA (7200 rpm) | | PCI Expansion | None | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0) | | Display | 2 x DisplayPort 1.2 | | Audio | 1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 1 | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 5.0 | | | | Keyboard | 104-Key Full-Size Keyboard with Number Pad | | Pointing Device | USB Mouse | | | | Power Supply | 65 W | | Dimensions | 7 x 1.4 x 6.9" / 17.8 x 3.6 x 17.5 cm | | Weight | 2.8 lb / 1.2 kg | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 19.0 x 9.0 x 6.0" |
