User Manual for HP ProDesk 600 G4 Mini Desktop Computer Click to enlarge the picture
Contents of the user manual for the HP ProDesk 600 G4 Mini Desktop
- Product category: Desktop Computers HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Desktop Computers
|
User manual for the HP ProDesk 600 G4 Mini Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

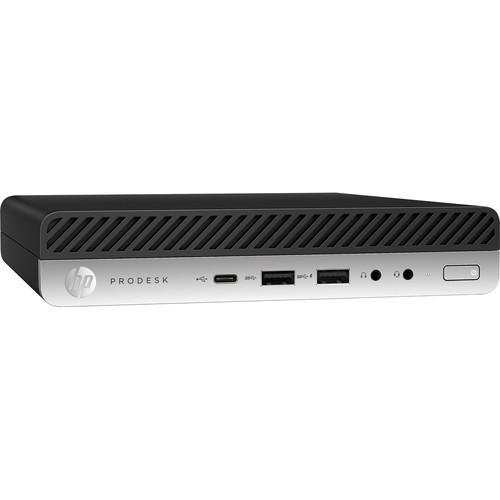

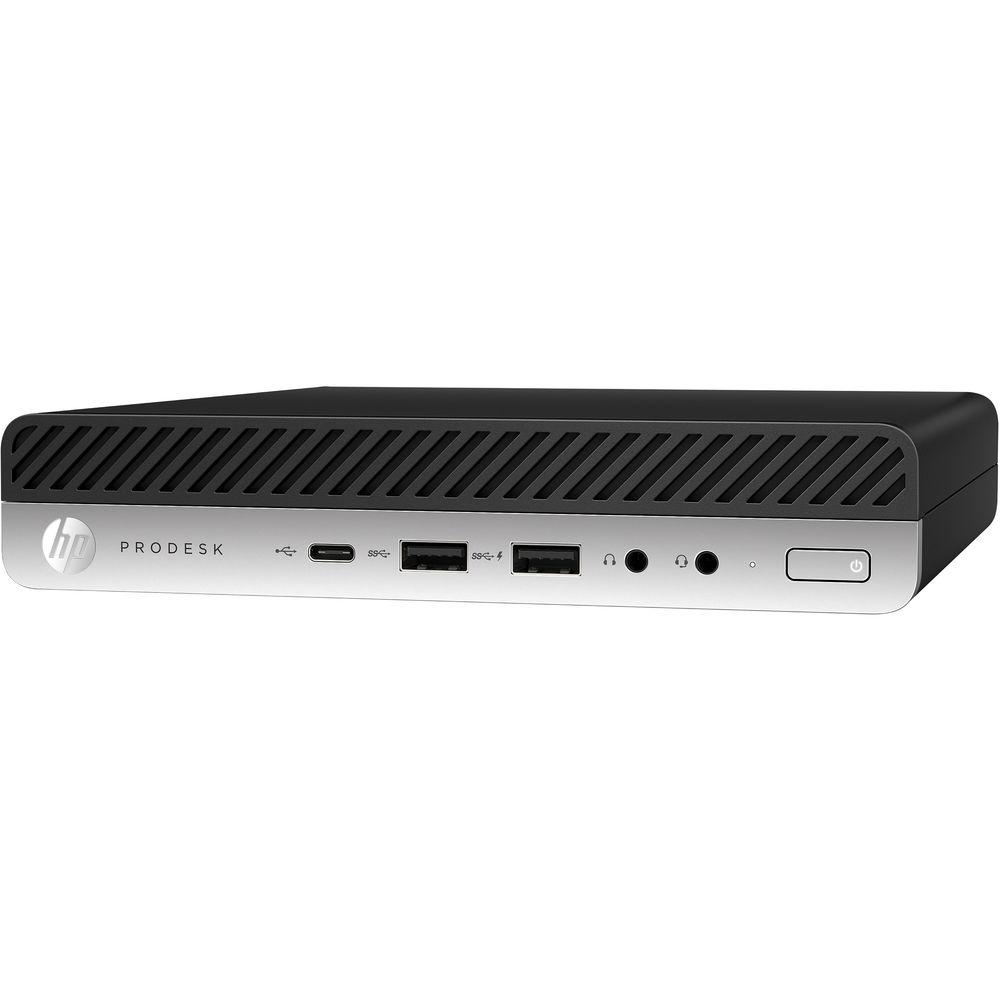

Product description Designed to fit in modern workspaces, the small ProDesk 600 G4 Mini Desktop Computer from HP delivers powerful and reliable performance with security and manageability features for business use. It is powered by a 2.1 GHz Intel Core i5-8500T Six-Core processor that can be overclocked up to 3.5 GHz and will allow you to run multiple applications simultaneously. The 8GB of 2666 MHz DDR4 RAM also helps the computer to run multiple applications simultaneously, as well as access frequently used files and programs. The current memory configuration is one 8GB module with an additional slot available for memory upgrades, making for a total of two 260-pin SO-DIMM slots. With both slots in use, this system supports 32GB of RAM, or 16GB per slot.
For long-term storage of your files, the ProDesk 600 G4 is equipped with a 128GB NVMe PCIe M.2 SSD. If you want to connect with external storage drives or other peripherals, there is one USB 3.1 Gen 2 Type-C port, three USB 3.1 Gen 2 Type-A ports, and three USB 3.1 Gen 1 Type-A ports. The integrated Intel UHD Graphics 630 chipset delivers a sharp, clear picture while allowing for a wide range of monitors to be used via its two DisplayPort 1.2 and one VGA output. Whether you are listening to music, watching a movie, or playing a game, the Conexant CX20632 codec outputs high-definition audio and delivers higher fidelity than standard audio controllers.
The ProDesk 600 G4 Mini Desktop Computer includes an HP USB Business Slim keyboard, an HP USB optical mouse, a 65W external power supply that operates using 90-264 VAC at 47-63 Hz, and a 6' power cord. The installed operating system is Windows 10 Pro (64-bit) and also included is Windows 10 Pro (64-bit) recovery media, which is located on both the system's internal storage and HP's OS download site.
Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Each HP ProDesk includes a 3/3/3 warranty - 3-years limited warranty for parts, 3-years limited warranty for labor, and 3-years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175. General Features - Place It Where You Need It
- Take your footprint down to near zero with a system that attaches behind an HP EliteDisplay, or mount and secure it almost anywhere with HP accessories.
- Gigabit Ethernet & 802.11ac Wi-Fi
- The system uses an integrated Intel I219-LM Gigabit Ethernet controller for network access when connected to a router, modem, or network switch. For those who prefer to connect wirelessly, there is also integrated dual-band 802.11ac Wi-Fi, which is installed using in the system's PCIe M.2 2230 slot.
- Bluetooth 5.0
- Compatible wireless peripherals, such as keyboards, mice, and headsets can be paired with this system using Bluetooth 5.0 technology.
- USB 3.1 Gen 2 Type-C | USB 3.1 Gen 2 Type-A | USB 3.1 Gen 1 Type-A

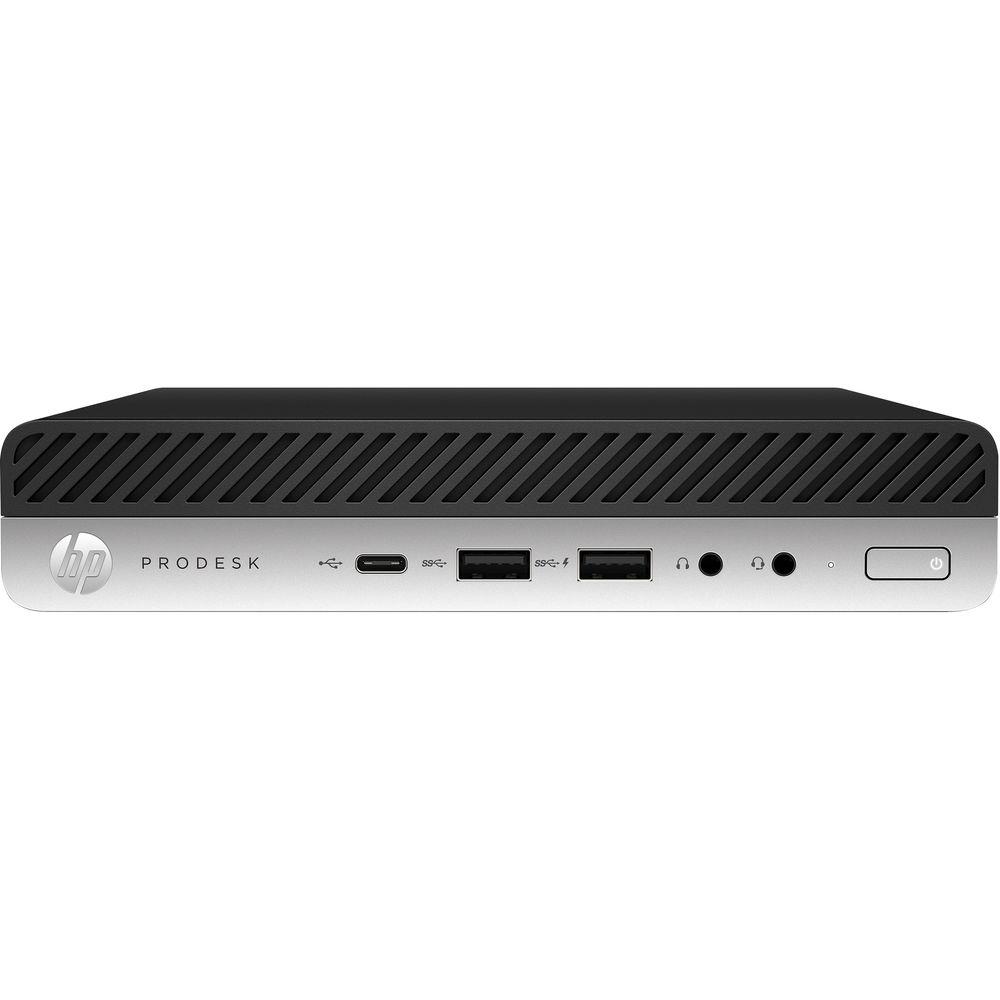

- On the front of the chassis, there is one USB 3.1 Gen 2 Type-C port, one USB 3.1 Gen 2 Type-A port, and one USB 3.1 Gen 1 Type-A port, which doubles as a charging port. On the rear, there are two USB 3.1 Gen 2 Type-A ports and two USB 3.1 Gen 1 Type-A ports.
- Audio Output
- The front of the chassis has two 3.5mm jacks, one of which supports headphones, while the other supports CTIA-style headsets. Headset connectors are retaskable to function as a line-in, microphone-in, line-out, or headphone-out port.
- Drive Bays
- The ProDesk 600 G4 has one 2.5" SATA drive bay, plus two M.2 2280/2230 connectors for adding to or upgrading your system's internal storage.
- Power Supply
- The 65W power supply is up to 89% efficient and is rated for 90-264 VAC at 47-63 Hz.
Windows 10 Professional - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the Internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 192545601870 In the Box HP ProDesk 600 G4 Mini Desktop Computer HP USB Business Slim Keyboard HP USB Optical Mouse 65W External Power Supply Power Cord (6.0' / 1.8m) Windows 10 Pro (64-bit) Recovery Media Limited 3-Year Warranty for Parts Limited 3-Year Warranty for Labor 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-866-625-1175 Table of Contents
|
Upload User Manual
Have you got an user manual for the HP ProDesk 600 G4 Mini Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP 600 G4 Specs Operating System | Windows 10 Pro (64-Bit) | | Chipset | Intel Q370 | CPU | 2.1 GHz Intel Core i5-8500T 6-Core | Maximum Boost Speed | 3.5 GHz | L3 Cache | 9 MB | Memory Type | 2666 MHz DDR4 | Total Installed Memory | 8 GB | Memory Configuration | 1 x 8 GB (User-Replaceable) | Maximum Memory Capacity | 32 GB | Memory Slot Type | 260-Pin SO-DIMM | Available Memory Slots | 1 | Graphics Type | Integrated | GPU | Intel UHD Graphics 630 | | Total Drive Bays | 1 x 2.5" (Internal) | SSD Slots | 2 x M.2 | Solid State Storage | 1 x 128 GB M.2 NVMe PCIe | PCI Expansion | 1 x M.2 2230 (E-Key) | Optical Drive | None | | Ports | 3 x USB Type-A (USB 3.1 Gen 1) 3 x USB Type-A (USB 3.1 Gen 2) | USB Type-C Ports | 1 x USB 3.1 Gen 2 | Display | 2 x DisplayPort 1.2 1 x VGA | Audio | 1 x 1/8" / 3.5 mm Headphone Output 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | Built-In Speakers | 1 | Media Card Slots | None | | Ethernet | 1 x RJ45 (Gigabit) | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | Bluetooth | 5.0 | | Keyboard | Full-Size Keyboard with Number Pad | Pointing Device | USB Mouse | | Power Supply | 65 W | Dimensions | 7 x 1.4 x 6.9" / 17.8 x 3.6 x 17.5 cm | Weight | 2.8 lb / 1.2 kg | | Package Weight | 6.05 lb | Box Dimensions (LxWxH) | 19.7 x 8.95 x 5.05" |
