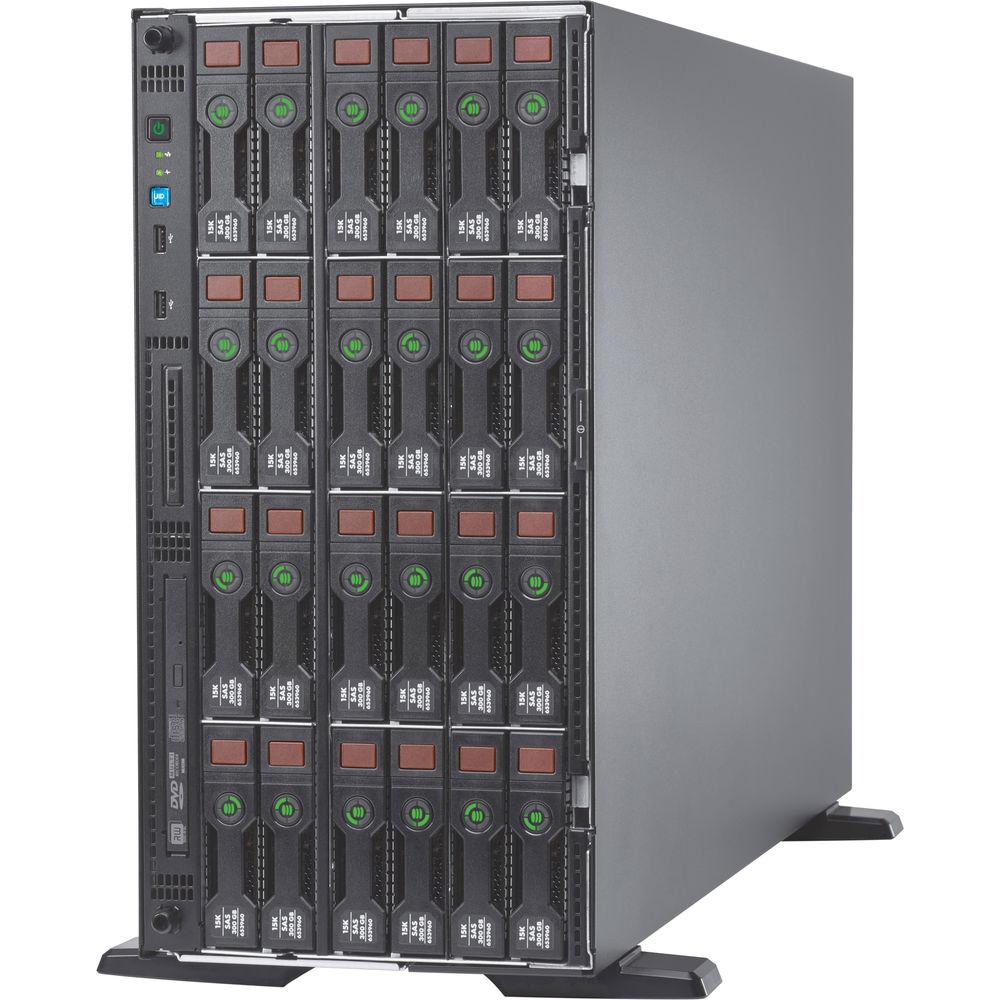

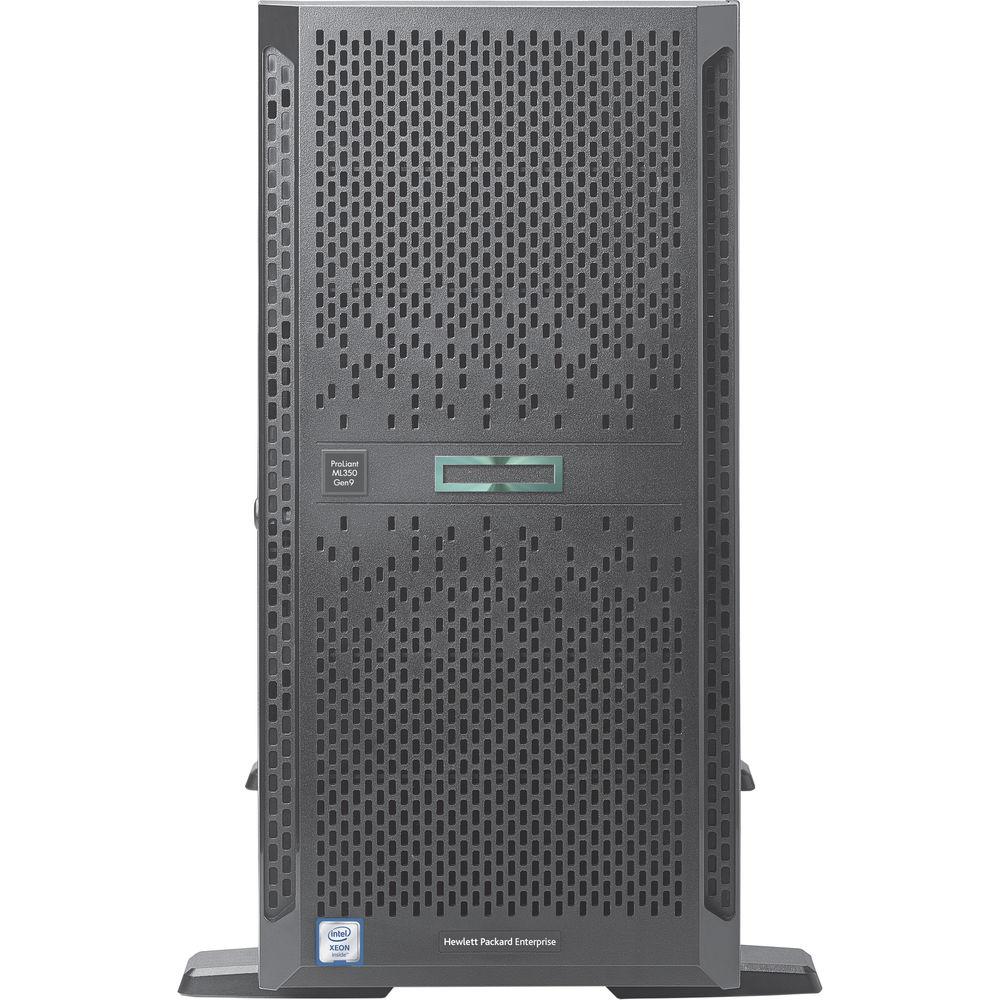

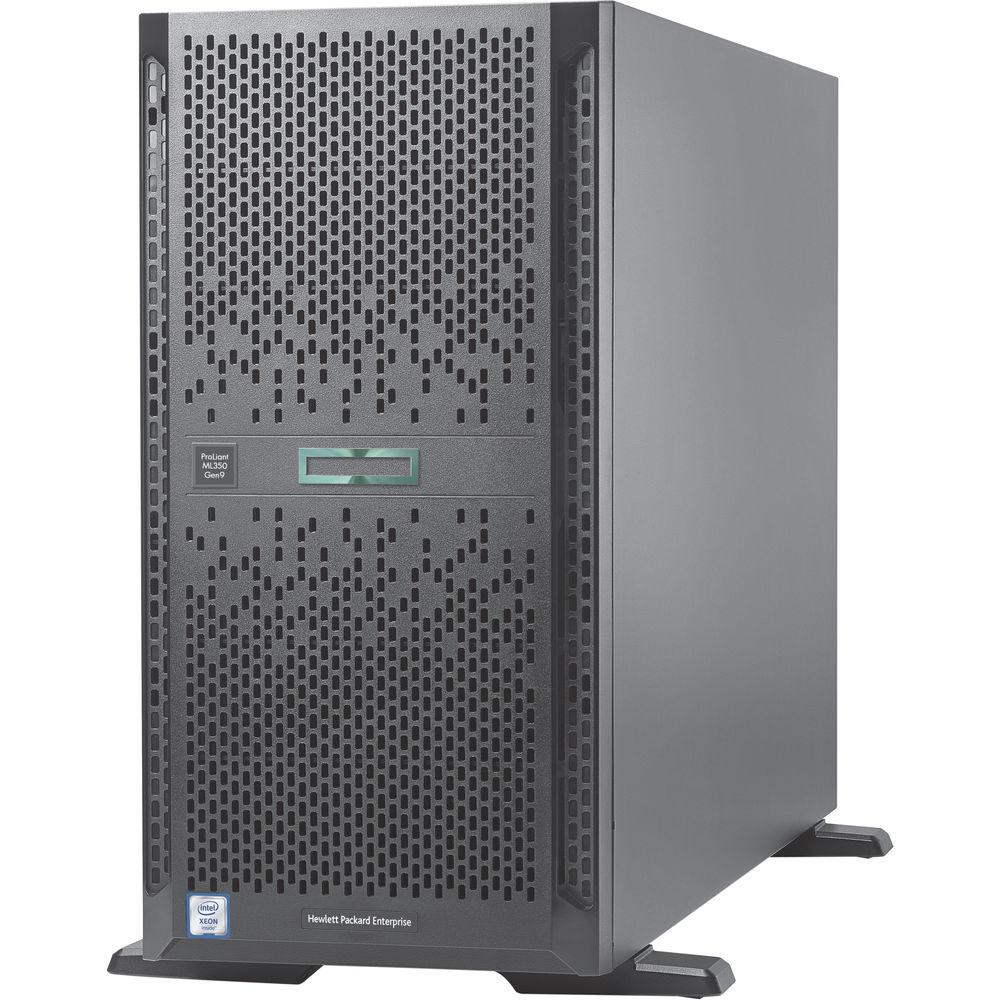

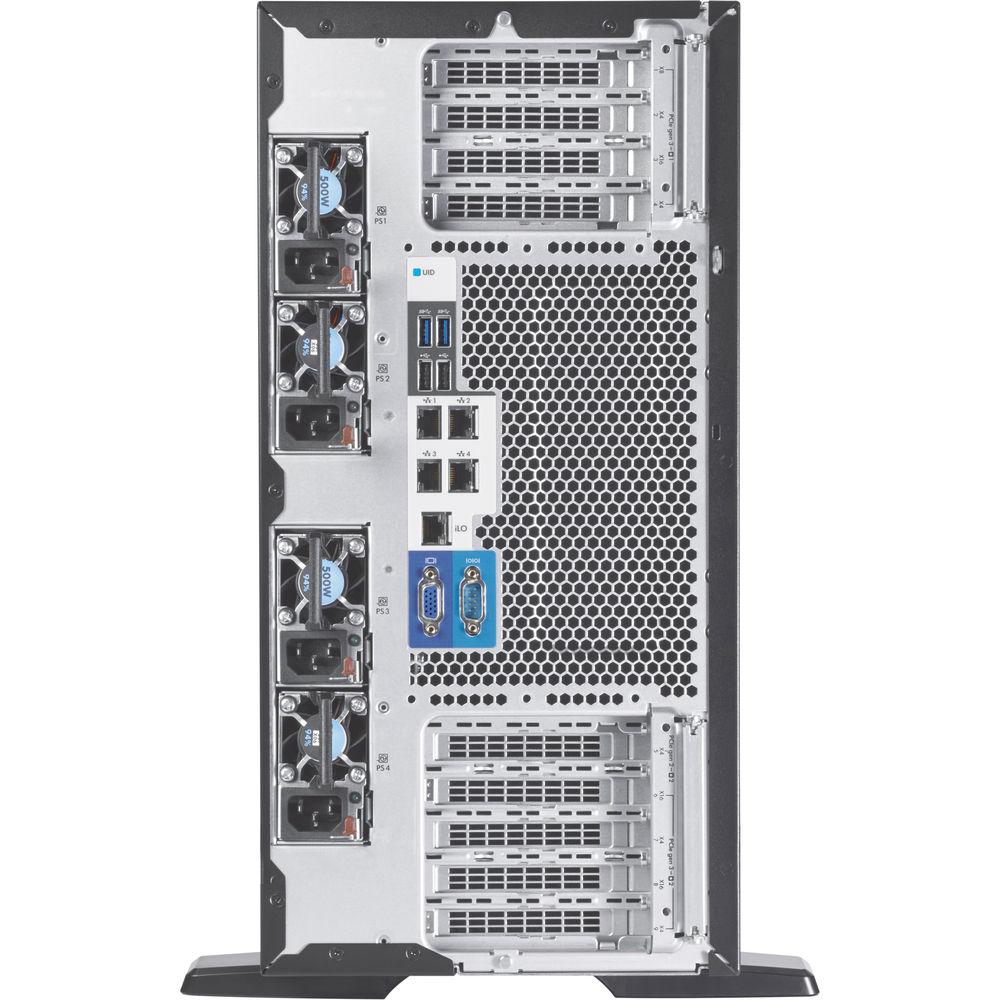

User Manual for HP ProLiant ML350 Gen9 Server Click to enlarge the picture
Contents of the user manual for the HP ProLiant ML350 Gen9 Server
- Product category: Server Systems HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Server Systems
 |
User manual for the HP ProLiant ML350 Gen9 Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Provided by third party: Need to increase your business productivity and improve operations while balancing your employees' mobility, security and collaboration needs, all within your limited IT budget? The HPE ProLiant ML350 Gen9 Server delivers a class-leading combination of performance, expandability, manageability, reliability and serviceability making it the choice for enterprise data centers, expanding SMBs and remote offices of larger businesses. The HPE ProLiant ML350 server leverages the Intel Xeon E5-2600 v3 and v4 processors with up to 21% performance gain, plus the latest HPE DDR4 SmartMemory offering up to 23% performance increase. Additional support for 12 Gb/s SAS, embedded 4x1GbE NIC with a broad range of graphics and compute options. Manage your HPE ProLiant in any IT environment by automating the most essential server lifecycle management tasks: deploy, update, monitor, and maintain with ease. The HPE ProLiant ML350 is ideal for enterprise IT infrastructure to mission-critical applications.
- Key Features
-
- The HPE ProLiant ML350 Gen9 Server supports up to (2) Intel Xeon E5-2600 v3 or v4 processors offering improved performance.
- The HPE ProLiant ML350 Gen9 Server offers expandability with greater capacity with (8) to (24) LFF, (8) to (48) SFF drive options and increased I/O expansion.
- The HPE ProLiant ML350 Gen9 Server provides powerful converged management capabilities for the infrastructure lifecycle with embedded server management for provisioning, updating and diagnostic support with HPE iLO.
- The HPE ProLiant ML350 Gen9 Server offers ENERGY STAR
|
Upload User Manual
Have you got an user manual for the HP ProLiant ML350 Gen9 Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP ML350 Gen 9 Specs | | | Type | Server | | Product Form Factor | Tower - 5U | | Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip | | Server Scalability | 2-way | | Front Accessible Bays Qty | 1 | | Hot-Swap Bays Qty | 8 | | Localization | Region: United States | | | | CPU | Intel Xeon E5-2620V4 / 2.1 GHz | | Max Turbo Speed | 3 GHz | | Number of Cores | 8-core | | CPU Qty | 1 | | Max CPU Qty | 2 | | CPU Upgradability | Upgradable | | | | Installed Size | 20 MB | | Cache Per Processor | 20 MB | | | | Installed Size | 16 GB / 384 GB (max) | | Technology | DDR4 SDRAM - Advanced ECC | | Effective Memory Speed | 2400 MHz | | Rated Memory Speed | 2400 MHz | | Memory Specification Compliance | PC4-19200 | | Form Factor | DIMM 288-pin | | Slots | 24 (total) / 23 (empty) | | Features | Registered, Online Spare Memory, quad channel memory architecture, HP SmartMemory | | Configuration Features | 1 x 16 GB | | RAM Supported | 768 GB Load-Reduced
384 GB registered | | | | Type | 1 x RAID - PCIe 3.0 x8 | | Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s | | Storage Controller Name | Smart Array P440ar with 2GB FBWC | | RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 60, RAID 1 ADM, RAID 10 ADM | | Buffer Size | 2 GB | | | | Graphics Processor | Matrox G200 | | Video Interfaces | VGA | | | | Ethernet Ports | 4 x Gigabit Ethernet | | Ethernet Controller | HP 331i | | Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet | | Remote Management Protocol | IPMI 2.0, SMASH CLP | | Remote Management Controller | Integrated Lights-Out 4 | | Features | Wake on LAN (WoL), PXE support | | Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab | | | | Bays | 1 (total) / 1 (free) x external 5.25" Slim Line
8 (total) / 8 (free) x hot-swap 2.5" SFF | | Slots | 24 (total) / 23 (free) x DIMM 288-pin
2 (total) / 1 (free) x CPU
4 (total) / 4 (free) x PCIe 3.0 x8 - full-length, full-height (x4 mode)
3 (total) / 3 (free) x PCIe 3.0 x16 - full-length, full-height
1 (total) / 1 (free) x PCIe 2.0 x8 - half-length, full-height (x4 mode)
1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x8 mode)
1 (total) / 1 (free) x microSD Card (internal) | | Interfaces | 1 x VGA
1 x serial
4 x LAN (Gigabit Ethernet)
1 x HP iLO
3 x USB 3.0 (2 rear, 1 internal)
5 x USB 2.0 (2 front, 2 rear, 1 internal) | | | | Included Accessories | 3 x system fans | | Compliant Standards | ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, ASHRAE, CNS 13438 | | | | Device Type | Power supply - hot-plug | | Power Redundancy | Optional | | Power Redundancy Scheme | 1+1 (with optional power supply) | | Installed Qty | 1 | | Max Supported Qty | 2 | | Nominal Voltage | AC 120/230 V (50/60 Hz) | | Power Provided | 500 Watt | | 80 PLUS Certification | 80 PLUS Platinum | | | | OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Citrix XenServer, Canonical Ubuntu | | | | ENERGY STAR Certified | Yes | | | | Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day | | | | Width | 8.6 in | | Depth | 30.3 in | | Height | 18.3 in | | Weight | 66.14 lbs | | | | Min Operating Temperature | 50
