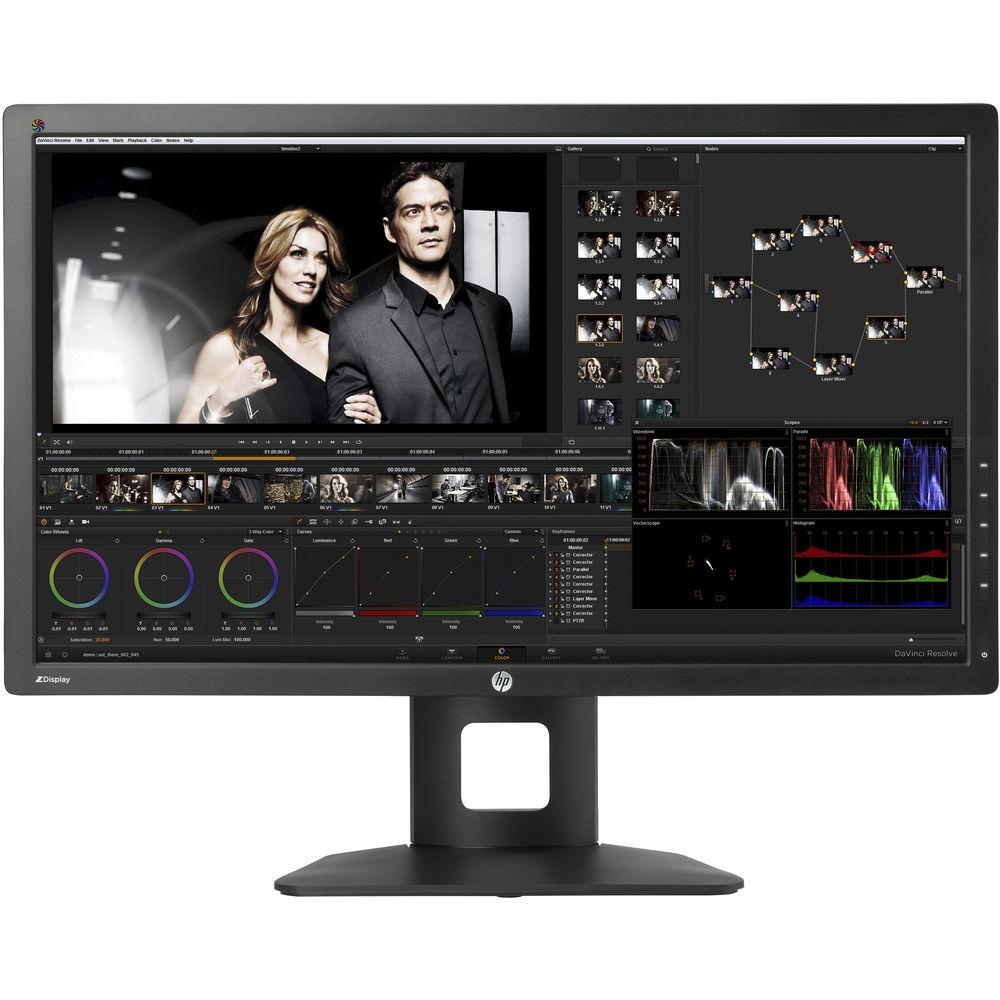

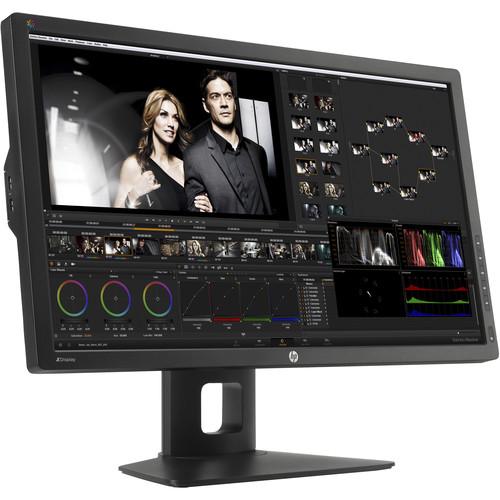

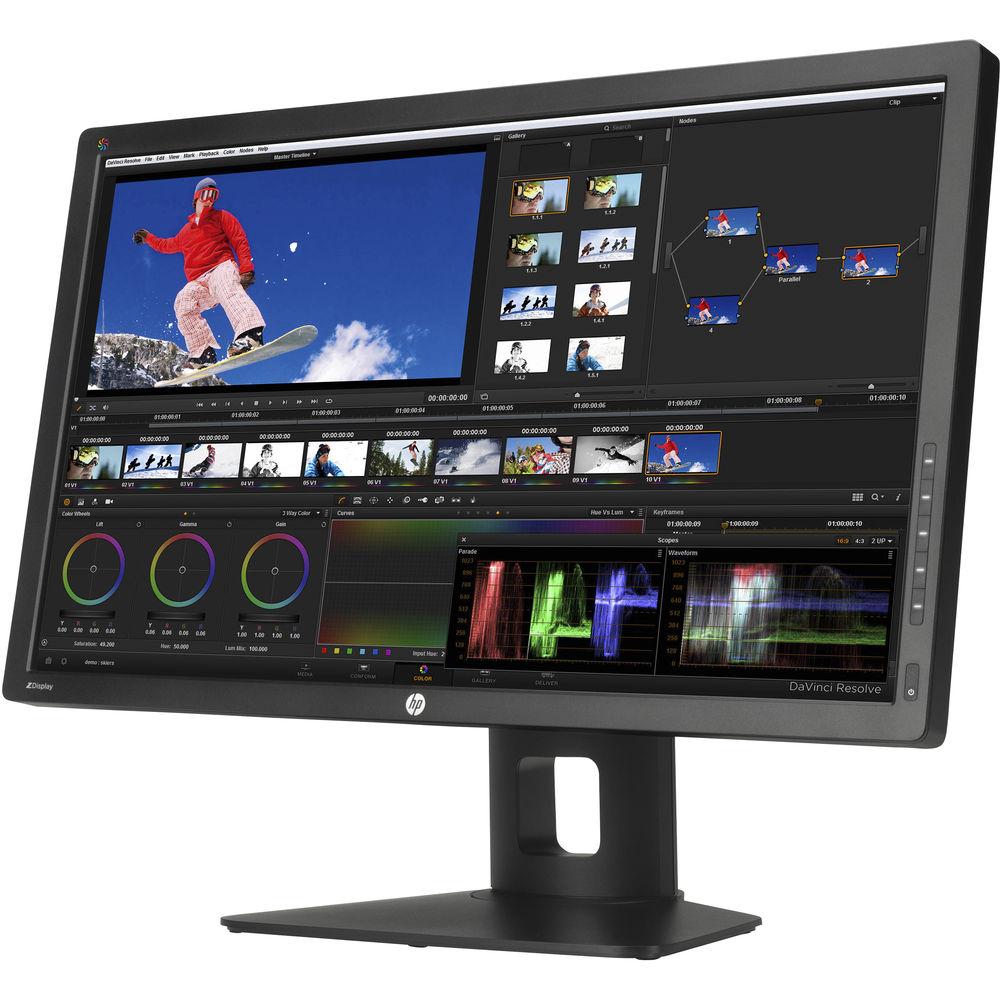

User Manual for HP Promo DreamColor Z27x 27" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the HP Promo DreamColor Z27x 27" 16:9
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP Promo DreamColor Z27x 27" 16:9 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With the DreamColor Promo Z27x 27" 16:9 LCD Monitor from HP you can bring your ideas to life as you can work with rich, accurate colors, including ultra deep blacks. This DreamColor Panel supports a massive 2560 x 1440 resolution, along with a brightness rating of 250 cd/m², a 1,000:1 static contrast ratio, and enhanced 178° horizontal and vertical viewing angles. Connectivity options include HDMI and DisplayPort 1.2 video inputs; along with five USB 3.0 ports, two USB 2.0 ports, and one audio port. - Improve Your Workflow
- Experience up to 1.07 billion colors with 1,024 tones per channel as the HP DreamColor Engine 2 powers through your 4K content with 10-bit color accuracy and easily handles today's most demanding professional workflows.
- Color Customization at Your Fingertips
- Create your own color space with just one-touch with the integrated calibration engine. Enjoy seamless compatibility with a range of professional color measurement devices, including the optional HP DreamColor Calibration Solution.
- Enhanced Color Accuracy
- Deep, rich CRT-class blacks at nearly any angle with custom-engineered, advanced Off-Axis Black and second-generation IPS technologies. 99% coverage of DCI-P3 and 100% coverage of sRGB and Adobe RGB.
- Push Button Color Accuracy
- Instant push-button color accuracy with 7 color space presets. The integrated calibration engine recalibrates with a professional color measurement device or the HP DreamColor Calibration Solution.
- USB Connectivity
- With two HP DreamColor USB ports, connect your choice of professional color measurement device and a USB flash drive directly to the display.
UPC: 887758227848 In the Box HP Promo DreamColor Z27x 27" 16:9 LCD Monitor Power Cable USB Cable DisplayPort Cable HDMI Cable Mini DisplayPort Cable Limited 3-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Promo DreamColor Z27x 27" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the HP Promo DreamColor Z27x 27" 16:9 LCD Monitor can be downloaded in PDF format at the link stated below.
Technical parametersHP Z27x Specs | | | Size | 27" | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 109 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 800:1 | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Response Time | 7 ms (GtG) | | Viewing Angle | Horizontal: 178°

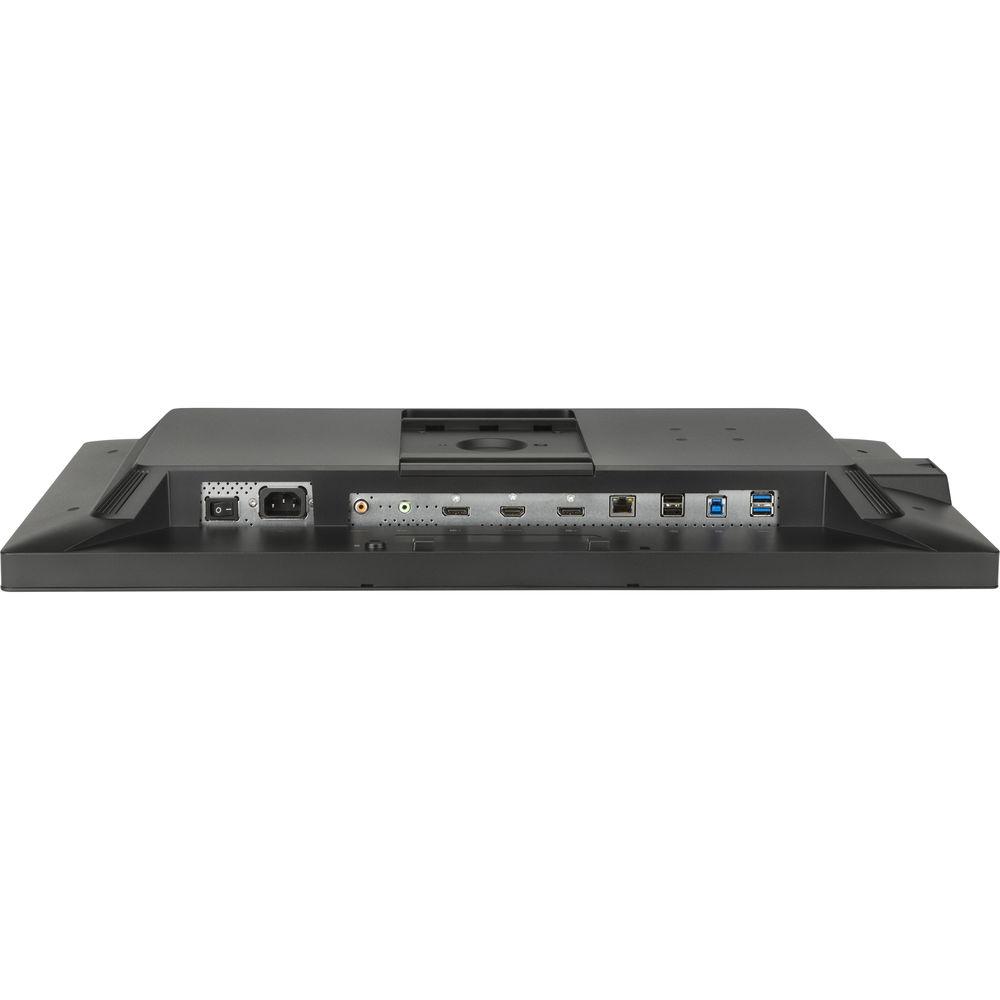

Vertical: 178° | | Dot Pitch | 0.233 x 0.233 mm | | | | Connectivity | 1 x USB Type-B (USB 3.1 Gen 1) Input
4 x USB Type-A (USB 3.1 Gen 1) Output
2 x USB Type-A 2.0 Output
1 x DisplayPort 1.2 Input
1 x HDMI | | HDCP Support | Yes | | | | Power Consumption | 110 W (Maximum)
1.2 W (Standby)
65 W (Typical) | | AC Input Power | 90 to 265 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, as per Manufacturer | | | | Height Adjustment | 4.7" / 11.9 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 20° | | Dimensions (W x H x D) | 25.2 x 15.6 x 9.6" / 64.1 x 39.5 x 24.3 mm (With Stand)
25.2 x 14.9 x 2.6" / 64.1 x 37.9 x 6.6 mm (Without Stand) | | Weight | 19.4 lb / 8.8 kg (With Stand) | | | | Package Weight | 24.4 lb | | Box Dimensions (LxWxH) | 28.0 x 20.0 x 12.0" |
